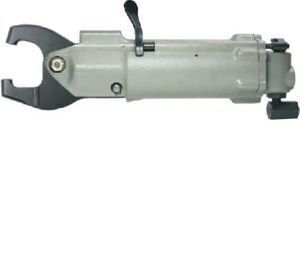

6200 LBS 1-1/2" PNEUMATIC REACH SQUEEZE RIVETER (GS-0132C)

Click here to contact
Product details
Supply Ability:500 Set/Sets per Month;Payment Terms:L/C,T/T;
Place of Origin:Taiwan;Packaging Detail:PACKING: 1 PC/INNER BOX, 6 PCS/ 15.00 KGS/17.00 KGS/1.25 CUFT/CTN.;
FORCE:6200 lb (27.60 KN);REACH:1-1/2" (38.1 MM);
Port:TAIWAN;

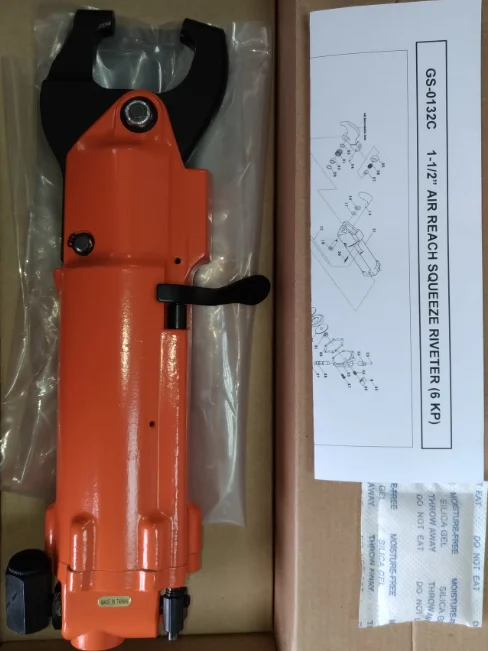

GS-0132C  1-1/2” PNEUMATIC REACH SQUEEZE RIVETER

DESCRIPTION

* RIVET CAPACITY:

1. ALUM: Ø3/16 (4.76MM)

2. STEEL: Ø5/32 (3.96MM)

* STANDARD YOKE DIMENSIONS:

REACH: 1-1/2” (38.1 MM)

* MAX FORCE W/ 90 PSI (6.21 BAR) AIR PRESSURE: 6200 lb (27.60 KN)

* SET HOLDER:

1. MAX TRAVEL: 5/8” (15.90MM)

2. STROKE AT MAX POWER: 1.3 MM

* OVERALL LENGTH: 11-3/16” (280 MM)

* AIR PRRSSURE: 90 PSI

* WEIGHT WITH YOKE: 4.75 LBS. (2.2 KGS)

* GS-0132C APPLICATION:

* REACH: 1.54” = 39.12 MM

* GAP: 0.89” = 22.61 MM





* JAW OPENING: 36 MM

* JAW CLOSED: 22.6 MM

 PACKING: 1 PC/INNER BOX, 6 PCS/ 15.00 KGS/17.00 KGS/1.25 CUFT/CTN.
