Rail wear gauge standard gauge for railway track detection device

Product details
Origin:Hubei, ChinaAdvantage:High precision and low cost
Single package size:170X30X30 cmapplication:measure
type:MeasurementGross weight per piece:5.000 kg
super high error:± 0.3mmPackage preview:
Gauge range:1410~1470mmPackaging Details:PE foam + carton slope measuring instrument
Sales unit:single productproduct name:Digital gauge
Gauge division value:0.01mmGuardrail Inspection Regulations:(1381 - 1401)mm
Ultra high measuring range:+185~-185mmSuper high division value:0.05mm
brand:LinkageDimensions (LxWxH) (mm):(length x width x height) (m)1.6*0.3*0.6m
Material:aluminum alloytrack gauge maximum indication error):± 0.25mm
Product Description

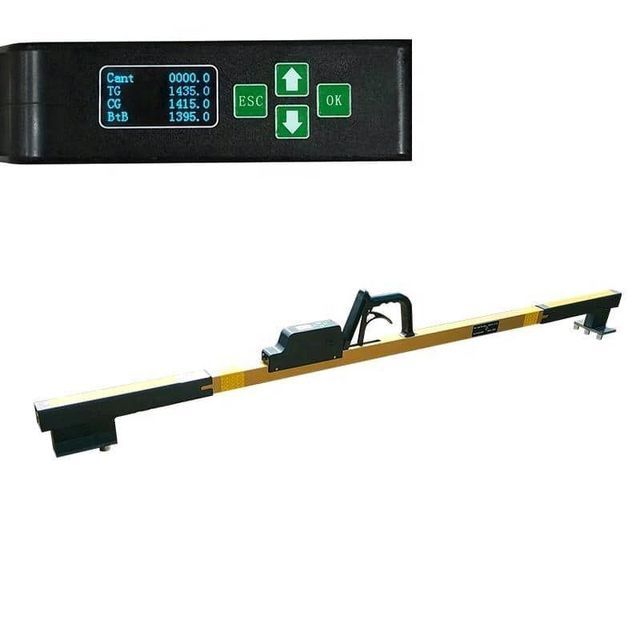

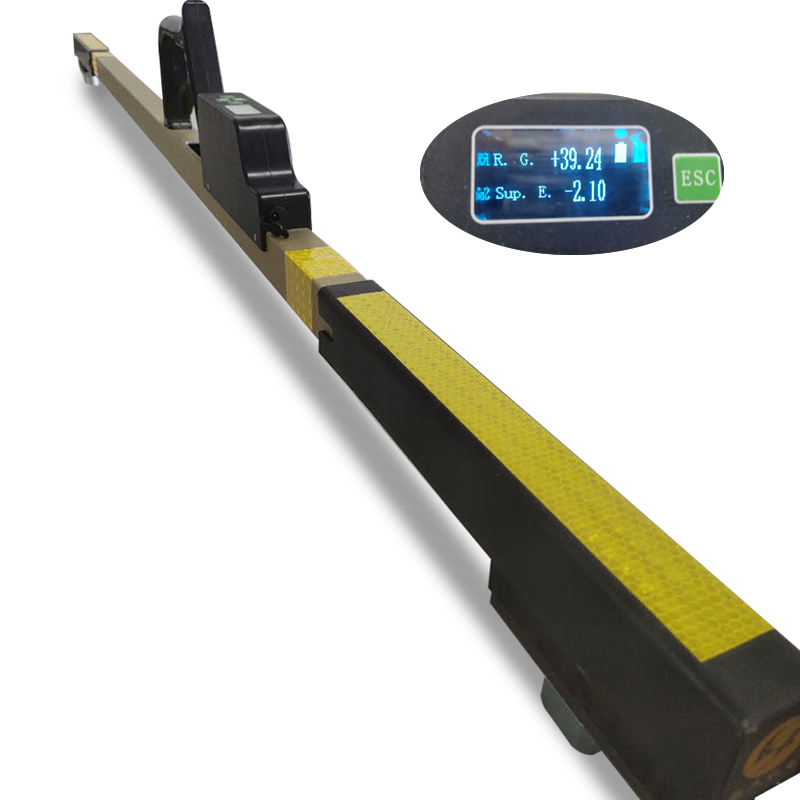

Digital gauge
special function:

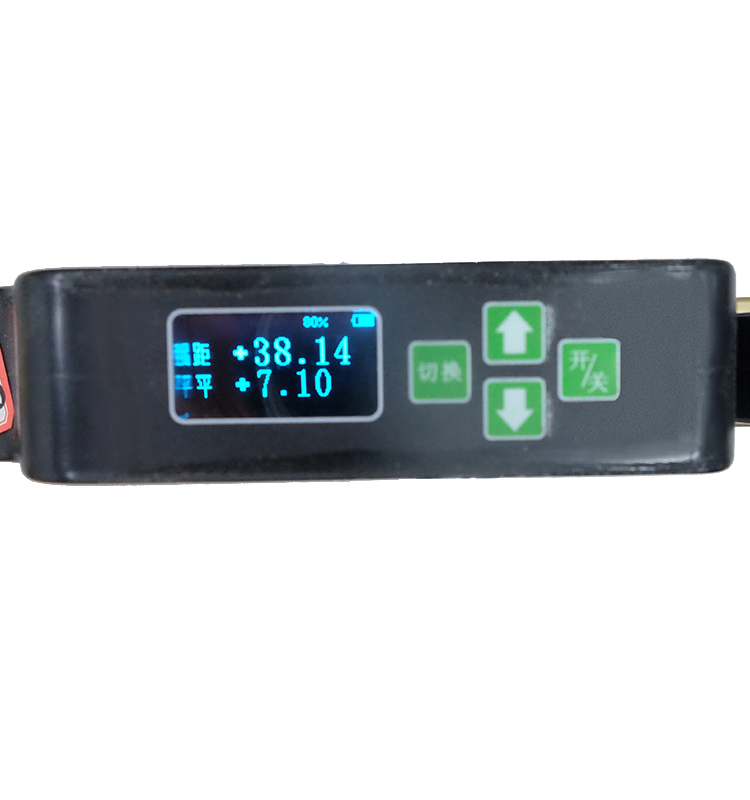

1. OLED display: 1 view on the display shows 4 measured values
2.Automatic reading function:Springs make measuring faster and easier
3. "Pinch the handle" measurement is easier than adjusting the sliding part close to the rail.
4. Temperature compensation function

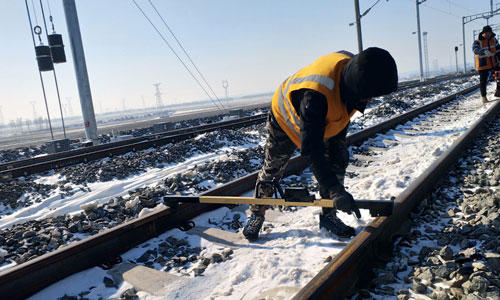

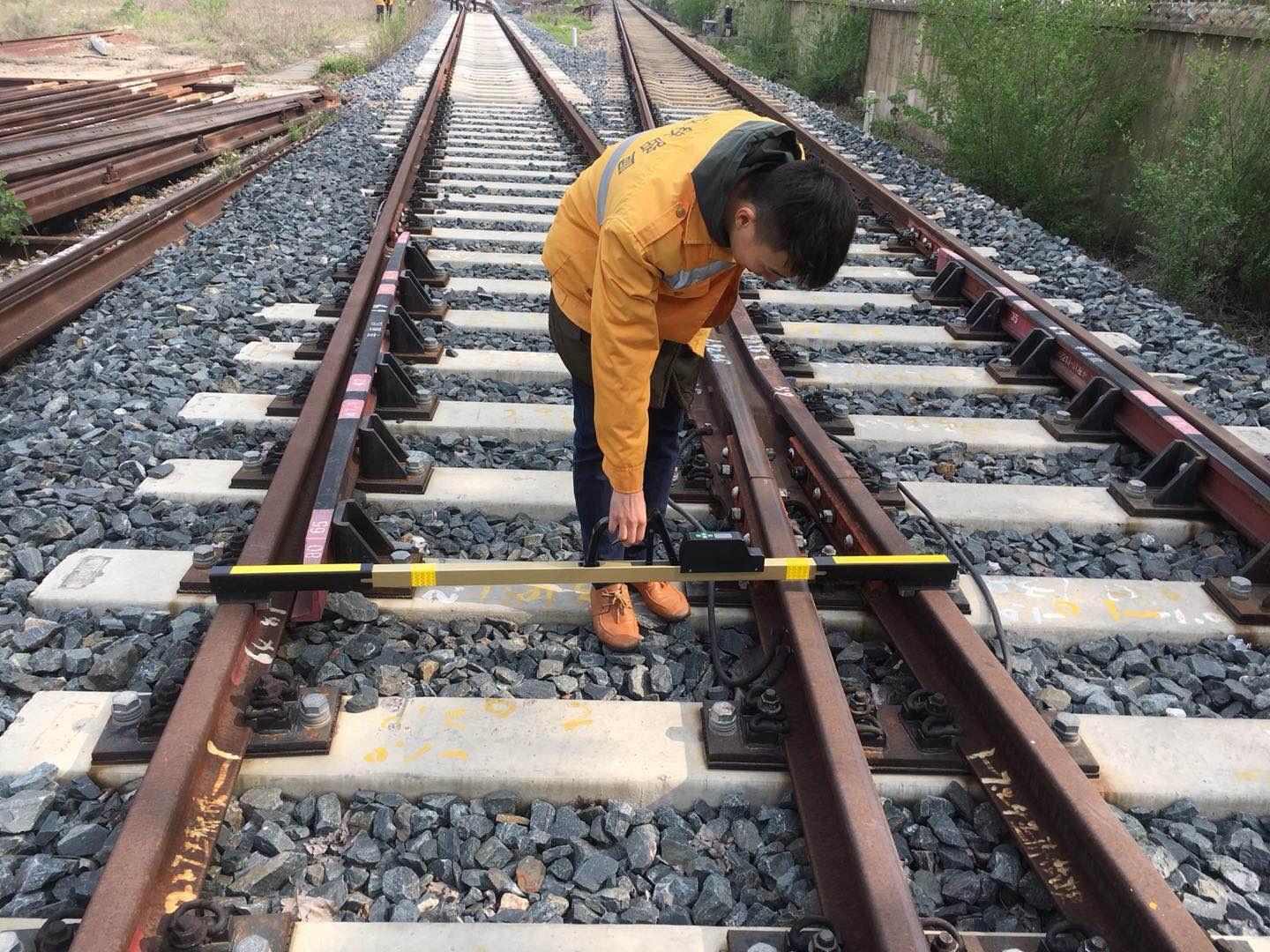

Digital track gauge is mainly used for measuring track gauge, checking track gauge, back distance, superelevation (superelevation)
The instrument is fast, easy to use and can be used day or night. digital measurement highest
level of accuracy and certainty. Gauge resolution up to 0.01mm. It is an ideal measuring tool for railways
Check the department.

* Large LED display: especially suitable for day and night
* Quick calibration operation: simple measurement process
* Large capacity battery: super long standby time
* Accurate measurement: maintain long-term stability
* Insulation design
* Anti-electromagnetic interference
* Waterproof: Can be used in rainy days
* Approved by China Academy of Railway Sciences
specification
Model
GJC-JG0 type
GJC-JG1 type
gauge
1410-1470
1410-1470
Check gauge
1381-1401
1381-1401
back to back distance
1338-1358
1338-1358
hyperelevation range
±185
±185
Ultra high resolution
0.05
±185
Gauge resolution
0.01
±185
Gauge maximum error
±0.25
±0.25
super high maximum error
±0.3
± 0.45
Applicable railway line speed
≤350km/h
≤250km/h
detailed drawing
