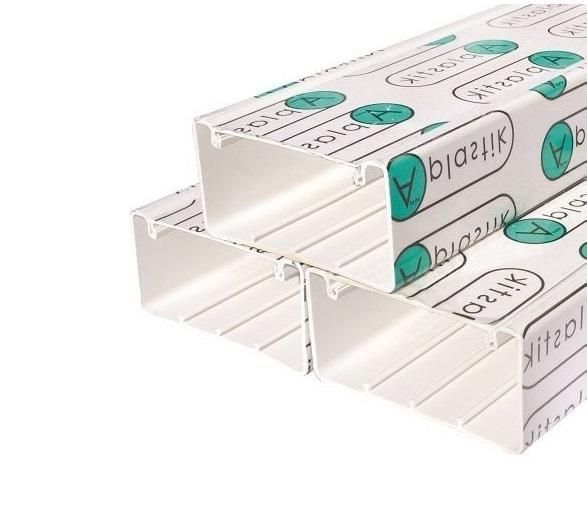

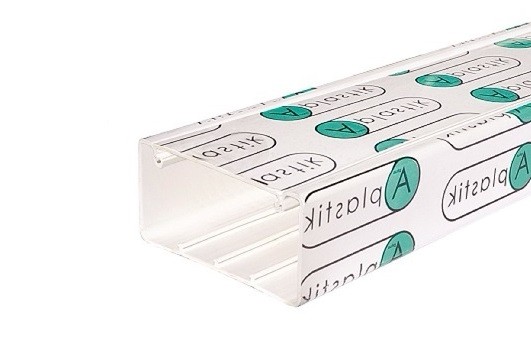

Cable wire slot 100x50 modular system (cable channel) (cable channel) CE, ROHS, ISO 9001: 2015 #SuperSePtember

Click here to contact
Product details
Origin:Istanbul, TurkeyPackaging Details:Box nylon packaging available
Fire:Up to 960 C °port:Anbari
IP entrance protection:IP40length:2 meters
brand:a benefitraw material:Polyethylene UL94, V0 M1
Impact resistance:0,5-1 Joulecolor:White RAL 9010
model:CT0100050custom made:acceptable
standard:EN50085-2-1Operating temperature:-25/ +65 degrees Celsius
payment terms:D/P, T/T, Western Uniontype:2 cable duct system, solid

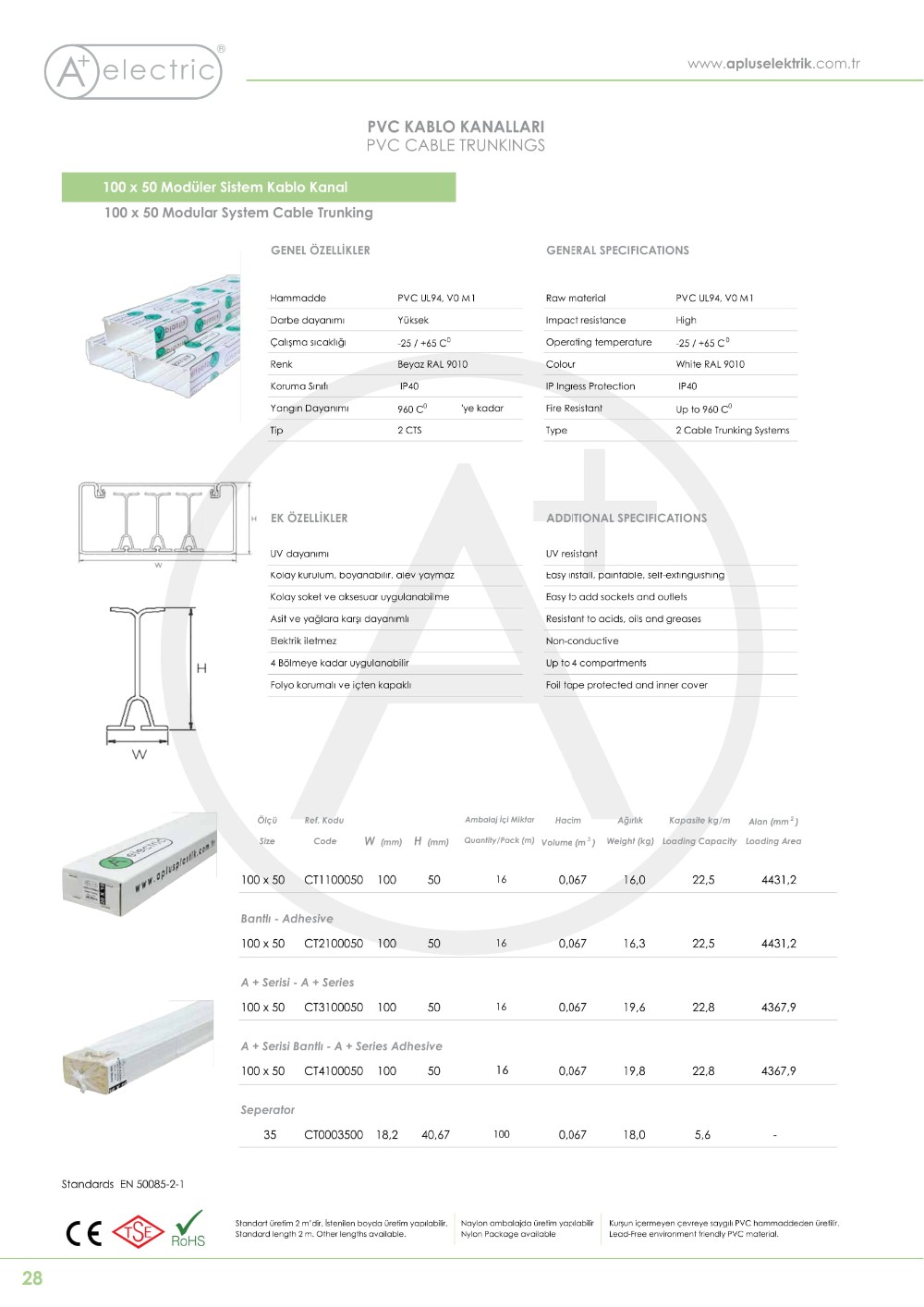

Specification
General Specifications
raw material
PVC UL94, V0, M1
Impact resistance
High
Operating temperature
-25 +65°C
color
White Ral 9010
IP Ingress Protection
IP40
type
2 Cable trunking system
Additional specifications
anti-UV
Easy to install, paintable, non-flammable,
Easy to add outlets and outlets
Resistant to acids, oils and greases
non-conductive
up to 4 compartments
Aluminum foil tape protection and inner cover

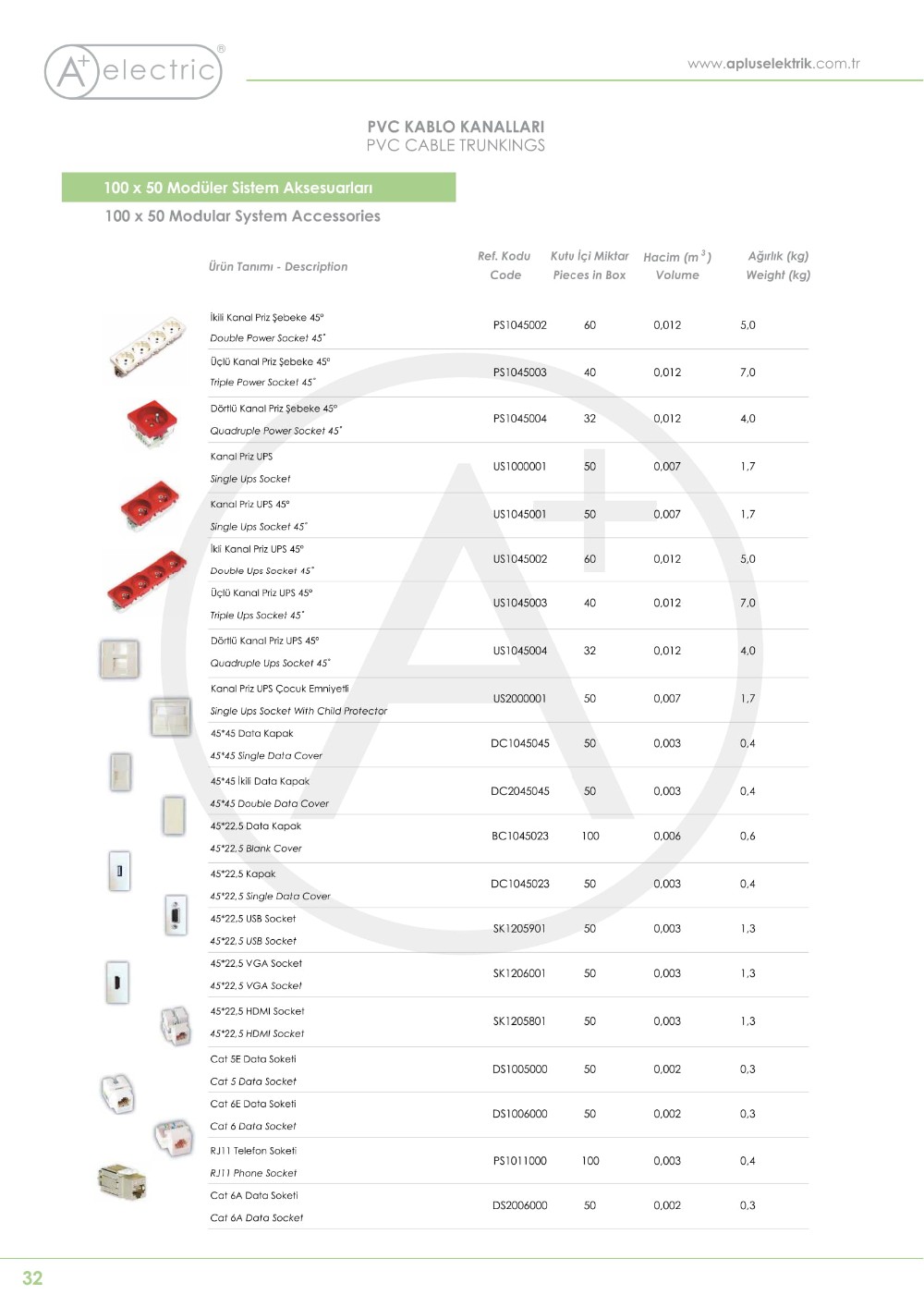

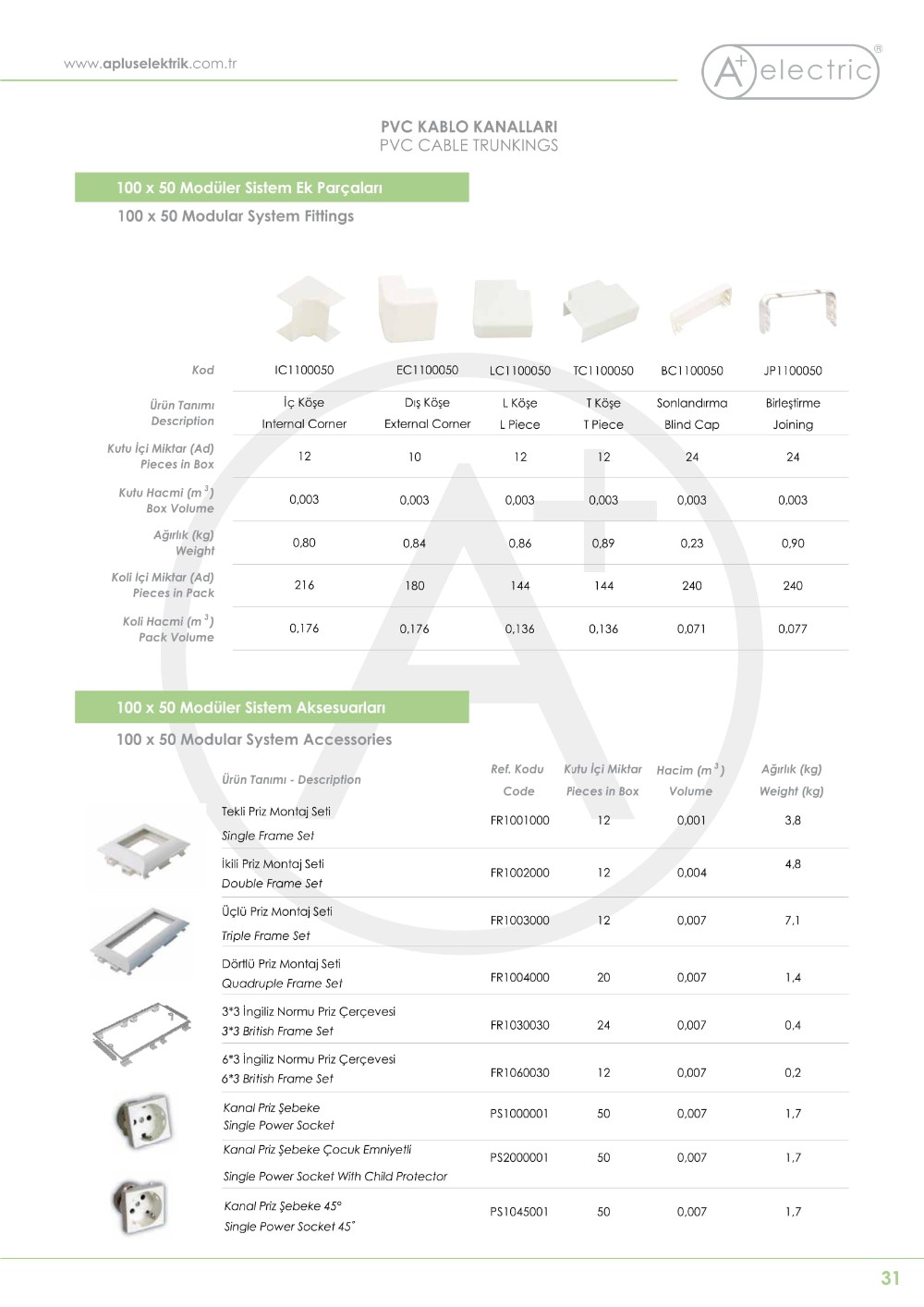

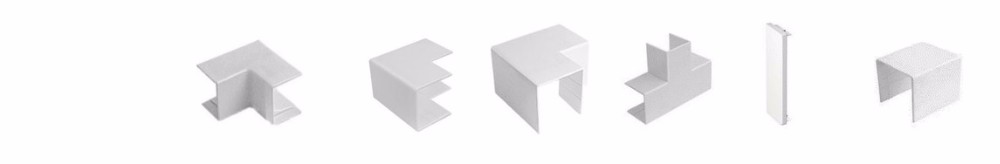

Accessories
the code
IC1100050
EC1100050
LC1100050
TC1100050
BC1100050
JP1100050
describe
inner corner
outside corner
L pieces
thong
blind hat
join
In a box
12
10
12
12
twenty four
twenty four
Box volume (cubic meter)
0,003
0,003
0,003
0,003
0,003
0,003
Weight (kg)
0,80
0,84
0,86
0,89
0,29
0,90
Case Pack (Ad)
216
180
144
144
240
240
Packing volume (cubic meter)
0,176
0,176
0,136
0,136
0,071
0,077

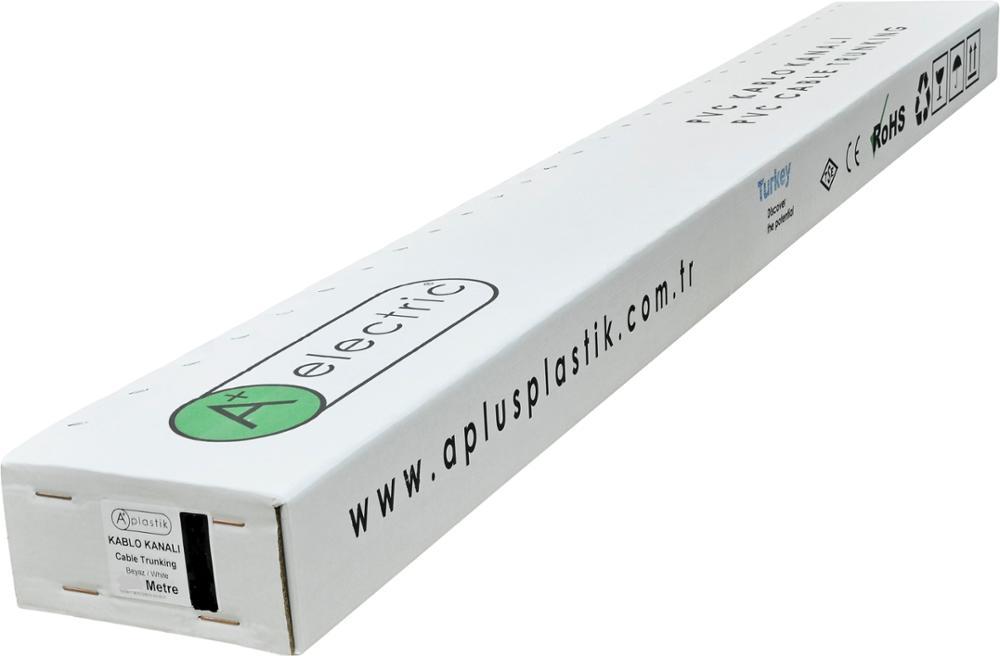

packaging details

Carton packing for cable trunking
Nylon bag available upon request

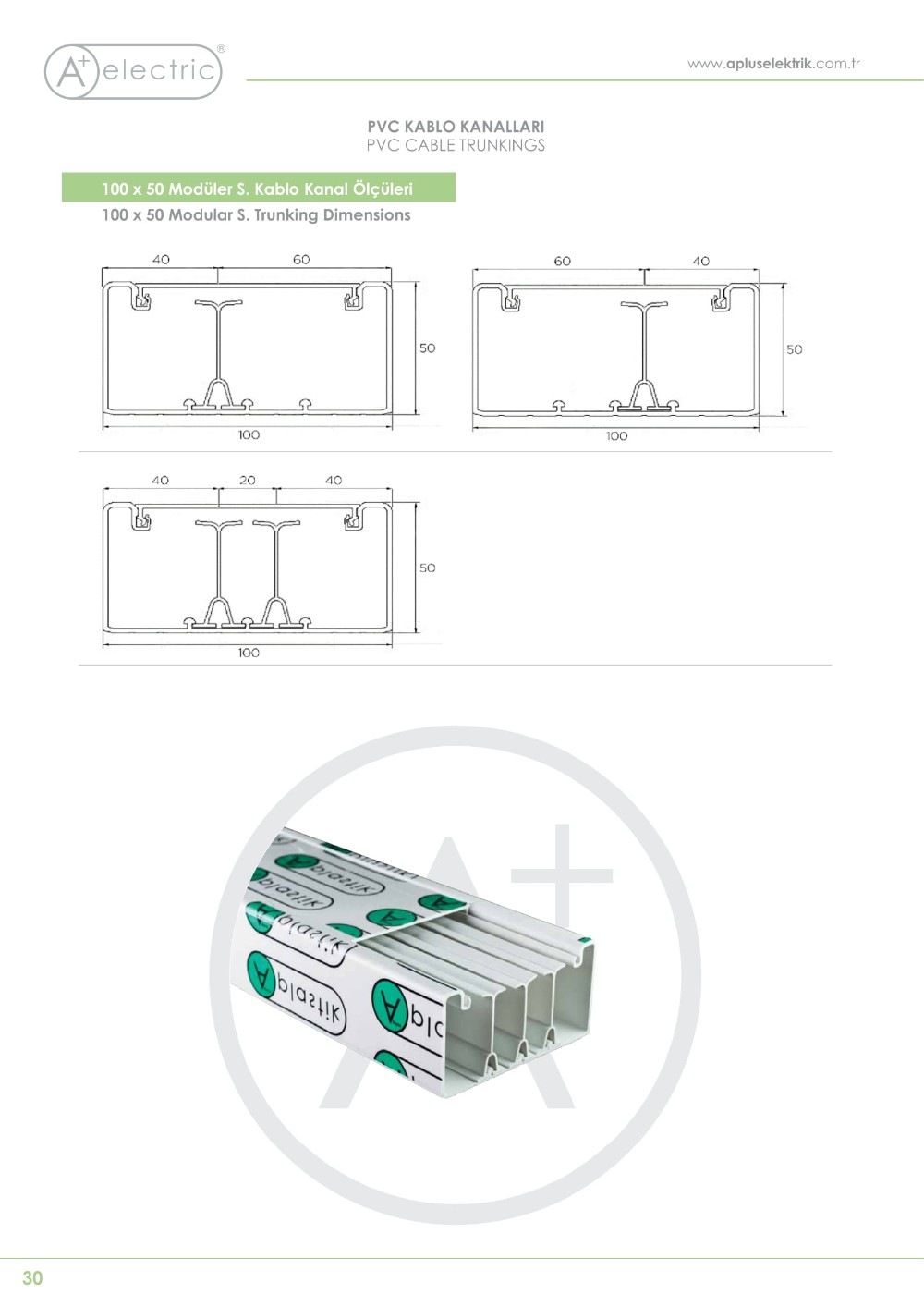

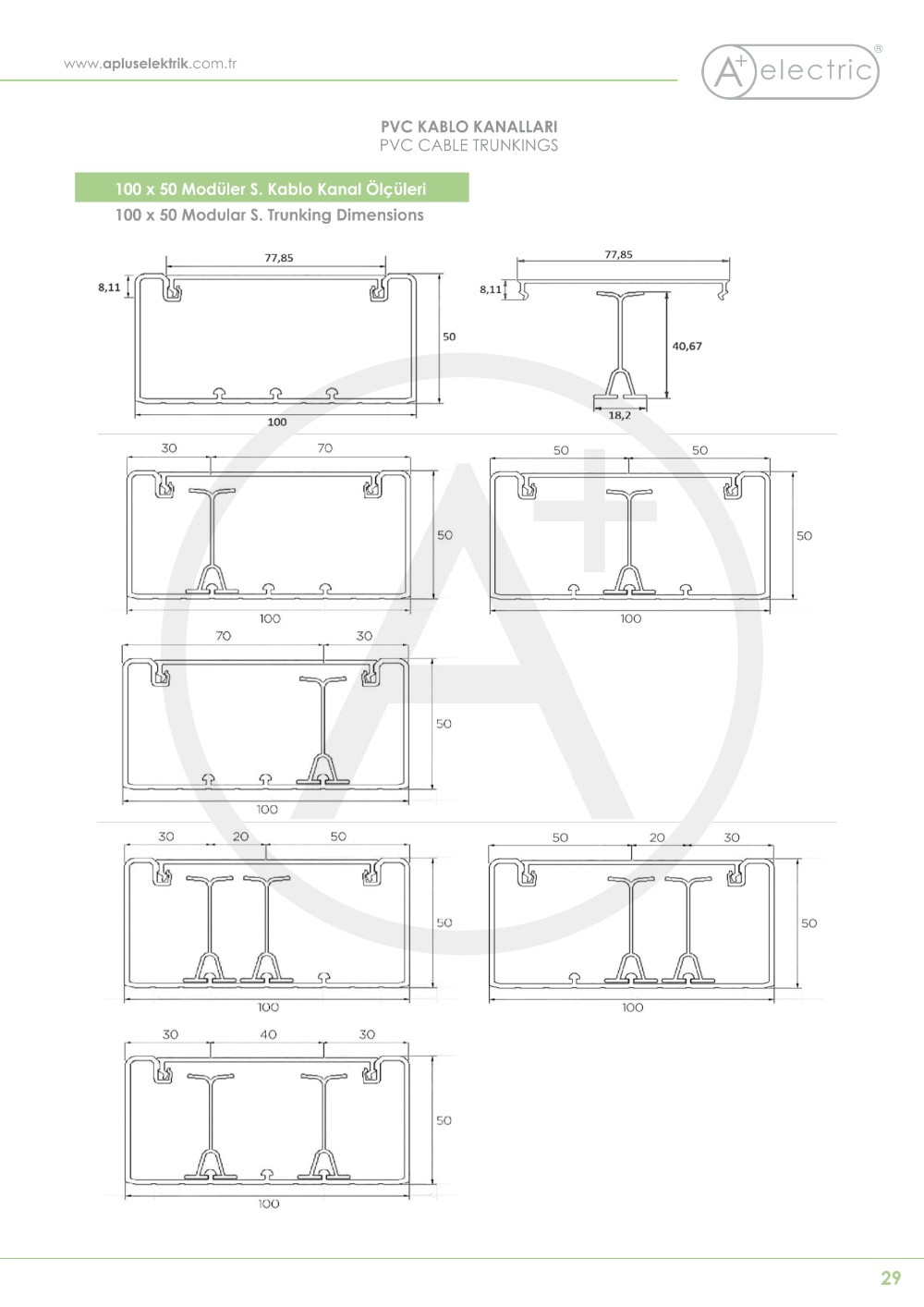

size
the code
Width (mm)
Well)
Quantity/package (meter)
Volume (cubic meter)
Weight (kg)
Loading area (mm2)
Load capacity (kg/m)
series
100×50
CT1100050
100
50
16
0,067
16,0
4431,2
22,5
A series adhesive
100×50
CT2100050
100
50
16
0,067
16,3
4431,2
22,5
A+ series
100×50
CT3100050
100
50
16
0,067
19,6
4367,9
22,8
A+ Series Adhesives
100×50
CT4100050
100
50
16
0,067
19,8
4367,9
22,8
delimiter
35
CT0003500
18
40,7
100
0,067
18,0
-
5,6
Wire groove

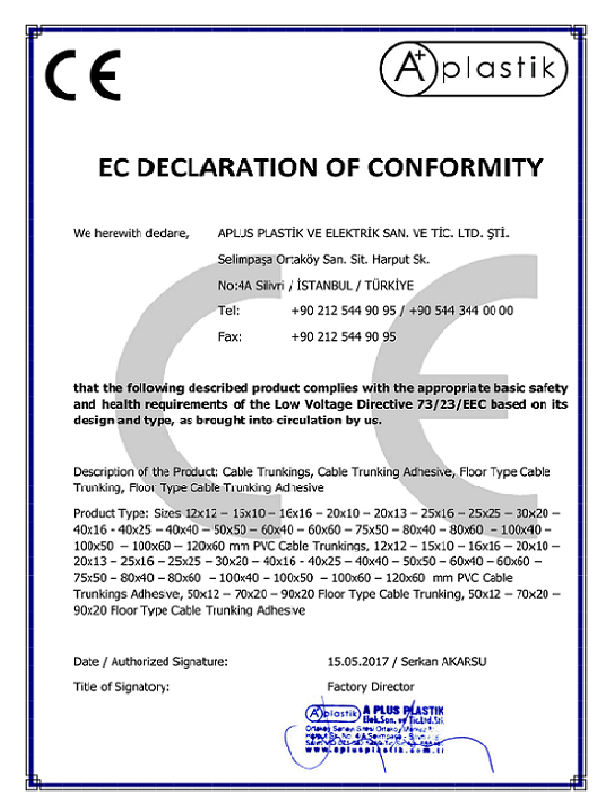

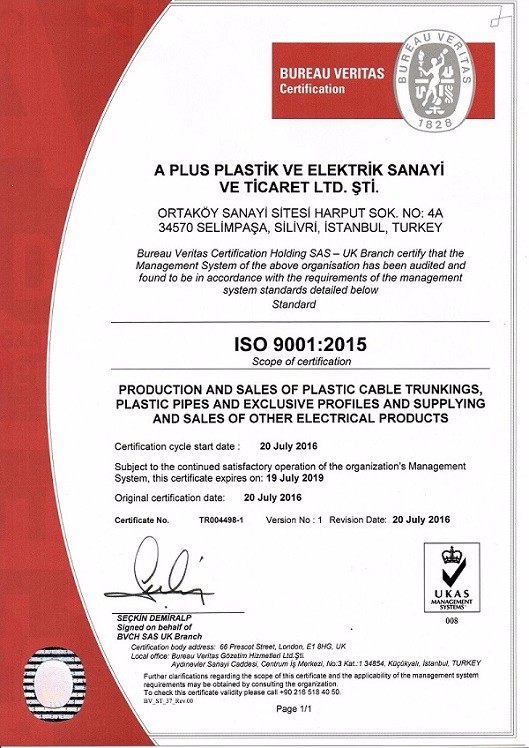

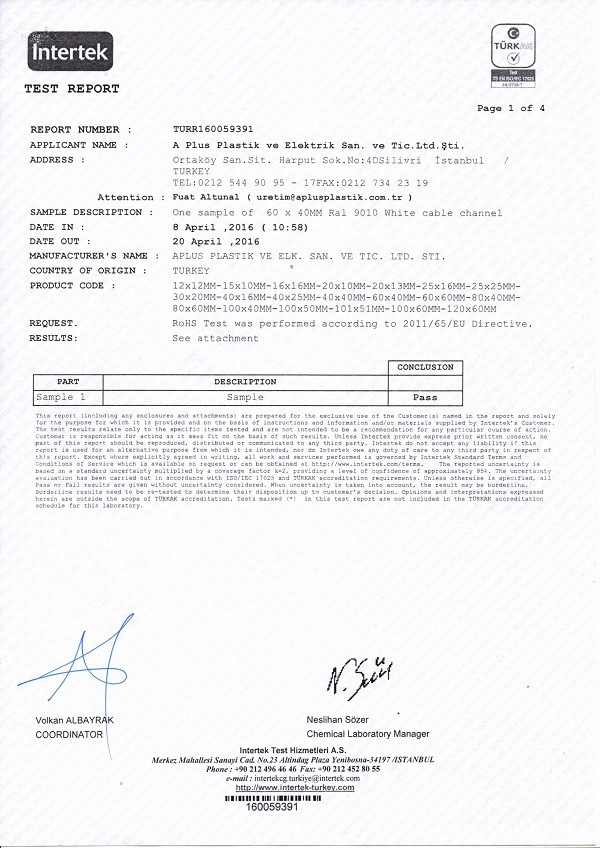

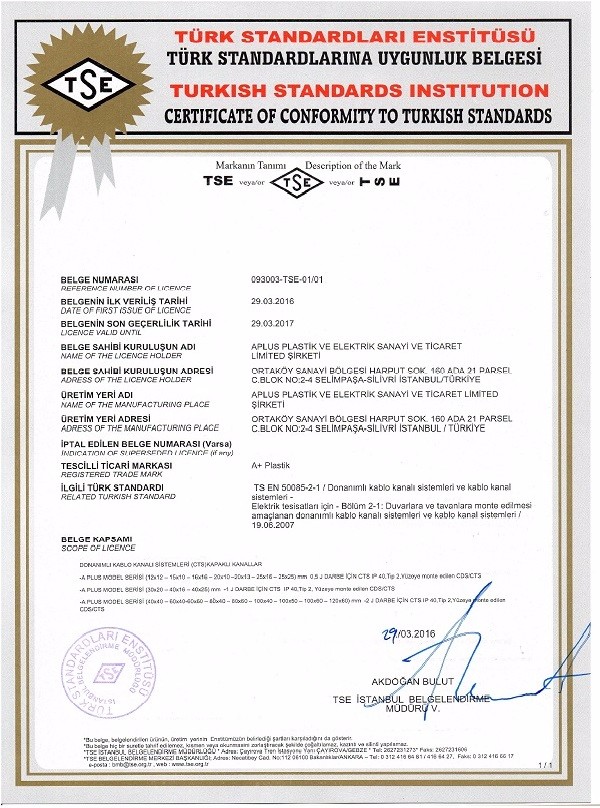

certified
FAQ

Q1. Can I want a sample order of a cable groove?

A: Yes, we welcome ordering samples to test and check quality. Mixed samples are acceptable.

Q2. What about delivery time?

A: The sample takes 3-5 days, the batch production time takes 1-2 weeks, the number of orders exceeds

Q3. How can you transport goods and how long do you need to reach?

A: We are usually transported through sea or road transportation. It usually takes 3-5 days to arrive, depending on the distance.

Q4. How to proceed an order for cable duct?

A: Let us know your requirements or applications first.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, the customer confirms the samples and pays a deposit for the formal order.
Fourth, we arrange production.

Q5. Is it OK to print my logo on the cable duct?

Answer: Yes. Please inform us formally before our production and confirm the design based on our samples first.

Q6. Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty for our products.

Q7. How to deal with failure?

A: First of all, our products are produced under strict quality control system, and the defective rate will be lower
Less than 0.2%.
Secondly, during the warranty period, we will send new lights with new order with small quantity. for
Defective batch products, we will repair them and resend to you, or we can discuss the solution
Including re-invoking as the case may be.
