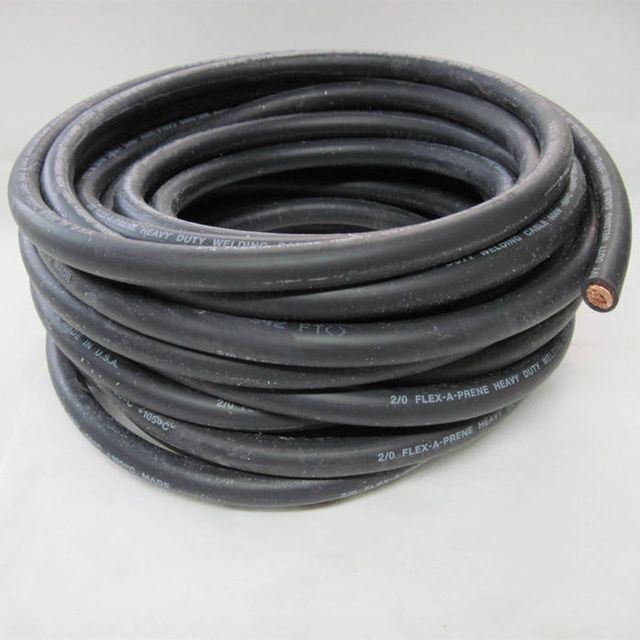

Soft copper core rubber welding cable 16mm2 25mm2 35mm2 50mm2 70mm2

Supplier: Shenzhen Lanp Cable Co., Ltd.
Region: Guang Dong, China
Contact: Ms Amy Yang
Price: $0.03 / >=10000 meters
Min. Order: 10000 meters

Click here to contact

Product details

jacket:	eraser	Voltage:	200V-400V
temperature range:	-55°C to 105°C	Insulation Materials:	eraser
type:	low voltage	Origin:	Guangdong, China
Conductor size:	10 sqm to 240 sqm	port:	Shenzhen any port
application:	Welding machine	pack:	wooden scroll or upon request
Supply capacity:	3000000 m/month flexible copper core rubber welding cable 16mm2 25mm2 35mm2	payment terms:	L/C, T/T, Western Union
brand:	LAN plan	Packaging Details:	Wooden barrel/wooden steel barrel/steel barrel/iron barrel. Drum size according to cable diameter or your special requirements
model:	LP-WI-1	Conductor Type:	flexible
color:	black, orange or as required	Conductor material:	copper

Product name: soft copper core rubber welding cable 16mm2 25mm2 35mm2 50mm2 70mm2

Product Description

application:

Welding machine cables are suitable for electric welding machines with ground voltage not greater than 200V and pulsating current value: 400V

Specification:

Model	Name	main application	Operating temperature Core≤0C
YH	Natural rubber sheath for welding cables	always used indoors	65
Yonghua	Neoprene sheathed welding cable	been used outdoors	65
Yonghua	Synthetic elastomer sheathed welding cables	been used outdoors	65

feature is:

1. The cable has high flexibility.
2. The sheath shall be natural rubber compound or neoprene compound.
3. The neoprene sheath is heat-resistant, oil-resistant and flame-retardant.

4. Allow continuous working temperature 65°C

Conductor nominal Section (mm2)	Conductive core	thickness part Sheath (mm)	average outer layer Diameter (mm)		20oC conductor resist ≤(Ω/km)	Reference weight (kg/km)
Conductor nominal Section (mm2)	Number of Cores/Diameter(mm)	thickness part Sheath (mm)	minimum value	maximum	20oC conductor resist ≤(Ω/km)	YH	Yonghua
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.129	1678.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74

Package:

100m/roll PE film, 300m, 500m, 1000m/roll wood roll, or as your request.
