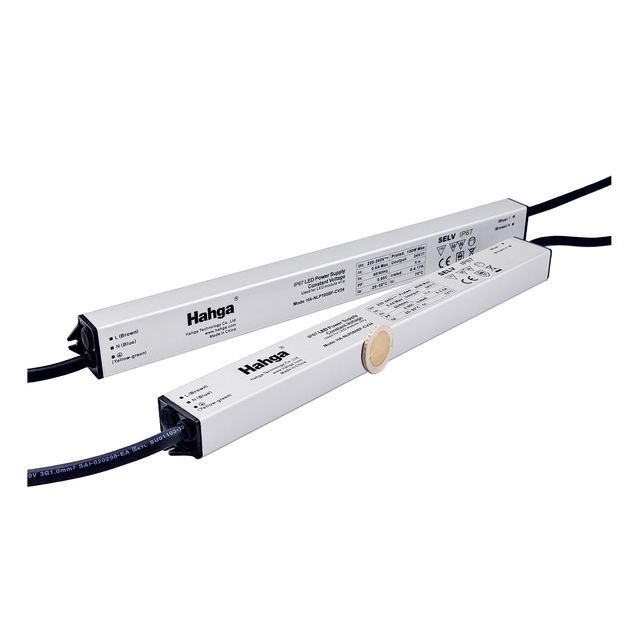

DALI Waterproof Dimmable Driver 100W 12V24V48V Led Driver Constant Voltage IP67 DALI Power Supply CE ENEC 5 Years

Product details
brand:Ha haapplication:High Bay Lights, Flood Lights, Outdoor Lights
payment terms:L/C, Western Union, D/P, D/A, T/TProvident Fund:0.95
product name:DALI Dimmable Constant Voltage LED Driversize:320*30*21mm
The output voltage:24V DCMaterial:aluminum
port:Zhongshan/ShenzhenPackage preview:
Output frequency:direct currentmodel:HA-DLP100BF-CV24
Origin:ChinaHarmonic Distortion:10%
Protection class:IP67Input voltage:AC220-240V
Certification:EU ROHSefficiency:90%
Output Power:100WDimming type:Dali
Supply capacity:100000 pieces per monthOutput current:4.17A
Packaging Details:1/box
Ha ha
Product Description
feature
■Output constant voltage
■Range: 220-240VAC 220-240VDC
■Power factor: ≥0.95
■Efficiency up to 93%
■Protection: short circuit/overload/over temperature
■IP20 indoor and outdoor installation design
■Dimming function:-
■Digital dimming, accurate, stable and smooth dimming
■Single light control, more flexible control
■Signal line isolation
■No flicker
■CE Rohs certification
■5 years warranty
constant pressure
Model
power and size
enter
The output voltage
output current
efficiency(%)
HA-NLP030BF-CV
30W
250*30*20mm





AC 220-240V
&
DC220-240V
24V
1250mAh
86
HA-NLP060BF-CV
60W
290*30*20mm

24V/48V
2500/1250mAh
88
HA-NLP100BF-CV
100W
320*30*20mm

24V/48V
4170/2100mAh
88
HA-NLP160BF-CV
160W
350*30*20mm

24V/48V
6670/4340mAh
Post-90s
HA-NLP240BF-CV
240W
400*30*20mm

24V/48V
10000/5000mAh
92
HA-NLP400BF-CV
400W
400*60*20mm

24V/48V
16600/8340mAh
93


parameter
Limit voltage
264VAC
power factor
>0.9
Total Harmonic Distortion
<10%
efficiency
90%
86%
Current accuracy
±3%
boot time
<0.5s
dimin
Dimming type
-
dimming rage
-
Dimming depth
-
Electric strength
I/P-FG:1.75KVAC, I/PO/P:3.75KVAC, I/P-Dim:
3.75KVAC, O/P-dimming: 0.5KVAC
Chung
LN:4KV L/N-PG:6KV

Protect
short circuit
Constant voltage mode, automatic recovery after troubleshooting
overload
≤120% constant pressure limit, automatic recovery after troubleshooting
overheating
100℃±10℃
Turn off the output voltage, automatically recover after the temperature drops


others
tower
-40~+50℃
TC
90°C
degree of protection
IP67
life
50000 hours
Warranty
5 years
notes
1. All parameters not specifically mentioned are measured at 230VAC input, rated load and 25℃ ambient temperature.
2. Tolerance: including setting tolerance, line regulation and load regulation.
3. The power supply is considered a component that will be used in conjunction with the final device. Since the EMC performance is affected by the complete installation, the end equipment manufacturer must again certify the complete installation to the EMC Directive.
