Original serial number: | 2S70-13F | Package preview: | |
Material: | rubber+aluminum | Warranty: | 18 months |
color: | Black | Car equipment: | public |
brand: | Senhow | payment terms: | Western Union, T/T, Paypal |
Year: | 1985-1987,1985-1991 | product name: | Double Convoluted Air Spring 2S70-13F |
brand: | Senhow | Origin: | Shandong China |
port: | Qingdao, China | Model: | golf |
car model: | MK3 | Spring material: | eraser |
Packaging Details: | Carton, pallet, wooden case | Spring type: | Air spring |
Supply capacity: | 20000 pieces per month |

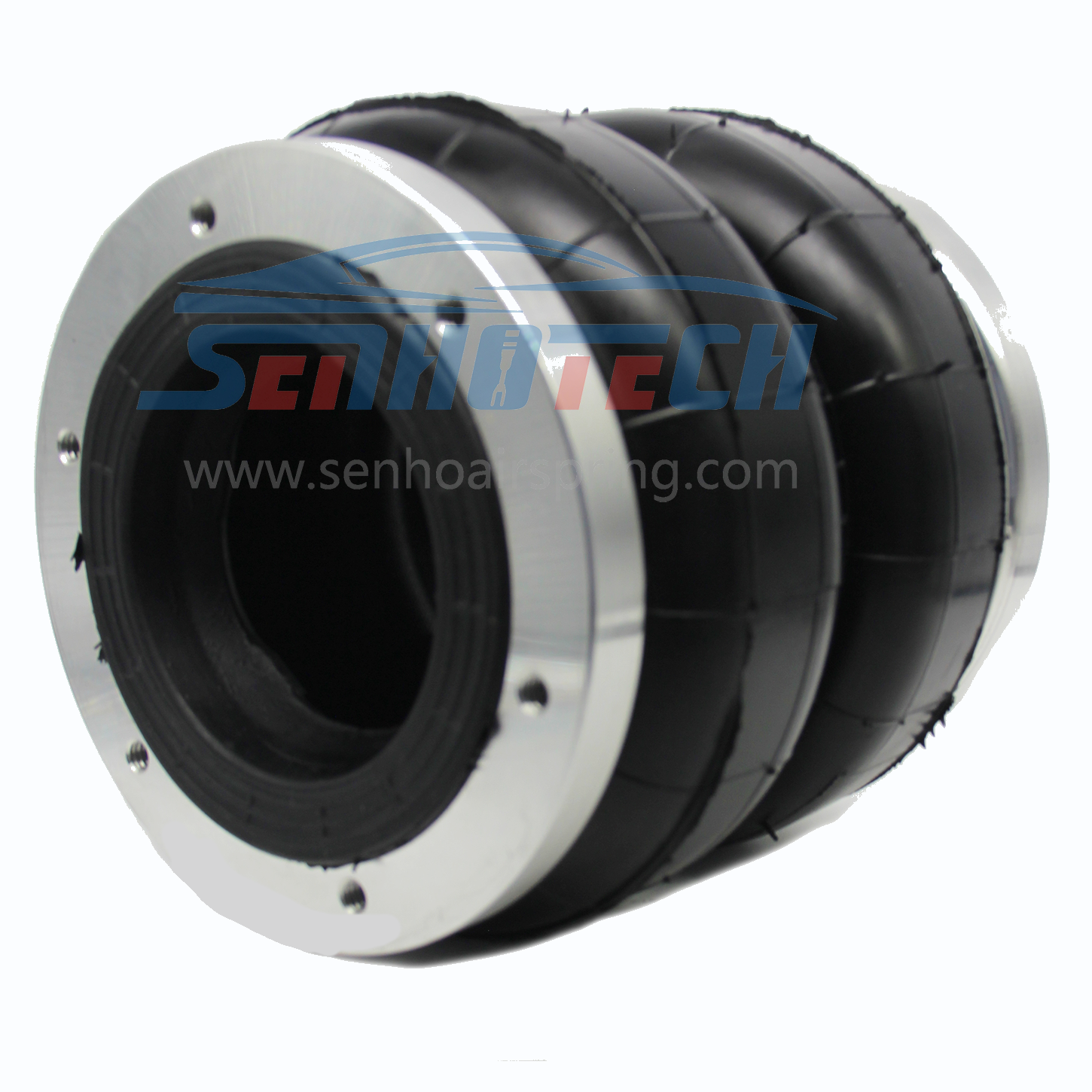

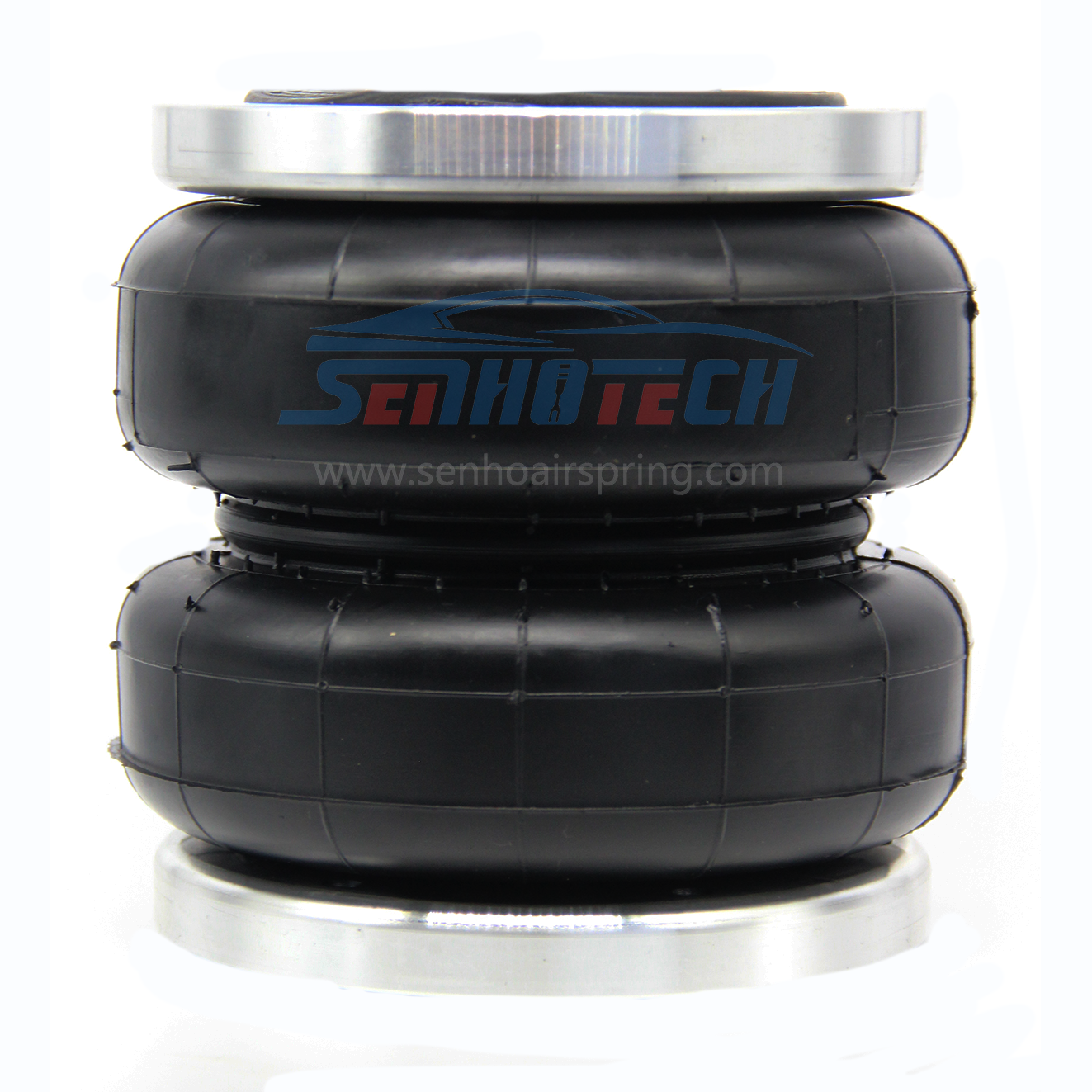

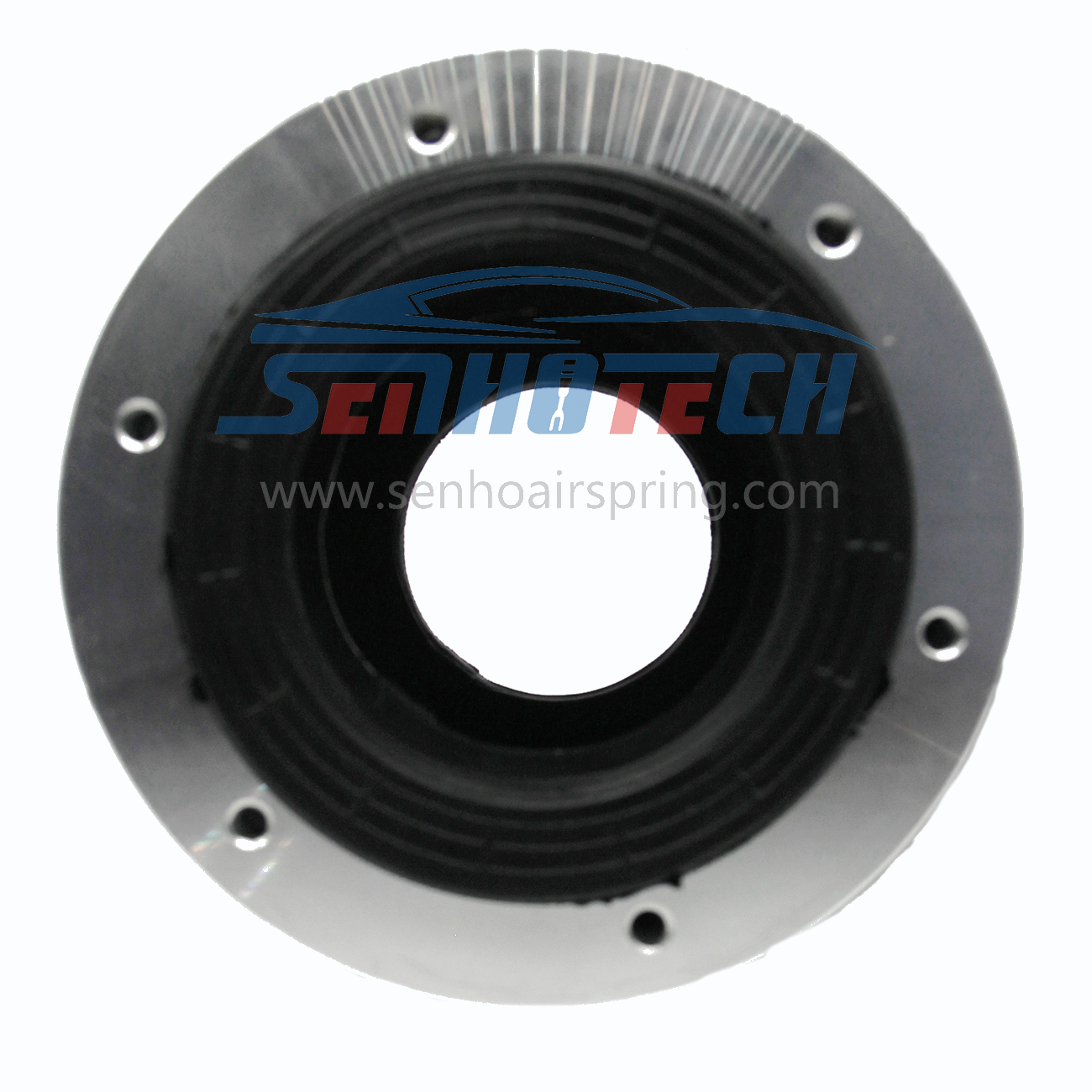

Senho FD70-13F/ 2S70-13F/2S6X6F/2500F Double Rotary Airbag MK3 Rubber Airbag
project name | Air spring |
Product Category | 2S70-13F, 2S6X6F, FD70-13F |
design height | 157mm |
Design outer diameter | 145mm |
minimum height | 65mm |
maximum height | 175mm |
flange color | natural aluminum color or customized |
screw size | 1/4, M6, M8 or customized |
quality assurance | 18 months |
burst pressure | Greater than 2.5Mpa |
temperature range | -40°C to 70°C |
Fatigue Life Test | 5 million times |
loading capacity | 7 bar, 727KN |
1. Packaging method:
Carton, pallet, wooden box
Customized packaging is acceptable.
2. Transportation:
FedEx, UPS, TNT, by sea, by air, by train.
3. Delivery time:
inside sample shipment
Within 6000 pieces, within 35 days after receiving the deposit payer
1. Professional development team
We can adjust the specifications of our products according to customers' requirements.
2. Customized logo
Rubber logo, laser printing flange logo
3. OEM service
Customized carton, plate color, air inlet size, screw size
