payment terms: | L/C, T/T | size: | Diameter 60mm, 50mm, 42mm, 38mm |
Packaging Details: | Carton with wooden box or plywood with packing film | Bearing material: | stainless steel or carbon steel |
Carrying capacity: | 12-30KG | brand: | js |
model: | R-50 | application: | lightweight delivery |
Material: | plastic | Origin: | Jiangsu, China |
Housing material: | PVC or polypropylene | Roll size: | 25-89mm |
port: | Shanghai | Supply capacity: | 1,000,000 pieces per month |
Applicable industries: | farm, other, advertising agency |

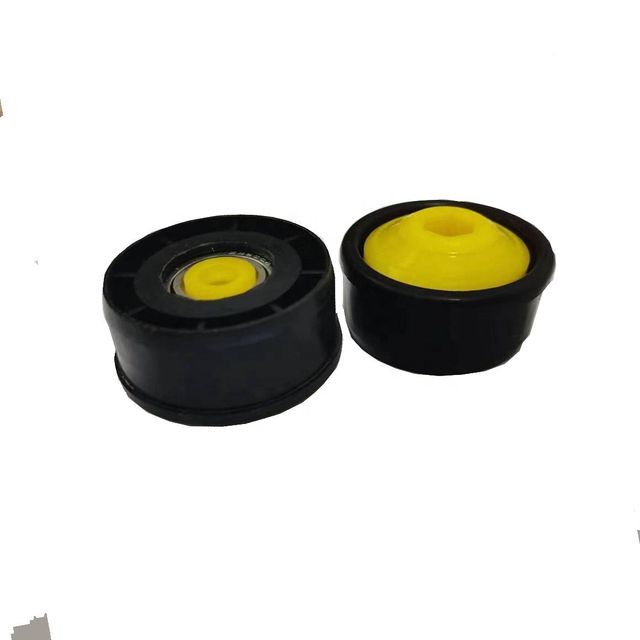

Name: Conveyor Plastic End Roller Bearing/Roller End Housing

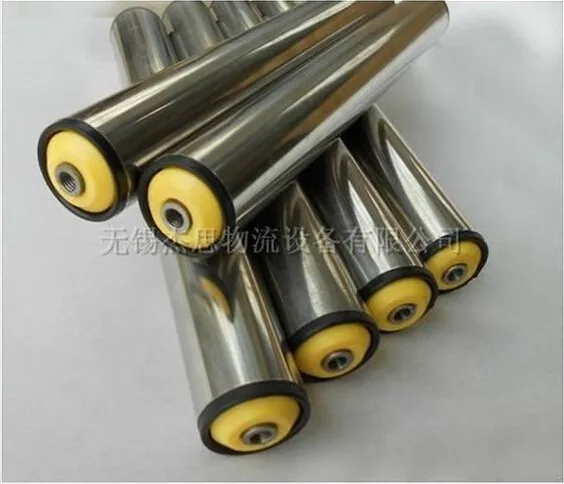

Plastic end cover roller bearings are usually used for stainless steel rollers and plastic tube rollers.
It's not just for aesthetics, but for smooth and quiet operation as well.
>>Details

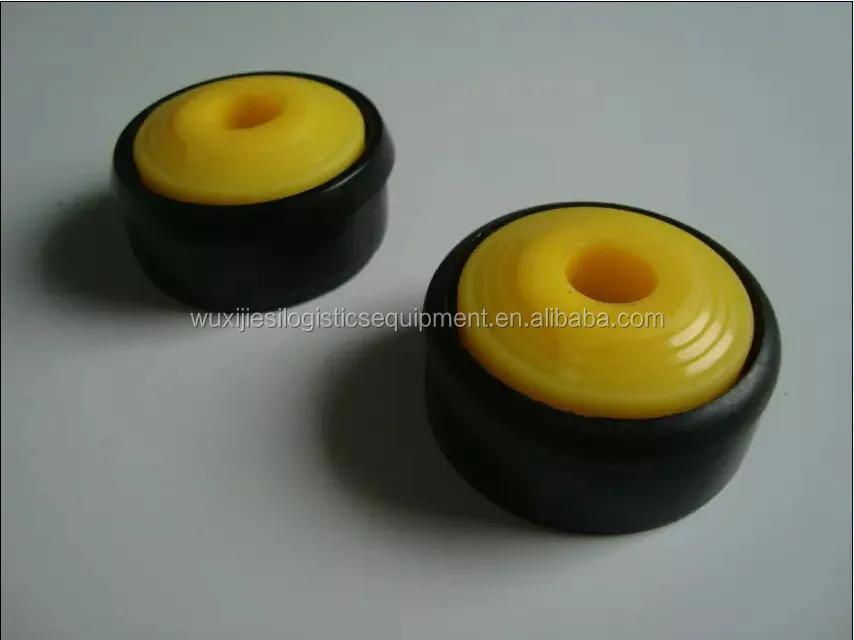

1. New plastic bearing seat
2. With yellow dustproof sealing cover
3. Suitable drum diameter: 32, 38, 50.60.76, 89
4. Quantity allows, we can open a new module for customer's plastic parts.
5. Please contact us for more details.
>>Specifications:
Pipe diameter | wall thickness | Shaft diameter | pipe material | |||
Carbon steel | Stainless steel | aluminum | pvc | |||
32 | 1.2 | Ø8/10/12/ | √ | √ | ||
38 | 1.2 | 11 Hex, Ø8/10/12/14 | √ | √ | ||
48.6 | 1.5 | 11hex,10/12/14 | √ | √ | ||
50 | 1.5 | 11 Hex, Ø8/10/12/14 | √ | √ | √ | |
50 | 2.0 | 11 Hex, Ø8/10/12/14/15 | √ | |||
50 | 2.5 | 11 Hex, Ø8/10/12/14/15 | √ | |||
60 | 2.0 | 11 Hex, Ø8/10/12/14 | √ | √ | √ | |
60 | 3.0 | Ø17 | √ | |||
76 | 3.0 | Ø20 | √ | √ | ||
80 | 3.0 | Ø20 | √ |

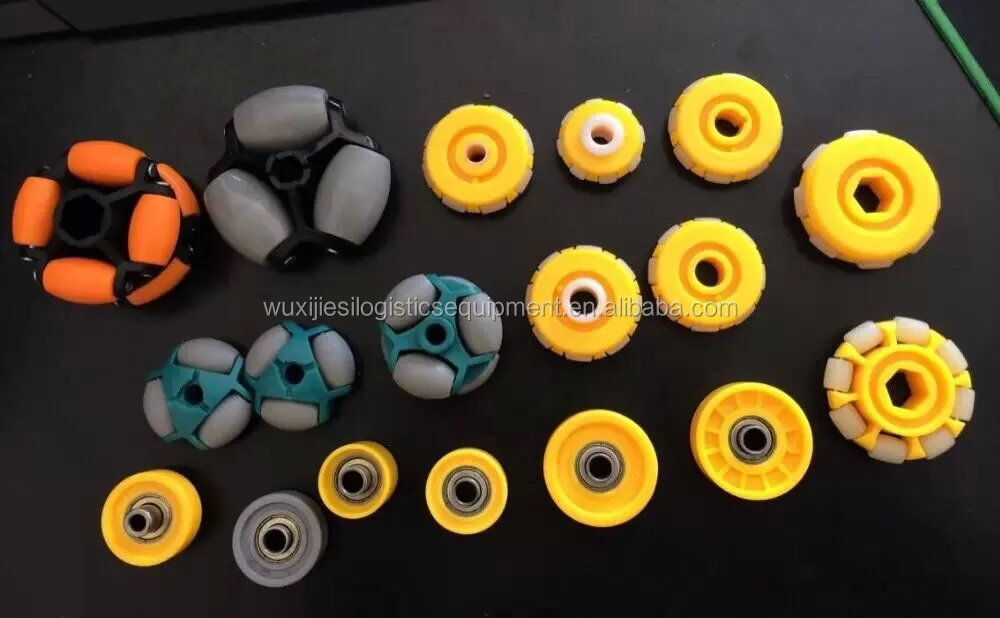

>>picture
If you are interested in these plastic bearing housing parts, please feel free to contact us.
