Output waveform: | pulse width modulation | Certification: | CE ISO9001 |
Packaging Details: | We have cartons and wooden boxes, below 75KW are packed in cartons, and above 93KW are packed in wooden boxes, and the inside is filled with thick shockproof foam to prevent equipment damage | control method: | PIDs |
type: | AC-DC-AC | color: | Black |
Number of power phases: | Three-phase 380v/440v | Package preview: | |

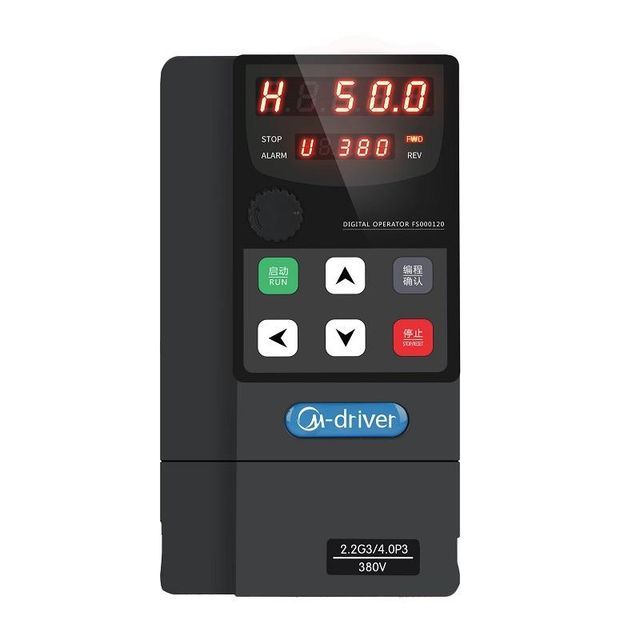

model: | H0055G3 | product name: | Constant pressure water supply inverter |
Protection class: | IP20 | rated power: | 5.5kw/7.5kw, 5.5KW |
Motor type: | AC three-phase pump | Rated voltage: | Three-phase 380V/440 |
Origin: | China | port: | Shenzhen |
Warranty: | 18 months | control: | PIDs |
brand: | M-Drive | communicate: | RS485 communication protocol |
payment terms: | Western Union, T/T | Supply capacity: | 2000 pieces per day |
custom made: | Yes | application: | three-phase pump |
Q: | 380V/440V |
Model | H0055G3 | ||||||
power range | Three-phase AC 380V (-15%~+30%) 5.5KW | ||||||
Input frequency range | 50Hz/60Hz | ||||||
control method | PIDs | ||||||
vibration | Less than 5.9m/s | ||||||
failsafe | Provide overcurrent, overvoltage, undervoltage, overtemperature, phase loss, overload and other protections. |
thing | Specification | |||||
basic skills | overload capacity | G type: 150% rated current 60s; 180% rated current 3s | ||||
P type: 120% rated current 60s; 150% rated current 3s | ||||||
torque boost | Automatic torque boost function; manual torque boost 0.1%~30.0% | |||||
V/F curve | Linear V/F, multi-point V/F and square V/F curves (1.2, 1.4, 1.6, 1.8, power of 2) | |||||
V/F separation | 2 ways: separation and half separation | |||||
Acceleration and deceleration curve | Linear or S-curve acceleration and deceleration mode, | |||||
Four acceleration and deceleration times. Acceleration and deceleration time range 0.0s~6500.0s | ||||||
DC braking | DC braking frequency: 0.00Hz to maximum frequency. Braking time: 0.0s to 36.0s | |||||
Braking current value: 0%-100% | ||||||
jog control | Jog frequency range: 0.00Hz~50.00Hz; | |||||
Jog acceleration and deceleration: 0.0s~6500.0s. | ||||||
Simple PLC | Up to 16 speeds can be achieved | |||||
basic skills | multi-speed operation | Run via built-in PLC or control terminal. | ||||
Built-in PID | Closed-loop control system for easy process control. | |||||
Automatic Voltage Regulation (AVR) | In the case of network voltage changes, it can automatically maintain a constant output voltage. | |||||
Overvoltage/current stall control | Automatically limit operating voltage/current to prevent frequent overvoltage/current tripping during operation process. | |||||
fast current limiting | Minimize overcurrent faults and protect the normal operation of the inverter. | |||||
Torque Limiting and Control | "Excavator" feature, automatically limit torque during operation to prevent frequent over-current tripping. closed loop Vector mode can realize torque control. | |||||
Personalization | Momentary stop | In the case of instantaneous power failure, the voltage drop is compensated by the load feedback energy, so that the inverter maintains run in a short time. | ||||
fast current limiting | Avoid frequent frequency converter overcurrent faults. | |||||
timing control | Timing control function: set the time range 0Min~6500.0Min. | |||||
running | command source | Operation panel reference, control terminal reference, serial communication port reference. These channels can be switched various patterns. | ||||
frequency source | A total of eleven frequency sources, such as digital given, analog voltage given, analog current Reference, pulse reference, MS speed, PLC, PID and serial port reference. | |||||
input terminal | 3 digital input terminals. | |||||
2 analog input terminals. | ||||||
One supports 0-10V voltage input or 0-20mA current input terminal. | ||||||
output terminal | 2 digital output terminals. | |||||
2 relay output terminals. | ||||||
2 analog output terminals, supporting 0~10V voltage output or 0~20mA current output. | ||||||
keyboard operation | Keyboard potentiometer | Equipped with keyboard potentiometer or coding potentiometer. | ||||
keyboard operation | Protective function | It can realize power-on motor short-circuit detection, input/output phase loss protection, over-current protection, over-current protection Voltage protection, undervoltage protection, overheat protection and overload protection. | ||||
environment | place of use | Indoors, free from direct sunlight, dust, corrosive gases, flammable gases, oil fumes, water vapor, water droplets or salt. | ||||
high | Below 1000 meters | |||||
ambient temperature | -10°C to +40°C (derating for ambient temperature 40°C to 50°C) | |||||
humidity | Less than 95%RH, no condensation | |||||
vibration | Less than 5.9m/s (0.6g) |
