220VAC single phase digital meter display 40kw resistance load box for generator load capacity test

Product details
exhibit:Voltage, current, power, reactive power, energy, frequency,Resistive load, power factor:Special alloy resistors.
port:ShenzhenSupply capacity:50 sets per month
Load power (constant and adjustable):0-40KWLoad voltage:AC220v/380V (three-phase four-wire) 50HZ
power supply:220V(±10%) 50HZ, single phaseCertification:CE certification
custom made:YesLoading steps:1KW/2KW/2KW/5KW/10KW/20KW/20KW/40KW
type:Resistive Load Bankmodel:FST-AC220V-40KW resistive AC load box
Origin:Guangdong, ChinaMeasurable voltage range:220VAC
aspect:600*850*1000mmLoad voltage 1:AC277V single phase, 50Hz
Load accuracy:±5%brand:Foresight
payment terms:L/C, Western Union, T/T, PaypalWarranty:3 years
Power factor:PF=1Accuracy class:IP20



Product Description



Why Load Bank Testing is Needed

Ensure your backup power systems such as UPS (Uninterruptible Power Supply), battery packs, generators, transformers, inverters, etc., especially in harsh, dusty or corrosive environments, stay in good condition when you need them most , which is very important, the main power supply switches the load during maintenance or when it stops abnormally.





technical specifications

Model

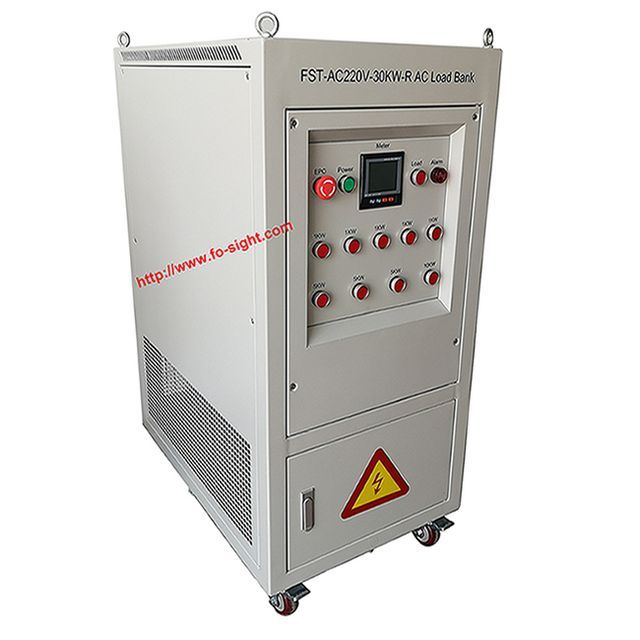

FST-AC220V-30KW-R Resistive AC load box

load element

Stainless Steel Resistor

load voltage

127V/ 220VAC , 60Hz , three phase

loading steps

5*1KW/3*5KW/1*10KW (1-30KW adjustable)

power factor

PF=1

Load accuracy

±5%

digital instrument

Voltage, current, power, frequency, etc.

power supply

220V 50Hz, single phase

control method

Manual control via buttons

wire connection

Copper bus bars for wire connections

insulation level

f

degree of protection

IP20 (indoor use)

fan noise

75 decibels

cooling method

Forced air cooling

Operating mode

continuously working

Safeguard

Overheat/buzzer alarm, overheat/overvoltage protection, emergency stop button

ambient temperature

-10℃~+50℃

aspect

600*850*1000mm

weight

About 80KG

flexibility

Four wheels, rings on top of chassis

humidity

≤95%

high

≤2500 meters











Each load group includes standard items:

Load box host -- 1 set

Host power cord -- 1 piece (inside the load box)

Product main and auxiliary diagrams (wiring diagrams of product components) -- 1 sheet (electronic version)

User Manual--1 piece (electronic version)

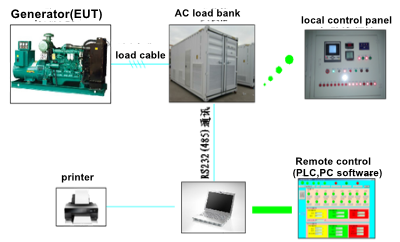

Load Group Operation Guide

Ensure that all load bank switches and EUT (Equipment Under Test)strength

leavebefore connecting.

Plug the power cord into the load bank power outlet

Load cable connection between load bank connection terminals and EUT

Correspondingly, connect the terminals in the order of phase A/B/C/N/PE. Make sure to go from one cable to the other.

Double check to make sure all load cables are securely connected.

Load Bank mains power on, press the green "strength"—fans work.

EUT powered on

Press the red load step control switch "LCD Monitor"—Prepare to load test.

Turn on/off miniature circuit breakers to regulate load power.

view data
