char lynn 109 1173 006

  • Supplier: Shijiazhuang Hanjiu Technology Co., Ltd.
  • Region: Hebei, China
  • Contact: Mr han han
  • Price: $420.00 / 1 - 29 pieces
    $350.00 / 30 - 59 pieces
    $290.00 / 60 - 99 pieces
    $240.00 / >=100 pieces
  • Min. Order: 1 piece
Product details
feature:Replace Eaton Char_lynn/White/M+SShift:311.8cm^3/record
Oil temperature:Normal -35℃-80℃brand:Korean wine
Maximum speed (rpm):Continuous 234rpm/Continuous 351rpmport:Tianjin Port, Beijing Airport, Qingdao Port, Shanghai Port
type:hydraulic motorOrigin:Hebei china
Viscosity:42-74mm2/sCertificate:CE certification
Supply capacity:500,000 pieces per yearpayment terms:L/C, D/P, T/T, Western Union, paypal
Maximum torque (Nm):Continued.793N.m/Inner.1053N.mapplication:Agriculture, forestry, plastics, machine tools and mining machinery
Packaging Details:1 piece/cartonMaterial:cast iron/steel
Maximum pressure drop:Continuous 17Mpa/Continuous 24Mpa
Product Description

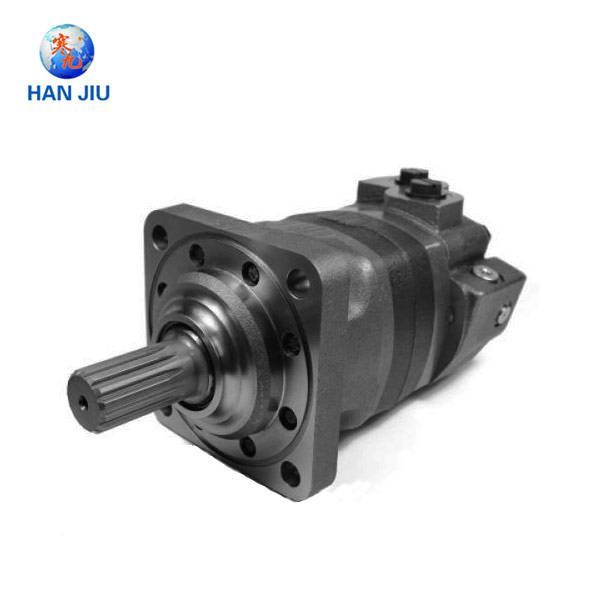

HANJIU hydraulic motor BMK4-315cc with Char-lynn 109-1173-006

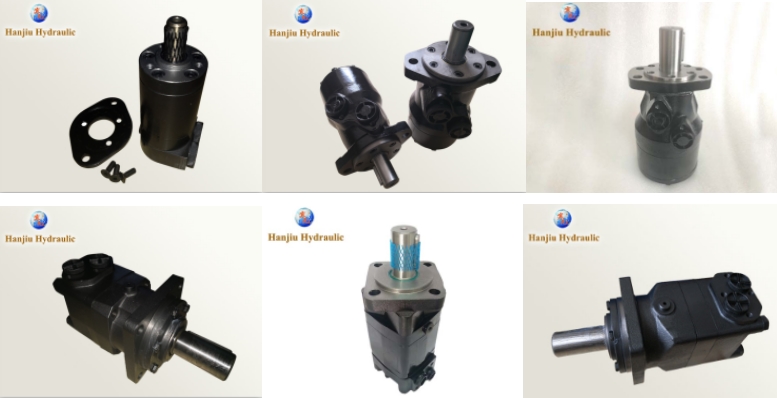

We are also dealing with hydraulic motors.Replacement: OMM, OMP, OMR, OMS, OMH, OMT, OMV ReplacementCharleneSeries: J series, H series, S series, 2000 series, 6000 series, 10000 series, high quality and low price.



BMK4 seriesThe motor features an advanced Gerloer gear set design with discs to distribute flow and high pressure. The device is available in individual variants with operational versatility depending on the application requirements.



feature:

  • The advanced Geroler gear set manufacturing device adopts low-voltage start-up, stable and reliable operation, and high efficiency.
  • The output shaft adopts tapered roller bearings, which can withstand high axial and radial forces. High pressure and high torque capabilities are available in a wide range of applications.
  • Advanced disc flow distribution design, automatic operation compensation, high volumetric efficiency, long life, stable and reliable operation.





installation type Standard, 4 bolts; Pilot 14.27 [.562] dia. Hole on 147.57 [5.810] dia. Bolt ring (short)
Output shaft 31.75 [1.250] diameter. Flat root side mount, 14 teeth, 12/24 DP 30 degrees. Involute Spline 38.1 [1.50] Min. Full Spline Length (Mounting Type (E) Only)
port 7/8-14 UNF-2B SAE O-ring ports - staggered ports
Case Flow Options 9/16-18 UNF-2B SAE O-ring port with shuttle

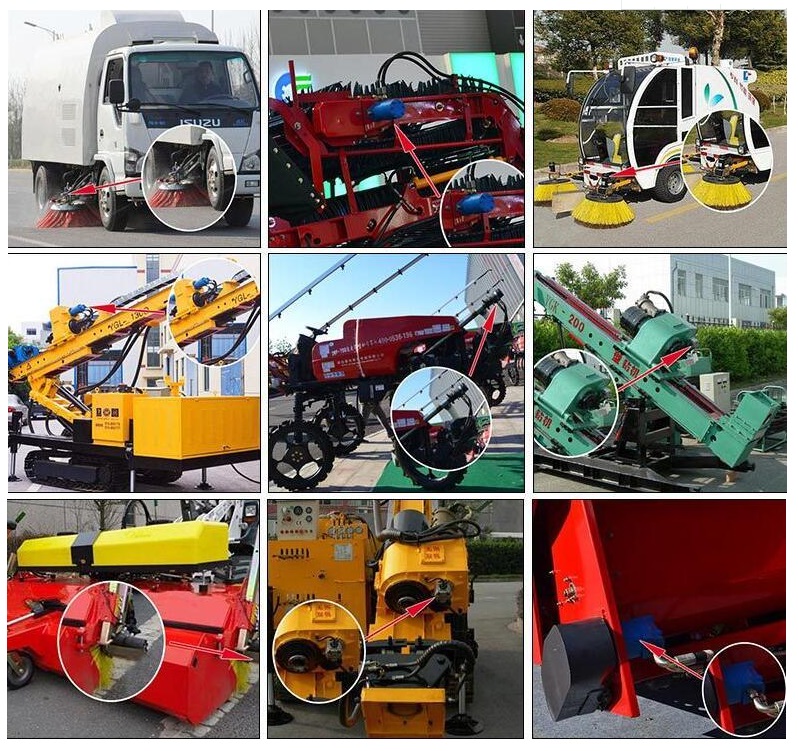

application:

  • Mobile devices
  • snow removal, mowing
  • Sweepers, Trenchers
  • wooden product
  • Mobile devices
  • snow removal, mowing
  • Sweepers, Trenchers
  • wooden product

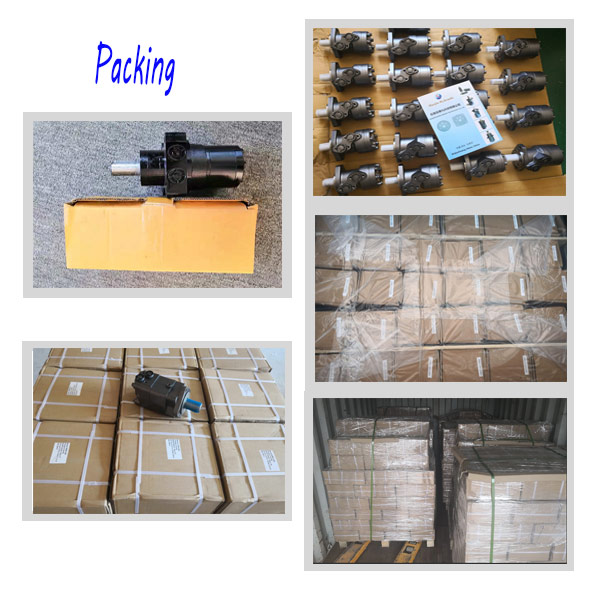

Packaging and Shipping

Shipping package: 1pc/carton, many cartons on pallet

Shipping: For mass production, 3--4 weeks after payment received





our service

♦"Quality First", "Reputation First" and "Zero Complaint" are our main principles;

♦ Fast delivery time for decent orders

♦ Quick response within 24 hours;

♦ Long-term strong and stable supply capacity;

♦ Professional quality inspection.
