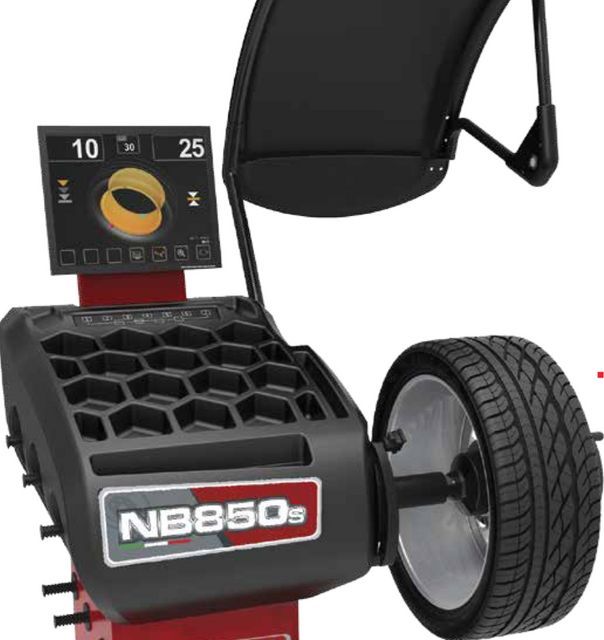

Pneumatic system with laser sonar balancing LCD wheel display CE

Correction is performed on two planes inside the wheel using a special ALU program with an intelligent gauge, resulting in precise results. Simple and friendly to use software, only form symbols. Just one turn to achieve balance, no need to turn again for control.

Specification

• 19-inch LCD monitor and 3D graphics display.
• programs operated by multifunction icons and keys,
• Automatic activation by lowering the wheel protection
• Automatic braking and wheel alignment with fine approximation on the outside,
• Automatic wheel positioning on the inside at the touch of a keypad,
• Balancing speed 100 rpm,
• self-calibration,
• Multi-operator program enables 4 different operators to memorize 4 different vehicle dimensions simultaneously,
• Wheel size displayed in inches or millimeters,
• Unbalance values ​​expressed in grams or ounces,
• Special ALU plans and motorcycle plans
• Hidden weight program can be split behind the spokes on alloy rims
• Automatic input of track and diameter,
• Optional automatic input of wheel width
• Optimized procedure for compensating tire and rim imbalances


technical features
