size: | standard | brand: | Jung Woo |
Supply capacity: | 100000 pieces per day | model: | A0006-A0010 |
Specification: | M2,M2.5,M3,M4,M5 | type: | nut |
Origin: | Zhejiang, China | Operating temperature: | -20~-120 |
payment terms: | Western Union, T/T, Paypal | Packaging Details: | Standard packing (1000PCS/package) |
Flame class: | 94V-2 | Material: | nylon |
port: | Ningbo Shanghai Hong Kong |

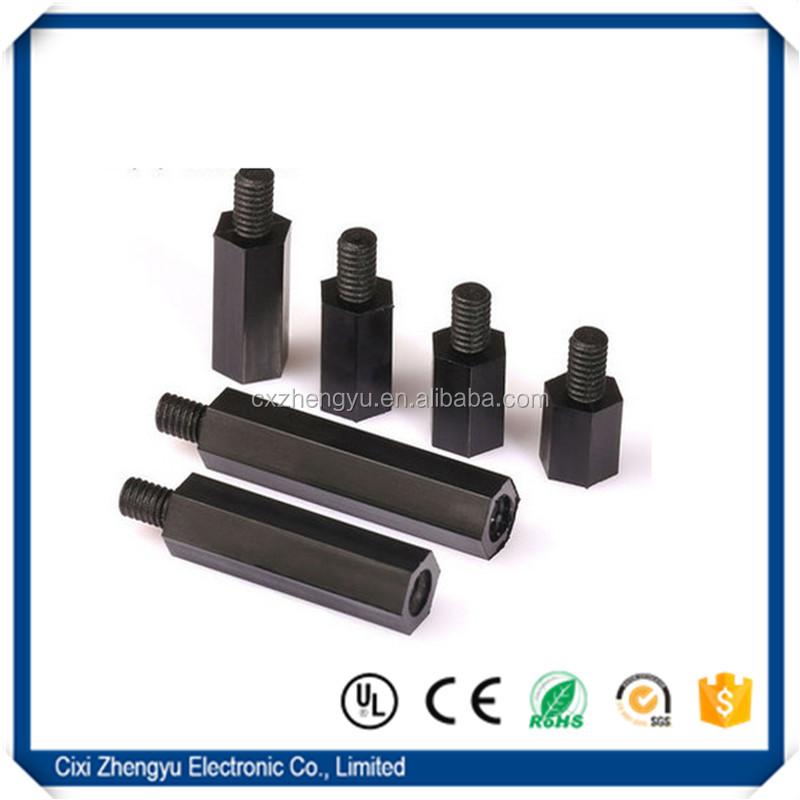

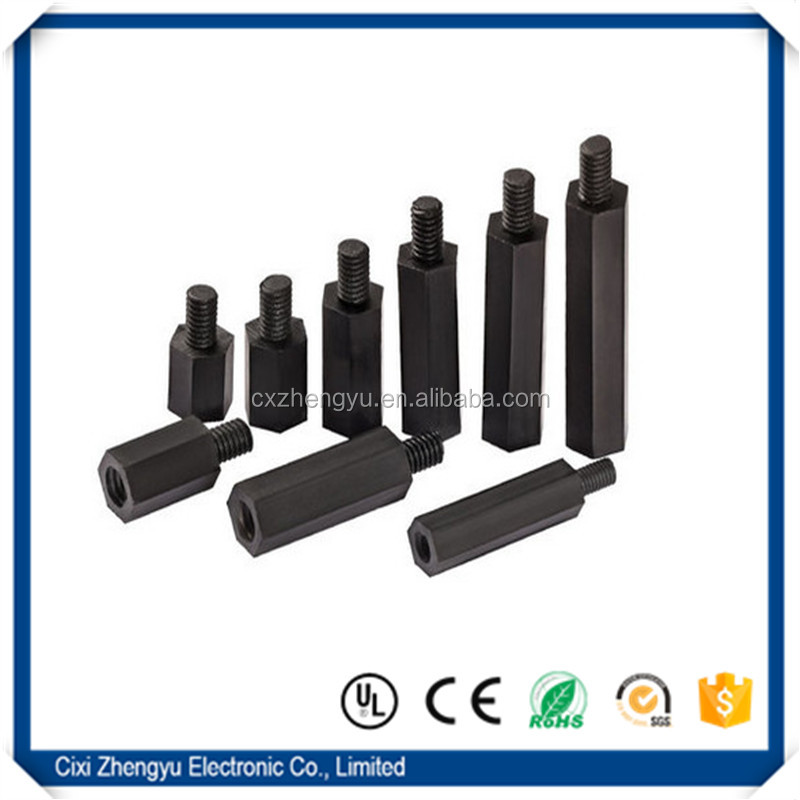

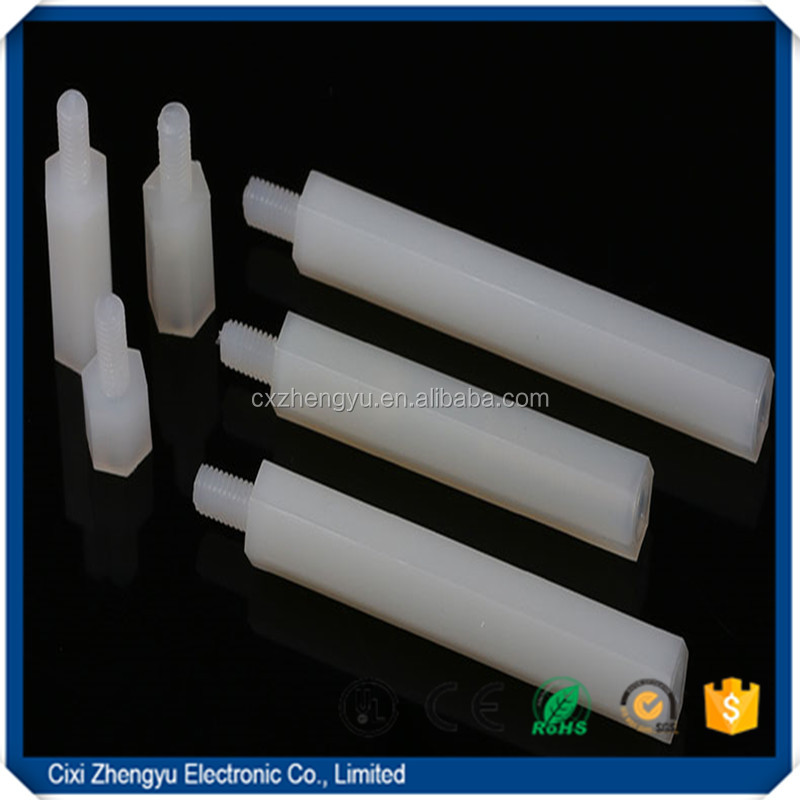

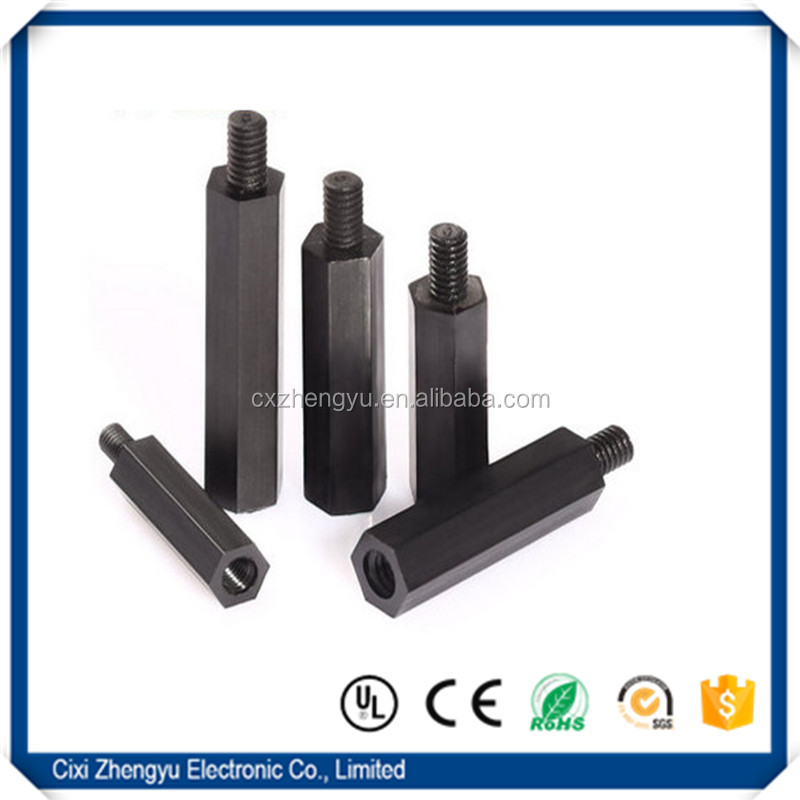

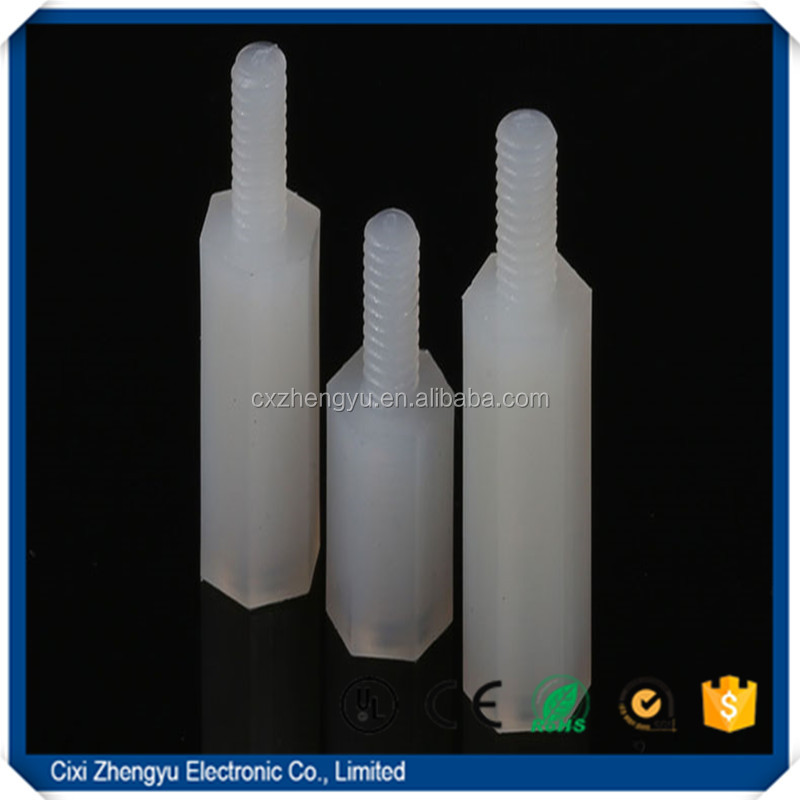

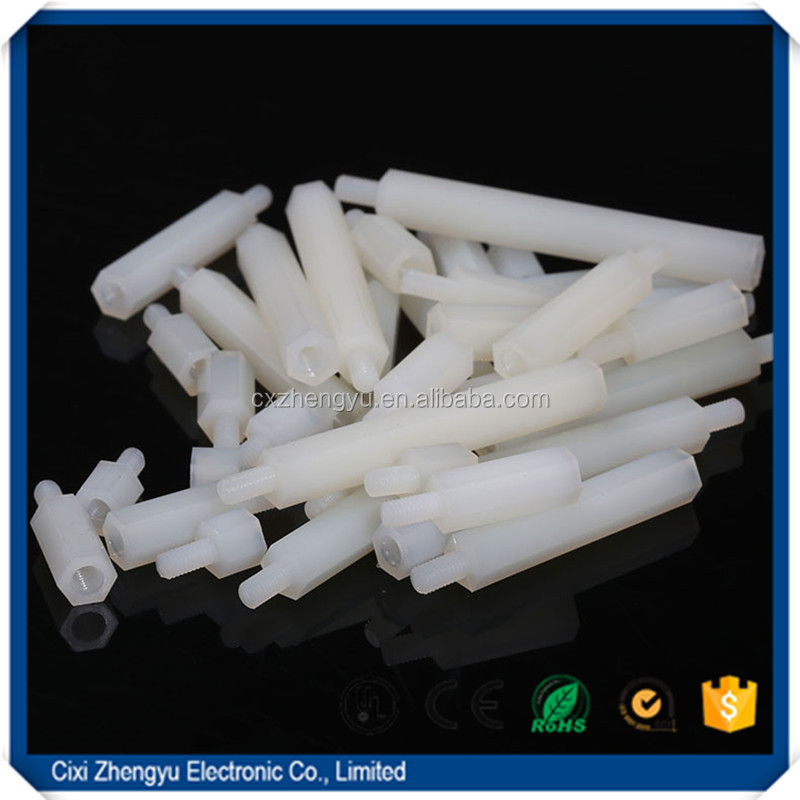

Hexagon Female to Male Nylon Standoff/High Quality Hexagon Nylon Spacer
Product Description:
1. Material: Nylon 66
2. Color: black, white
3. Flame retardant grade: 94V-2
4. Working temperature: -20~-120
5. Features:: Excellent insulation performance, light and rust-free
Excellent creep resistance, wear resistance, heat resistance and corrosion resistance
Efficient performance and long service time
Widely used in PCB assembly in the electronic field, isolation, support and fastening of electronic parts.
- For more detailed sizes (M2, M2.5, M3, M4, M5), please tick in the table below:

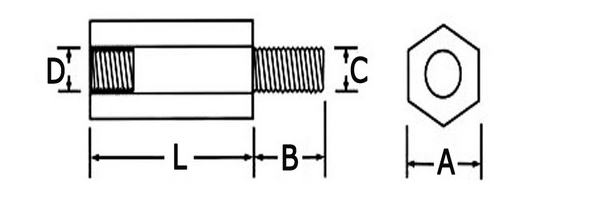

A=hexagonal diameter, B=external thread length C=D=thread size
L=total length
Unit: mm
model | A | Second | CD | large | Package |
A0006 | 4.0 | 5.0 | M2 | 5,6,7,8,9,10,12,13,14,15,16,17,18,19,20 | 1000PCS |
A0007 | 4.7 | 5.5 | M2.5 | 5,6,7,8,9,10,12,13,14,15,16,17,18,19,20 | 1000PCS |
A0008 | 5.6 | 6.0 | M3 |
5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20 21,22,23,24,25,26,27,28,29,30,31,32,33,34 35,36,37,38,39,40,41,42,43,44,45 |
1000PCS |
A0009 | 7.0 | 6.0 | M4 |
5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20 21,22,23,24,25,26,27,28,29,30,31,32,33,34 35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50 |
1000PCS |
A0010 | 8.0 | 7.0 | M5 | 10,15,20,25,30,35,40,45,50,55,60 | 1000PCS |
PS: Dear customer, please select and confirm your preferred thread size and length when sending us an inquiry.
If you are not interested in the thread sizes and lengths listed above please let us know tooWe can also customize the thread size and length you like.
