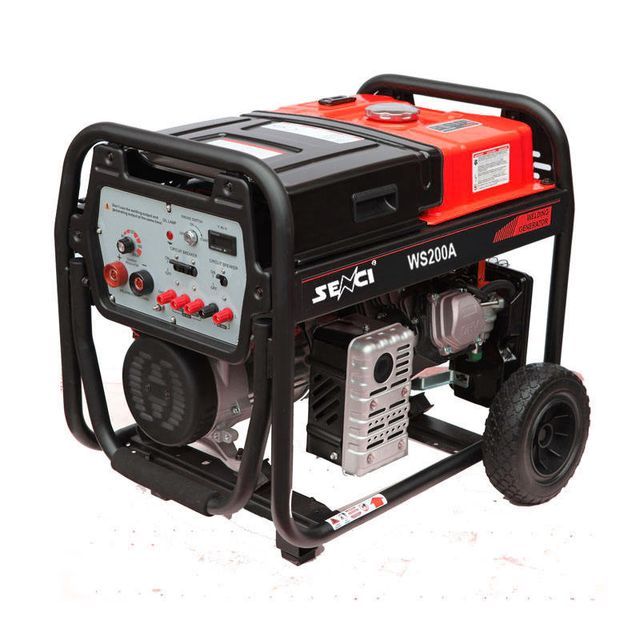

Led Screen Multi Process Welding Machine SENCI 200Amp 5 KW

Click here to contact

Product details

Warranty:	one year	Protection level:	IP23
port:	Chongqing and Shanghai Port	Duty cycle:	60% Duty Cycle Welding Machine
Packaging Details:	Each gasoline generator is packed in a carton	Rated output current:	180A
Warranty:	1 year	Customization support:	OEM,ODM,OBM
delivery time:	7~20 days	model:	WS200A
payment terms:	L/C, Western Union, T/T, MoneyGram	For material type:	Steel, Mild Steel, Stainless Steel, Aluminum, Copper Alloys, Cast Iron, Brass, Bronze
stage:	single	Electrode Diameter:	1.6~5.0mm
Welding process:	stamp	weight:	98KG
Motor type:	negotiation	Origin:	Chongqing, China
Anti-stick:	Built-in anti-stick function	Certification:	CE certification
Accessories:	negotiation	brand:	Senchi
Dimensions (LxWxH):	780545632	Input voltage (v):	1PH 220V 10%
brand:	Senchi	Supply capacity:	50000 pieces per month

Model	WS*200A	SUA200A	SUA200C	SUA200D
Rated duty cycle	60%	60%	60%	35%
Open circuit voltage (V)	DC 75V	DC 75V	DC 75V	DC 65V
Current range (A)	DC50-200A	DC 50-200A	DC 50-200A	DC 50-200A
Welding voltage (V)	DC 22-28V	DC 22-28V	DC 22-28V	DC 22-28V
welding rod	1.6-5.0mm	1.6-5.0mm	1.6-5.0mm	1.6-5.0mm
Rated current/voltage (A/V)	180A / 27.2V	180A / 27.2V	180A/27.2V	170A/26.8V
Auxiliary rated power output	AC 5.0kW/240V or 120V	AC 5.0kW/240V or 120V	AC 5.0kW/240V or 120V	AC 6.2kW/240V or 120V
engine model	SC420	SC420	SC420	CH440
Maximum power/rotational speed (RPM)	9.2kw/3600rpm	9.2kw/3600rpm	9.2kw/3600rpm	9.2kw/3600rpm
Displacement (cc)	Gas, 420	Gas, 420	Gas, 420cc	gas, 429
start method	recoil/electric	recoil/electric	cringe	recoil/electric
Fuel tank capacity(L)	18	25	6.5	18
degree of protection	IP23	IP23	IP23	IP23
Dimensions (mm)	780545632	720600640	740550545	800520630
net weight/kg)	98	98	82	130
