Core component warranty: | 1 year | Motor rating: | 4000±10%W |
payment terms: | L/C, T/T, PayPal | Mechanical test report: | if |
port: | Shanghai | Warranty: | 1 year |
Local service location: | not any | Packaging Details: | wooden bag |
After-sales service provided: | Free spare parts, video technical support, online support | Applicable industries: | Building material stores, manufacturing plants, construction, energy and mining |
High pressure hose length: | 30m (maximum hose length: 100m) | Core components: | Pump |
greatest pressure: | 3300 psi (227 bar) | color: | Red |
industry: | Electric hydraulic paint sprayer | Health status: | new |
strength: | 220V 50Hz | Marketing Type: | New Products 2021 |
Video shipment inspection: | if | Package preview: | |
Showroom location: | not any | Standard/Maximum Nozzle Size: | Single spray gun 639 (0.039'') |
engine: | Brushless Motor | After warranty service: | Video technical support, online support |
Supply capacity: | 100 units per day | brand: | Tarenko |
Origin: | China | | |
Product Description

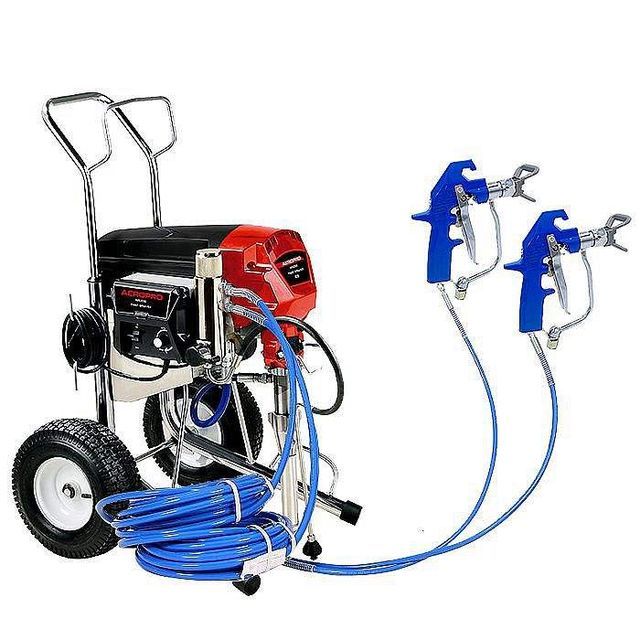

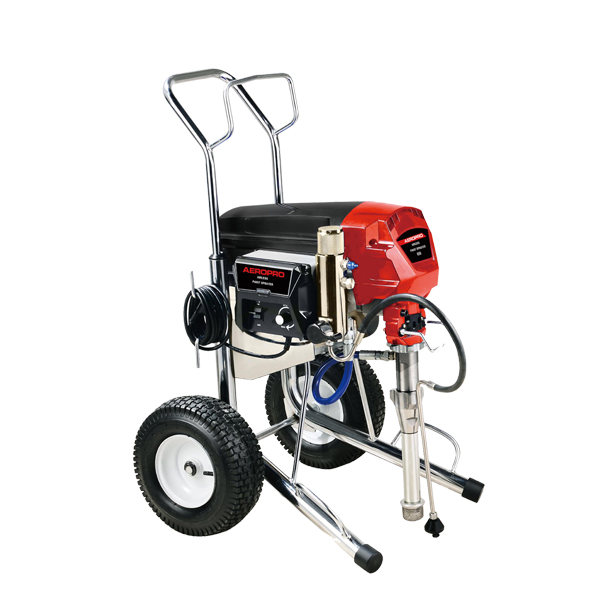

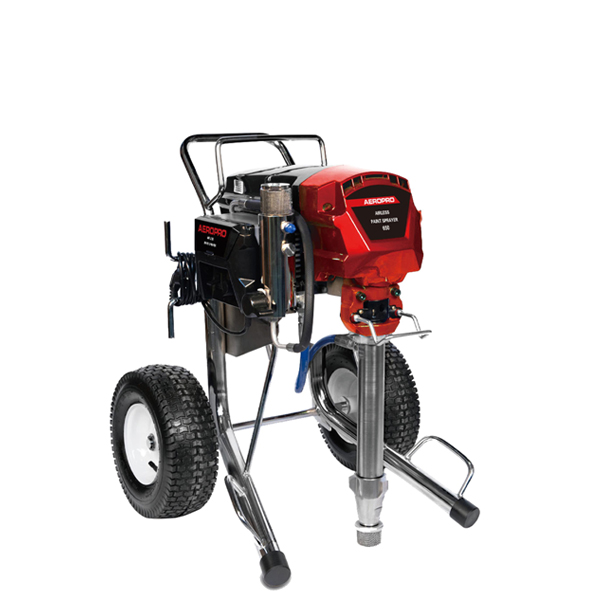

3300 PSI High Efficiency Airless Paint SprayerThe 3300 psi High Efficiency Airless Paint Sprayer makes it easier to paint like a pro. New nozzle technology reduces overspray by up to 55% while providing a softer spray, improved control and a more consistent finish. The 5/8 hp pump is a durable, powerful sprayer that sprays undiluted coats and its rebuildable fluid section maximizes sprayer life.
For spraying paints, varnishes, oil-based paints, enamel, latex, fillers, elastomers, adhesives, epoxies and other high viscosity materials.
Specifications | |
Model | TLS-R750 |
Voltage | 220±10%(V)/110V
|
strength | 4000W |
output pressure | 3300 psi |
flow rate | 6.0±10%(L/min) |
tip size | .039 |
Spray distance | 350-400mm |
weight | 57KG |
●Interchangeability: internal parts can be interchanged with Graco 1095/1595;
●3300w high-power DC brushless motor: strong power guarantee, extremely stable working pressure;
●Using ultra-precision pressure sensors for information collection, to ensure that operators can accurately grasp the working pressure at any time;
●Super wear-resistant: adopt hard alloy steel ball and valve seat design, super wear-resistant, good pressure-holding effect;
●Humanized oil injection hole design: more convenient maintenance, so that the sealing ring can be better lubricated; ●Microcomputer control principle: the precise information collected by the pressure sensor is accurately fed back to the operator. The working pressure can be adjusted at any time through the microcomputer controller to achieve the expected spraying pressure.
●Nanotechnology: The plunger rod and the upper pump body bushing are made of imported abrasive steel. Significant therapeutic effect of nanotechnology
The wear resistance and service life are improved, and the filter is made of stainless steel, which greatly improves the service life.

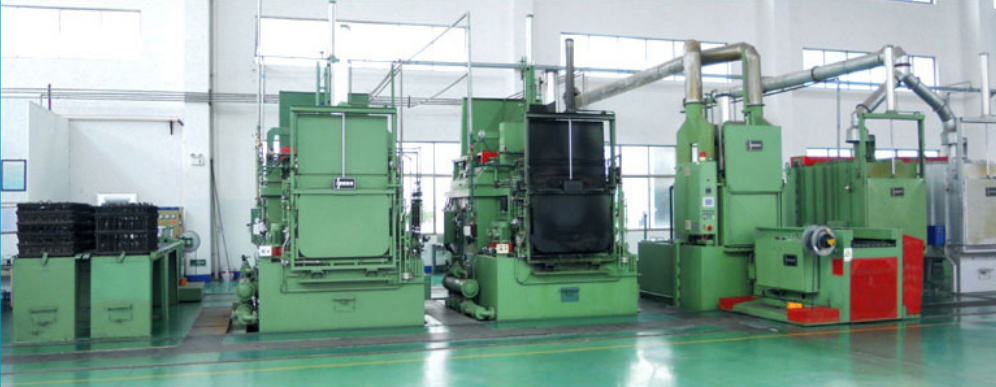

Germany imported lpsen heat treatment equipment.

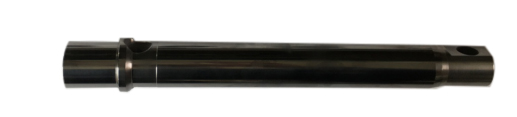

Stainless steel plunger rod imported from Germany
Automatic start/stop:
1. When the spraying stops, the motor stops automatically. 2. When the pressure is sufficient, the motor will not start when spraying, saving energy. Suction hose (hose also optional) Suction hose and filter The suction hose has a filter in front to keep dust out. When the suction hose is not in use, it can be placed in the filter holder. Oil return pipe: When the spray diameter is small, the excess paint will automatically return to the paint tank 1. When the spraying stops, the motor stops automatically. 2. When the pressure is sufficient, the motor will not start when spraying, saving energy. Suction hose (hose also optional) Suction hose and filter The suction hose has a filter in front to keep dust out. When the suction hose is not in use, it can be placed in the filter holder. Oil return pipe: when the spray diameter is small, the excess paint will automatically return to the oil tank
detailed drawing
