Duplex Basket Filter | Basket Filter | Pipeline Filter

Supplier: Shandong Jiahe Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Martin Yang
Price: $1000.00 / 1 - 19 pieces
$900.00 / 20 - 49 pieces
$800.00 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

Core components:	pressure vessel	Filter type:	Duplex Basket Filter
Marketing Type:	2019 Hot Products	Supply capacity:	20 pieces per month
brand:	Jiahe	Screen material:	SS304, SS316, Bronze,
structure:	Ball steering gear, 3 pcs	payment terms:	L/C, Western Union, T/T, MoneyGram
Applicable industries:	Building material stores, manufacturing plants, machinery repair shops, construction, energy and mining, other	Pressure Level:	American Standard 125#, 150#, 300#, PN10, PN16,
Package preview:		Warranty:	1 year
Origin:	Shandong China	Video shipment inspection:	not available
size:	1/4"~10"	After warranty service:	spare parts
After-sales service provided:	online support	Showroom location:	not any
Core component warranty:	1 year	Health status:	new
Weight (kg):	20	port:	Shanghai Port
connect:	Flange type, screw type	Body material:	Cast iron, cast steel, stainless steel, bronze, alloy
Perforation and mesh:	upon request	Mechanical test report:	if
Packaging Details:	wooden box

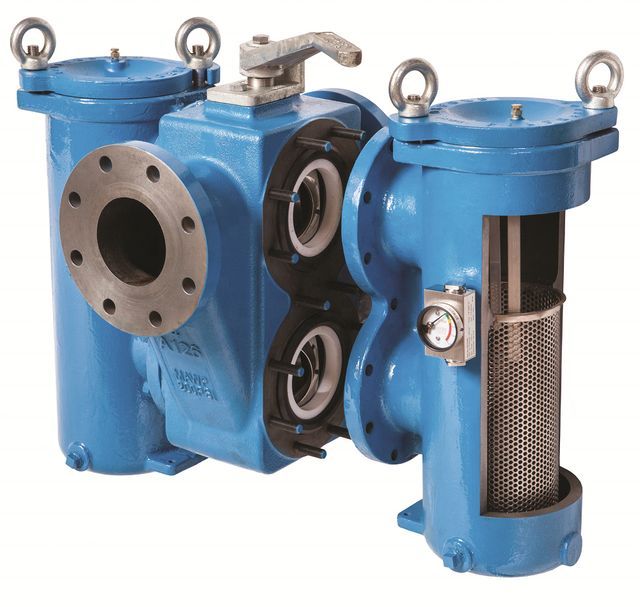

Double Basket Strainer, up to 10" & ANSI CLASS300

DCIF/T, DCSF/T, DSSF/T, DBZF/T - Sizes 1/4” - ” Available, Pressure

CAST DUPLEX with QUICK OPEN CLAMP COVER four-ball design

Our high quality, compact duplex filters are ideal for non-stop applications. They are easy to operate and maintain, and the filter element can be removed from the chamber without special tools. Two basket chambers and a splitter system allow tubing flow to be switched from one chamber to the other, isolating flow to a single chamber and allowing inactive chambers to be cleaned without shutting down. Our duplex filters are available with threaded and flanged ends in a variety of materials. All cast iron and carbon steel units are epoxy coated to resist rust.
easy to operate

Our duplex filters feature low torque, easy-to-operate handles that don't require a gearbox. Additionally, the position of the handle clearly indicates which basket is in use and which basket can be safely removed for cleaning.
Reduced "online" maintenance

Our Duplex has many features that help reduce maintenance during cleaning operations. First, the dual/quad ball design isolates each chamber and keeps the service chamber dry during cleaning. Also no special tools are required to access and remove the strain elements in the chamber. Finally, Duplex offers cover vents, drain plugs and foot pads on each chamber.
endless screen options

The filter can be fitted with virtually any configuration of perforated or mesh lined filter elements. Strain elements can also be made of exotic materials such as Alloy 20.

Product Description

Duplex filter (or double basket filter)Or a double basket filter is a filter built into fuel, oil or water piping systems to remove large particles of dirt and debris. Dual filter systems typically consist of two separate filter baskets. The system also incorporates a valve handle positioned between the two baskets to divert the flow of liquid to one filter while cleaning the other. On some filters, the valve works automatically and the filter performs a self-cleaning operation.

These types of filters are installed in piping systems where the flow cannot be stopped. Depending on their NB size, they are capable of filtering up to 40 µm. Basket filters can be used in industries where the impurities are mainly solids. Unlike other types of filters, these filters are easy to maintain.

Duplex filters are mainly used in process industry, power industry, chemical industry, oil and gas industry, pulp and paper industry, pharmaceutical industry, metal and mining industry, water and waste management, fire protection industry, refinery and petrochemical plants etc. Industry. Filters are used to remove harmful elements which, if they enter a system, can cause partial or complete disruption of operations.

Model: DCIF/T, DCSF/T, DSSF/T, DBZF/T

put up:
Cast Iron Body/Cast Carbon Steel/Stainless Steel Cover
Bronze inner sleeve
Two (2) 316 stainless steel baskets, 30 mesh (included)
brass drain plug
Nitrile seals

For applications requiring continuous flow with minimal pressure loss, dual basket filters offer premium design and performance. The filter is of cast construction and contains two chambers, each containing a high quality stainless steel basket. The flow of water is diverted from one basket to the other without interruption by turning the handle, which turns the double cylindrical cock.

Duplex Filters - Features

Simple conversion operations require little maintenance.
Compact design saves space.
Large filter area results in low pressure drop.
Working pressure up to 50 bar (ANSI Class300 series).
Quick release filter cap and knob for easy maintenance.
No contamination between filtered and unfiltered liquids.
Wide range of materials, sizes and accessories.
Filters down to 10 microns.

Duplex Filters - Features

The handle covers the chamber when in use, preventing accidental opening of the pressurized chamber.
Provides a differential pressure indicator

Packaging and Shipping

We can ship goods worldwide by sea or air. Packing will be done according to customer's requirement.
