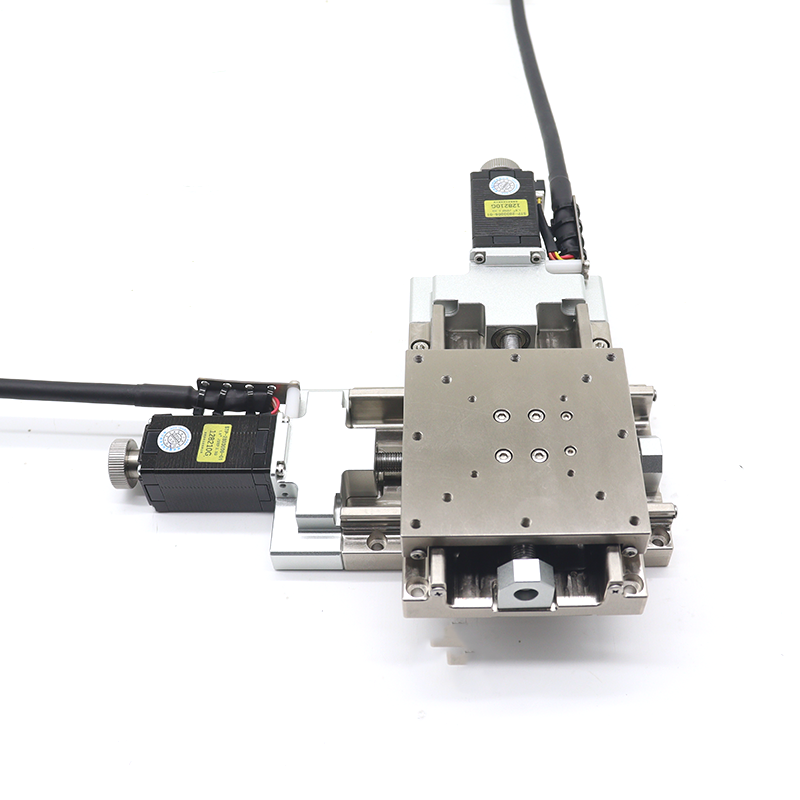

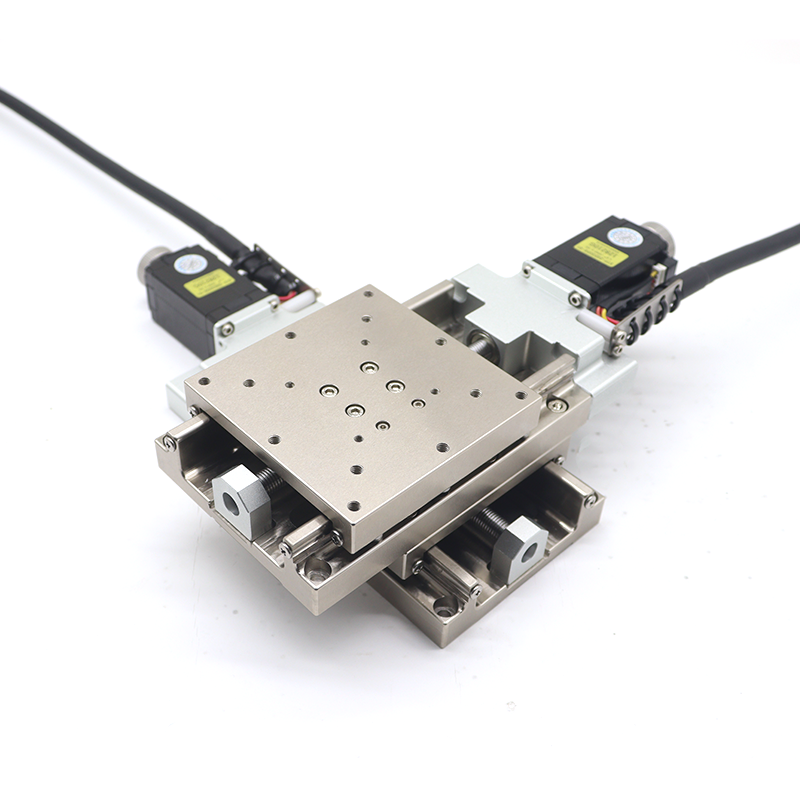

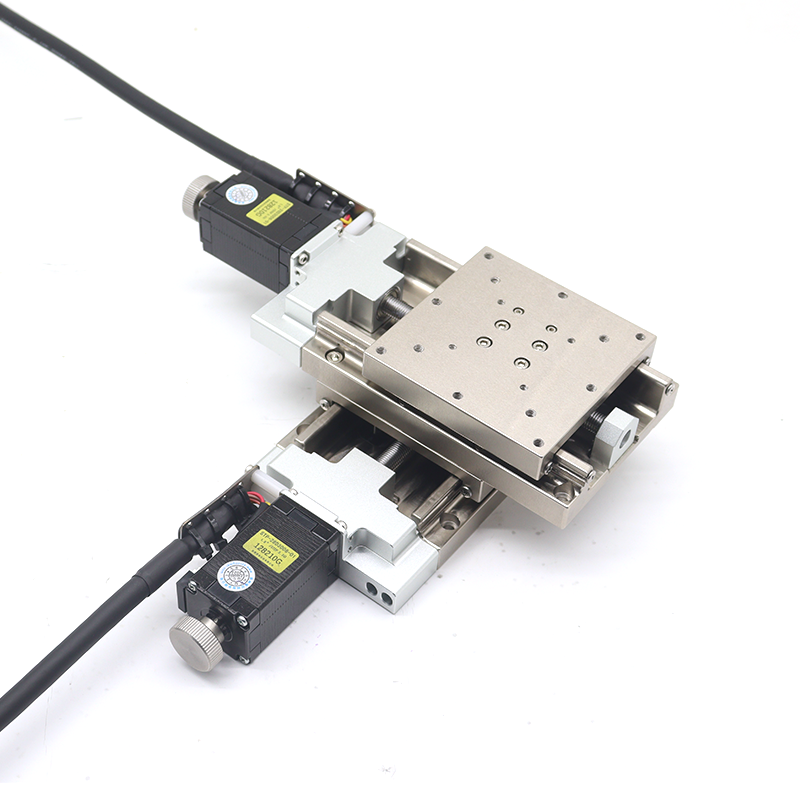

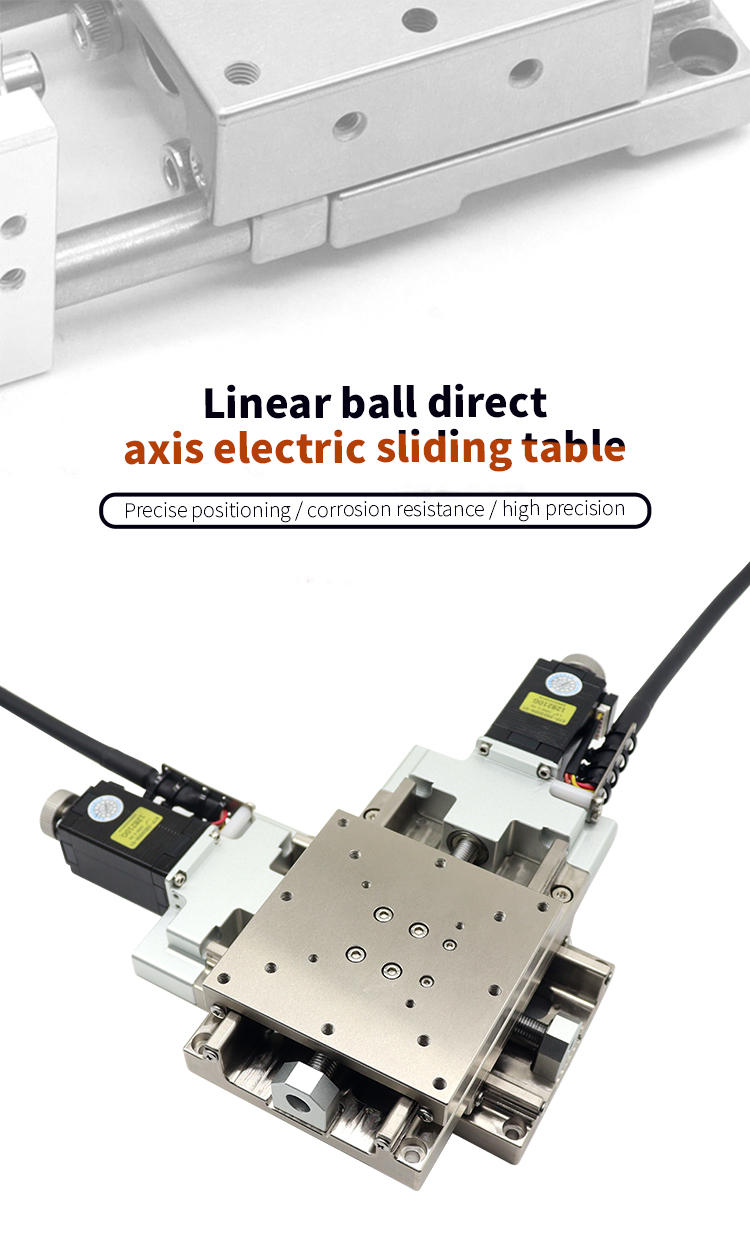

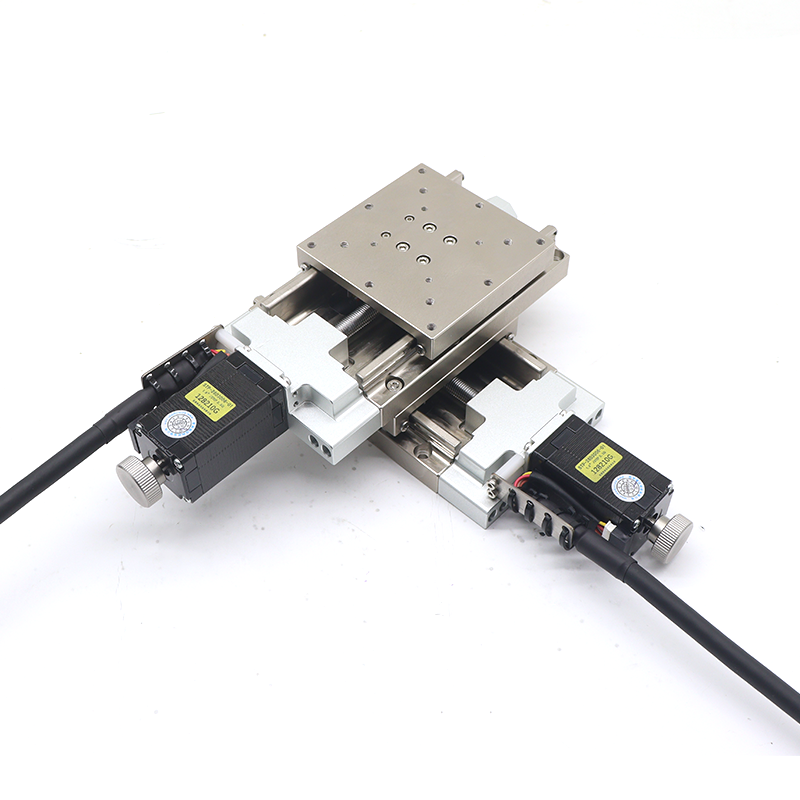

FYS50 Series High Precision Electric Optical Calibration Slide Table with XY Axis

Supplier: Jiangxi Faray Automation Technology Co., LTD
Region: jiangxi, China
Contact: Mr Zen Peng
Price: $640.64 /set
Min. Order: 1 set

Click here to contact

Product details

product name:	XY axis cross slide	Showroom location:	not any
Model:	FYS50 series	travel:	20mm-30mm
Core component warranty:	1 year	Core components:	Bearings, motors, ball screws, sliding tables
Video shipment inspection:	not available	Applicable industries:	Movement correction, laser displacement, detection adjustment, melting equipment, fiber core adjustment, optical alignment
brand:	Farley	Marketing Type:	Hot Products of 2022
Mechanical test report:	not available	Material:	stainless steel, stainless steel
weight:	0.5 kg	Health status:	new
Warranty:	1.5 years	payment terms:	wire transfer

Product Description

Specification

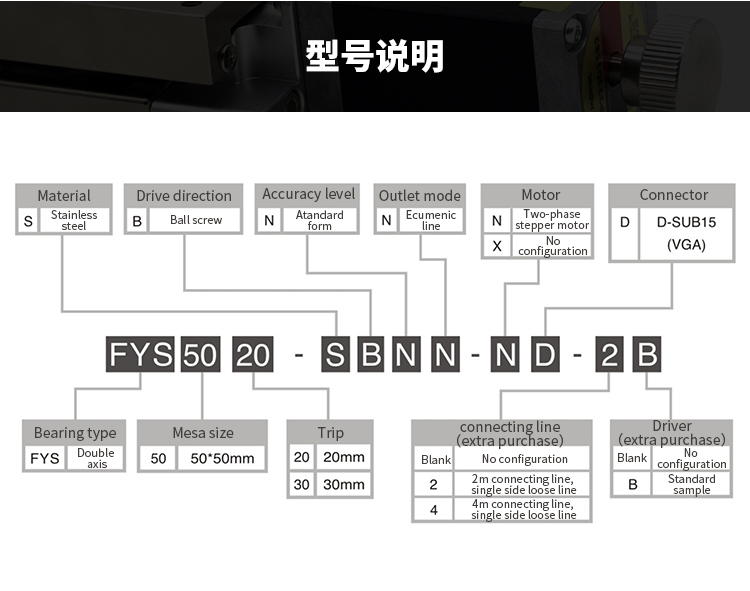

*FYS50 series*

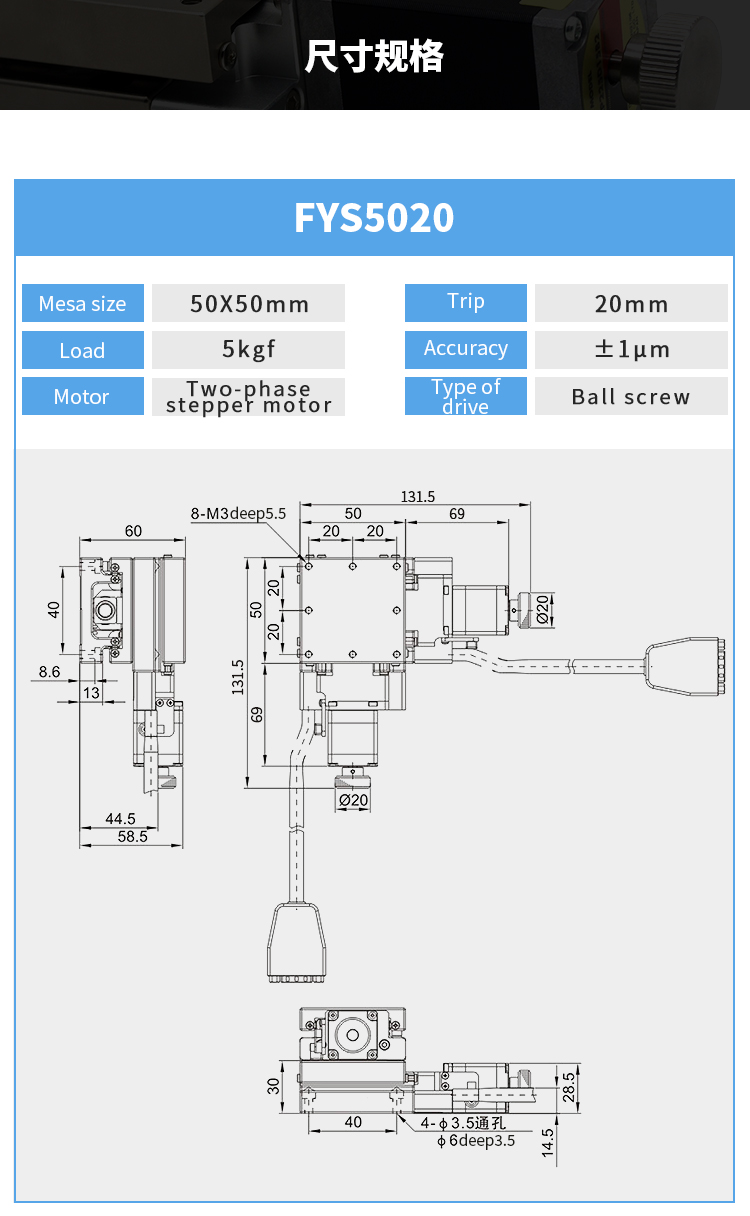

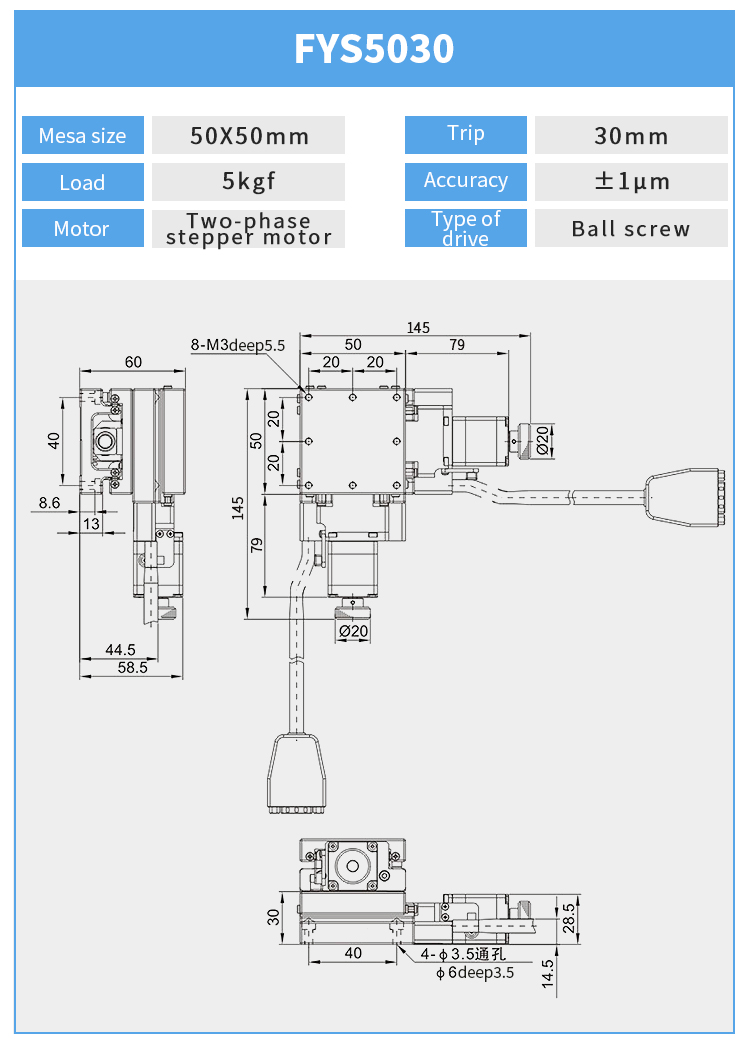

*type*	FYS5020	FYS5030
*Table size*	50*50mm
*travel*	20mm	30mm
*drive type*	Ball screw ∅8, lead 1mm
*track*	Cross Roller Guide Type
*Material/Surface Treatment*	Stainless Steel/Electroless Nickel
*weight*	0.57 kg	0.72 kg
*coupling*	FAMCS11.6-5*5
*level of accuracy*	N: standard form
*Socket type*	N: universal line
*Maximum speed*	20 mm/s
*One-way positioning accuracy*	15μm
*load*	5Kgf

Application field
