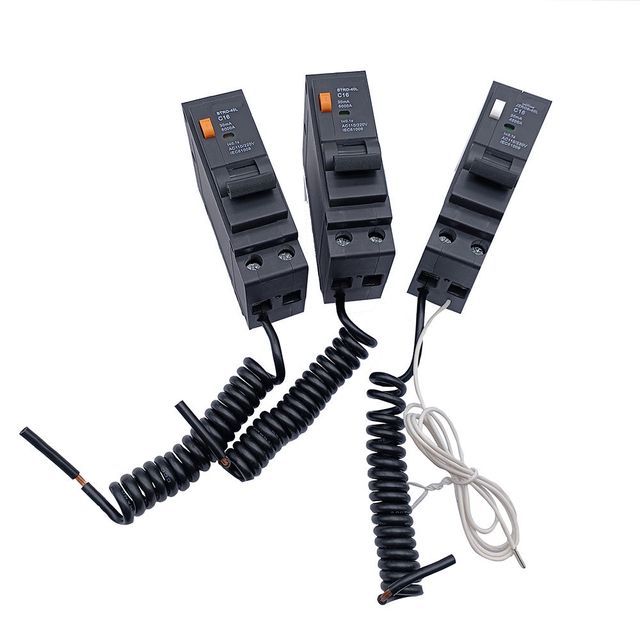

16A 20A 32A 40A 30mA 4.5KA 6KA 1P+N RCBO Overload Protection Circuit Breaker

Supplier: Zhejiang Zhengkun Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Yi Zhang
Price: $3.70 / 1 - 49 pieces
$3.69 / 50 - 999 pieces
$3.66 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

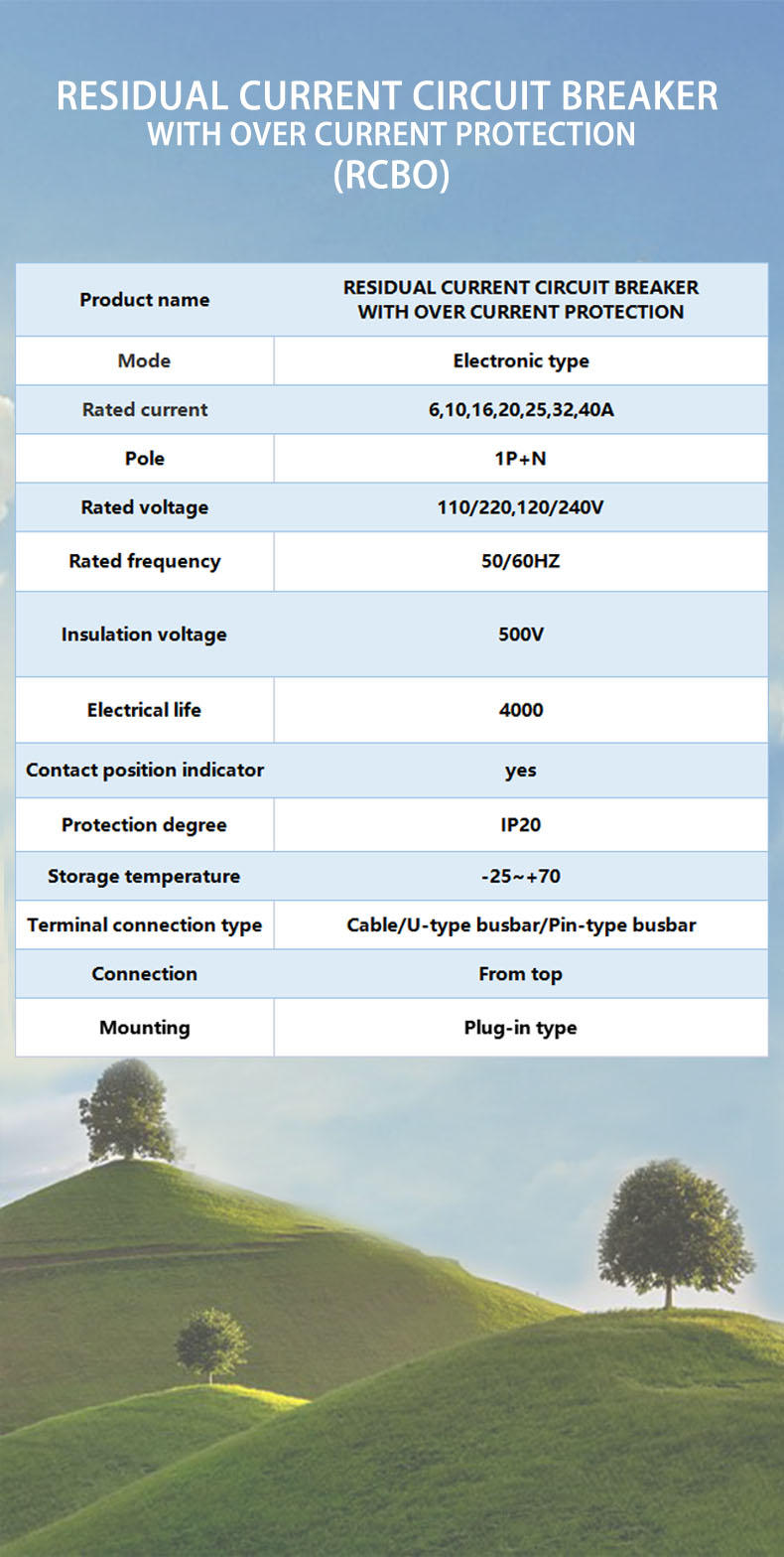

Product details

type:	residual current circuit breaker	Mechanical life:	4000
Rated voltage:	110V-220v	port:	Ningbo/Shanghai
Origin:	Philosophy	standard:	IEC61009-1
Supply capacity:	10000 pieces per month	Rated frequency:	50/60 Hz
Number of poles:	1P+N	Rated frequency:	50/60 Hz
Rated current:	6A-40A	Packaging Details:	Carton
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Electrical life:	4000
product name:	RCBO residual current circuit breaker	poles:	1P+N
Rated voltage:	110-220V

General

RCBO is mainly used for AC 50Hz (60Hz), rated voltage 110/220V, 120/240V, rated current 6A to 40A low-voltage terminal power distribution system, RCBO is equivalent to MCB+RCD function; used for electric shock protection and personal injury indirect contact protection, Protection of electrical equipment, overload and short-circuit protection when the human body gets an electric shock or the leakage current of the power grid exceeds the specified value; it can also be used as a non-frequency operator in the circuit, widely used in residential and commercial areas. It conforms to the IEC61009-1 standard.

Product Description
