Wire Cable CE White Black Waterproof Nylon Plastic Cable Gland Connector
-
Supplier: Zhejiang Tolerance Electric Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Terence Tan -
Price: $0.30 / >=1000 pieces -
Min. Order: 1000 pieces
Product details
| Usage: | Lock Cable Tight; | Function: | resistant to the water ,dust,oil; |
| Protection Level: | IP68; | Thread length: | 9; |
| Model Number: | PG29; | Certification: | CE IP68 SGS; |
| Brand Name: | Tolerance; | Payment Terms: | L/C,T/T,Western Union; |
| Color: | Black,Gray,other color available upon request; | Supply Ability: | 100000 Piece/Pieces per Week; |
| Size: | PG29; | Material: | Brass; |
| Fire Proof Level: | UL94V-2; | Packaging Detail: | Customized Packing:Header card packing,Blister with card packing,Double blister packing,Canister packing,other packing can be supplied according customers request; |
| Feature: | Seal Part Hold Cable Firmly; | Thread O.D: | 37; |
| Working Temperature: | Static:-40℃~100℃; | Cable range: | 18~25; |
| Port: | Ningbo or Shanghai; | Place of Origin: | Zhejiang China (Mainland); |
Product Description
Thread: | PG,Metric,G,and NPT thread |
Materials: | With nickel plated for A.C.F parts,ULapproved Nylon PA66(Flammability UL 94V-2) for E parts, EPDM rubber for B.D parts, (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc). |
Protection degree: | IP68 |
Working temperature: | -40℃ to 100℃ |
Features: | The claws and seals of excellent design, sealing nut have a "click" sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water,weak acid, alcohol, oil, grease and common solvency. |

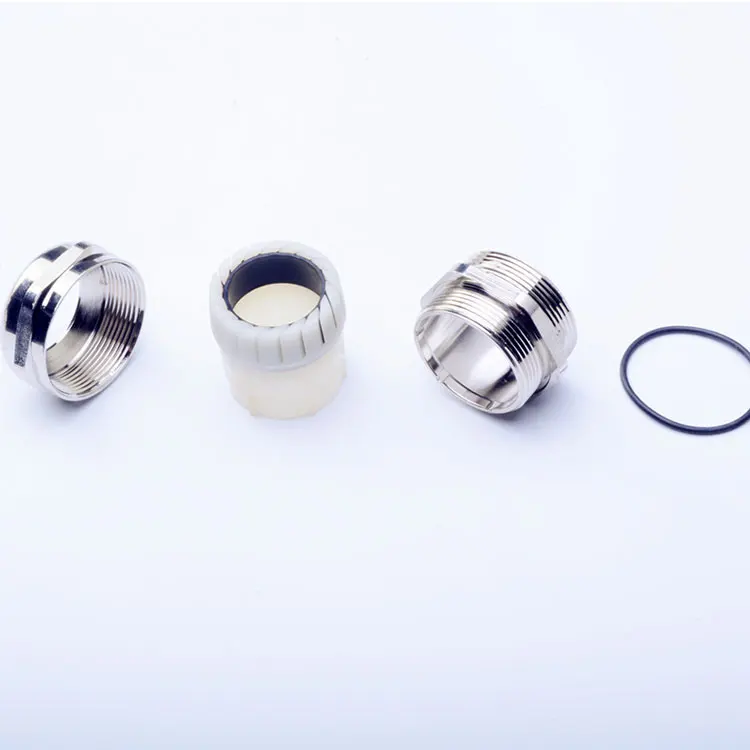

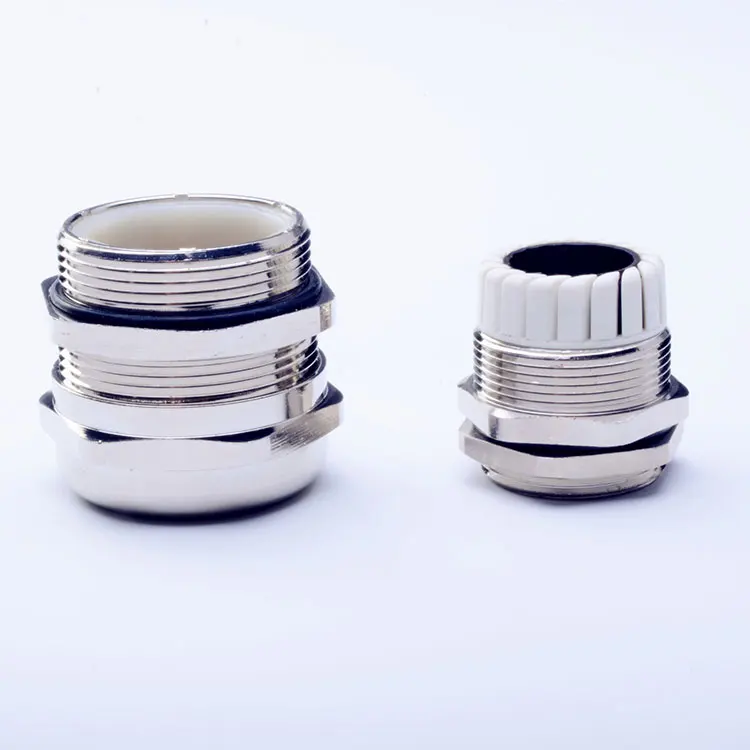

Product picture:

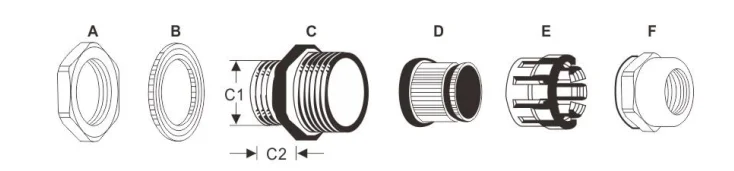

Specification:
+
| Product Model | Cable Range | Thread diameter | Thread length | Wrench diameter |
| (C1) | (C2) | |||
| PG7 | 3~6.5 | 12.5 | 6 | 14 |
| PG9 | 4~8 | 15.2 | 7 | 17 |
| PG11 | 5~10 | 18.6 | 7 | 20 |
| PG13.5 | 6~12 | 20.4 | 7.5 | 22 |
| PG16 | 10~14 | 22.5 | 7.5 | 24 |
| PG21 | 13~18 | 28.3 | 8 | 30 |
| PG29 | 18~25 | 37 | 9 | 40 |
| PG36 | 22~32 | 47 | 9 | 50 |
| PG42 | 32~38 | 54 | 10 | 57 |
| PG48 | 37~44 | 59.3 | 11 | 64 |
+
 | Product Model | Cable Range | Thread diameter | Thread length | Wrench diameter |
| PG7 | 2~5 | 12.5 | 6 | 14 | |
| PG9 | 2~6 | 15.2 | 7 | 17 | |
| PG11 | 3~7 | 18.6 | 7 | 20 | |
| PG13.5 | 5~9 | 20.4 | 7.5 | 22 | |
| PG16 | 7~12 | 22.5 | 7.5 | 24 | |
| PG21 | 9~16 | 28.3 | 8 | 30 | |
| PG29 | 13~20 | 37 | 9 | 40 | |
| PG36 | 20~26 | 47 | 9 | 50 | |
| PG42 | 25~31 | 54 | 10 | 57 | |
| PG48 | 29~35 | 59.3 | 11 | 64 |
