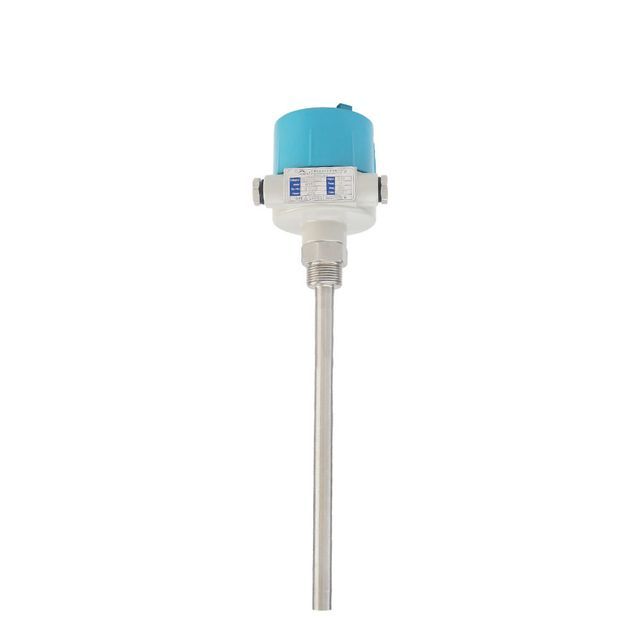

APX505 particle powder cement particle single vibration rod material level switch

Supplier: Shandong Aipuxin Automation Instrument Co., Ltd.
Region: Shandong, China
Contact: Ms Mary wang
Price: $200.00 / 1 - 9 pieces
$180.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

product name:	Single Lever Level Switch	output:	4-20 mA
Package preview:		type:	Vibrator level switch, Vibrator level switch
Measuring range:	270mm~6000mm	Packaging Details:	It is safer to fill foam in the carton
Operating temperature:	-20℃~80℃	payment terms:	L/C, T/T
brand:	Epson	Origin:	Shandong China
measurement accuracy:	±2mm	model:	APX505
Pressure range:	≤1MPa	Enclosure rating:	IP65
Customization support:	OEM production	Warranty:	1 year
application:	liquid, powder or granular solid

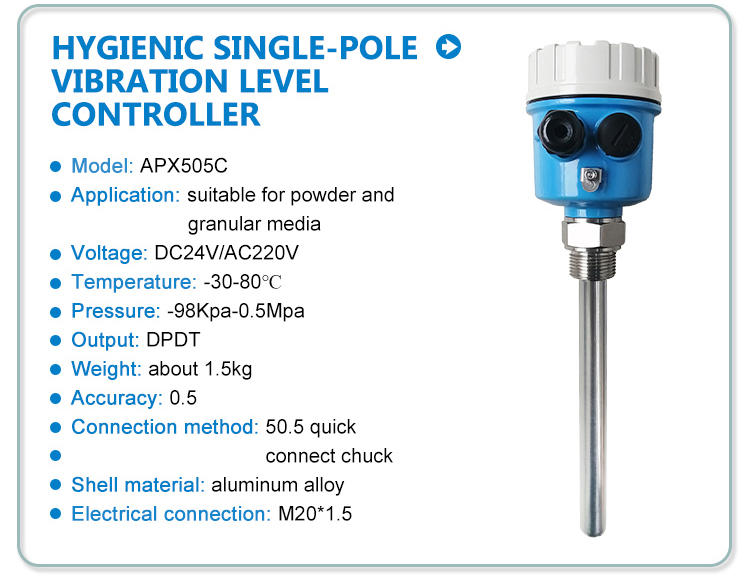

Product Description

The single-rod vibration horizontal controller is the resonance caused by the vibration of the piezoelectric crystal. When damped by the material, the amplitude decreases sharply, and the frequency and phase change significantly. These changes will be detected by the internal electronic circuit, processed, converted into a switch signal output.

Technical Parameters
Medium temperature range	-20℃～80℃
ambient temperature	-20℃～80℃
environment humidity	≤95%RH
Measured medium	liquid, powder or granular solid
Measured medium density	Solid ≥ 0.1g/cm3 Liquid≥0.7g/cm3
Measured solid particle size	≤10mm
Maximum Liquid Viscosity	＜1000mm2/s
Angle of repose of the measured medium	≥200
pressure range	≤1MPa
shell material	Die-cast aluminum alloy
Fork material	1Cr18Ni9Ti
degree of protection	IP65
connection method	1″NPT thread; flange (customer’s choice)
Electrical parameters
voltage	DC24V; AC220V 50HZ
output signal	Relay output: 5A 220V AC 3A 24V DC
energy consumption	≤2W
Tuning fork vibration frequency	300±50Hz
Switch signal action time	1-60S
