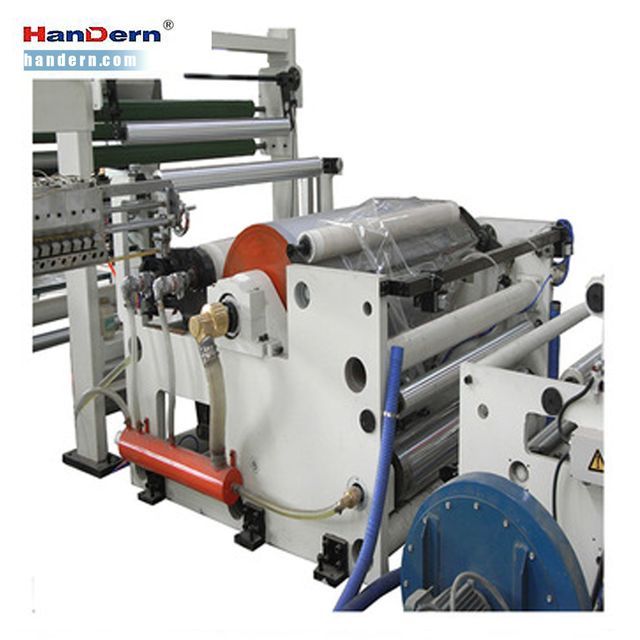

Extrusion Coating Laminating Machine EMMA Extrusion Coating Laminating Machine 1400 Extrusion Coating Laminating Machine
-

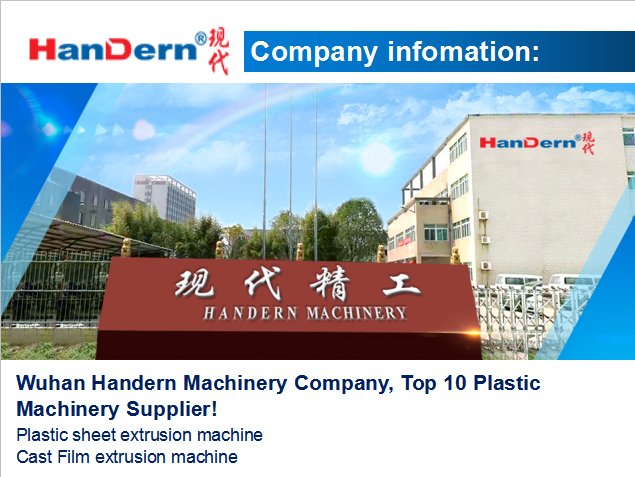

Supplier: Wuhan Handern Machinery Co., Ltd. -
Region: Hubei, China -
Contact: Ms Emily Xiao -
Price: $50000.00 /set -
Min. Order: 1 set
| Applicable industries: | Hotel, farm, restaurant, household, retail, food store, print shop, food and beverage store, advertising agency | application: | Hot melt adhesive laminating machine |
| Showroom location: | India | Mechanical test report: | if |
| Core components: | PLC, bearing, motor | Origin: | China |
| Packaging Details: | Wooden box hollow plastic sheet extruder | Dimensions (L*W*H): | 11300*7500*3000MM |
| color: | customizable | payment terms: | L/C, T/T |
| Laminate: | PE EVA Emma | Marketing Type: | New Products 2020 |
| Health status: | new | brand: | modern |
| product name: | Enhanced automatic laminating machine | Warranty: | 2 years |
| Video shipment inspection: | if | weight: | 11 |
| Main selling points: | high productivity | strength: | 80 kW |
| Voltage: | 380V | type: | 2200mm |
| Core component warranty: | 1 year |
Extrusion Coating Laminating Machine EMMA Extrusion Coating Laminating Machine 1400 Extrusion Coating Laminating Machine
Introduction:

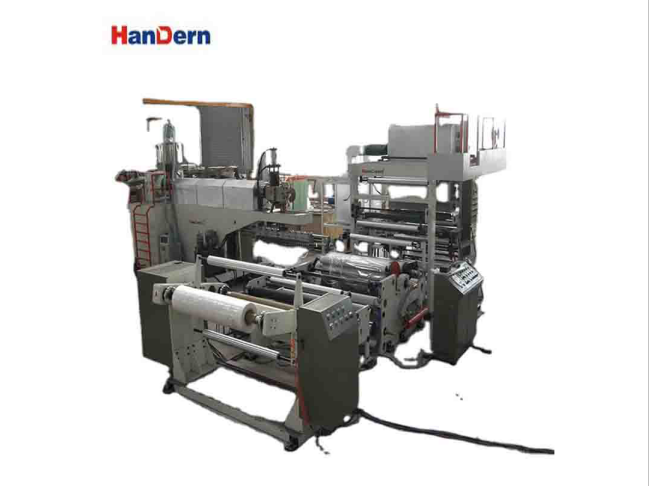

This production line is a high-speed extrusion composite line for flexible packaging materials. It is suitable for the coating of LDPE, LLDPE, PP, EVA, EAA, EMAA and other coating grade resins, and is used for the production of composite film materials for food, medicine, electronics and other flexible packaging.
Technical Parameters:

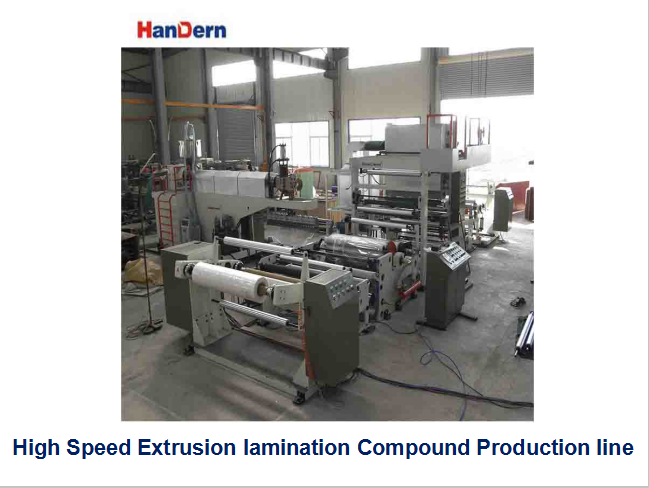

High Speed Extrusion Lamination Lamination Production Line
Color printing flexible packaging
| Model | Product width(mm) | Lamination thickness (mm) | Maximum extrusion volume | design line speed |
| XD-CFLM-1200 | 600-1100 | 0.01-0.05 | 250 kg/h | 200m/min |
| XD-CFLM-1450 | 800-1350 | 0.01-0.05 | 300 kg/h | 200m/min |
| XD-CFLM-1700 | 1000-1600 | 0.01-0.05 | 400 kg/h | 200m/min |
Release paper, label paper
| Model | Product width(mm) | Lamination thickness (mm) | Maximum extrusion volume | design line speed |
| XD-GPLM-1200 | 600-1100 | 0.01-0.05 | 250 kg/h | 220m/min |
| XD-GPLM-1450 | 800-1350 | 0.01-0.05 | 330 kg/h | 280m/min |
| XD-GPLM-1700 | 1000-1600 | 0.01-0.05 | 400 kg/h | 280m/min |
liquid aseptic packaging
| Model | Product width(mm) | Lamination thickness (mm) | Maximum extrusion volume | design line speed |
| XD-GFLM-1200 | 600-1100 | 0.01-0.04 | 100kg/h(φ65) 250kg/h(φ90) | 280m/min |
| XD-GFLM-1450 | 800-1350 | 0.01-0.04 | 180kg/h(φ80) 300kg/h(φ100) | 280m/min |
precoated film
| Model | Product width(mm) | Lamination thickness (mm) | Maximum extrusion volume | design line speed |
| XD-TFLM-1700 | 1000-1600 | 0.01-0.04 | 300 kg/h | 200m/min |
| XD-TFLM-2100 | 1400-2000 | 0.01-0.04 | 400 kg/h | 200m/min |
paper cup
| Model | Product width(mm) | Lamination thickness (mm) | Maximum extrusion volume | design line speed |
| XD-GLM-1200 | 600-1100 | 0.01-0.04 | 250 kg/h | 220m/min |
| XD-GLM-1450 | 800-1350 | 0.01-0.04 | 350 kg/h | 280m/min |
| XD-GLM-1700 | 1000-1600 | 0.01-0.04 | 400 kg/h | 280m/min |
The configuration of the machine can be customized according to your needs!
| serial number | High Speed Extrusion Lamination Lamination Production Line | unit |
| 1 | Unwind | set |
| 2 | corona treatment | set |
| 3 | coating | set |
| 4 | oven | set |
| 5 | Loading | set |
| 6 | extruder | set |
| 7 | die | set |
| 8 | casting | set |
| 9 | laminated | set |
| 10 | corona treatment | set |
| 11 | examine | set |
| 12 | twine | set |
| 13 | Control System | set |
| 14 | Trimming | set |
Squeeze casting molding and main applications:
After being plasticized by the screw, the plastic particles are extruded in a straight line from the flat die, and then attached to the surface of flexible substrates such as paper, film, non-woven fabrics, and woven fabrics, and finally a composite material is obtained, which combines the barrier properties of the plastic film layer. performance and heat sealability, strength and toughness of the substrate, and functional properties.
Products are widely used in food, beverage, packaging and construction and other fields.
