Applicable industries: | Machinery repair shop, manufacturing plant, construction project, building material shop | Full size after installation (L*W*H): | 3.2m*1.5m*1.2m |
Material/Metal Processing: | Aluminum, aluminum alloy, stainless steel, carbon steel | Origin: | Zhejiang, China |
Weight (kg): | 100 kg | Available working lengths: | 3.2m |
Warranty: | 1 year | Motor power (kW): | 0 kW |
Supply capacity: | 100 sets per month | payment terms: | L/C, T/T |
Mechanical test report: | if | automation: | manual |
brand: | Yanagihara | Packing diameter: | 3.25m*0.71m*0.38m |
Net weight (including feet): | 106 kg | Core components: | bearing |
Video shipment inspection: | if | port: | Shanghai, Tianjin, Qingdao |

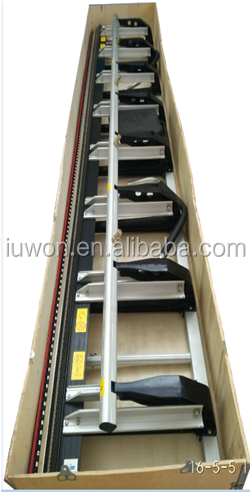

Packaging Details: | Cutting and bending machine packaging: plywood box packaging. | Aluminum plate thickness: | ≤0.8mm |
Marketing Type: | normal product | Manual slitter: | include |
Iron plate thickness: | ≤0.6mm | Core component warranty: | 1 year |
Throat deep: | 500mm | Package preview: | |
Main selling points: | easy to operate | Health status: | new |
Showroom location: | not any | Gross weight (including legs): | 160 kg |
Stainless steel plate thickness: | ≤0.4mm |

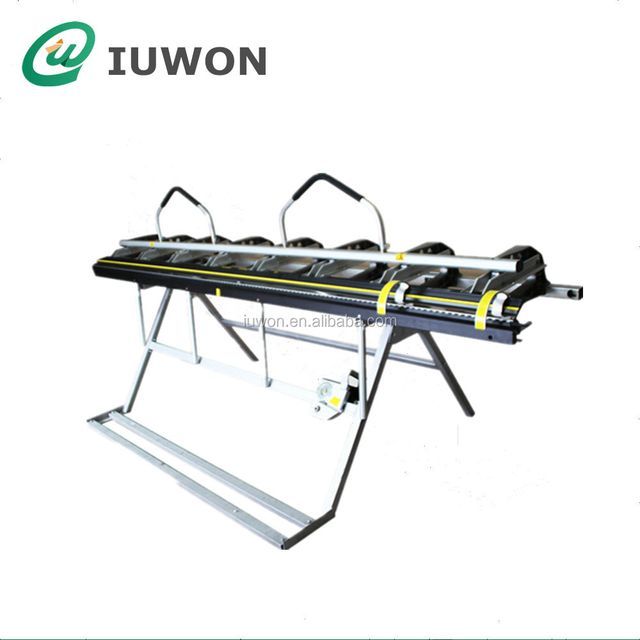

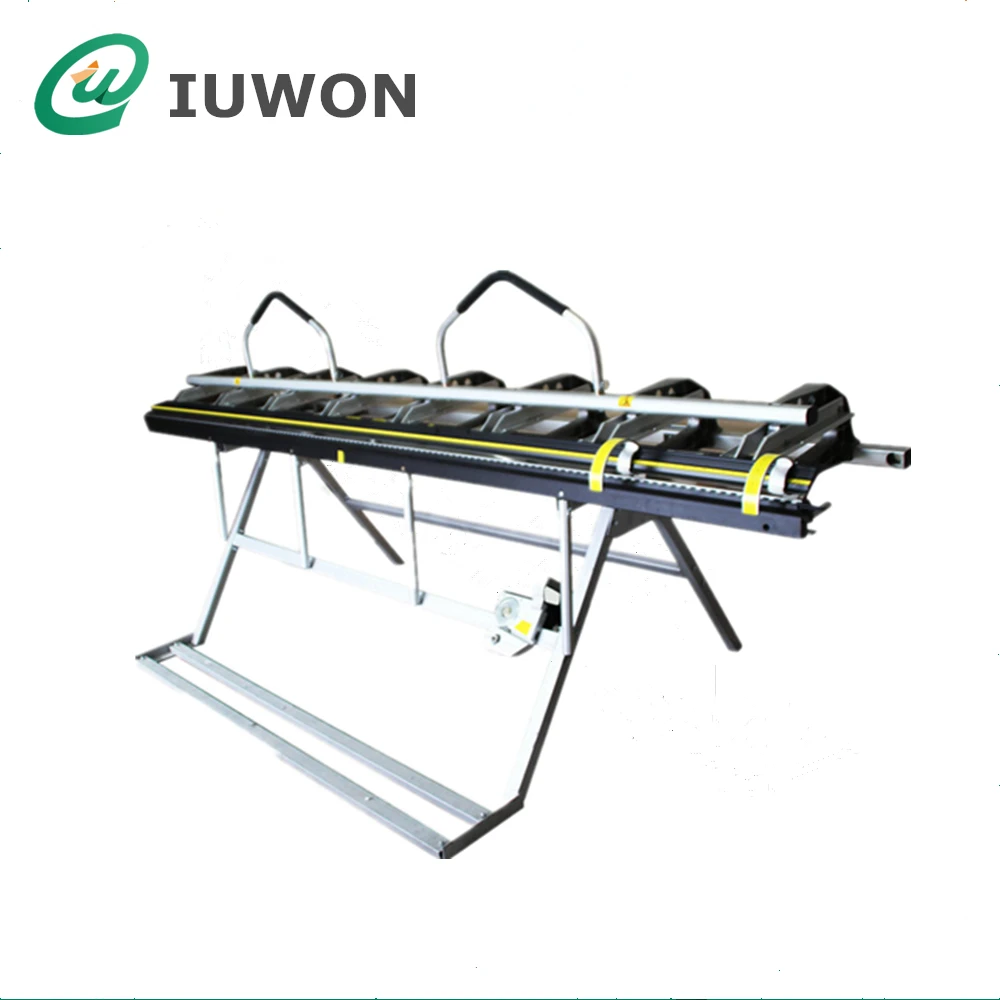

Manual Aluminum Profile Bending Machine
The main technical parameters
thing |
YW-220 |
YW-320 |
YW-420 |
Available working length |
2.2 meters |
3.2 meters |
4.2 meters |
Process thickness of stainless steel plate |
≤0.4mm |
||
Iron plate thickness |
≤0.6mm |
||
Aluminum plate process thickness |
≤0.8mm
|
||
maximum bending angle |
135° |
||
mouth open size |
60mm |
||
deep throat |
500mm |
||

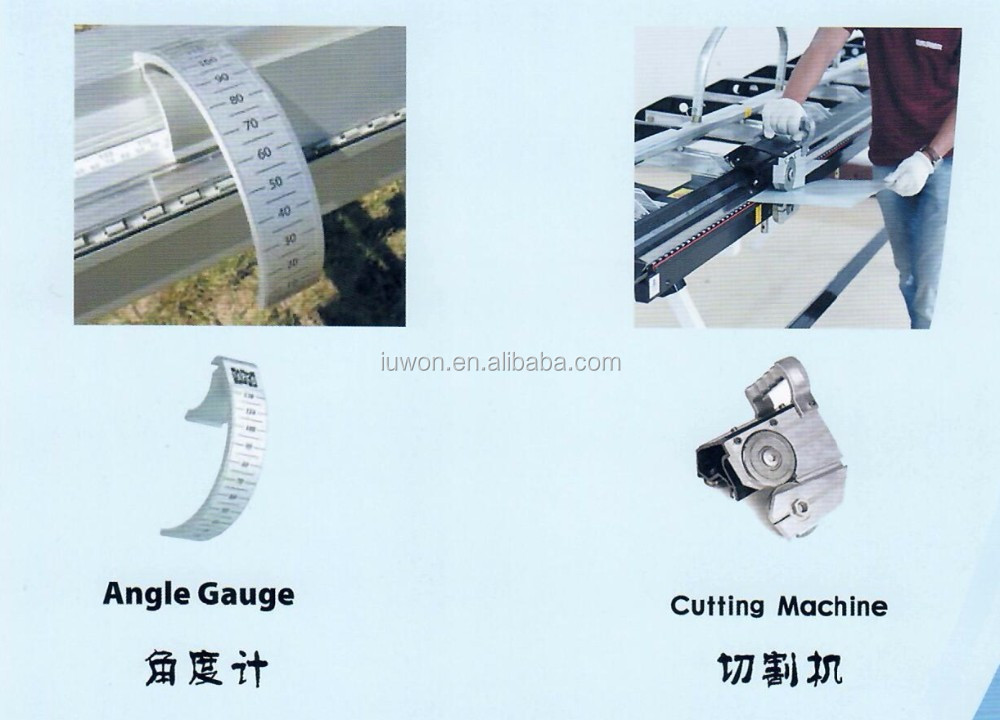

Manual Slitter |
includes 1 set |
||
Actual size after installation (length*width*height) (m) |
2.2*1.5*1.2 |
3.2*1.5*1.2 |
4.2*1.5*1.2 |
Package diameter (m) |
2.25*0.71*0.38 |
3.25×0.71×0.38 |
4.49×0.71×0.38 |
Net weight (including feet) |
66KG |
106 kg |
146 kg |
Gross weight (including legs) |
122KG |
160 kg |
202 kg |

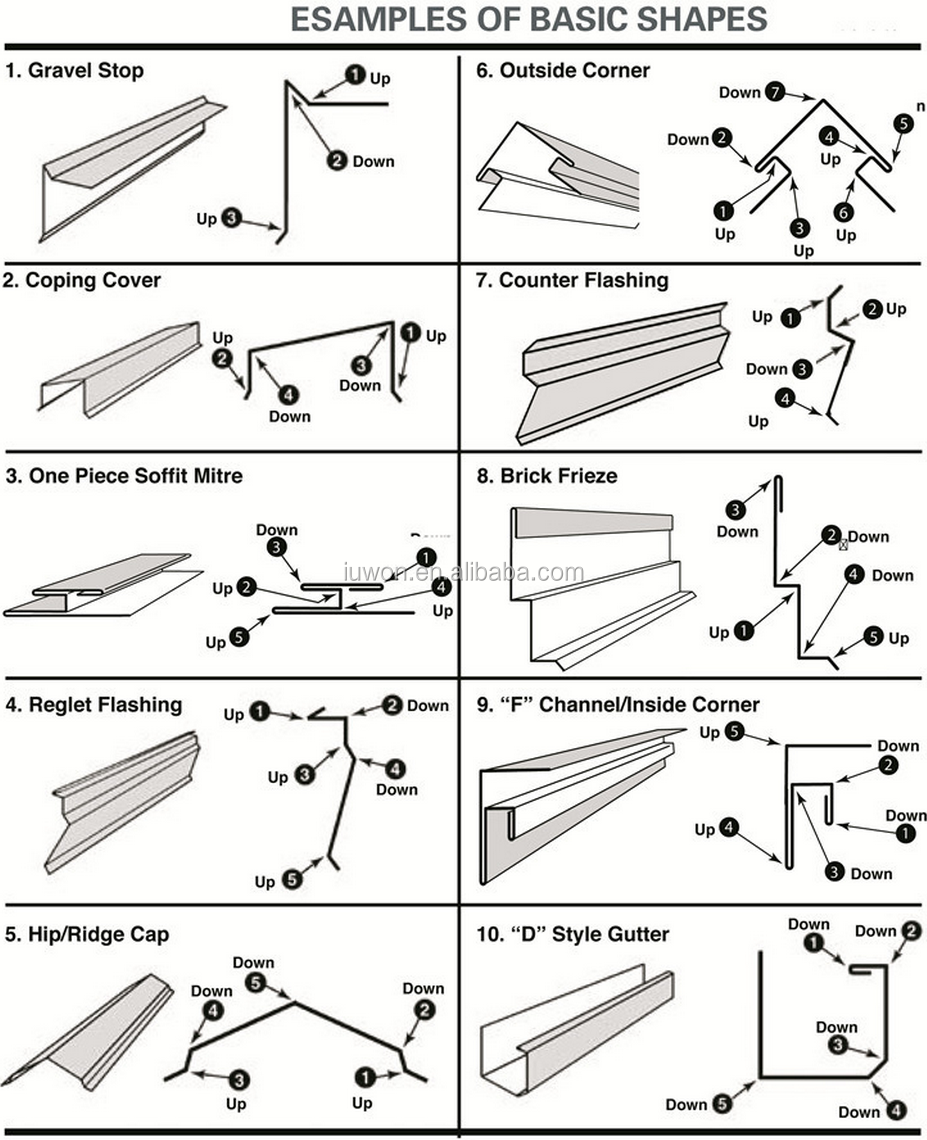

Product shape sample
we promise:
1). takethisEuropeanQuality Standard;
2). Choose the best materials and components.
3). Exceeded30 years experienceExpert and top international sales staff to meet your needs.
4).supplyhighest qualitybutBest Pricein the current market.
5). Customized for you.
