capacity: | 20,000-40,000 pieces/hour | Name: | capsule counter |
Showroom location: | not any | Maximum bottle diameter: | 130mm |
Core components: | PLC, motor | Capacity (bottle/min): | 300 - 660 bottles/min |
Origin: | China Shanghai | Vacuum pump: | 40 cubic meters / hour |
Weight (kg): | 150 | Power (kW): | 1.2kw |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Video shipment inspection: | if |
Warranty: | 1 year | Core component warranty: | 1 year |
Power (watts): | 1.2kw | brand: | Haibi |
Health status: | new | Total power: | 1.2kw |
Voltage: | 220V, 50Hz, 1P, 220V 50HZ | Main selling points: | competitive price |
Mechanical test report: | if | usage: | capsule |
Packaging Details: | Wooden Box Capsule Counter | Capacity (pieces/hour): | 38000pcs/hour |
Dimensions (L*W*H): | 1.3*0.6*1.4m | Marketing Type: | New product |
total measurement: | 1.3*0.6*1.4m | Supply capacity: | Annual output of 500 ZJS-A tablet capsule counter counting machine |
Applicable industries: | Manufacturing plant, machinery repair shop, advertising agency | air pressure: | 0.03m3/min 0.7Mpa |
weight: | 150 kg | port: | Shanghai |

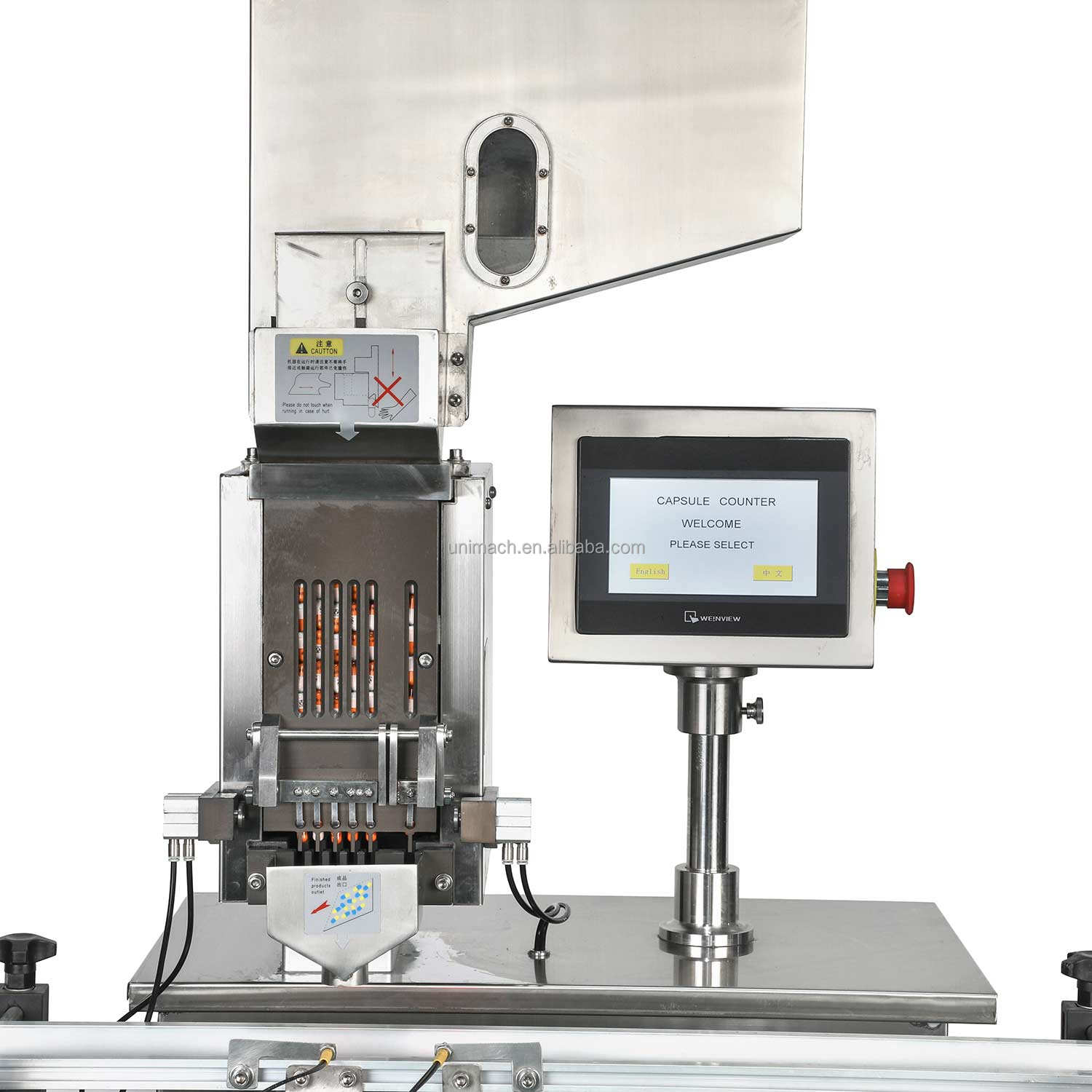

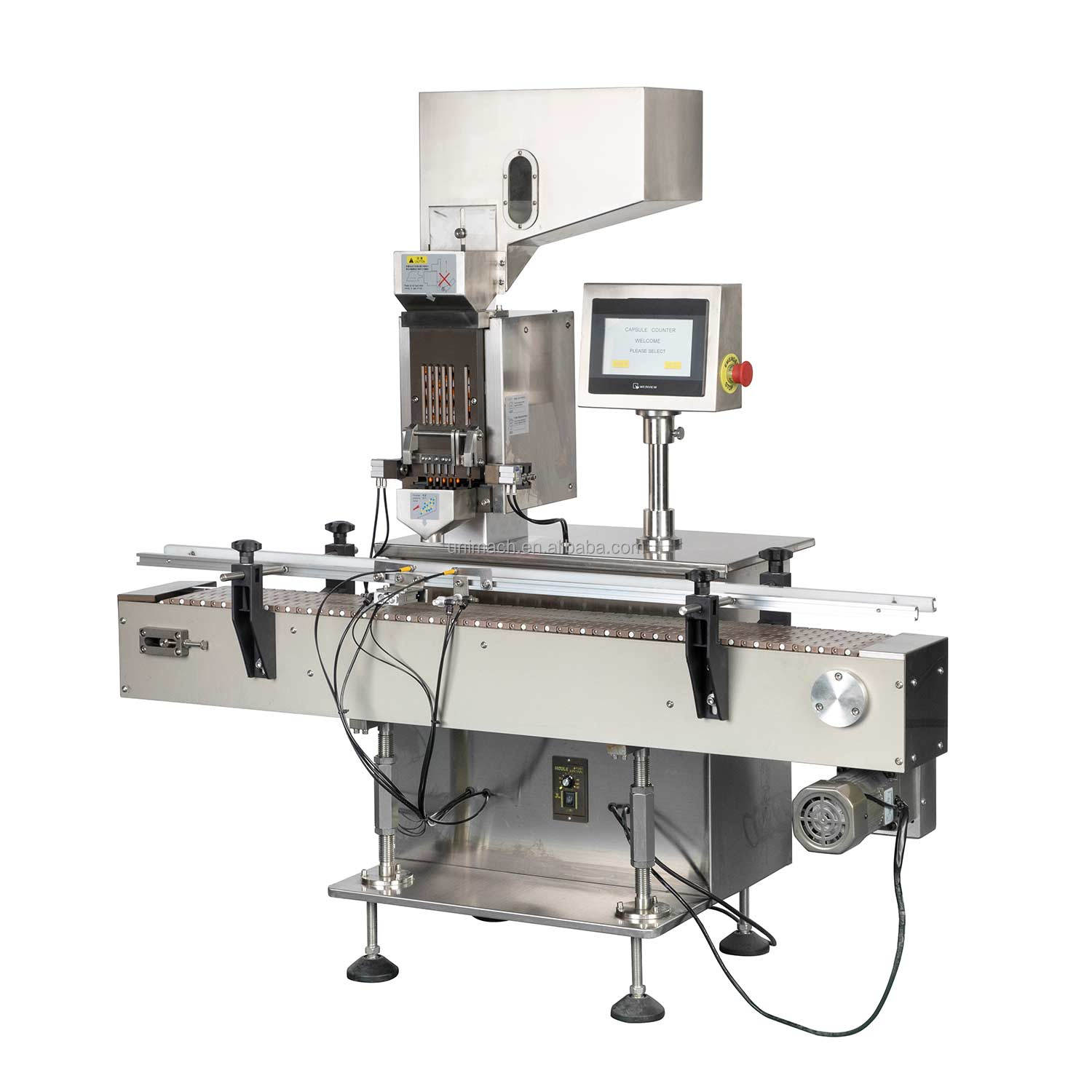

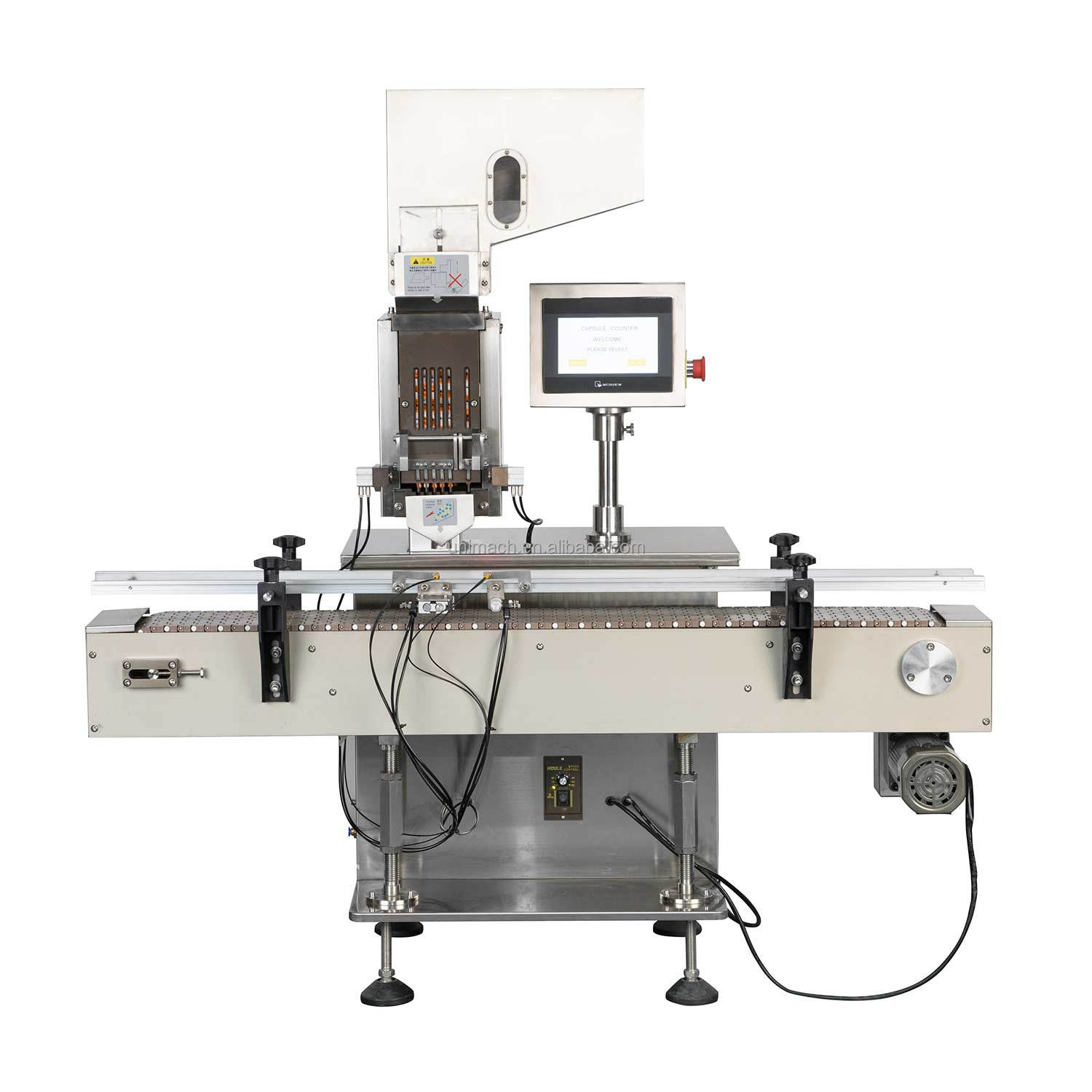

ZJS-A Tablet Capsule Counter Counting Machine
ZJ-Acapsule counter
This machine is widely used in small-scale production in hospitals, pharmaceutical factories, and R&D centers for capsule counting. ZJS-A intelligent automatic capsule counting and filling machine adopts proprietary technology, PLC control, and touch screen operating system. Automatic counting with high accuracy. It can be connected with auxiliary equipment such as feeding turntable, capping machine, labeling machine, etc.
feature:
Widely available in all capsule sizes
High counting accuracy
PLC control and touch screen
Lighting Technology
Automatic alarm for no bottle and overturned bottle
Easy mold change within 5 minutes.
Smooth operation and low noise.
304# stainless steel frame and contact parts
GMP standard
Technical Parameters:
Model |
ZJS-A |
Die change time |
5-8 minutes (beginner) |
capacity |
20,000-40,000 pieces/hour |
Applicable capsule size |
000#,00L#,00#,0#,1#,2#,3#,4#,5# |
bottle diameter |
130mm |
Voltage |
220V, 50Hz, 1P |
total power |
1.2kw |
air pressure |
0.03m3/min 0.7Mpa |
vacuum pump |
40 cubic meters / hour |
total measurement |
1.3*0.6*1.4m |
weight |
150 kg |
electrical configuration:
Name |
Model |
brand |
quantity |
touch screen |
MT6070IH |
Taiwan Viking |
1 |
PLC programmable controller CCCCCCCcontroller |
DVP14ES00R2 |
delta |
1 |
sensor |
DVM-2S004G-02 |
drive, china |
1 |
switching power supply |
S-24-50 |
Mean Well Taiwan |
1 |
Worm gear reducer |
WPWD-40-40:1 |
Xu Ya, China |
1 |
breaker |
10A\2P |
Schneider |
1 |
breaker |
3A\1P |
Schneider |
1 |
optical fiber amplifier |
BF3RX |
Autonics |
1 |
optical fiber |
FT-420-10 |
Autonics |
1 |
proximity switch |
H12-D5NK |
China Ruixiang |
1 |
emergency stop switch |
LA37-11ZS |
Chint China |
1 |
Speed motor |
|
China |
1 |
speed setting controller |
|
China |
1 |
Lock cylinder |
MAL100X80 |
AirTAC |
1 |
Regulator Air Filtration |
AL-2000 |
AirTAC |
1 |
Three-phase asynchronous motor |
Y263M2-4 |
Zhejiang, China |
1 |
