Beckhoff EK9000 | ModbusTCP/UDP bus coupler

Product details
Warranty:1 yearport:Xiamen
Packaging Details:new in boxbrand:Beckhoff
network:othersmodel:EK9000
Supply capacity:30 pieces per weekpayment terms:Western Union, T/T
Protection class:IP20Interface Type:others
Origin:The original
Product Description

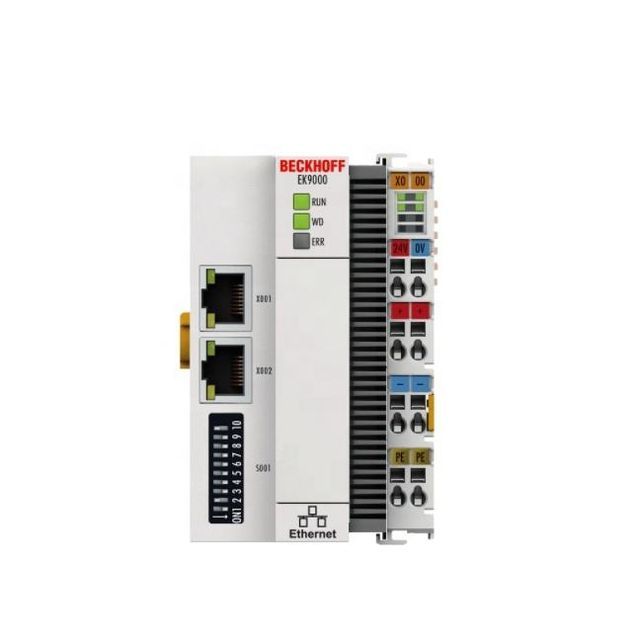

EK9000 | ModbusTCP/UDP Bus Coupler

The EK9000 Bus Coupler connects Ethernet networks to EtherCAT Terminals (ELxxxx) and EtherCAT Boxes (EPxxxx) and converts telegrams from Ethernet to E-bus signal representation. A station consists of one EK9000 and any number of EtherCAT Terminals. The coupler is connected to Ethernet via RJ45. In EtherCAT, the Ethernet Coupler has a lower-level, powerful and ultra-fast I/O system with a large selection of terminals. The coupler supports the Modbus TCP protocol and can be seamlessly integrated into the Ethernet network.

Technical data EK9000
Tasks in the EtherCAT system Coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to Ethernet networks
Number of EtherCAT terminals Depends on process data size
Peripheral Signal Type/Number Depends on process data size
protocol Modbus TCP, Modbus UDP
data transfer rate 100 Mbit/s
configuration unnecessary
bus interface 2 x RJ45 (switched)
power supply 24 VDC (-15 %/+20 %)
Input Current Typical 120 mA + (total E-bus current)/4
Current consumptionE-bus up to 2 A
power contacts maximum. 24 Vdc/max. 10A
electrical isolation 500 V (power contacts/mains voltage/Ethernet)
Dimensions (WxHxD) 64mm x 100mm x 73mm
Working/storage temperature -25…+60 °C/-40…+85 °C
EMC Immunity/Emissions Conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity 95 %, non-condensing
Vibration/shock resistance Conforms to EN 60068-2-6/EN 60068-2-27
Protect. Rated value/installation position IP20/variable
Certification/Mark CE, UL, ATEX
Explosion-proof mark II 3 G Ex nA IIC T4 Gc
