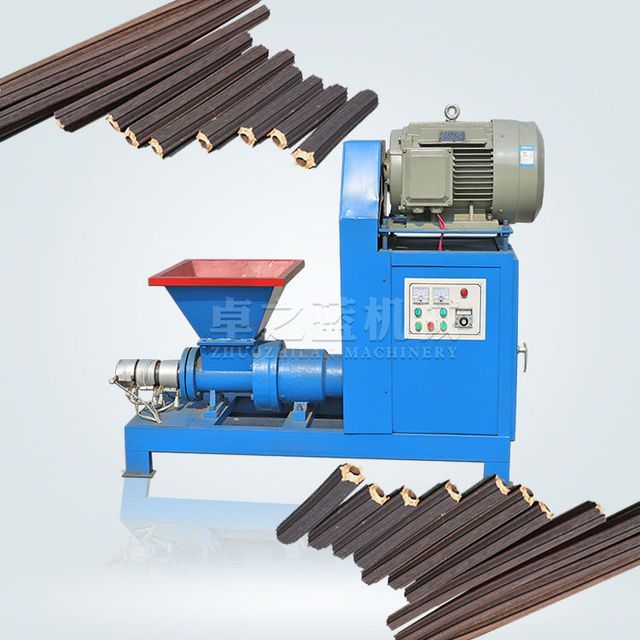

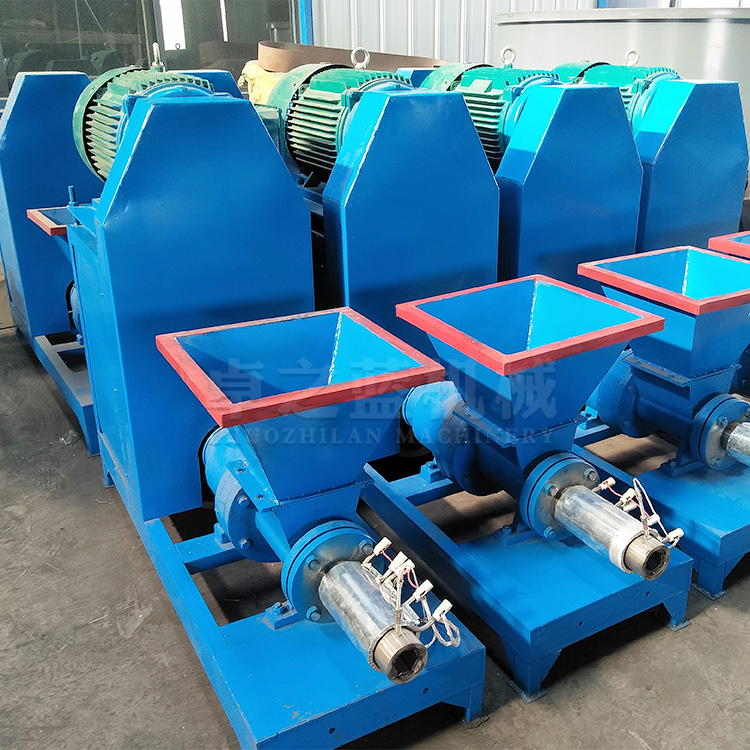

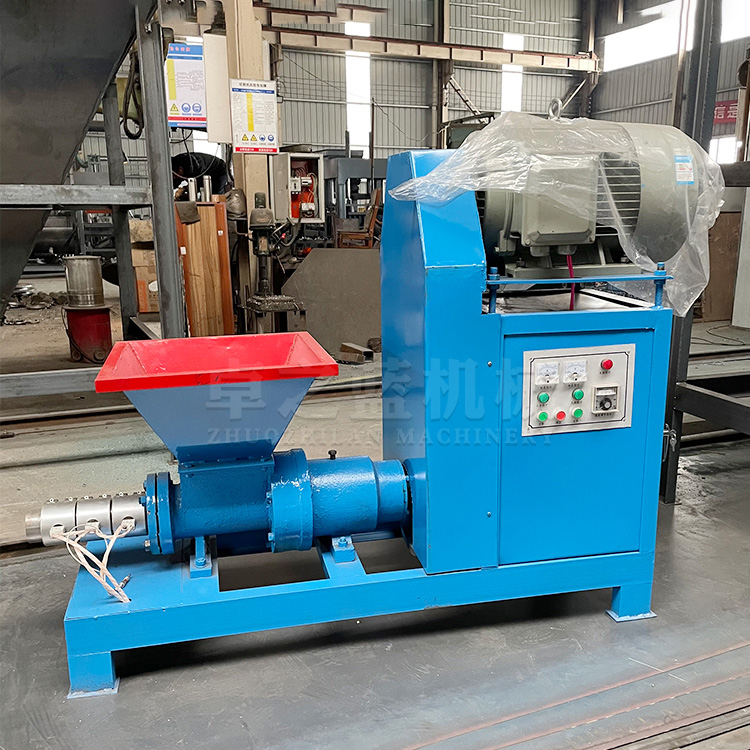

Cost Effective Manual Briquette Making Extrusion Piston Processing Press For Fruit Wood Factory Low Price Kenya

Supplier: Henan Zhuozhilan Machinery Equipment Co., Ltd.
Region: Henan, China
Price: $1000.00 / 1 - 4 sets
$800.00 / 5 - 9 sets
$600.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

weight:	800 kg	payment terms:	L/C, Western Union, T/T, MoneyGram
Core components:	Bearings, motors, propellers, forming cylinders, heating rings	Finished shape:	square, hexagonal, round
brand:	Zhuozhilan Machinery	Production capacity:	300-600kg/hour, 400-600KG/hour
Applicable industries:	other, barbecue, hotel	Voltage:	380V or according to customer needs
Mechanical test report:	if	Main selling points:	environmentally friendly
aftersale service provided:	Engineers available to service machinery overseas	strength:	18.5-37KW
Supply capacity:	30 sets per month	Origin:	Henan, China
product name:	Mechanism carbon machine	Warranty:	2 years
Health status:	new	Material:	Carbon steel
Marketing Type:	New Products 2023	Dimensions (LWH):	18005001700
Core component warranty:	2 years	feature:	energy saving
Package preview:		Material moisture:	less than 12%
Video shipment inspection:	if	port:	Tianjin Port Shenzhen Port Shanghai Port Qingdao Port
Showroom location:	Honduras	Packaging Details:	wooden box
Applicable raw materials:	Sawdust, sawdust, rice husk, coffee grounds, bamboo, etc.	application:	biomass fuel
Raw material size:	less than 5mm	type:	50

Product Description

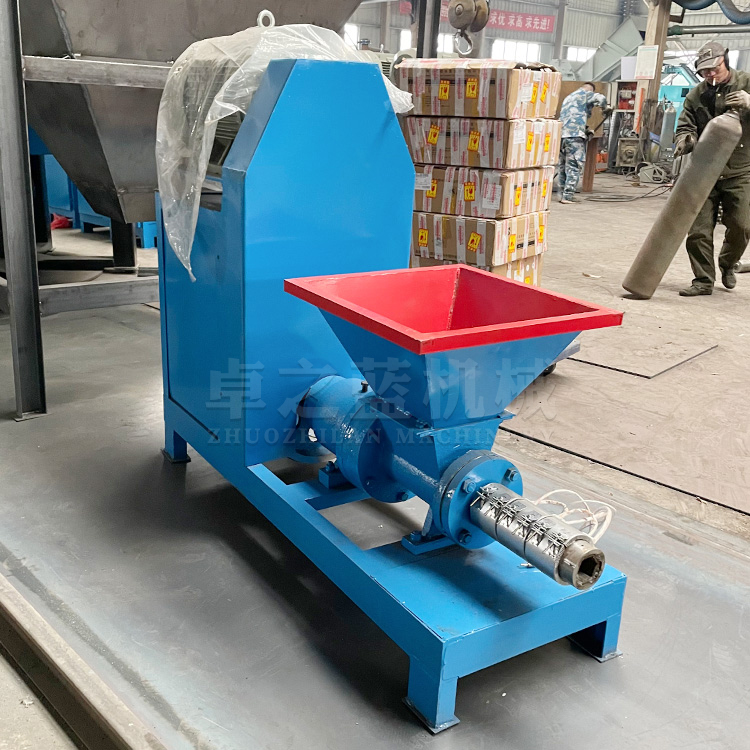

♦Biomass coconut charcoal automatic biomass charcoal cooking machine production lineIt shows the characteristics of high capacity, low energy consumption, compactness and durability.

♦A number of performance indicators, such as capacity, briquette density, power consumption, wear resistance, etc., have reached the advanced level.

♦Biomass coconut charcoal automatic biomass charcoal cooking machine production lineIt can be used as a charcoal powder molding machine by replacing some spare parts.

♦The machine is made of high-quality carbon steel, with a service life of more than 10 years.

♦After high temperature, purification, and smoke removal, the carbonization equipment converts semi-finished bio-fuel briquettes into smokeless, odorless, and non-toxic clean carbon.

Raw materials and finished products

( Size: 0-5mm Moisture content: 8%-12% )

►Except that the size of the material must be less than 5mm, the humidity of the raw material should be controlled at 8-12%.

►Too wet or too dry will cause poor molding effect.

►If the material is too large, we will recommend a crusher to you according to your requirements.

►If your material moisture is more than 12%, we have sawdust dryer. The crushed material is conveyed to the dryer and then to the molding machine.

►If you are not sure whether the material is suitable, please send it to us, we will provide you with free testing service.

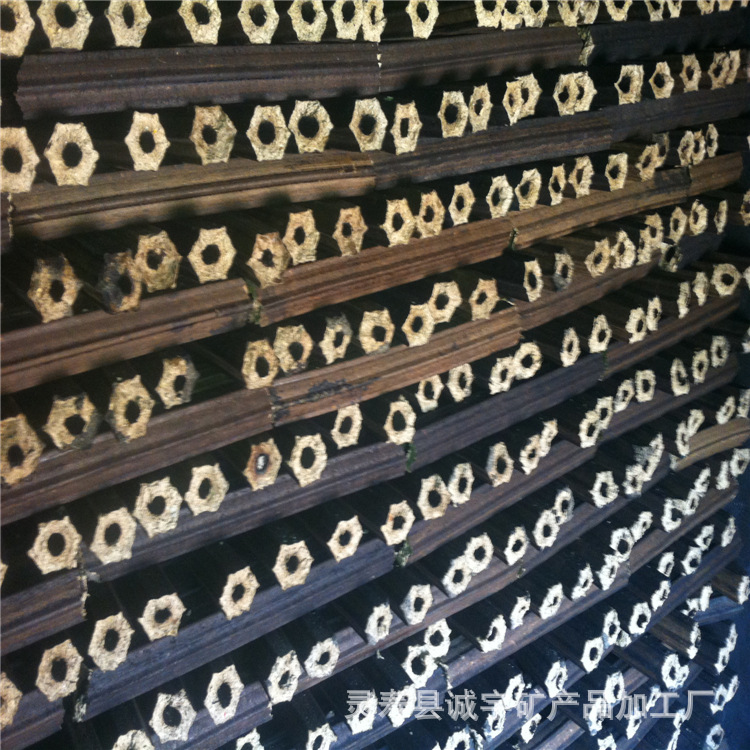

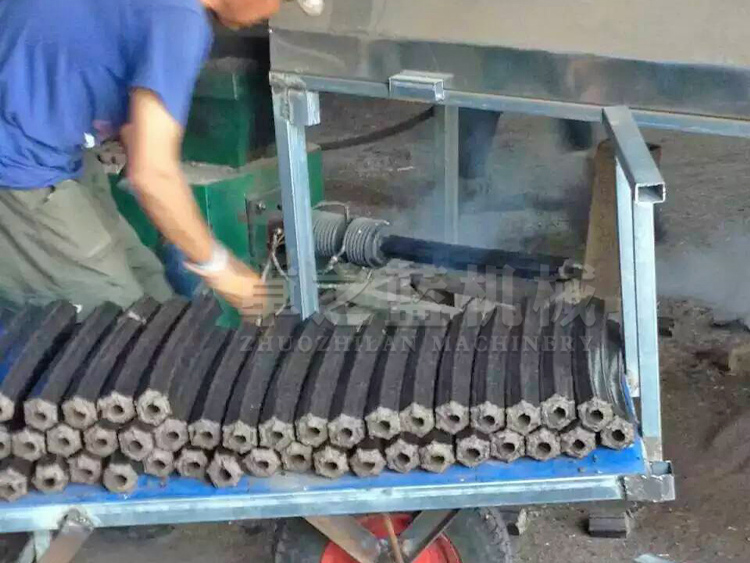

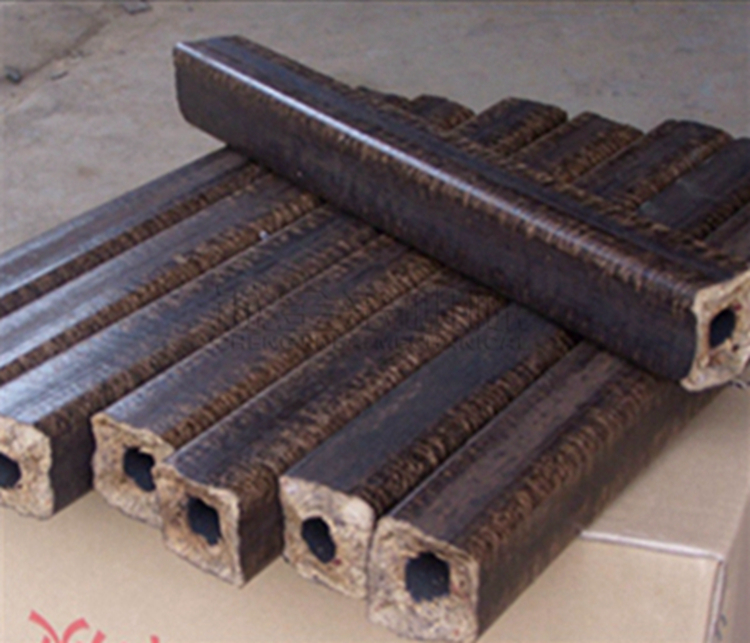

♥Available shapes:Cylindrical, square, hexagonal, hollow quadrangular, pentagonal, pentagonal, hexagonal.

♥Available diameters can be:45mm, 50mm, 60mm, 70mm, 80mm with 15-20mm holes etc.

♥Wood chips generate free radicals, which have dual functions under the high temperature and high pressure conditions of the cow dung briquetting machine.

♥Wood chips can be tightly combined by covalent bonds. Once bonded, it will remain stable without external force breaking, and it will be more stable after cooling.

♥It can be used as fuel, boiler heating, cooking and other fields.

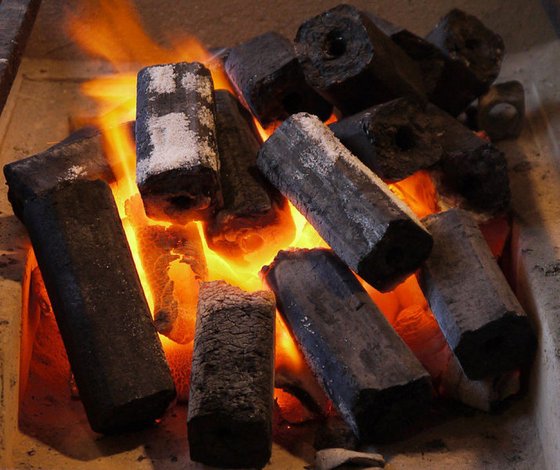

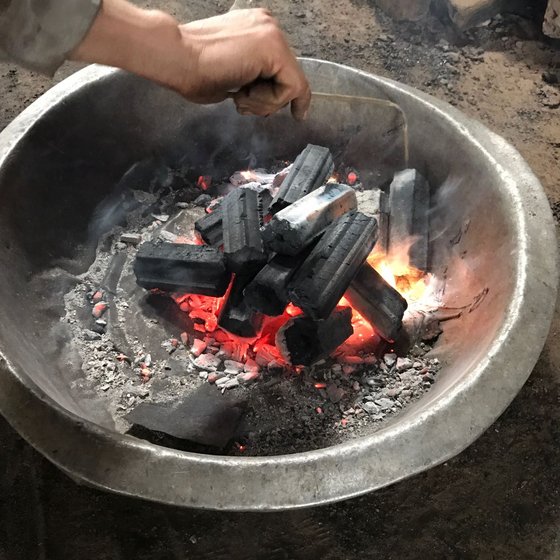

Especially after carbonization, it not only burns for a long time, but also is smokeless, odorless and clean, and is widely used in the barbecue market.

Features of the final product:

proportion:1300—1900 kg/m

Calorific value:4500—5000 kcal/kg

work rules

propeller

1. The most important part of the machine, also called the propeller.

2. It is made of special chromium alloy, which has the advantages of wear resistance, high pressure resistance and high wear resistance. The life of special wear-resistant materials is more than ten times that of traditional propellers.

3. This propeller needs to be trimmed. After 12-15 tons, the angle needs to be trimmed. We will send the maintenance manual when sending the plane.

1. Also known as coil heater: used to heat the machine.

2. Three sets of coil heaters in one machine, the heating diameter can be adjusted.

3. A coil heater is installed with a 1.5-3.0kw motor.

4. The basic structure of these heaters is composed of compacted magnesia, high temperature resistant wire and chromium.

mold

1. Decide the shape, diameter of the final product, for shape we have square, hexagon, hexagon with sides.

2. The barrel body is made of tungsten alloy, the thickness of the mold barrel is 12mm, the length is 380-450cm, and the diameter is 50-70mm.

3. For charcoal, 50-60mm in diameter is better, and for molding fuel, you can choose 50-70mm.

Model	productivity (kg/hour)	Motor Power (kilowatt)	weight (Kilogram)	size (mm)
50	400-500	18.5	800	*15506001500*
80	500-600	twenty two	900	*180011001500*

Apply for charcoal briquettes

◊ Biofuel for boilers

◊ For stove, home heating

◊ BBQ charcoal for grilling

◊ Fuel such as fireplaces in European countries.

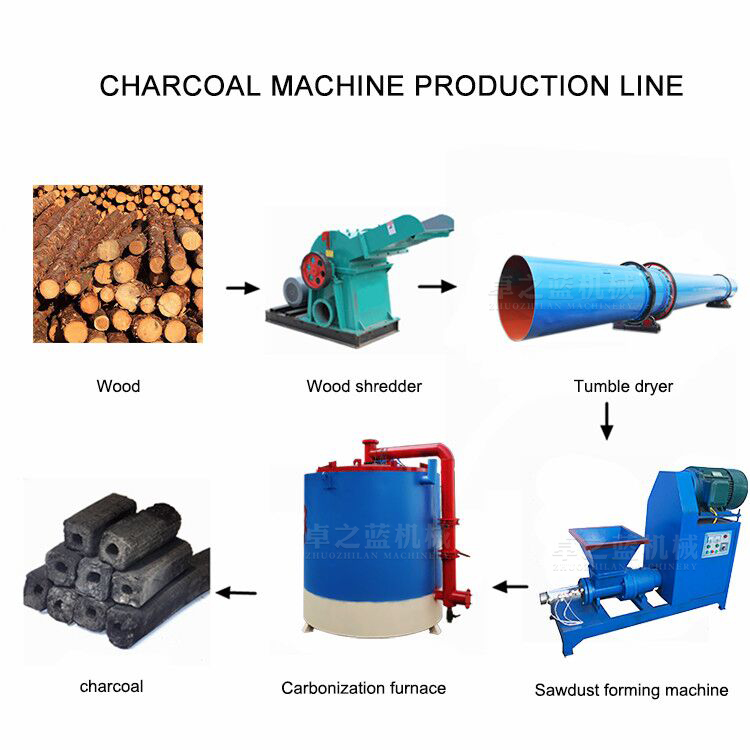

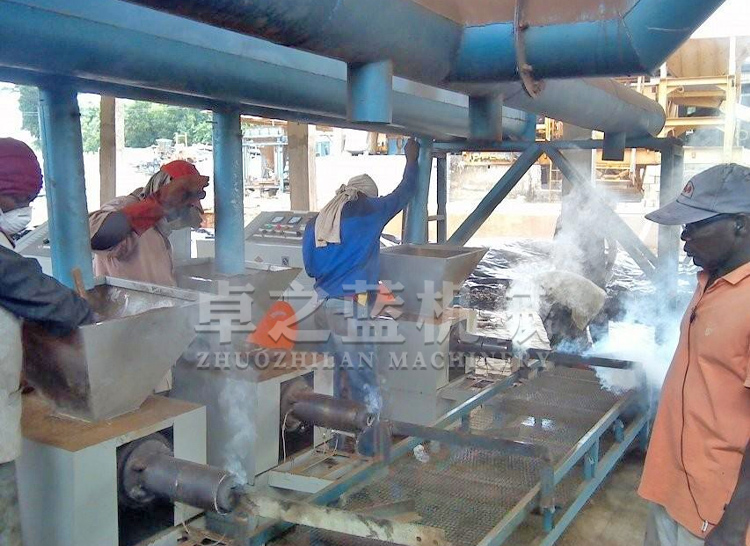

production line

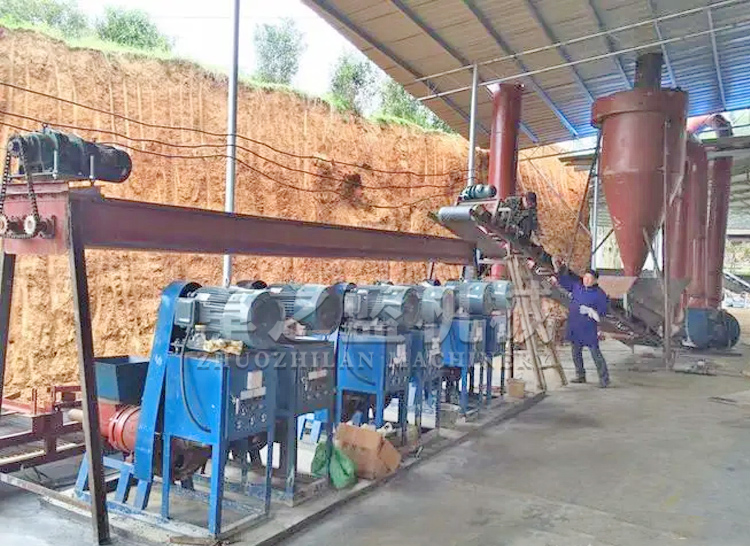

The whole briquette production line includes:(Can be customized according to customer capacity.)

1. Crusher (Wood Crusher)

First, you should crush wood or other biomass material into sawdust(Dimensions: less than 5x3 mm)

2. Dryer (sawdust dryer)

Next, dry the powdery material to a moisture content of 8%-12%.

3. Biomass sawdust forming machineThirdly, produce wood chip briquettes in different shapes and sizes with our wood chip briquetting machine.4. Carbonization furnace

Step 4: Carbonize sawdust briquettes into charcoal briquettes.

Then you can get smokeless charcoal briquettes.
