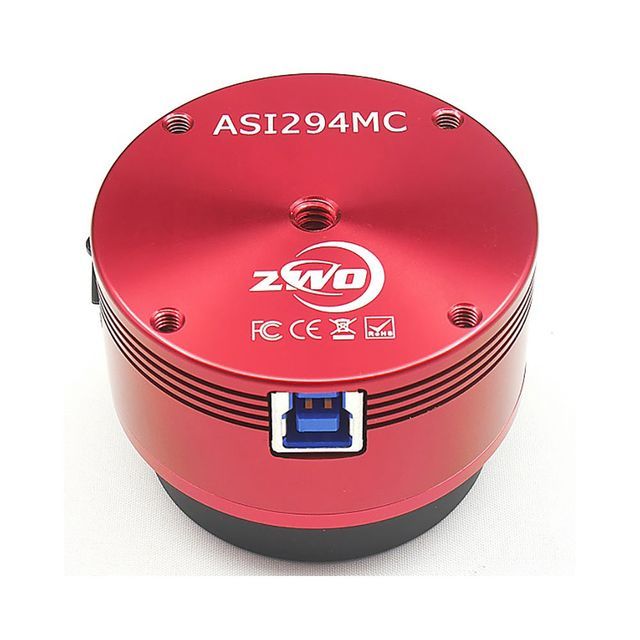

ASI294MC

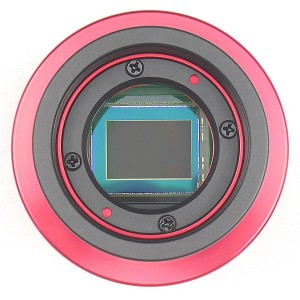

ASI294 is the world's first camera equipped with SONY's latest sensor IMX294CJK.

14-bit ADC & 13-bit DR

ASI294 has a 14-bit ADC, which can reach 13 stops of dynamic range, which is better than ASI1600.

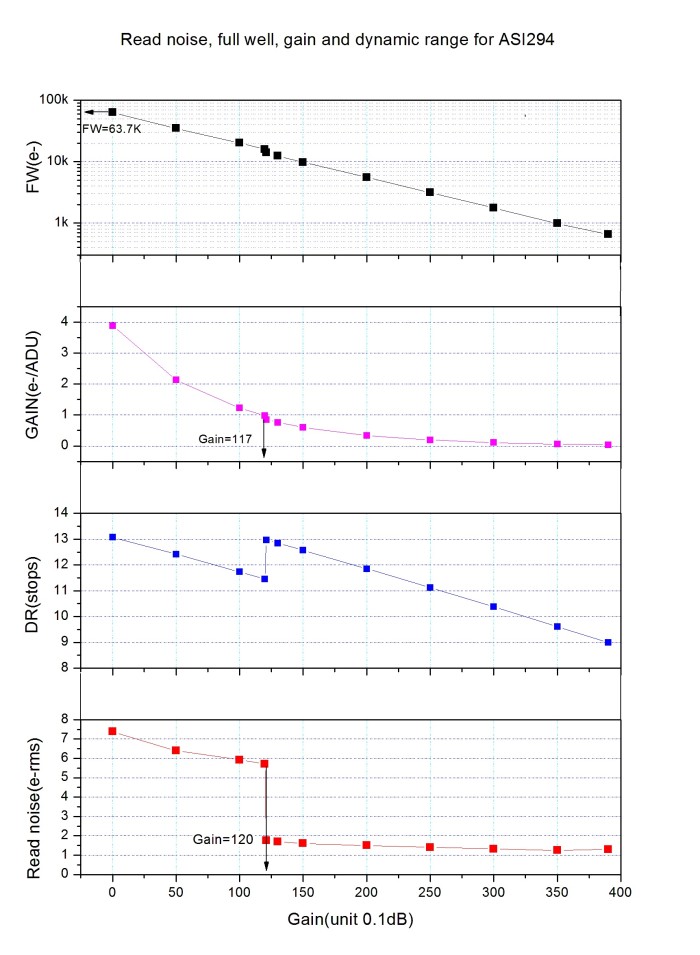

HCG mode

When will the HCG mode be turned ongethigher than120(12db), the read noise will drop below2eBut the same dynamic range (13 stops).

full well capacity

The 63700e is full, three times the capacity of the ASI1600. Even bright stars don't saturate with long exposures.

The camera achieves higher SNR (Signal to Noise Ratio) with just one exposure.

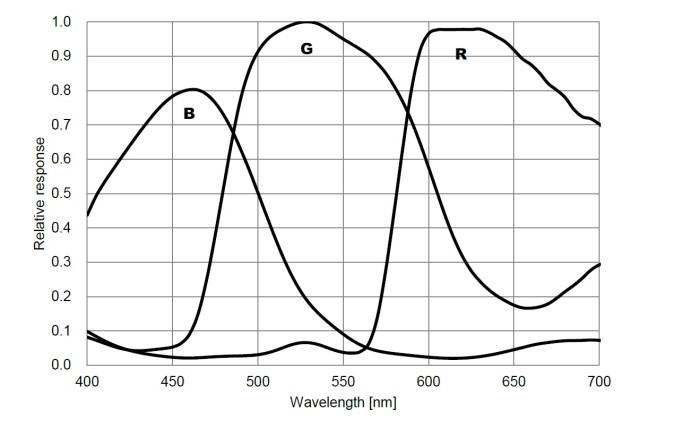

high quantitative easing

The IMX294 sensor is a BSI (Backside Illuminated) sensor with a very high QE (we assume a peak QE of more than 75%).

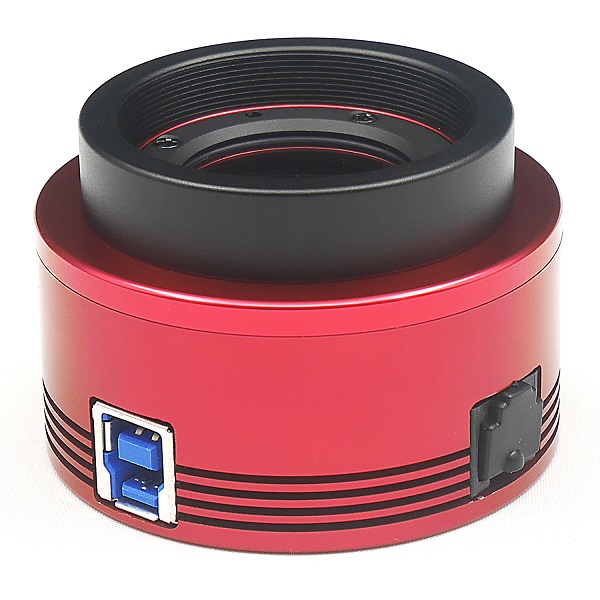

USB 3.0 port and ST4 port

USB 3.0 ports:Offering 5Gb bandwidth, it is possible for the ASI294MC to run at 16 fps (14-bit, normal mode) or 19 fps (10-bit, high-speed mode) at full resolution (11.7Mega).

ST4 port:Can be used to connect the automatic guide port of the base for guiding.

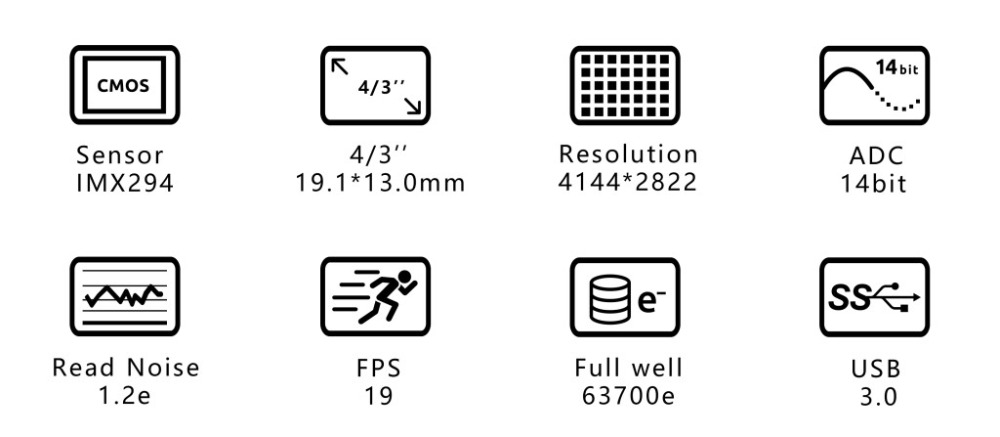

Specification

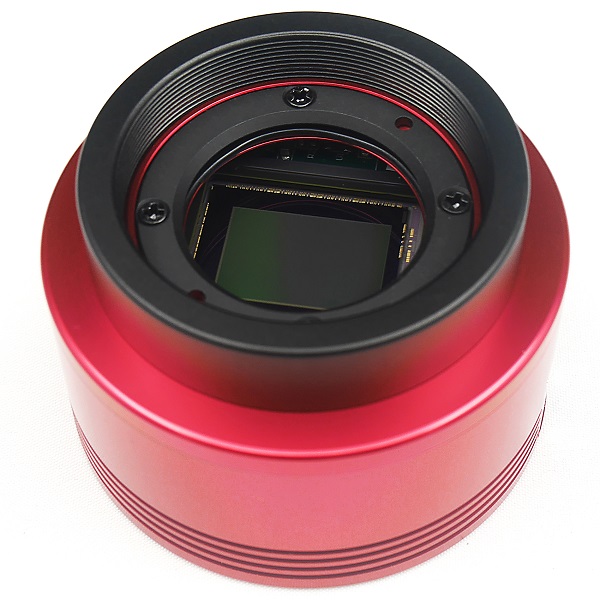

Sensor: 4/3″ SONY IMX294 CMOS
Diagonal: 23.2mm
Resolution: 11.7Mega Pixels 4144X2822
Pixel size: 4.63µm
Bayer pattern: RGGB
Exposure range: 32µs-2000s
ROI: Support
Non-volatile memory/camera storage: Built-in total 192K bytes of user-accessible space (image size up to 480X320)
Interface: USB3.0/USB2.0
ST4 Pilot Port: Yes
Focus distance to sensor: 17.5mm
Shutter type: rolling shutter
Protection window: AR coating window
OS Compatibility: Mac, Windows, Linux
Interface: USB3.0/USB2.0
Bit rate: 12bit output (12bit ADC)
Adapter: 2″ / 1.25″ / M42X0.75
Size: φ62mm X 36mm
Weight: 120g or 4.2oz (without lens)
Working temperature: -5°C—45°C
Storage temperature: -20°C—60°C
Working relative humidity: 20%-80%
Storage relative humidity: 20%-95%
Maximum FPS at full resolution:
12-bit ADC
4144×2822 19 frames per second
14-bit ADC
4144×2822 16 frames per second
User can define more resolutions

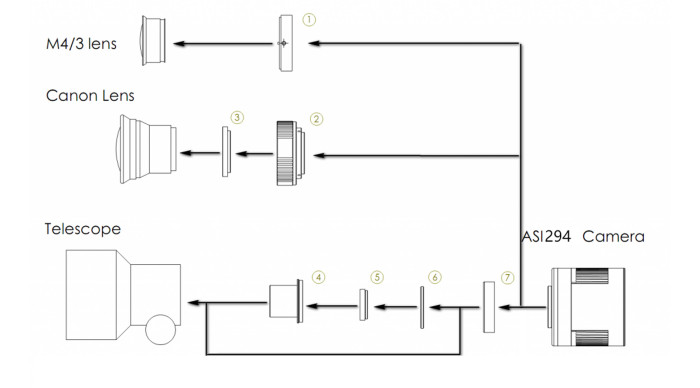

Connection Diagram

1. M43-T2 adapter

2. EOS-T2 Adapter

3. 2" filter (optional)

4. 1.25” T-Joint

5. 1.25” filter (optional)

6. M42-1.25” adapter (optional)

7. T2 extension rod 11mm

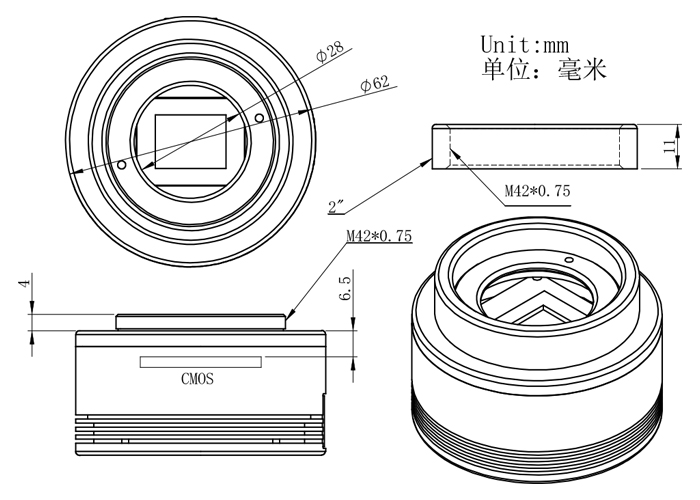

Mechanical Drawing

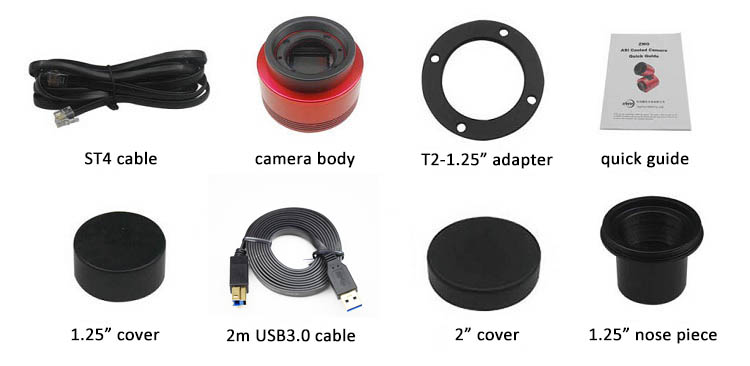

What's in the box?

The ASI294MC box includes all necessary cables, drivers, adapters and manuals.

Drivers and software:

Our website has the latest camera drivers and many DSO and planet capture software. Make sure you have the latest drivers and software installed before you start shooting:
