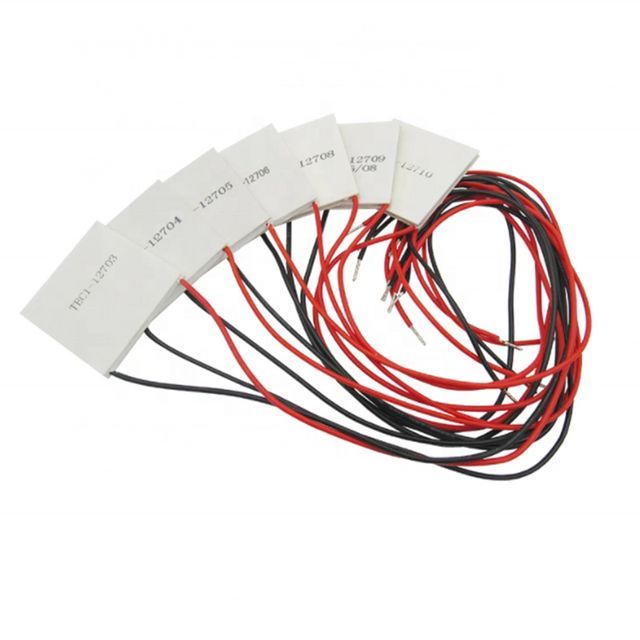

Thermoelectric cooler Peltier 30*30mm TES1-12701 TES1-12702 TES1-12703 TES1-12704 TES1-12706

Chip model: TES1-12704Dimensions: 30*30*3.2MM Number of component pairs: 127 Maximum temperature difference: △TMAX(QC=0) Rated voltage above 65°C: DC12V (Vmax: 12V) Cooling power: QCMAX 36W Assembly pressure: 85N/CM2 Storage conditions: -40~60℃ Unit weight: 20g Wire specification: lead length 70±5MM RV standard wire single head 5MM tin-plated internal resistance: 2.5~3.5Ω (ambient temperature 23±1C, 1kHZ AC test) working current: IMAX =4A ( When starting at rated voltage) Packaging process: standard 704 silicone rubber seal surrounding working environment: temperature range -55°C~83*C (excessive drop in ambient temperature will directly affect heat dissipation efficiency) Packaging standard: foam box packaging, storage conditions ambient temperature - 10°C ~ 40°C
