Harvester operating efficiency: | 0.8~1.8hm2/h | Applicable industries: | farm |
Harvester category: | big tank | application: | corn, rice, wheat |
Origin: | Henan, China | Video shipment inspection: | if |
Year: | 2021 | Showroom location: | not any |
Harvester cutting width: | 2600MM | weight: | 5210 kg |
Harvester structure: | Fully fed tires | Type of machine: | combine harvester |
Packaging Details: | The closed package makes the transportation safer, suitable for import and export, we try our best to keep the transportation safe. | Fuel tank capacity (L): | 250 |
Mechanical test report: | if | Rated speed (r/min): | 2600 |
Supply capacity: | 20 pieces per month | Package preview: | |
payment terms: | Western Union, T/T | Core components: | engine |
operating hours: | 380 | Harvester capacity: | 2800 liters |
Harvester Engine: | V3800-DI-T-ET08 | Harvester Color: | Red |
port: | Qingdao Shanghai Ningbo Port | usage: | Rice, Wheat Harvester, Corn Harvester, Others |

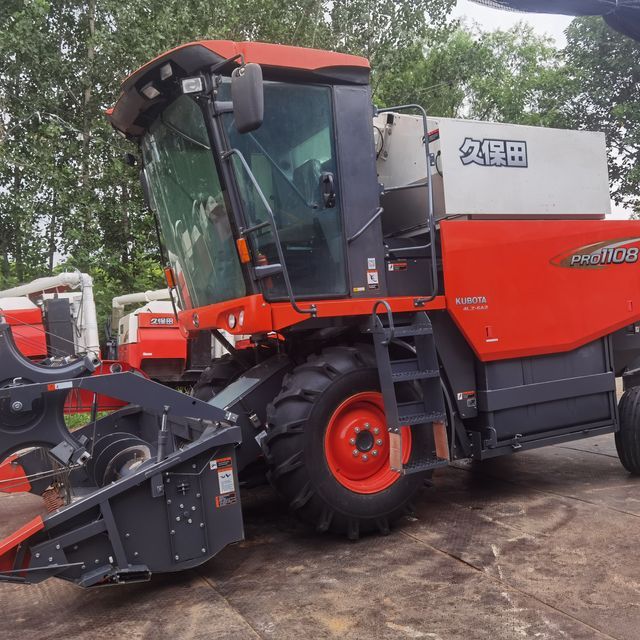

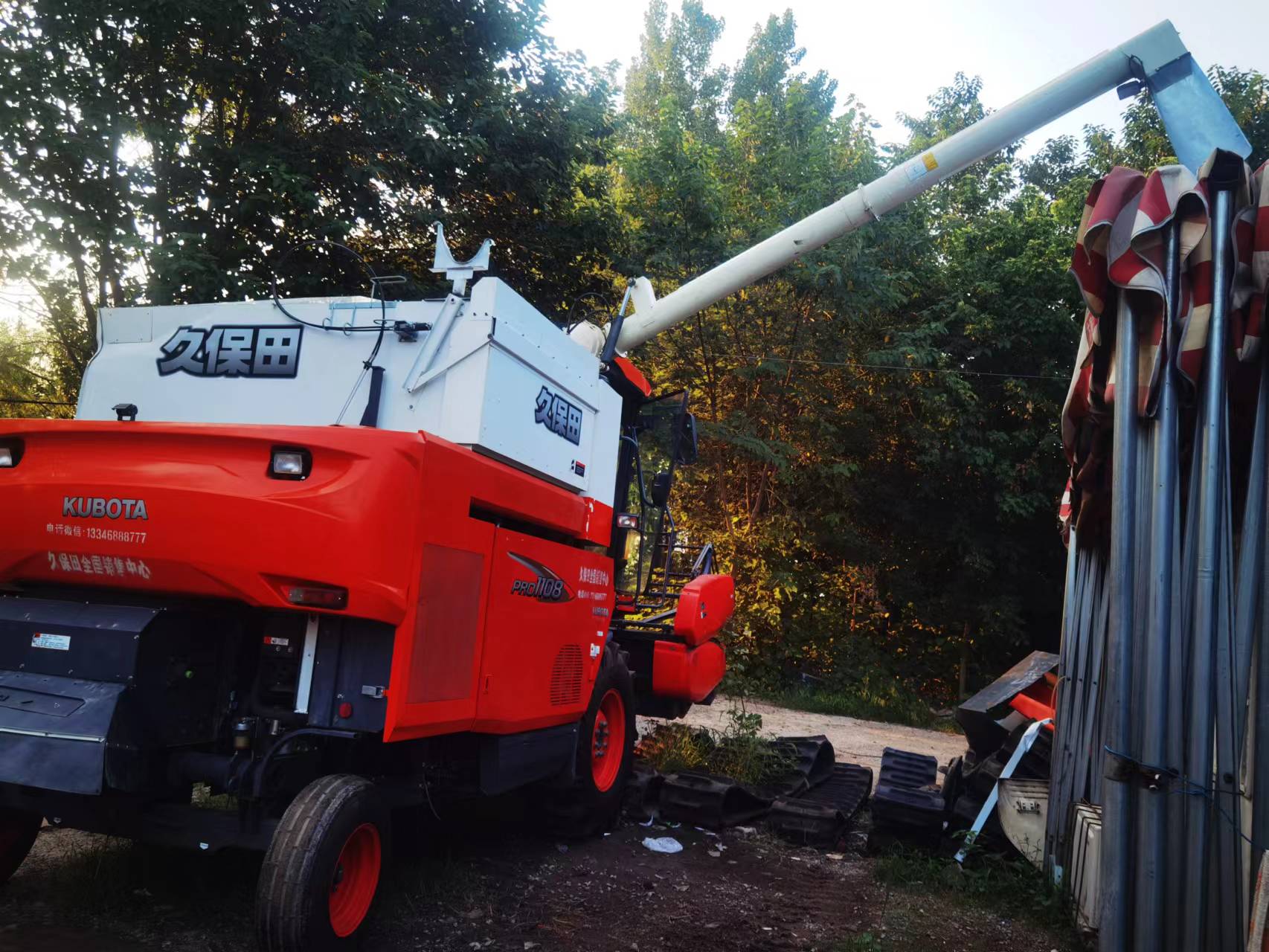

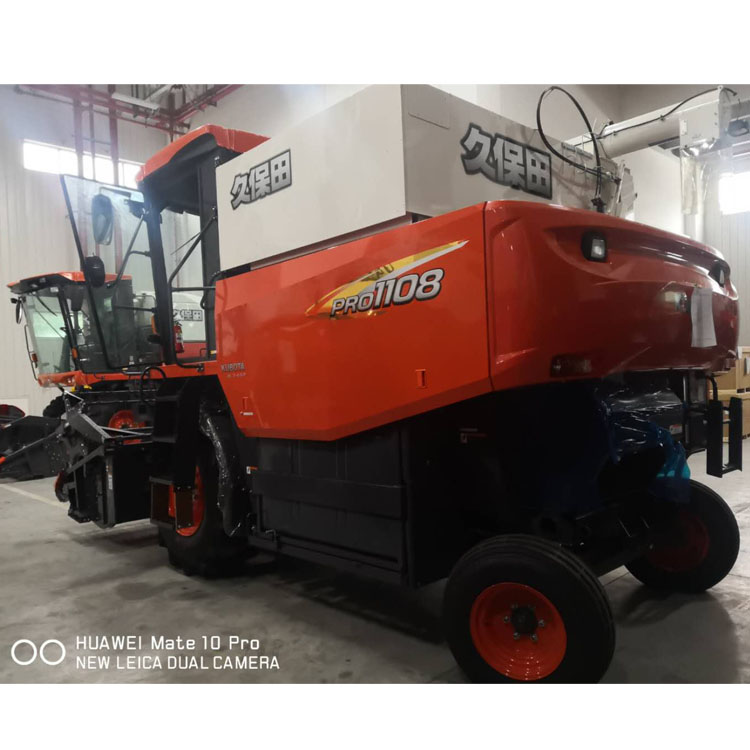

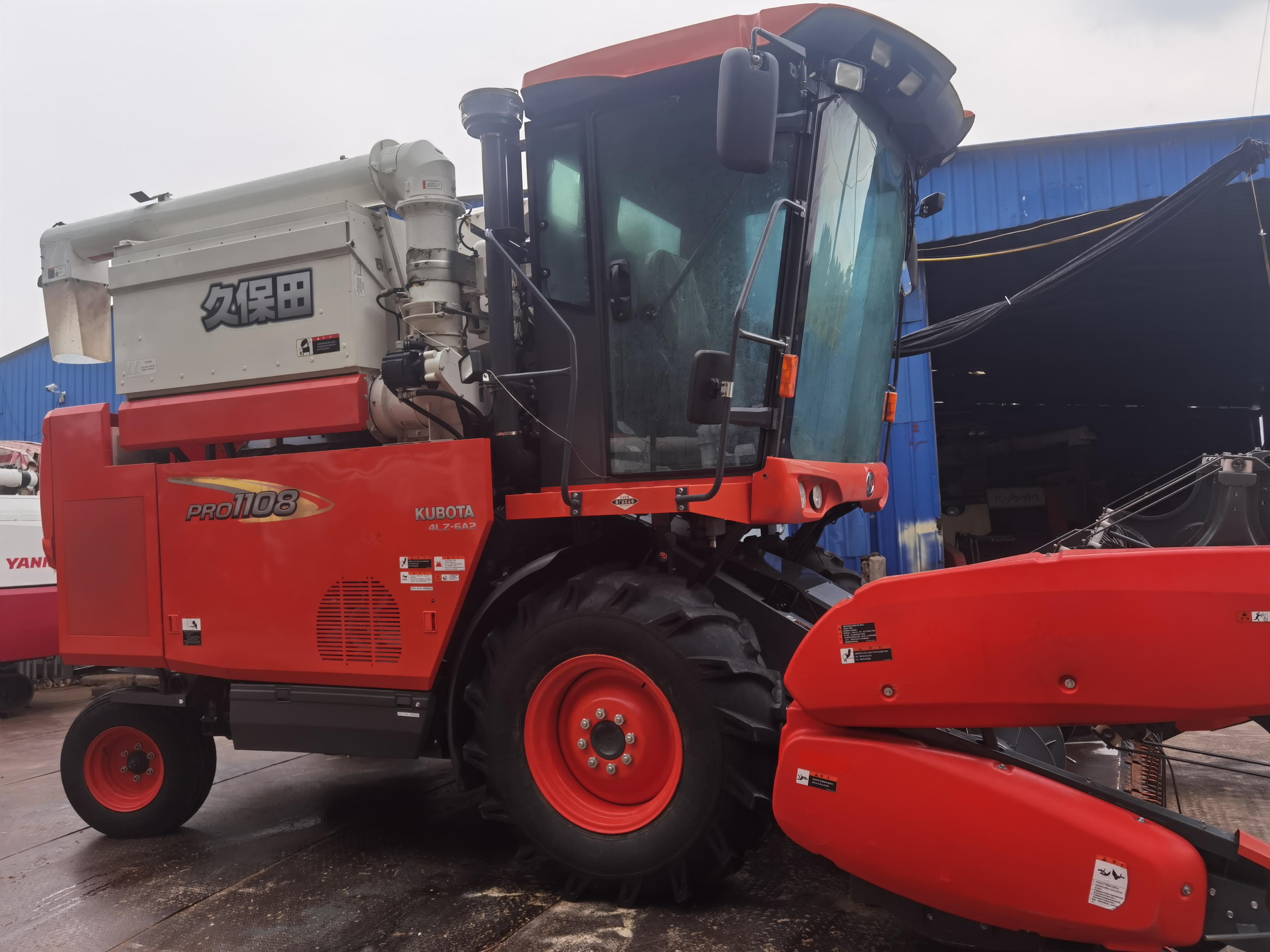

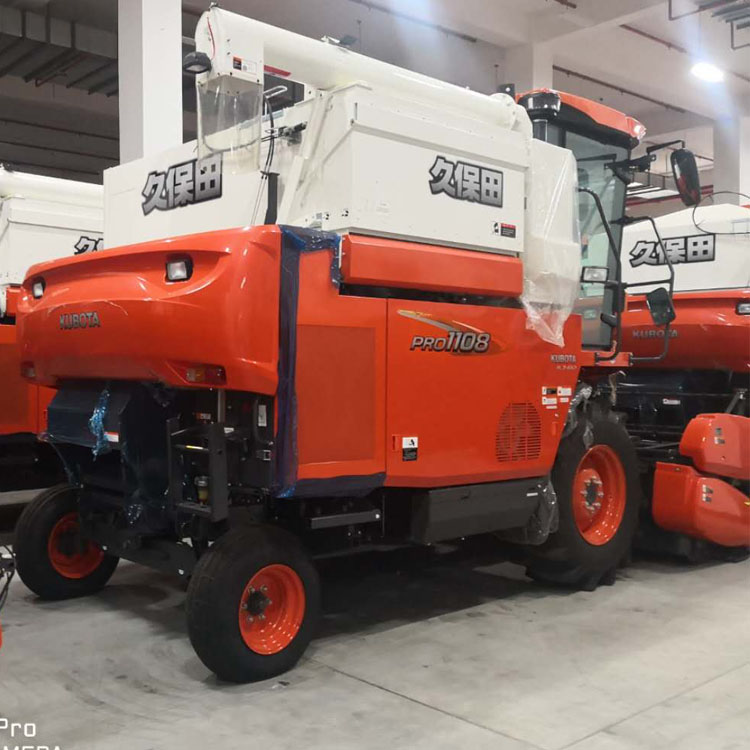

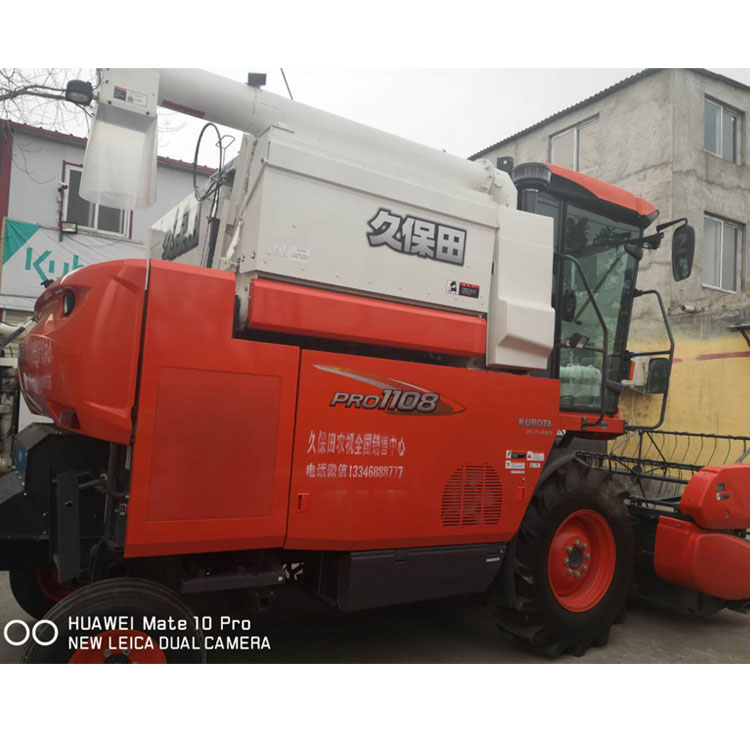

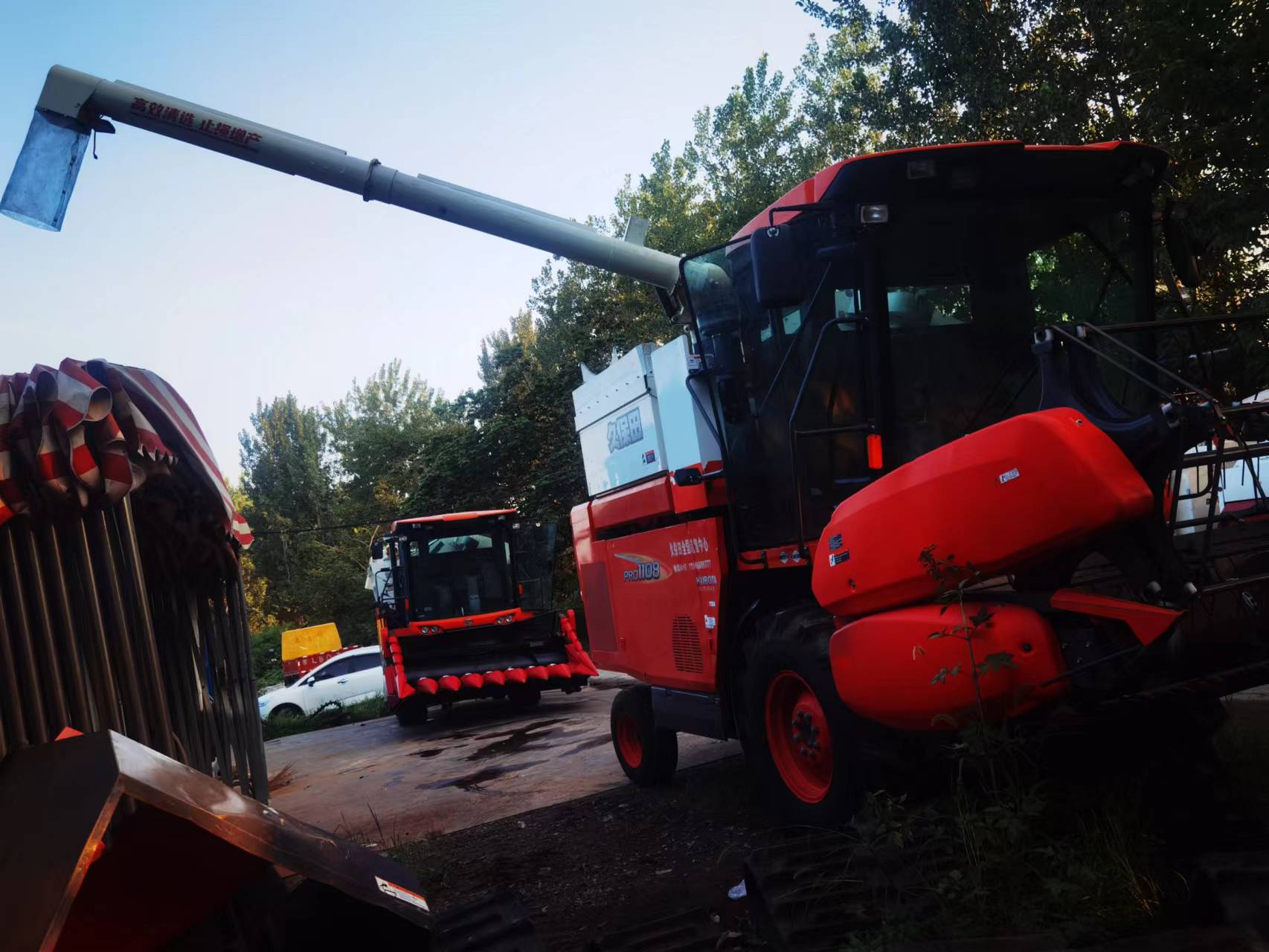

High Quality Kubota Combine Harvester PRO1108
New and Used Kubota PRO1108 Rice Harvester Combine Harvester Rice Harvester
product name | Kubota Harvester 4LZ-6A2 | ||
category | big tank | ||
structure | Fully fed tires | ||
aspect | Overall length (mm) | 5900 | |
Machine width(mm) | 2850 | ||
Overall height (mm) | 3350 | ||
Weight (kg) | 4510 | ||
engine | Model | V3800-DI-T-ET08 | |
pattern | Vertical 4-cylinder 4-stroke water-cooled direct-injection turbodiesel engine | ||
Total Displacement(L[cc]) | 3.769[2434] | ||
Rated output [kw] | 80.1 | ||
Rated speed(r/min) | 2600 | ||
burning oil | High quality 0# diesel | ||
Fuel tank capacity(L) | 250L | ||
running gear | Drive wheel (front wheel) | Wheel base (mm) | 1880 |
steering wheel (rear wheel) | Wheel base (mm) | 1935 | |
transfer method | Mechanical speed control + hydraulic stepless speed change [HMT] | ||
Theoretical running speed (km/h) | forward | 0-10.8 (working), 0-25.56 (walking) | |
behind | 0-3.24 (working), 0-7.2 (walking) | ||
harvest unit | Minimum stubble height(mm) | 40 | |
Feed rate(kg/s) | 6 | ||
Accommodation suitability (degrees) | Down cutting: < 85°, Up cutting: < 70° | ||
Threshing device | Threshing drum | Diameter×Width(mm) | Φ620×2210 |
Speed(r/min) | Wheat: 825, Rice: 730 | ||
Grain discharge device | Grain tank capacity (L) | 2800 | |
uninstall | type | hydraulic tipping tipping | |
direction | right side of body | ||
Discharge height(mm) | |||
Warning lights and equipment | Vertical conveyor filling machine plug screw grab oatmeal | ||
set grain box full | |||
water temperature | |||
Charging batteries | |||
hydraulics pressure | |||
Applicable crops | rice and wheat | ||
Operational efficiency (unit area/hour) | Wheat: 0.8-1.8 Rice: 0.5-0.8 (upright grain dry land) |
