Hot sale YL160 USB interface 4 in 1 magnetic card/IC/NFC/PSAM card reader

Supplier: Shenzhen Yuelang Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Mr. Huang
Price: $55.88 / 1 - 49 pieces
$50.88 / 50 - 99 pieces
$45.88 / 100 - 199 pieces
$35.88 / >=200 pieces
Min. Order: 1 piece

Click here to contact

Product details

type:	Memory stick card, MMC card	Private Mold:	Yes
Card slot:	All in one / All in one	Development Kit & API:	Yes
RFID card:	13.56 MHz ISO14443-A, Mifare	Origin:	Guangdong, China
Magnetic card support:	ISO 7811, AMMVA, CADMV	Install:	External
weight:	180 grams	interface:	usb drive
Supported cards:	Read magnetic card, IC card reader, induction card function	brand:	Yuelang Manufacturing
Warranty:	1 year	application:	USB Disk Pro
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Supply capacity:	100,000 units per quarter
Packaging Details:	1pc/carton	Material:	ABS
Certification:	solenoid valve, solenoid valve	model:	YL160
Supported cards:	SD TF memory card reader	CPU:	Supports T = 0 and T = 1
port:	Shenzhen, China	aspect:	160mm(L) * 45mm(W) * 45mm(H)

Factory Hot Sale YL160 USB Magnetic Stripe Card Reader, RFID Card Reader Writer & IC EMV Card & PSAM Card

introduce

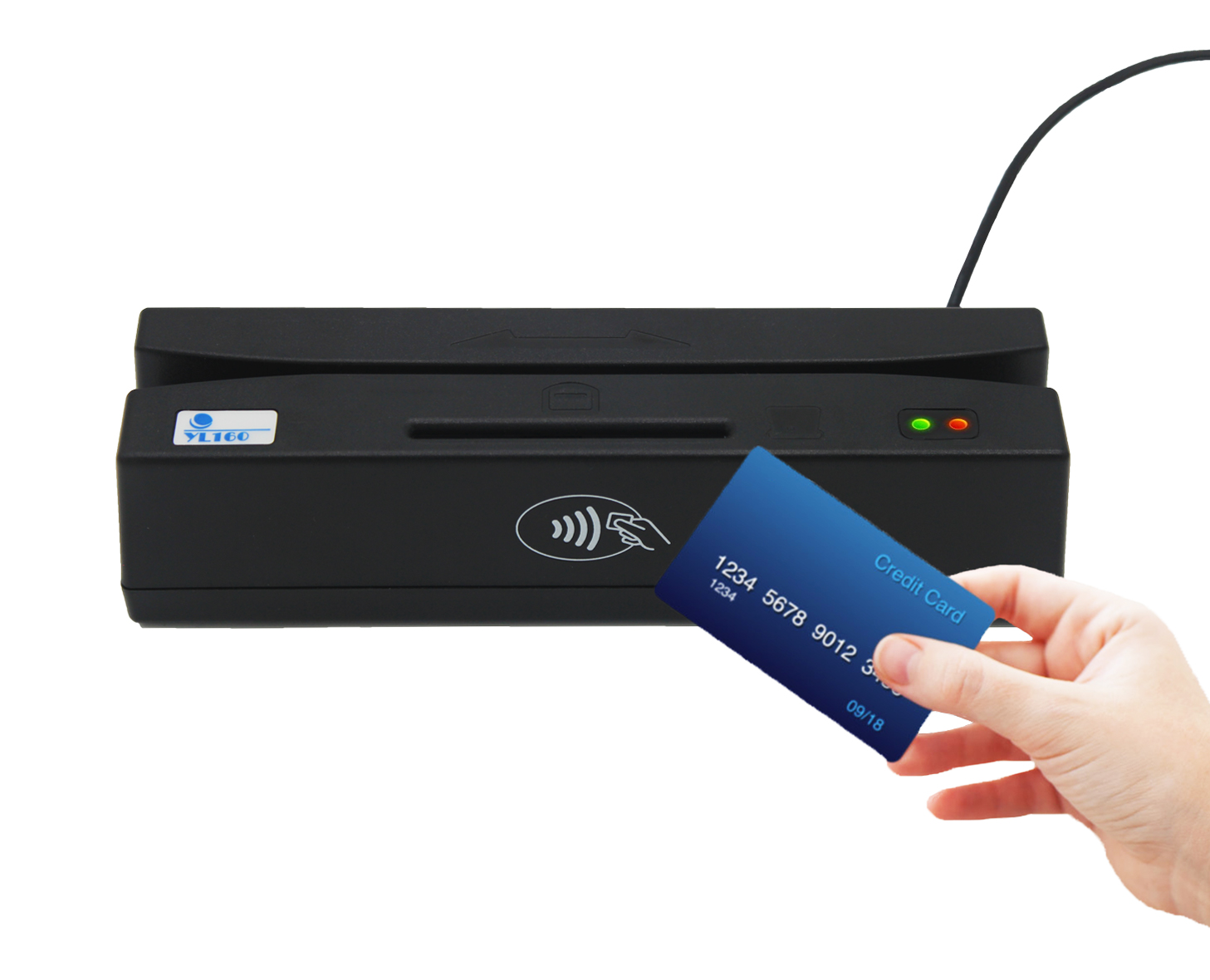

YL160 is a multi-function card reader, which can read magnetic stripe card, read and write IC chip card, RFID card, PSAM card. Related equipment can be connected through the USB interface.

Widely used in industry and commerce, telecommunications, taxation, banking, insurance, medical care and various charging, stored value, query management systems.

feature

interface:USB (RS232), plug and play, support analog keyboard magnetic card data output, support IC card and PCSC standard interface.

Product Description

compatibility:Compatible with ISO7811, AAMVA, CADMV magnetic card standards, support ISO7816, support various memory encryption cards AT24C01A/24C02/24C04/24C08/24C16/AT24C64, SLE4432/4442, SLE4418/4428, EMV IC card standards, support ISO14443 TYPA A&B Mifare One S50 ,Mifare One S70,MifareOne Mini,Mifare Ultra Light,Desfire,Mifare Plus

Technology AAdvantage: Provide complete dynamic library functions, support WINDOWS/LINUX/Android system, and provide convenient DLL secondary development. Provide complete dynamic library functions, development points, call example source code examples, multiple development languages (including: vb6.0, java, vc++6.0, Android, LINUX development)

Provide EMV L2, PAYPASS PAYWAVE SDK package

3. Technical specifications:

magnetic card
optional track	Yes
card reader	1/2/3 track
slide	two-way
head life	About 500,000 passes
Parity and LRC checks	Built-in, sound and LED good read and error index
support card	ISO 7811, AMMVA, CADMV
RFID card
working frequency	13.56 MHz
smart card interface	ISO14443-A, Mifare
Sensing distance	About 0-5cm
programmable sound	on or off
support card	ISO14443A, MifareOneS50, MifareOneS70, MF3 DESFIRE, Ultralight, ISO14443B, SONY felica
PSAM card
head life	About 200,000 passes
communication	USB
support card	ISO 7816-3
operating system	Win7, Win 2008, Vista, Win 2003, Win 2000, XP, Linux
support card	AT24C01A/24C02/24C04/24C08/24C16/AT24C64 , SLE4432/4442, SLE4418/4428, ISSI 24C01A/16, ISO7816-(1-4) (T=1, T=0)
communication	USB2.0, USB-OTG (Android 3.1 and above)
Swipe speed	3~60 inches per second
Maximum power consumption	100 mW
temperature	Commercial grade: -20°∼ 60 °C Industrial grade: -20°∼ 60 °C
humidity	90% non-condensing
Anti-static interference	15KV
Anti-magnetic interference	19 Oster
Vibration resistance	Amplitude 0.35mm, frequency 10-55Hz, three-axis direction sweep vibration
Insulation resistance	Hot and humid environment (40°, 95%) insulation Resistance should not be less than 5MΩ

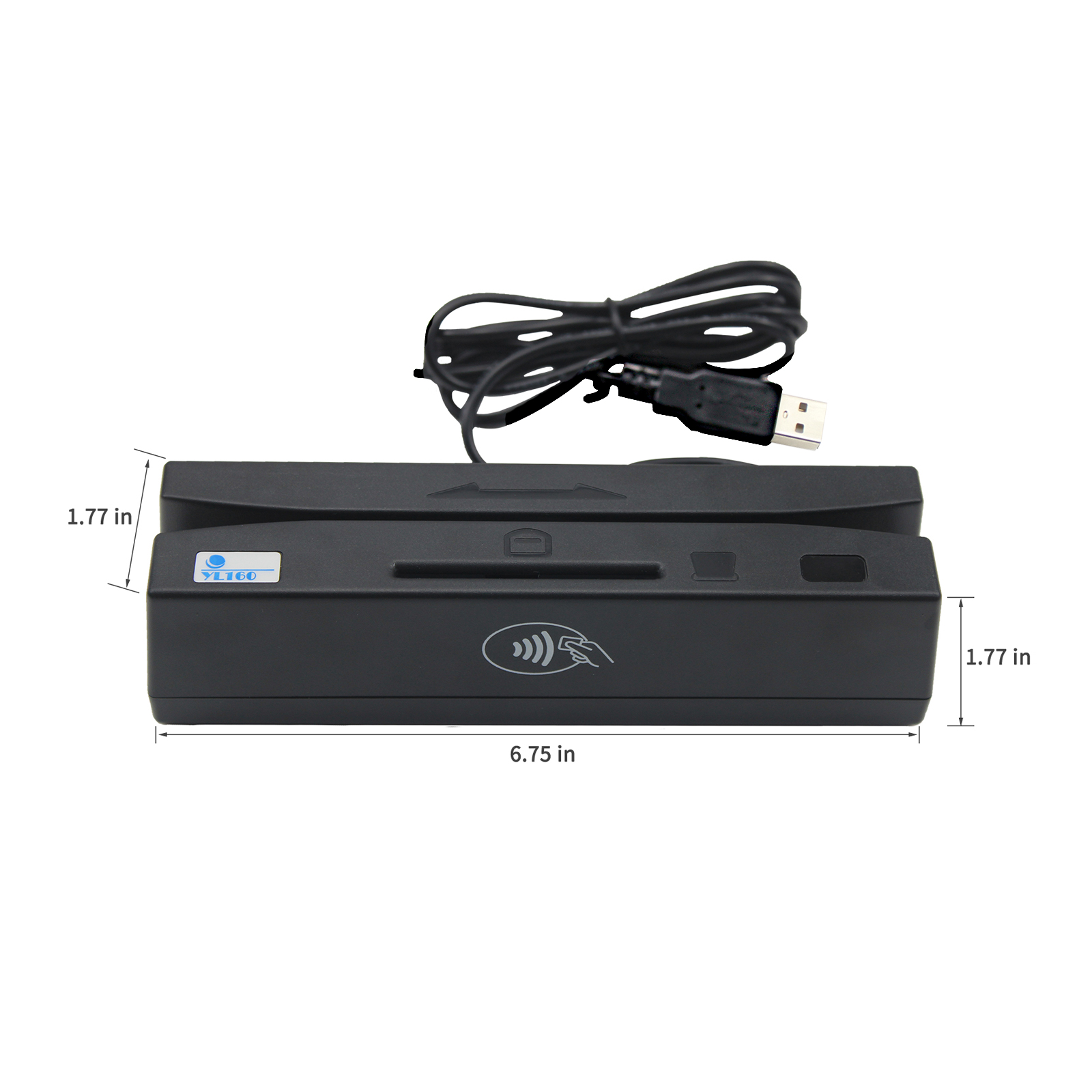

aspect	160mm(L)×45mm(W)×45mm(H)
weight	180 grams
