21 inch subwoofer power amplifier TD class 2 ohm stable power amplifier PK3300

Product details
payment terms:Western Union, T/T, MoneyGramstrength:2X2350W@8ohm
net weight:41 kgFrequency response:20Hz - 20kHz, ±0.5dB
Supply capacity:5000 pieces per monthOrigin:Guangdong, China
Dimensions (LxWxH):482*537*152(mm)model:PK3300,PK3300
Dimensions (W*D*H):483*537*153(mm)Package preview:
class:TD classFrequency Range (Hz):20-20KHz
power supply:2*2350w 8ohmsbrand:Soundbo
gross weight:45 kgTransistor:NJW21193/94
Packaging Details:Standard export cartonport:Any port in Guangdong



 Model: PK3300

Product Description



1. High power, high safety, perfect sound quality.



2. 2ohms works stably without heating.



3. The most advanced protection circuit in the world.

The silent function is perfect when short circuit protection or overheating protection. In the case of continuous operation of the high-current relay output, the output current is zero.

The advantage is that it can prevent the relay contacts from melting and jamming under the impact of high current, improve the protection speed, and can also reduce the temperature of the power tube radiator when it is short-circuited, and basically does not generate heat.







model PK3300
2 Ω stereo power supply 2x5200W
4 Ω stereo power supply 2x3600W
8 Ω stereo power supply 2x2350W
4Ω bridge 8800W
8Ω bridge 6600W
Frequency Response (1W 8ohm Stereo) 20 Hz - 20 Hz, ±0.5 dB
Sensitivity (8ohm stereo and 1KHZ) 0.775 volts
model Stereo/Bridge/Parallel
SNR 110 decibels
Total Harmonic Distortion <0.5% Stereo 8ohm
IMD <0.1% Stereo 8ohm
Damping coefficient >1200
conversion rate 100V/microsecond
Input impedance balance 20k balance
Input Impedance Unbalance 10k unbalanced
Protect Soft start, startup, short circuit, DC fault, over temperature, overload, limiter
aspect 482*537*152(mm)
net weight 42 kg
gross weight 45 kg

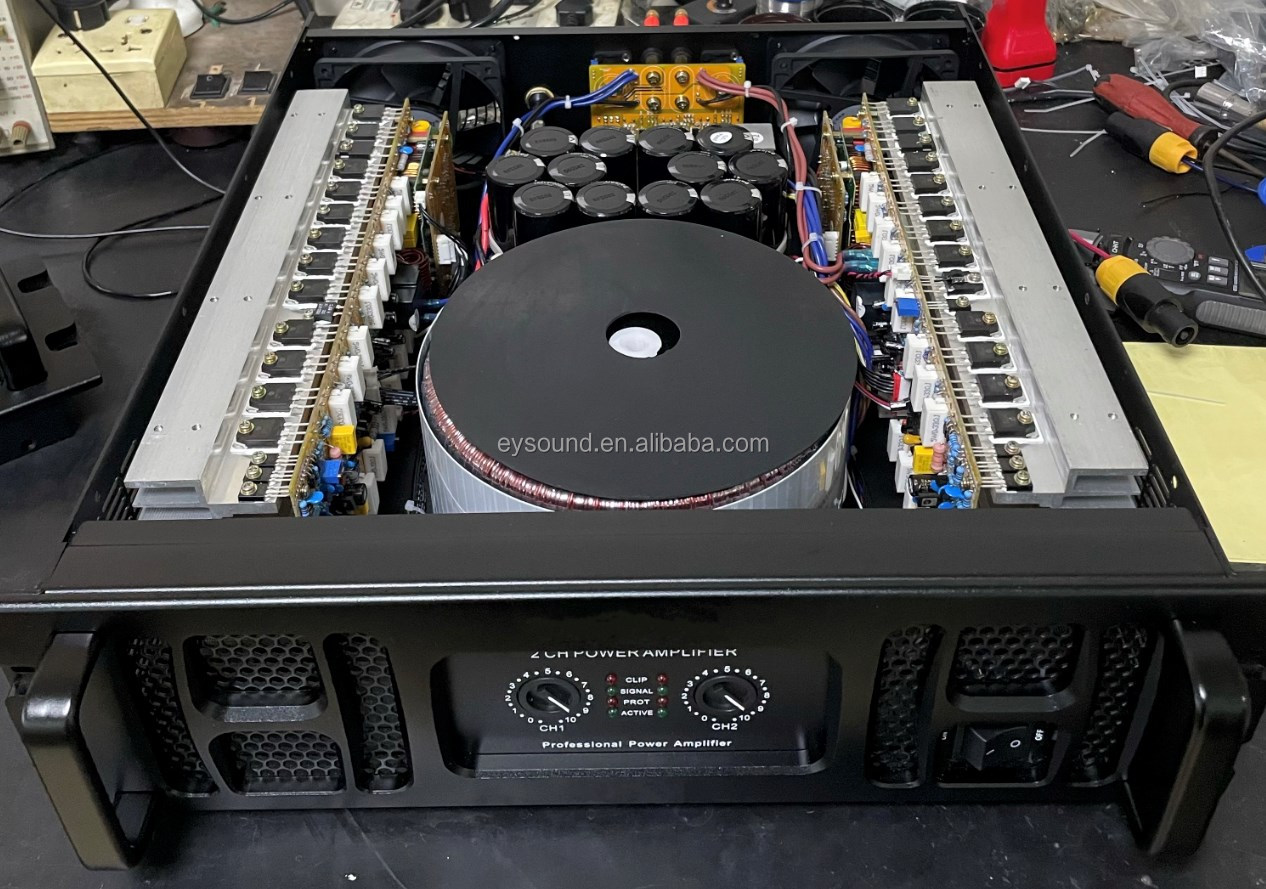

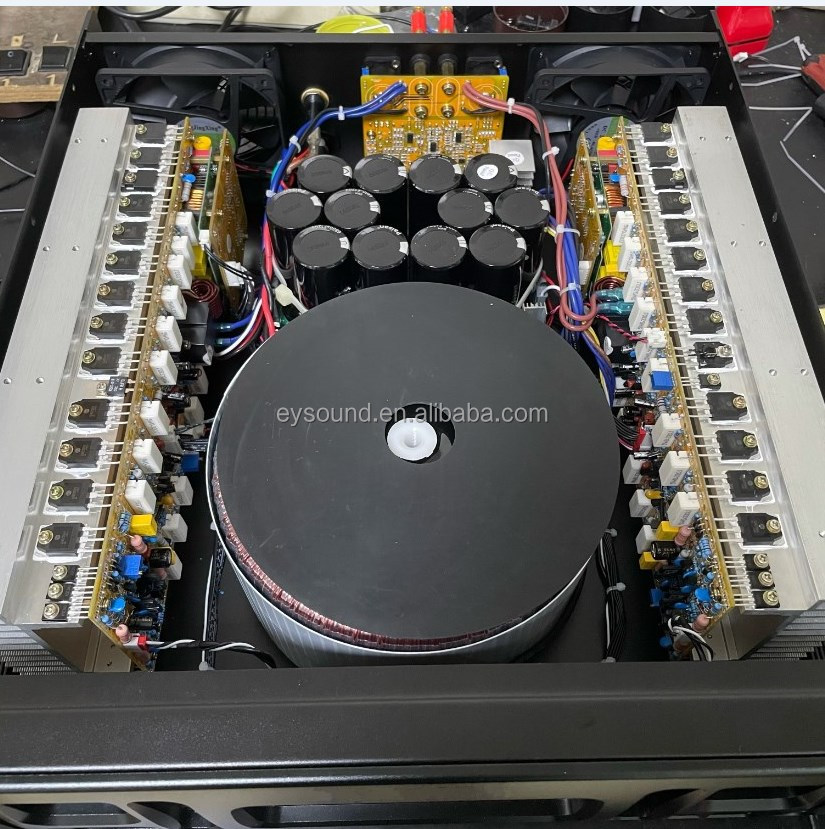

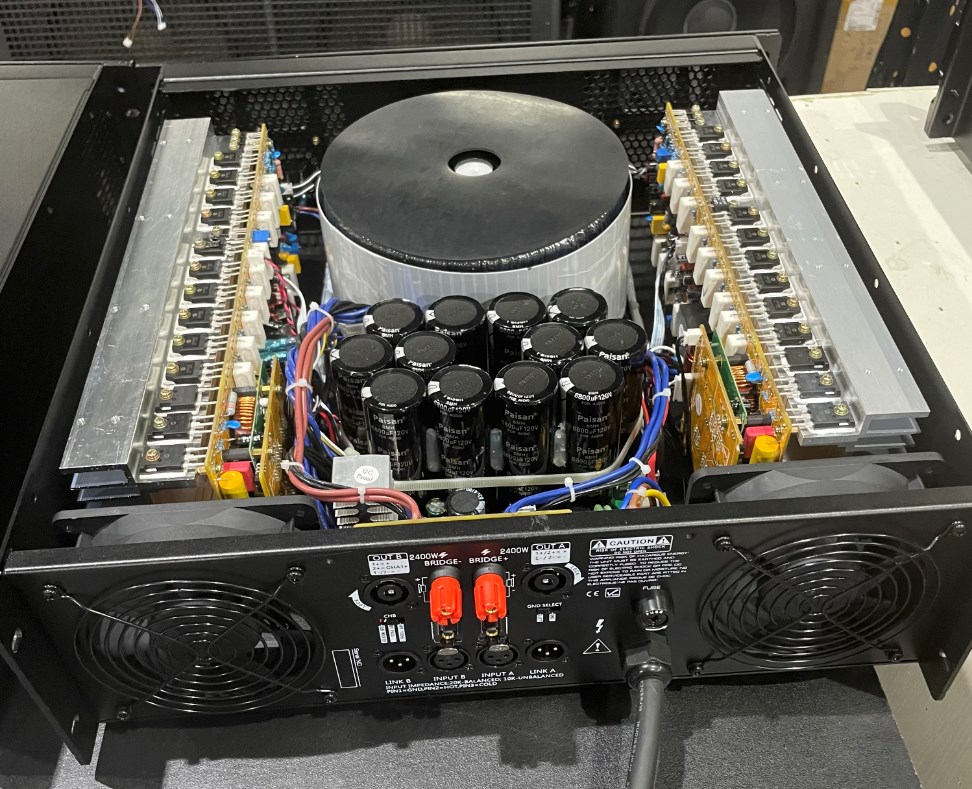

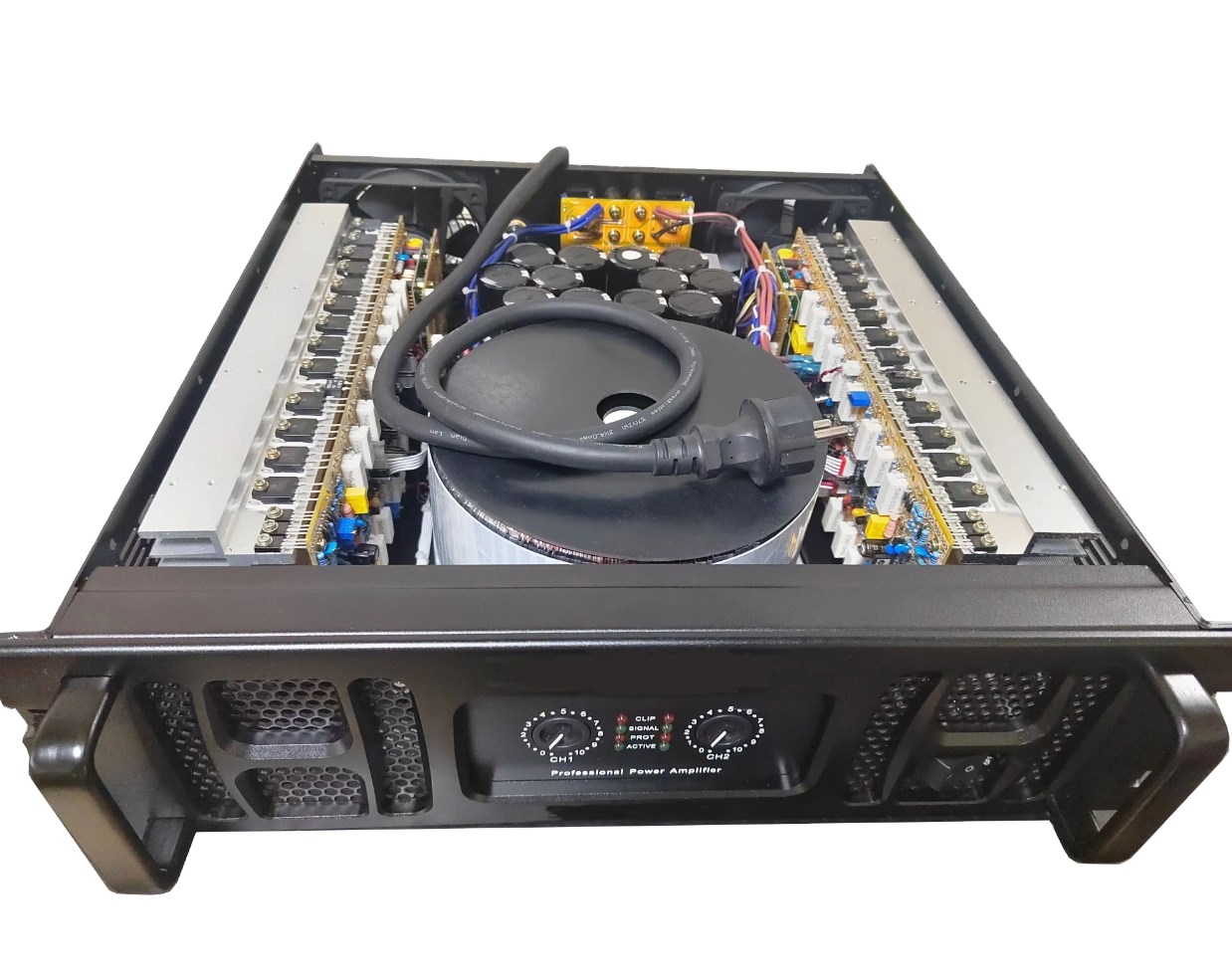

detailed image
