Product name: | molecular distillation cbd; | Certification: | CE; |
Condition: | New; | Warranty: | ONE YEAR; |
Motor power: | 120W; | Weight: | 260KG; |
Effective Distillation Area: | 0.2 m2; | Processing Types: | oil; |
Barrel Size: | DN100; | Processing: | Other; |
Voltage: | 220V; | Max. Speed: | 1100 rpm; |
Processing Flow: | 0.5~10.0 KG/H; | Package Preview: | https://sc01.alicdn.com/kf/HLB1AFApXOzxK1RkSnaVq6xn9VXam.jpg_640x640.jpg; |
Selling Units: | Single item; | Condensation Area: | 1.15 m2; |
Film Forming System: | Scraper; | Feeding Rate: | 1 ~5 L/H; |
After-sales Service Provided: | Online support; | Place of Origin: | Shanghai; |
Package Type: | Wooden box with sufficient customized safe production for main evaporation glass and other glassware.; | Single gross weight: | 280 KG; |
Power(W): | 120W; | Machine Material: | High Boro.3.3/ SUS 316L/SUS 304; |
Dimension(L*W*H): | 216867*215cm; | Model Number: | YMD-150; |
Brand Name: | YHCHEM; | Single package size: | 215X68X216 cm; |

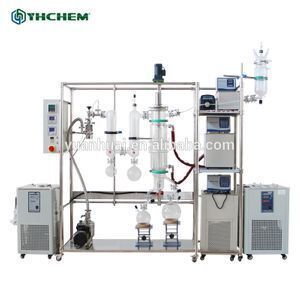

Stock Available !!! Pilot scale 6" wiped film molecular distillation
Principle for molecular distillation:
YHCHEM molecular distillation, also called molecular distiller, it is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules for example vitamins and polyunsaturated fatty acids.
Typical application fileds:
Technical specifications:
Model | YMD-080 | YMD-100 | YMD-150 | YMD-200 |
Barrel diameter (mm) | 80 | 100 | 150 | 200 |
Feeding rate (g/hr) | 500~750 | 750~1500 | 1500~3000 | 3000~5000 |
Feeding flask volume (L) | 1.5 | 2 | 2 | 5 |
Effective evaporation area (m2) | 0.1 | 0.15 | 0.24 | 0.35 |
Motor power | 120 | 120 | 120 | 200 |
Maximum speed (rpm) | 500 | 500 | 500 | 500 |
Distillate receiving flask (L) | 1 | 2 | 3 | 5 |
Residue receiving flask (L) | 1 | 2 | 3 | 5 |
Operation temperature | Up to 200C | |||
Power supply | 220V/50-60Hz |
Strong Technical support:
YHCHEM owns a 5~10 people R&D team, can do customization for our clients
Buying guides
For each model of molecular distillation, standard model include:
#1 Main glass evaporation barrel
#2 Jacketed feeding flask
#3 Dry ice cold trap

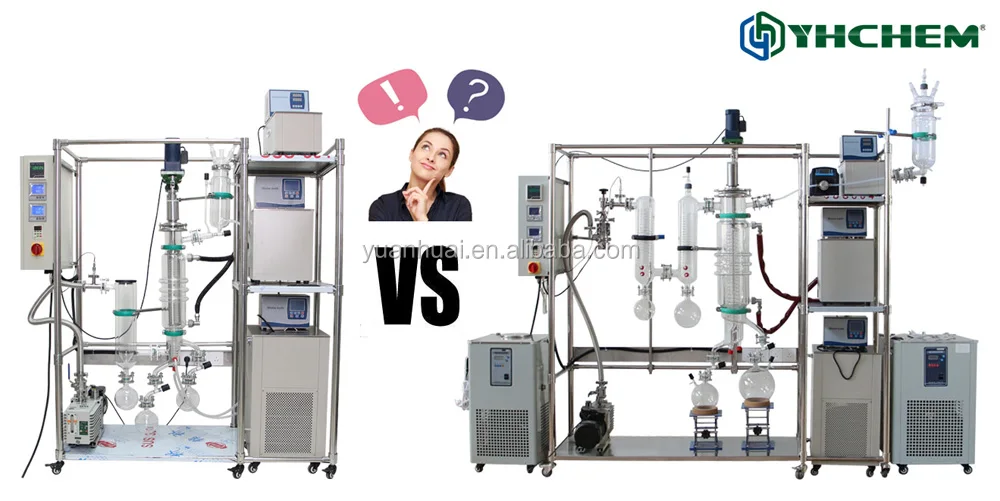

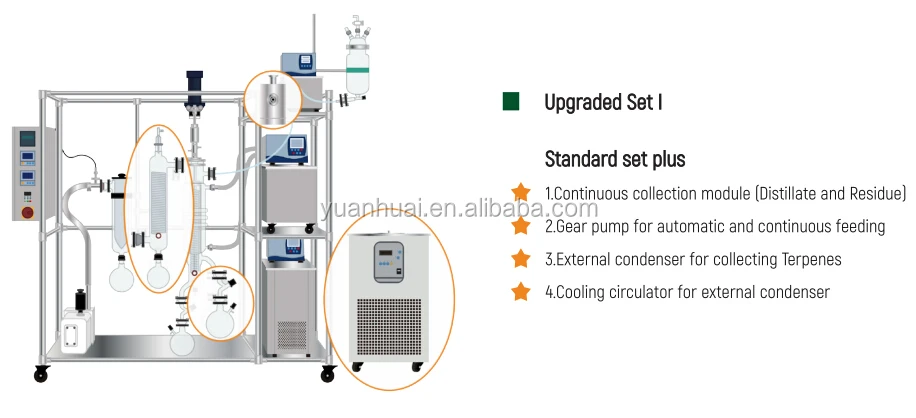

For upgraded model, there will be optional parts as below:
#1 Continuous collection module (Distillate and Residue)
#2 Gear pump for automatic feeding
#3 External condenser for collecting Terpenes
#4 Cooling coils cold trap
#5 Diffusion pump
Choose which optional parts please think below questions:
#1 What is your budget
#2 Do you want to have an more automative model?
#3 Do you need to collect terpenes?
#4 Are you tired of buying dry ice every day?
#5 Do you want to achieve more vacuum in the wiped film system?

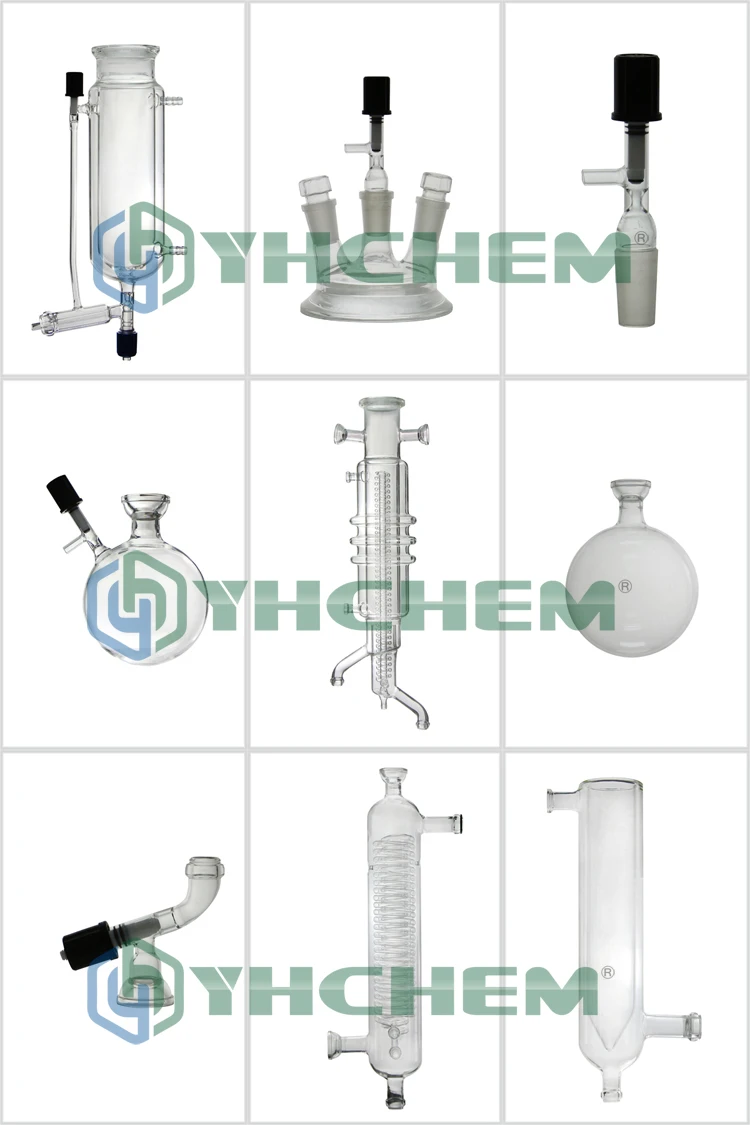

Main glass parts display

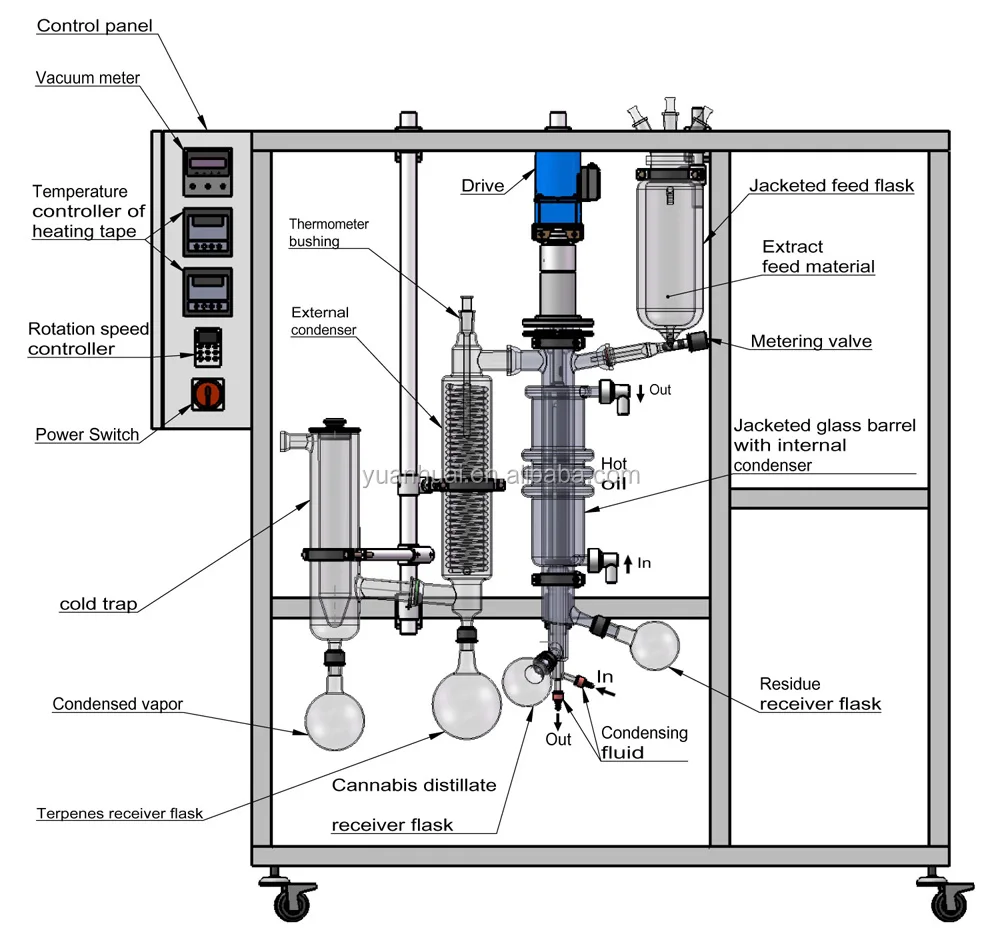

Structure display

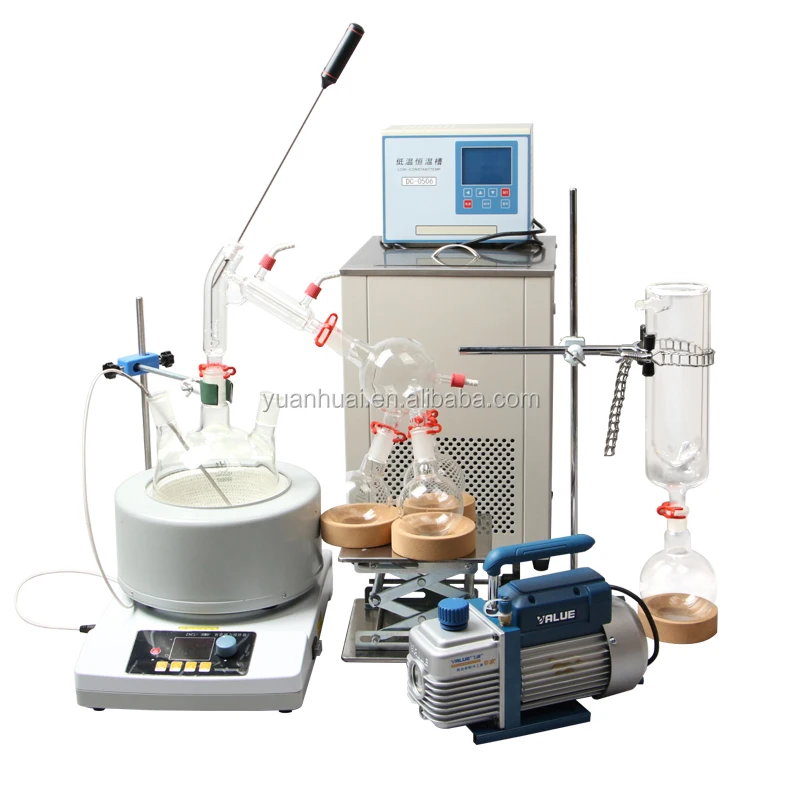

Supporting equipments
Our team and our clients
