Din rail type distribution box with three phase separation

Supplier: Wenzhou Elsine Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr ANDY LEE
Price: $4.50 / >=200 pieces
Min. Order: 200 pieces

Click here to contact

Product details

Installation type:	flat surface	Supply capacity:	100000 pieces per month
Rated current:	Branch 6A - 63A; main switch 63A/100A	Shell material:	cold rolled steel plate
Origin:	Zhejiang, China	Rated voltage:	120/240V, 230/415V AC
standard:	IEC 61439-1, IEC 61439-2, IEC 61439-3 and BS 60439-1	Packaging Details:	RCCB/ELCB/RCD standard export carton
Shell finish:	RAL 7035 light gray	payment terms:	L/C, Western Union, T/T
Number of ways:	4, 6, 8, 12	port:	Ningbo
maximum. load:	100 amps	Protection class:	IP30

Product Description

application

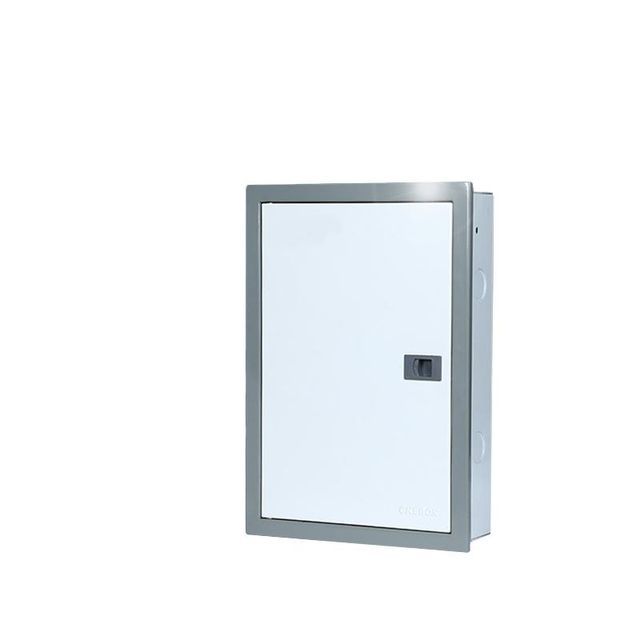

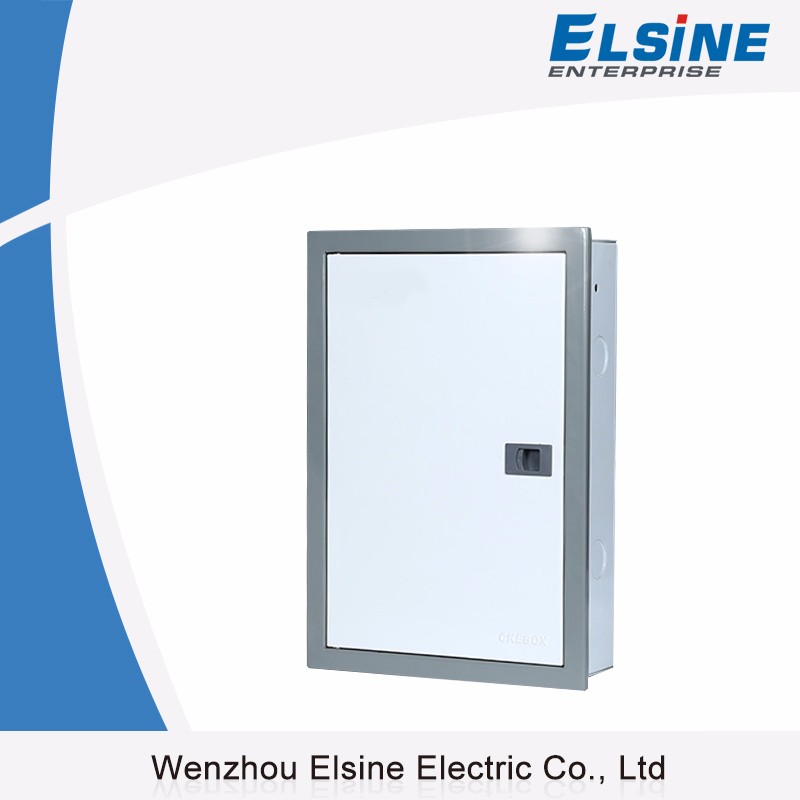

MDB-D Series Subscriber Units are designed for safe and reliable distribution and control of electrical power as service equipment in domestic, commercial and light industrial locations. It is easy to install, aesthetically pleasing and highly reliable. Available with steel flap surface or flush doors.

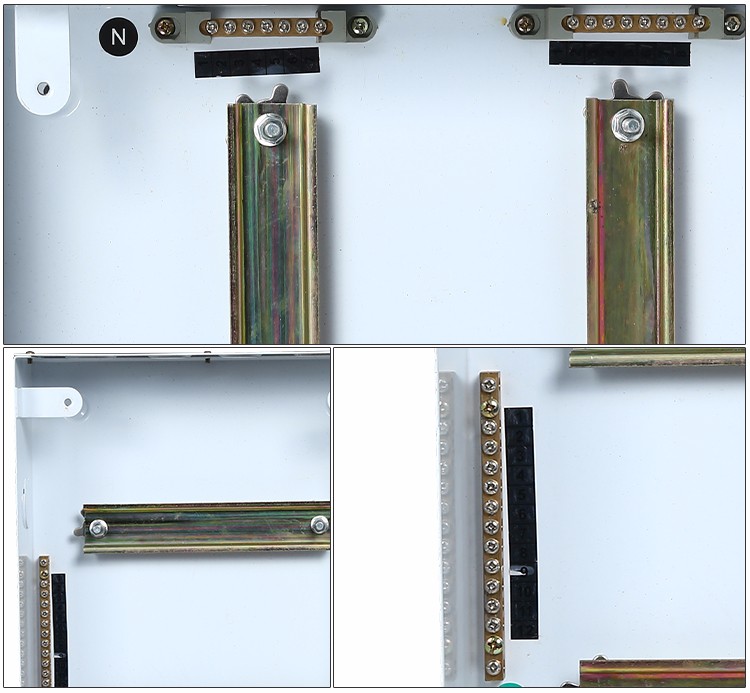

Equipped with neutral and ground terminals and din rail. Suitable for single phase, 230/415V and rated current up to 63A (main switch up to 100A)

feature

♦ Made of high quality steel plate

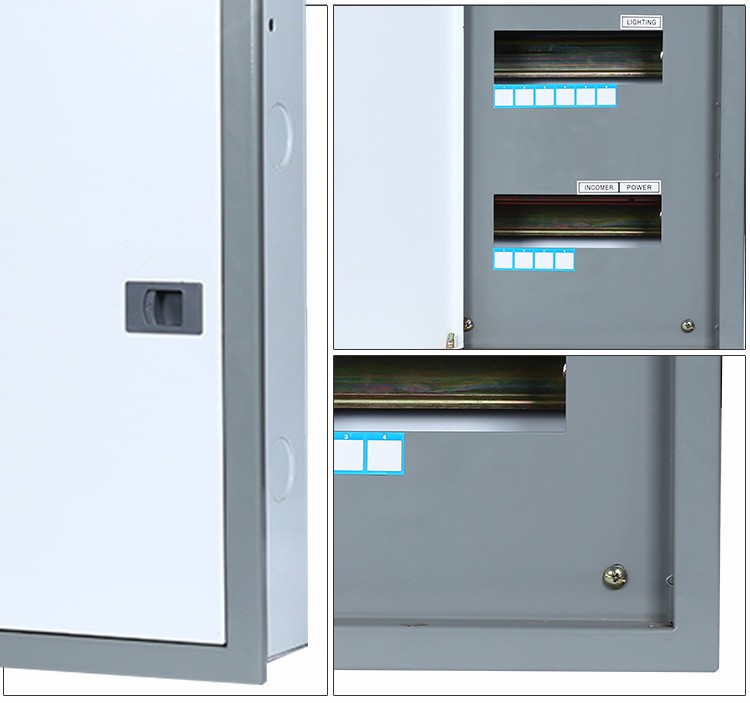

♦ Various size knockouts and removable top and bottom gland plates for easy cable entry

♦ Depth adjustable pan assembly for easy installation

♦ Equipped with earth and neutral terminals

♦ Keyhole fixing for easy wall installation

♦RAL-7035 light gray matte polyester powder coating

♦Spacious enclosure for easy cabling installation

technical specifications

◊ Standards: IEC 61439-1, IEC 61439-2, & IEC 61439-3 & BS 60439-1
◊ Max. Load: 100 Amps
◊ Rated current: branch circuit 6A - 63A; main switch 63A/100A
◊ Rated voltage: 120/240V, 230/415V AC
◊ Channels: 4, 6, 8, 12
◊ Protection class: IP30
◊ Shell material: cold-rolled steel plate
◊ Housing finish: RAL 7035 light gray

◊ Mounting Type: Surface and Flush

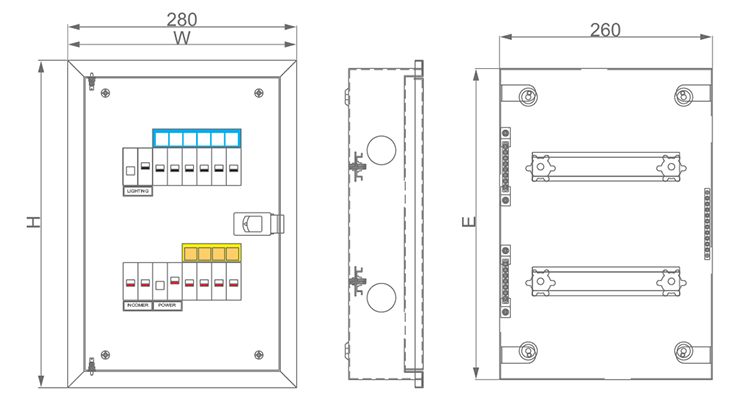

aspect:

Model	type	stage	method		Main switch
flush surface	guide	single	as follows		ELCB isolator

Noodle/2 rows		h	W	Man	Second	f
4+2 way		400	245	Post-90s	380	225
6+2 way		400	280	Post-90s	380	260
6+4 way		400	280	Post-90s	380	260
8+4 way		400	315	Post-90s	380	295
8+6 road		400	315	Post-90s	380	295
10+6 way		400	350	Post-90s	380	330
10+8 way		400	350	Post-90s	380	300

All Elsine load centers undergo a full sequence of type tests in accordance with international standards.
Each of our products undergoes strict quality control inspections and is regularly inspected for structure and performance

♦ Dielectric properties: high voltage routine test

♦ Electrical Continuity Test: Confirms correct assembly and operation

♦ Insulation resistance test: to ensure high insulation resistance

About OEM/ODM

♦ Different thickness for your choice: 0.8mm, 1.0mm (default), 1.2mm

♦ We are happy to stamp or print your logo on the case

♦ Knockout: reduce or increase number, change size or position

♦ Powder Coating Color: Gray (default) or any other color required

♦ Packaging: brown (default) or colored packaging

♦ Produced completely according to customer drawings
