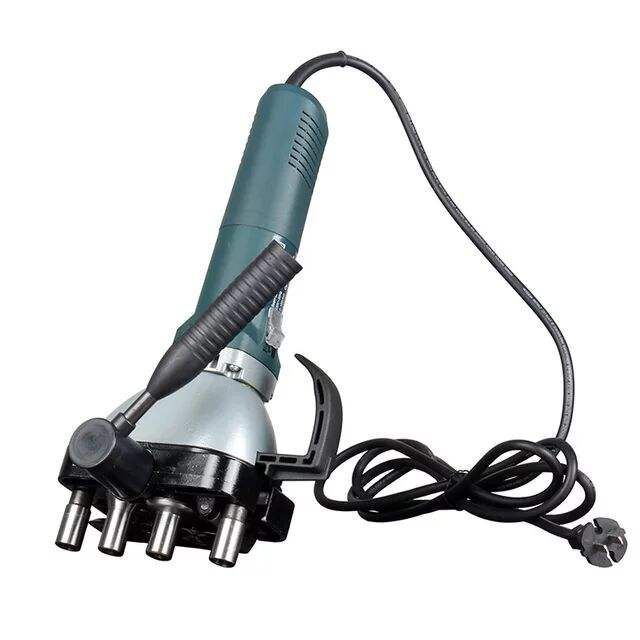

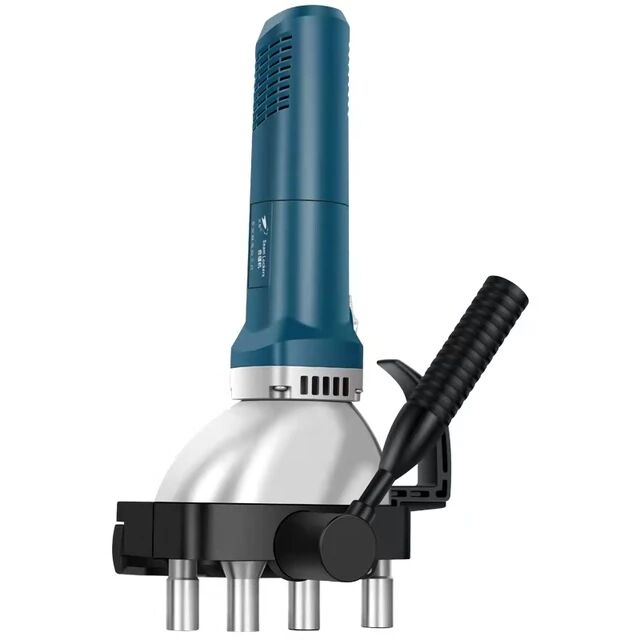

0.4-1.5mm Portable Seam Lock for Pittsburgh Piping Sheet Metal

Product details
Core component warranty:1 yearSheet thickness (mm):1.2-1.5
Origin:ChinaMechanical test report:not available
After warranty service:Video technical supportPackage Size:49x30x21.5cm
net weight:7 kgProduction capacity:4-10m/min
No-load speed:0-150 rpmWarranty:1 year
port:NingboVideo shipment inspection:if
gross weight:10 kgApplicable industries:construction project
payment terms:wire transferCore components:engine
Steel Thickness:1.2-1.5mmPackaging Details:Including CTN plastic case
Health status:newMotor data:230V/110V/1400W
strength:1400W, 1400Package:plastic box
Dimensions (L*W*H):49.5x21.5x30.5cmweight:11 kg
Marketing Type:New Products 2020Showroom location:not any
Main selling points:Best seam treatment







Product Description





The purpose of the seam lock is to fold and close the Pittsburgh seams. Widely used in building ventilation ducts, containers, houses, etc. This creates a clean and best seam finish. It is a professionally made lockstitch machine that works better than all other lockstitch machines in China.





seamed cabinet

We have 3 types of seamed cabinets to choose from



NO.1: Lock capacity: diameter 0.4-1.0mm

NO.2: Lock capacity: diameter 0.8-1.25mm

NO.3: Lock capacity: diameter 1.2-1.5mm



Motor data: 120V/230V, 50/60HZ, 1400W

No-load speed: 0-150 RPM

Flange height: 6-13mm

Working speed: 5-10m/min

Minimum inner diameter: 150mm

Minimum outer diameter: 300mm

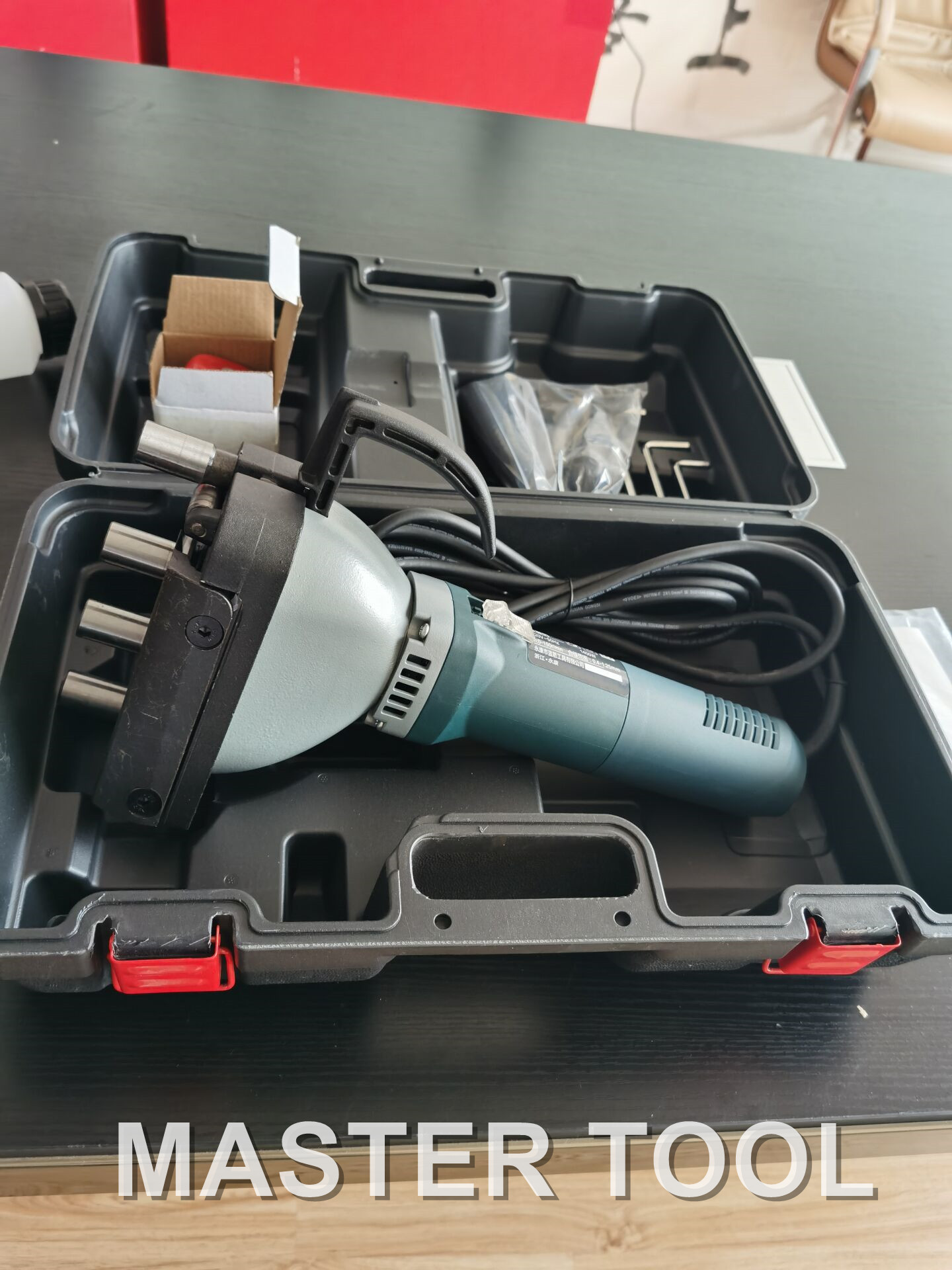

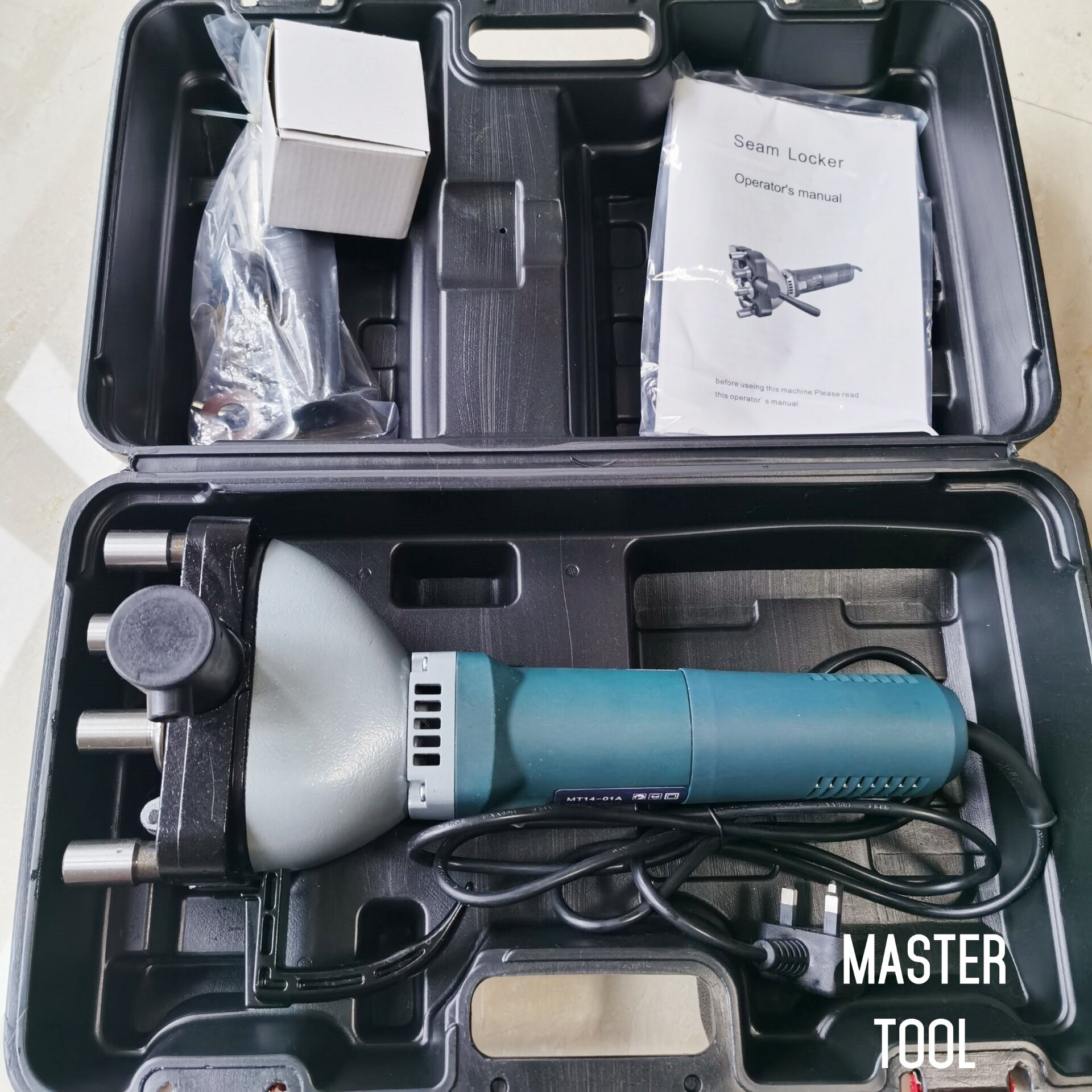

it comes with a plastic carrying case









Physical map

Includes blown box packaging
