ERS-H02 automatic horizontal foam mattress block cutting machine

Supplier: Dongguan ERS Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Nina Liu
Price: $7800.00 / 1 - 19 sets
$6800.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

port:	Shenzhen, China	Cutting sponge thickness:	2-150mm
Certification:	CE certificate	rated power:	8.32KW
Walking speed:	0-30m/min	maximum. Cutting Depth:	150 mm
Health status:	new	application:	rebonding foam cutting
Cut foam size:	L3000W2150H1200mm	After-sales service provided:	On-site installation, commissioning and training, engineers can repair machinery overseas
aspect:	L7800W3600H2350	payment terms:	L/C, T/T
Packaging Details:	Pearl cotton & film	brand:	ERS foam machine
Voltage:	220V/380V/415V	Supply capacity:	6 sets per month
strength:	8.32KW	Warranty:	1 year, 1 year
weight:	2200KGS	type:	Blade Cutting Foam Machine
No-load speed:	0-30m/min	Saw blade diameter:	32mm
Origin:	Guangdong, China

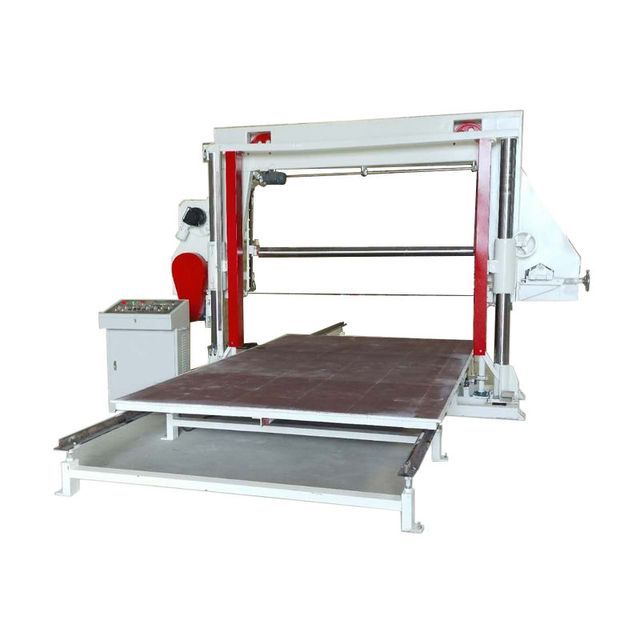

ERS-H02 Automatic Horizontal Mattress Foam Block Cutting Machine

This machine is used for cutting rigid foam, foam board insulation, rigid polyurethane. The workbench adopts fully automatic digital control, and the cutting thickness and foam density are set by the control box according to the needs, and the workbench runs automatically. It can be added to the pressure roller to prevent degassing during cutting. Easy to operate and precise cutting.

Model	ERS-HH01	ERS-HH02
Cut Rigid Foam to Size	L2000W1250 H1200mm	L3000W1650 H1200mm
Cutting thickness	5-150mm	5-150mm
pedaling speed	0-15m/min	0-15m/min
Blade length (serrated)	6900mm	8500mm
total power	10.1kw	10.1kw
Machine Dimensions	L5800W3500H2350mm	L7800W4200H2350mm
