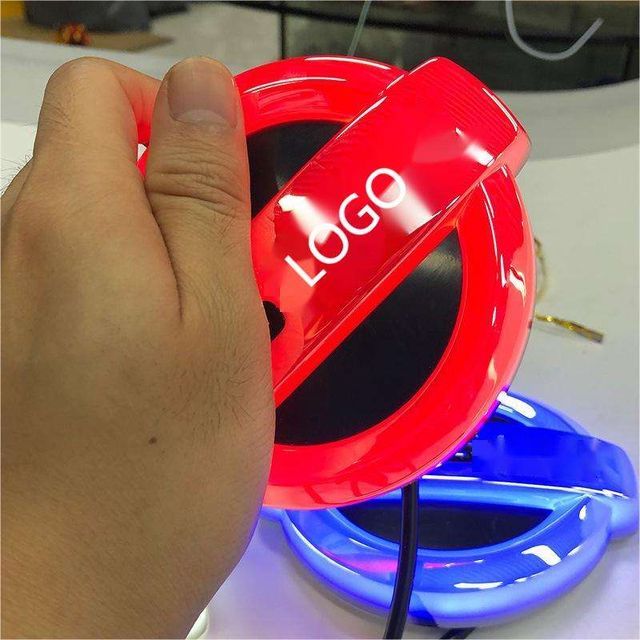

Hot Sale 3D 4D 5D Car Front and Rear Logo Badge Emblem Badge LED Lighting Light

Supplier: Ganzhou Yanyi Yanrui Trade Co., Ltd.
Region: Jiangxi, China
Contact: Ms Eve Liu
Price: $8.58 / 10 - 99 pieces
$7.50 / 100 - 499 pieces
$6.90 / 500 - 999 pieces
$2.98 / >=1000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

product name:	3D Logo LED lights	Supply capacity:	10000 sets per month
MOQ:	10	Car equipment:	common
brand:	not any	port:	Shenzhen, Shanghai, Ningbo
Year:	common	size:	10.18.2cm/12.59.8cm
strength:	2(width)	Voltage:	12(V),12V
pack:	color box	power supply:	DC12V+/-10%
Warranty:	3 months	Wiring length:	0.25 meters
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	car model:	common
light color:	red blue white	model:	YLM01
Model:	common	Origin:	Guangdong, China
current:	0.3 (A)

Product Description

Specification

birthplace	China
Warranty	3 months
OEM/Design and Manufacturing	support
type	taillight
product name	Logo LED light
light color	red blue white
power supply	DC12V+/-10%
Wiring length	0.25 meters
strength	2(width)
Voltage	12 (five)
current	0.3 (A)
size	10.1cmX8.2cm / 12.5cmX9.8cm
MOQ	10
pack	color box

1. Factory direct sales, good quality and favorable price. 2. Most of the items are in stock, we can send the items to you in a short time. 3. Sincere service, if you have any questions after receiving the goods, please feel free to contact us, we will provide the best solution.

Installation Notes:

[Tools prepared before installation]
Please prepare the following tools: 1. Slotted screwdriver 2. Phillips screwdriver 3. Insulation tape 4. Towel 5. Pliers

1. First, spread a towel next to the car logo in the trunk, and use a flathead screwdriver to pry the car logo. towels are for
Prevent scratching the body.
2. Pay attention to tear off the double-sided tape on the car body first, and use moderate force when prying, not too hard
Violently, little by little, slowly pry it open, and wipe off the double-sided tape on the car logo and the body.
3. Use a Phillips screwdriver to remove the partition inside the boot. Note that there are clips in some places. careful
Various textures can be seen by removing the sound insulation board.
4. Now install the logo lights. The power cord of the car logo light passes through one of the car logo positioning holes,
Penetrates into the car trunk. Tear off the single-sided adhesive on the back of the car logo light, and paste the car logo light
contact with the body while pulling the cord. Tight.
5. After the car logo light is installed, connect to the power supply. The car logo light should be connected to the power supply
Rear license plate light, so that when the night light is on, the logo light will also light up at the same time
Time to find the power connector for the rear license plate light.
6. Unplug the plug first, peel off a hole on the positive and negative poles to expose the wire core, and connect the wires according to the wiring method
Red to red, black to black, don't forget to wrap it with insulating tape, and finally plug it back in! reinstall boot
Cover the bezel.
feature:
1. The appearance of this product is the same as the original car logo. Installed in the position of the car logo
The trunk can also directly replace the original car logo. The special vacuum plating technology it adopts can not only
Ensure the same gloss as the original car logo, and also ensure high light transmittance and uniform brightness.
2. Adopt high-quality LED light group, which has the characteristics of high brightness and long life, and is specially designed for
Waterproof and dustproof design to ensure long-term use.
3. This product is specially designed for car modification enthusiasts. When the car logo lights go out during the day, no
Different from the original car logo. When the license plate light is turned on at night, the LED car logo light will also light up
Stand up, make the car logo dazzling in the dark, with a sense of futuristic technology, showing your noble blood
car.
4. The LED lights inside adopt a special waterproof and dustproof design! LED lights have a lifespan of up to 100,000 hours.
5. Using high-quality double-sided adhesive tape for automobiles, the adhesion is extremely strong and durable!
