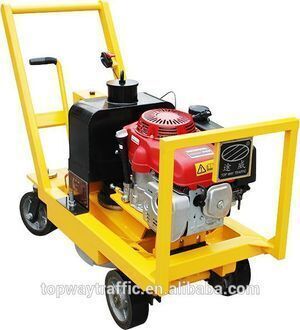

TW-CX Road Line Eraser
-
Supplier: Guangzhou Top Way Road Machinery Co., Ltd. -
Region: Guangdong, China -
Contact: Mr LIU DANIELLE -
Price: $3200.00 /piece -
Min. Order: 1 piece
| Supply Ability: | 15 Piece/Pieces per Month; | Brand Name: | TOP WAY; |
| Place of Origin: | Guangdong China (Mainland); | Gasoline engine: | HONDA / BRIGGS STRATTON; |
| warranty: | 12 months; | Delivery Detail: | Shipped in 7 days after payment; |
| Model Number: | TW-CX; | Total weight of machine: | 190KG; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Warranty: | 12 Months; |
| Certification: | certification; | Power(W): | engines; |
| Weight: | 190kg; | Port: | Huangpu Port; |
| Dimension(L*W*H): | 1300mm*650mm*950mm; | Remover teeth service life span: | 1000~7000㎡; |
| Packaging Detail: | Road marking paint remover Wooden Box; | Road lne remover: | Road line remover; |
| Outer dimension(L*W*H): | 1300mm*650mm*950mm; |

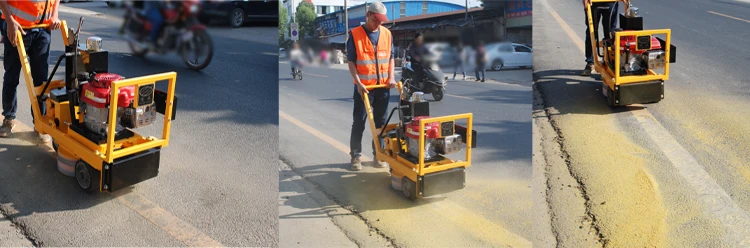

TW-CX Road marking paint remover is used before thermoplastic marking, to clean the waste old linesTW-CX Road marking paint remover is very stable, two lines of flume teeth can clean the waste line effectively, dissipate heat faster. The modified sealing technology makes the shaft more durable, the connection of every part more secured. And the machine frame adopted adjustable design, so every of the old and new remover teeth can clean the waste line in the best angle and quicker manner.
| No. | Item | Technical parameters |
| 1 | Outer dimension(L*W*H): | 1300mm*650mm*950mm |
| 2 | Total weight of machine | 180KG |
| 3. | Gasoline engine | HONDA / BRIGGS STRATTON |
| 4. | Removing width | 200mm (straight line operation) |
| 5 | Adjustable removing depth | 0.5~3mm |
| 6. | Removing line space | 200mm |
| 7. | Remover teeth service life | 1000~7000m2; |

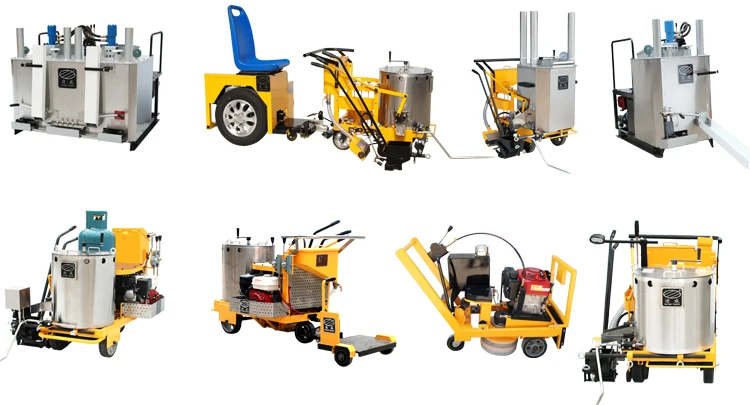

1). Marking hopper: a complete range of marking hopper, the size from 50mm to 450mm, have single handle or double handle.
2). Heavy-duty chassis: the weight light with good mechanical design(widen the space between the front wheels, choose light and heavy-duty material for frame.)
3). Glass bead dispenser: gear driven mechanism with soft shaft. Special attachment for glass bead flow adjustment.
4). The rear burner nozzles: high efficient nozzles attaches in marking hopper to maintain temperature.
5). Directional lock system: able to rotate 360 degree smoothly and accurately.
1.Two lines of chute grinding heads are featured by the advantages of good dust discharge,fast heat dissipation and quick line removal etc, especially the encrypted built-in hard alloy tool bits effectively increase the service life of grinding heads.
2.High thermal resistant pad protects the remover teeth, reduces the dirt enter the shaft while remove the waste lines. The original machine, equipped with the shaft imported from German, increases the service life from one day to two to seven days.
3.Water tank has been added to reduce machine temperature and reduce dust, which prevents the grinding heads from being overheated, lengthens service life, reduces the dust entering the bearing and makes the grinding heads more durable.
-
