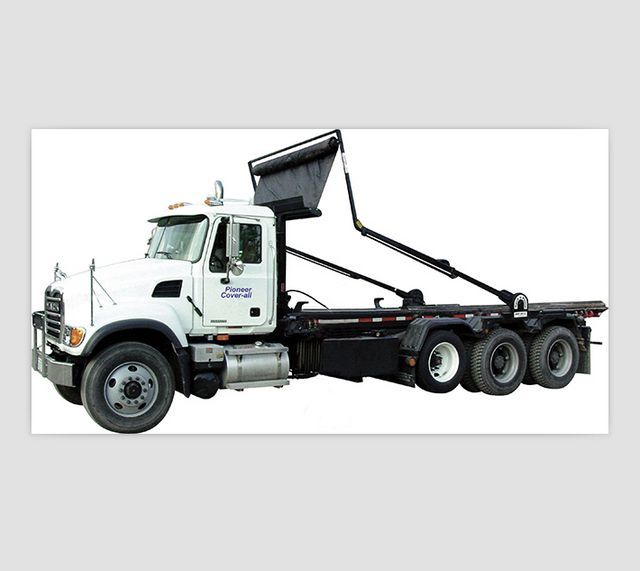

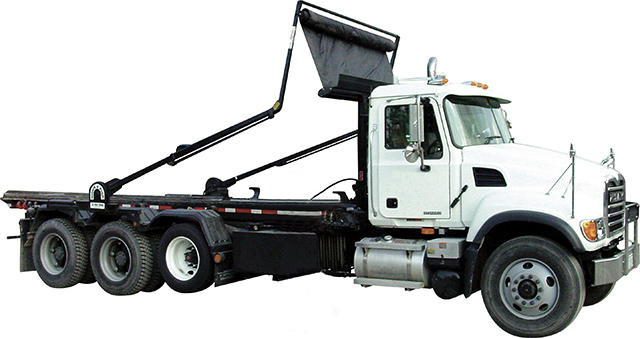

Pioneer- roll off trailer tap system used hydraulic cylinder cylinders Pi Pioneer

Supplier: Jinan Huachen Weida Trade Co., Ltd.
Region: Shandong, China
Contact: Mr Max Stewart
Price: $150.00 / >=20 pieces
Min. Order: 20 pieces

Click here to contact

Product details

Rod:	chrome	Seal Kit:	parker, nok-, hallite
Packaging Details:	Solid iron box, glued wooden box or according to customer requirements	After warranty service:	Video Technical Support
payment terms:	L/C, Western Union, T/T	Certification:	ISO9001
Warranty:	1.5 years	Supply capacity:	5000 pieces per month
Origin:	China	Package preview:
Work stress;:	16-30Mpa	Chrome Hardness:	700-900HV
painting:	black, blue, etc.	Customization support:	OEM production
port:	FOB Qingdao, China	Chrome plating thickness:	25-30um
tube:	Precision grinding	Package:	steel box

Product Description

Hydraulic cylinders are widely used in the construction machinery industry. They are important actuators in hydraulic transmission systems and energy conversion devices that convert hydraulic energy into mechanical energy.

Overseas Chinese TownCustom manufacturing services are available upon specific requirements.

You can get one-stop service here.

1. Professional engineers design and improve before ordering

2. Professional equipment for processing and production after ordering

3. Professional inspectors check the quality before shipment

4. Professional after-sales service to solve problems in use

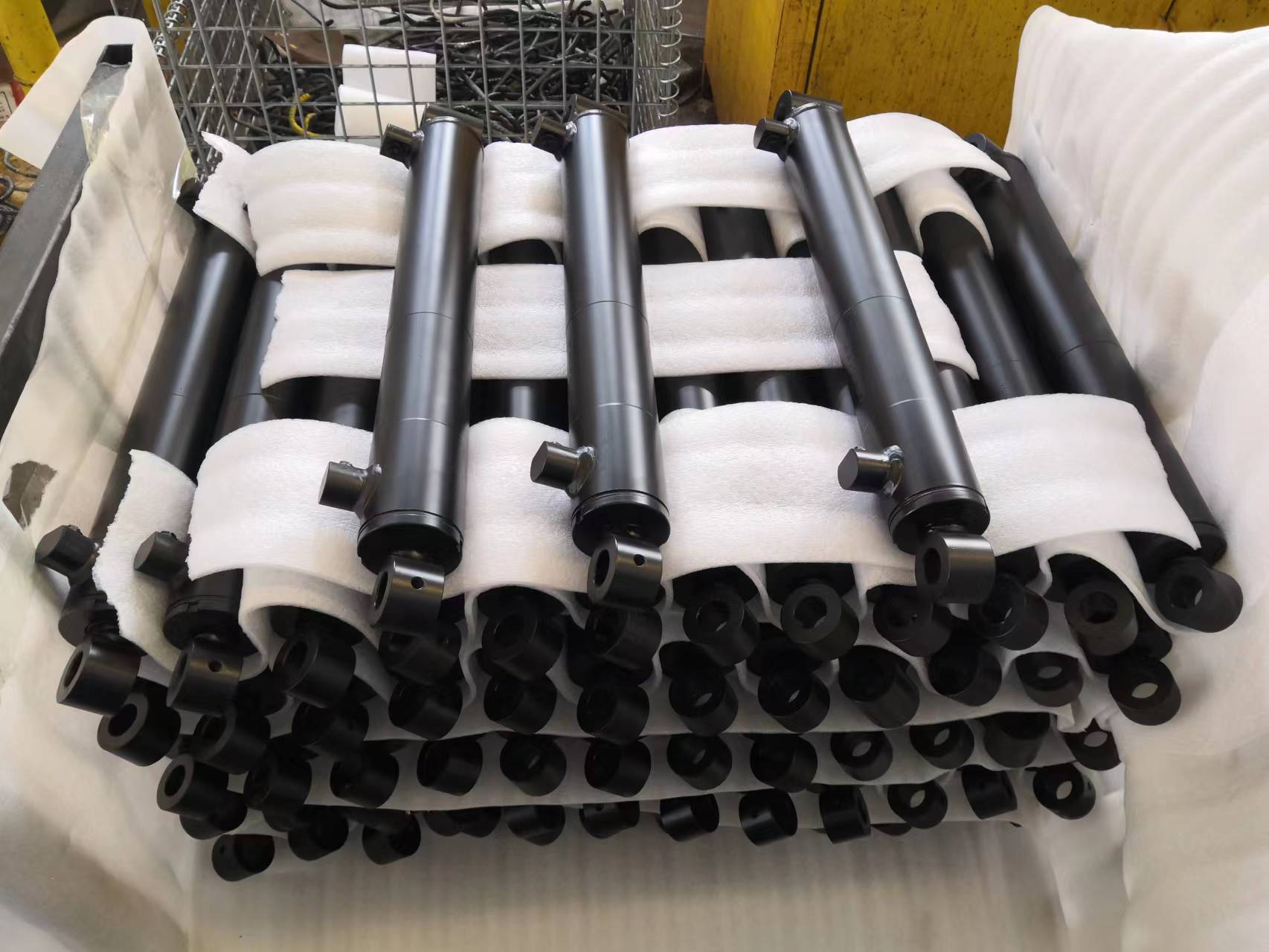

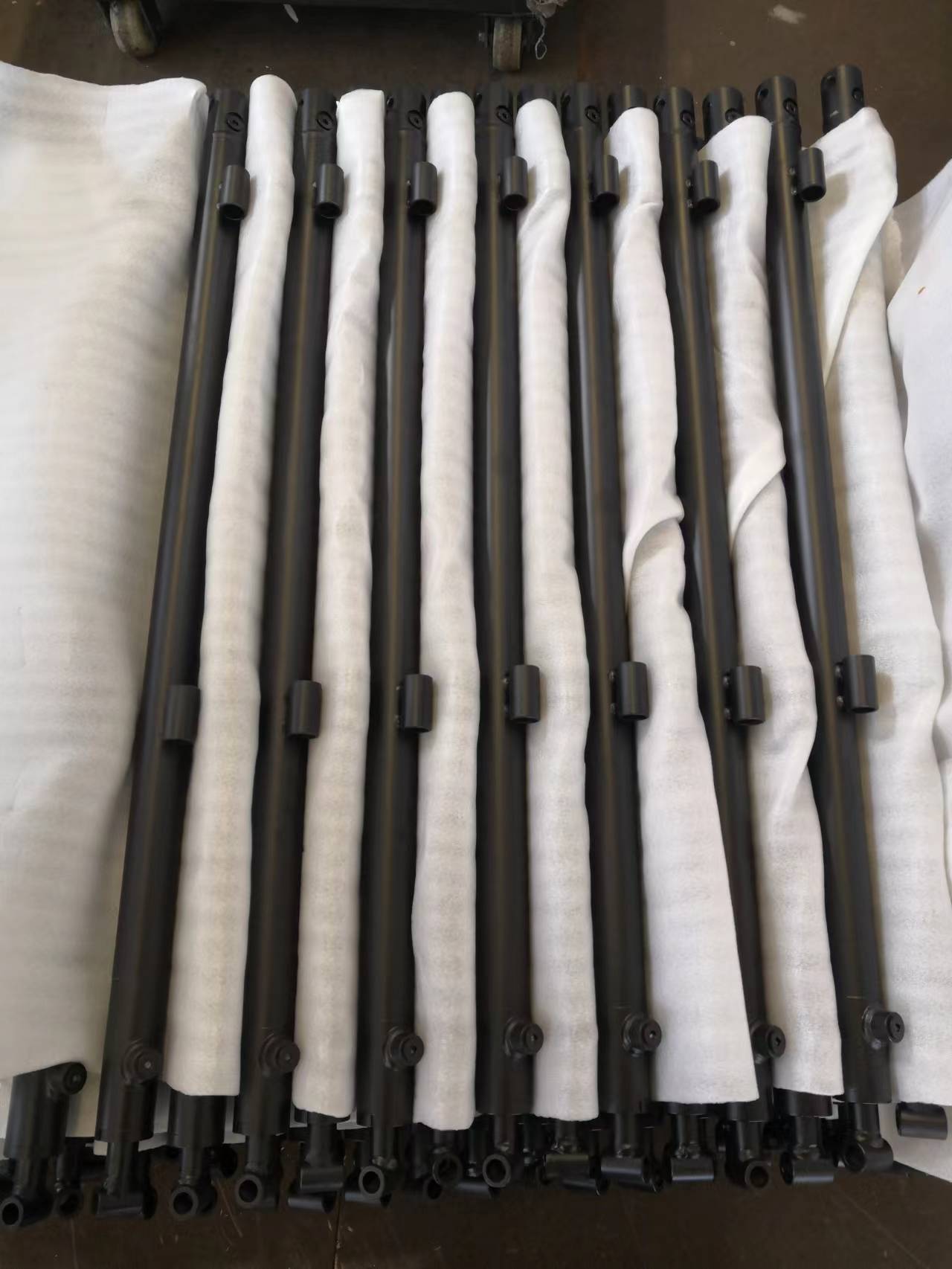

detailed image

Product parameters

Application scope of engineering hydraulic cylinder
bore			38mm-1500mm (1.5"-60")
rod size			25mm-1000mm(1"-40")
stroke			Maximum 15000mm (600")
work pressure			Maximum 700bar(10000PSI)
installation method			Earrings, flanges, foot mounts, trunnions, transverse tubes, etc.
painting			according to customer's requirement

Materials and Technology
Barrel/Tube			1. Material: SAE1020(20#), SAE1045(45#), 16Mn(Q345B), 27SiMn, etc. 2. Process: cold drawing, hot rolling, forging 3. Surface roughness: R0.16-0.32μm 4. Choose according to different working conditions and requirements.
piston rod			1. Material: SAE1045 (45#), 35CrMo, 42CrMo4, etc. 2. Process: Quenching and tempering 3. Surface treatment: chrome plating, nickel chrome plating, nitriding, nitrocarburizing
seal kit			1. Hallite, NOK, SKF, Parker, Hercules, Trelleborg, China made, Taiwan made 2. Choose according to different working conditions and requirements.
