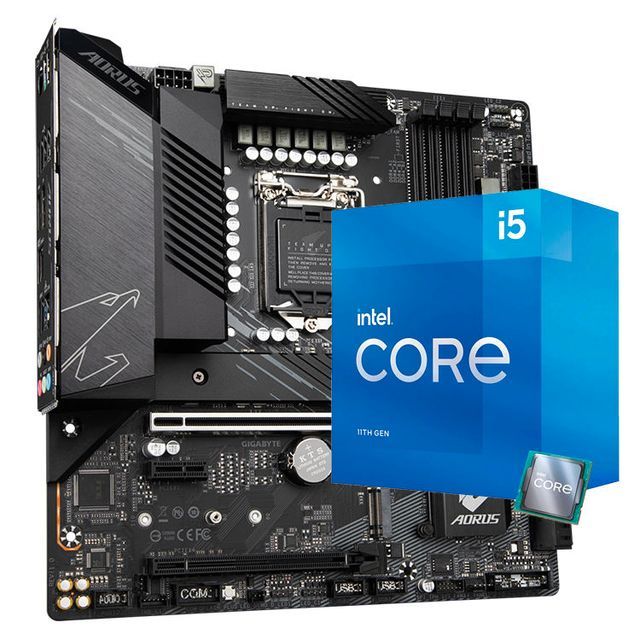

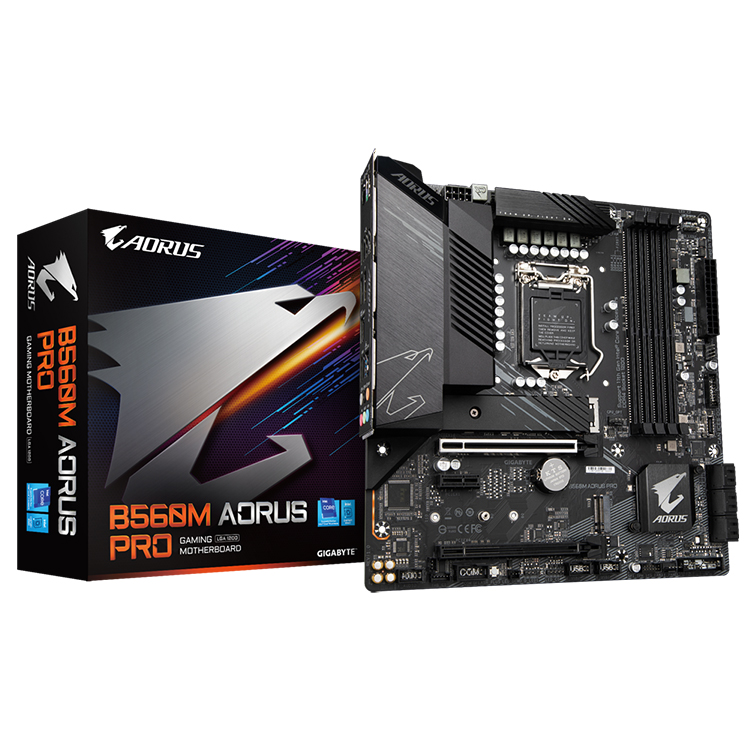

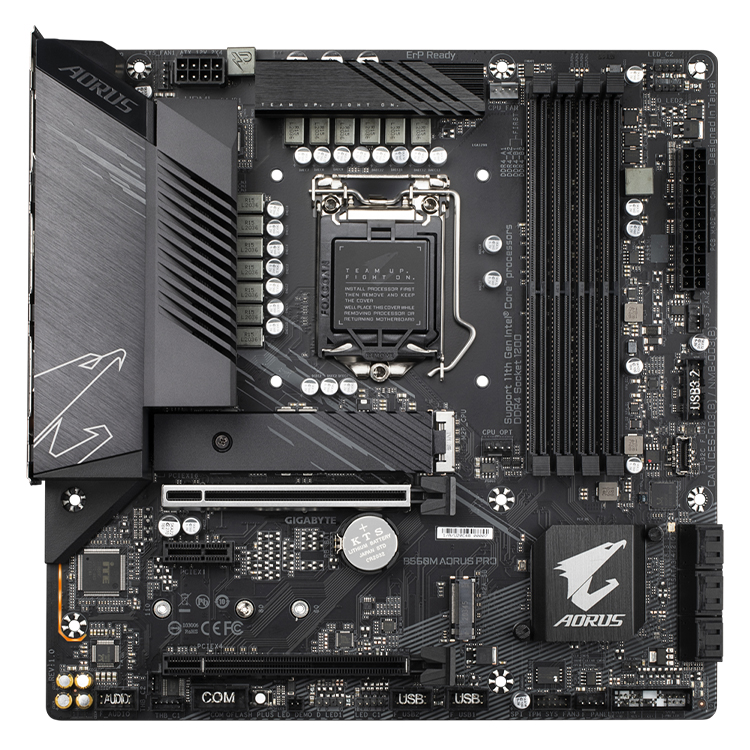

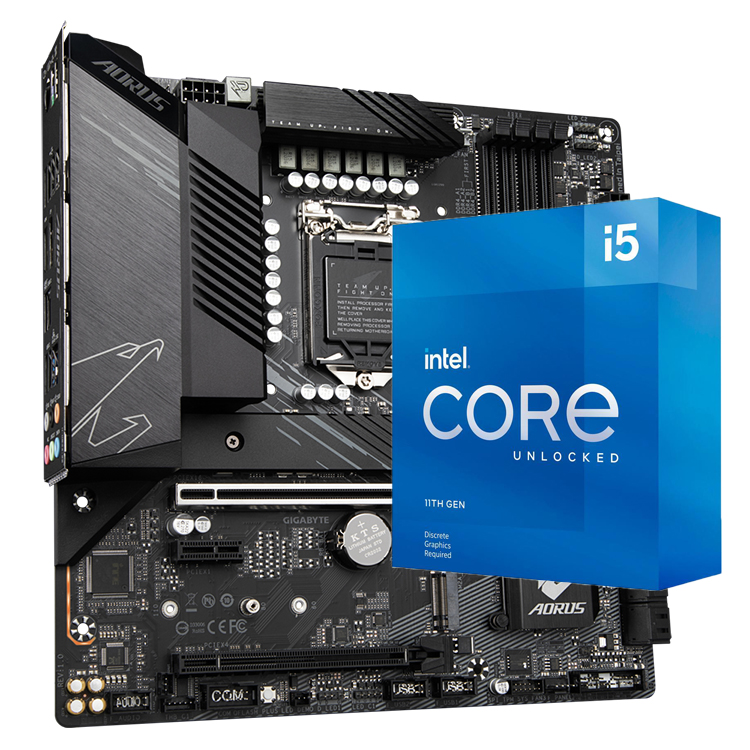

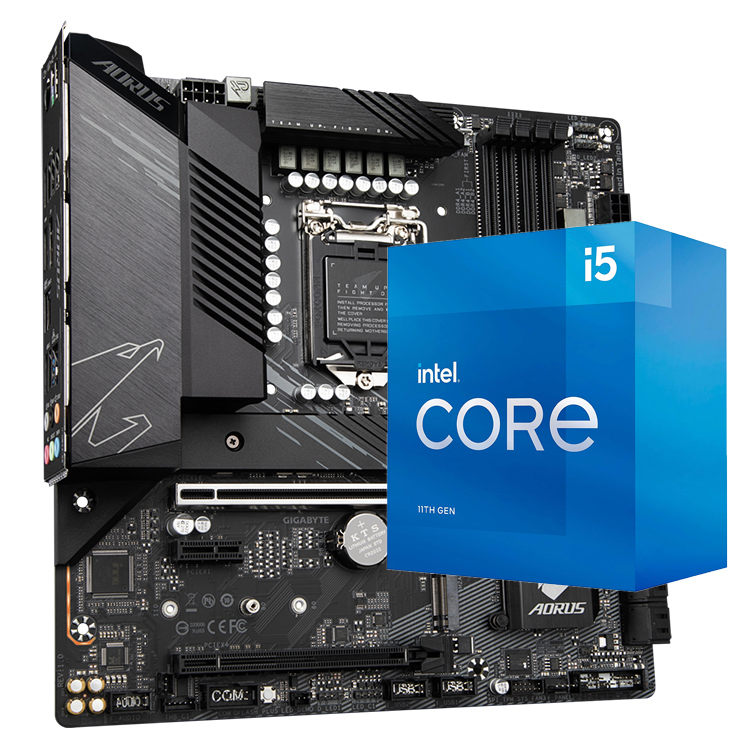

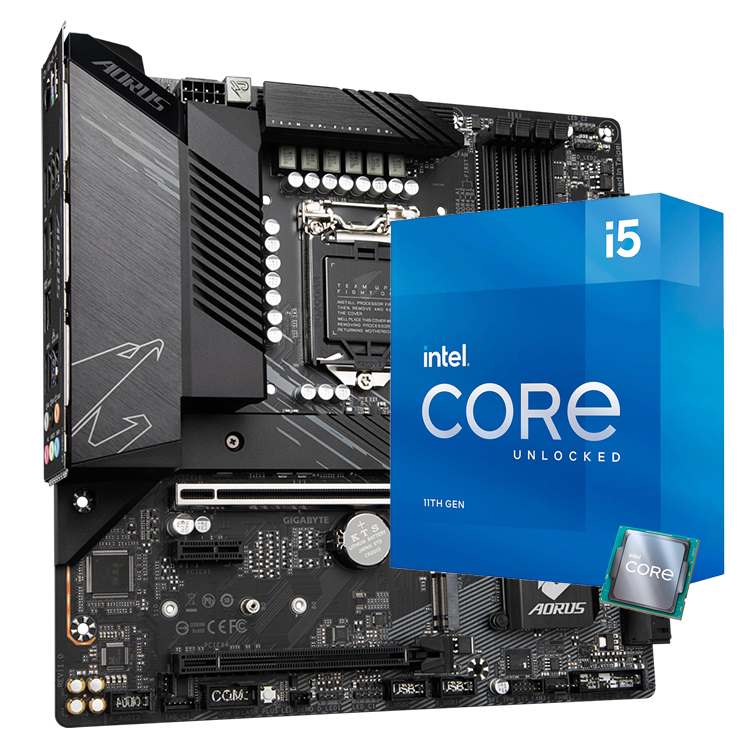

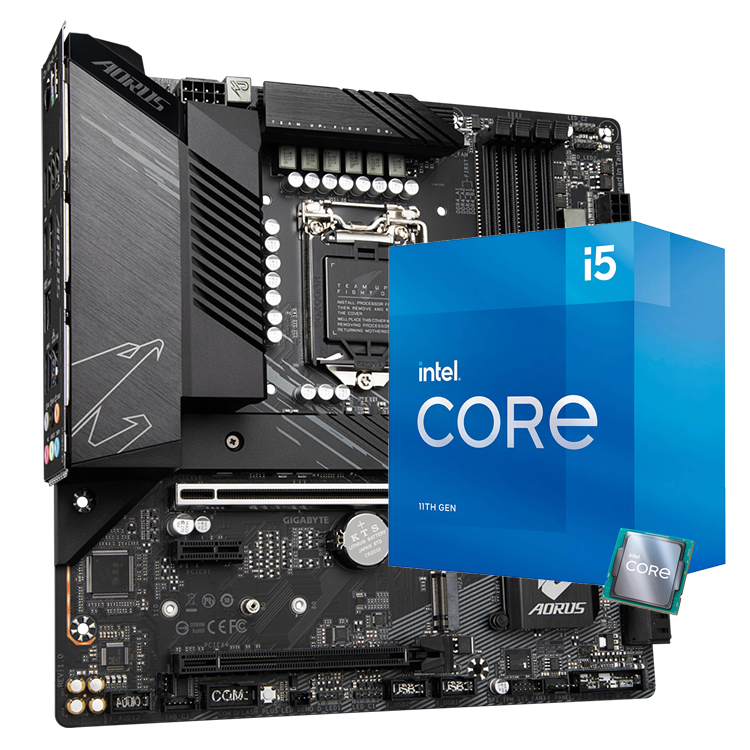

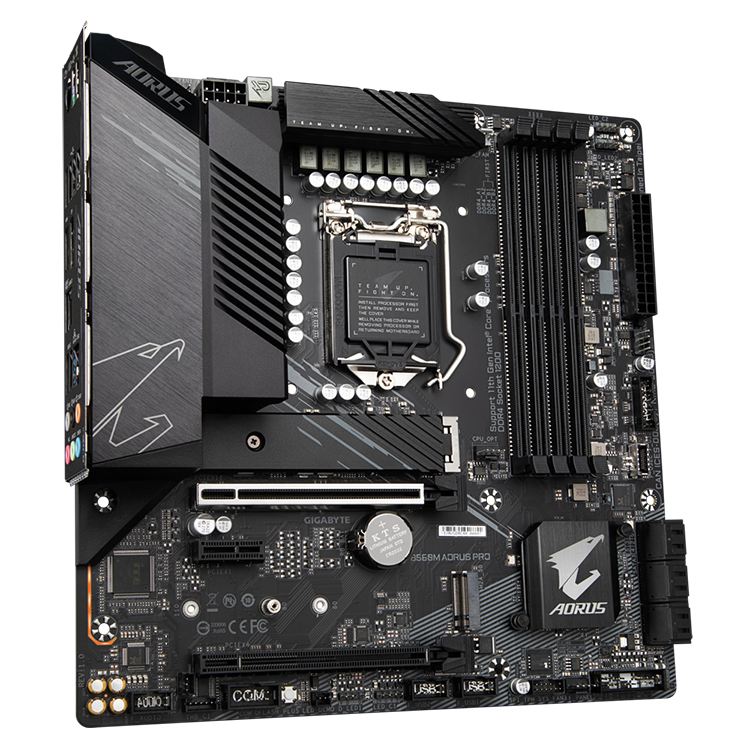

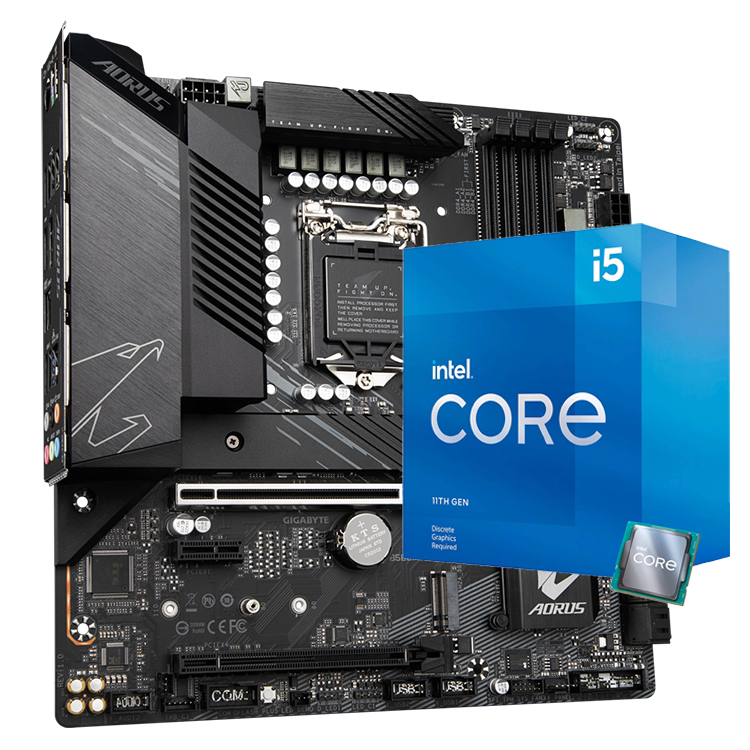

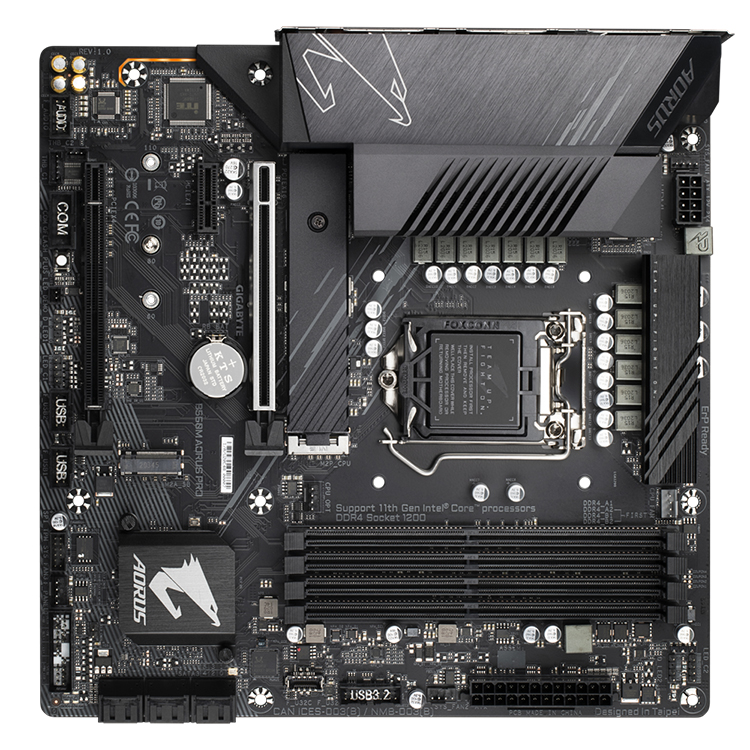

Gigabyte B560M AORUS PRO motherboard new board. Intel Core 5 11400 I5 11500 11400F 11600K 11600KF CPU LGA 1200 socket

• Supports 11th and 10th Gen Intel^®Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

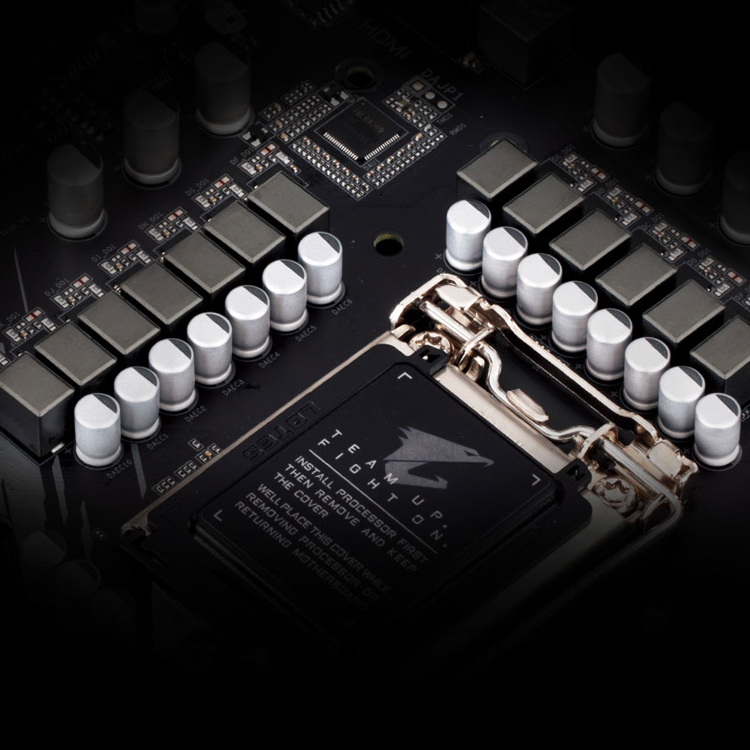

• Direct 12+1 Phase Digital VRM Solution with 50A DrMOS
• Mask memory routing for better memory overclocking

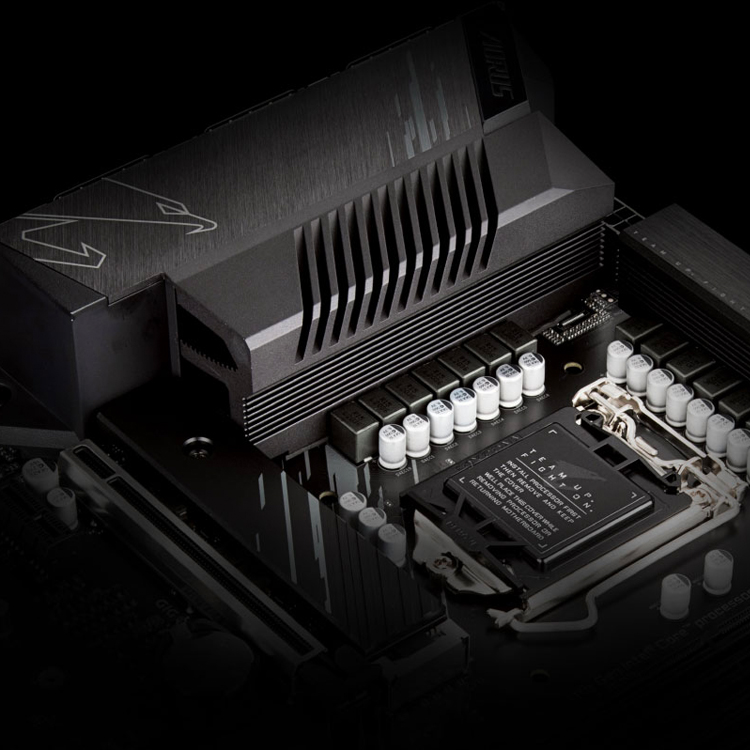

• Full coverage thermal design with high coverage MOSFET heat sink
• Extremely Fast Intel^®2.5GbE LAN with cFosSpeed
• Dual ultra-fast NVMe PCIe 4.0*/3.0 x4 M.2 with thermal protection
• SuperSpeed ​​USB 3.2 Gen2x2 TYPE-C^®Provides transfer speeds up to 20Gb/s
• Pre-installed IO Shield, easy and quick installation
• RGB FUSION 2.0 with multi-zone addressable LED light show design, supports addressable LED and RGB LED strips
• Smart Fan 6 with Multiple Temperature Sensors, Hybrid Fan Header with FAN STOP
• Q-Flash Plus upgrades BIOS without installing CPU, memory and graphics card

• CPU

LGA1200 package:

• 1. 11th Generation Intel^®Core™ i9 Processor / Intel^®Core™ i7 Processor / Intel^®Core™ i5 processor
  2. 10th Generation Intel^®Core™ i9 Processor / Intel^®Core™ i7 Processor / Intel^®Core™ i5 Processor / Intel^®Core™ i3 Processor/Intel^®Pentium^®Processor/Intel^®Celeron^®processor*
     * 4 MB Intel processors only^®Smart Cache, Intel^®Celeron^®G5xx5 series.
  3. L3 cache varies by CPU

(For more information, please refer to "CPU Support List".)

• chipset
  1. Intel^®B560 Express Chipset
• memory
  1. 11th Generation Intel^®Core™ i9/i7/i5 Processor:
     Support DDR4 5333(OC)/ DDR4 5133(OC)/DDR4 5000(OC)/4933(OC)/4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4300 (OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3666(OC)/3600(OC)/3466(OC)/3400 (OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. 10th Generation Intel^®Core™ i9/i7 Processor:
     Supports DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel^®Core™ i5/i3/Pentium^®/ Celeron^®processor:
     Supports DDR4 2666/2400/2133 MHz memory modules
  4. 4 DDR4 DIMM slots supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  5. Dual Channel Memory Architecture
  6. Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operating in non-ECC mode)
  7. Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules

(Please go to the GIGABYTE website for the latest supported memory speeds and memory modules.)

• Onboard graphics card

Integrated Graphics Processor - Intel^®HD graphics support:

• 1. 1 x HDMI interface, support maximum resolution 4096x2160@30 Hz
     * Supports HDMI version 1.4 and HDCP 2.3.
  2. 1 x DisplayPort, supports maximum resolution 4096x2304@60 Hz
     * Support DisplayPort 1.2 version, HDCP 2.3

(Graphics specs may vary depending on CPU support.)

• sound
  1. Realtek^®audio codec
  2. HD audio
  3. 2/4/5.1/7.1 channel
• local area network
  1. Intel^®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

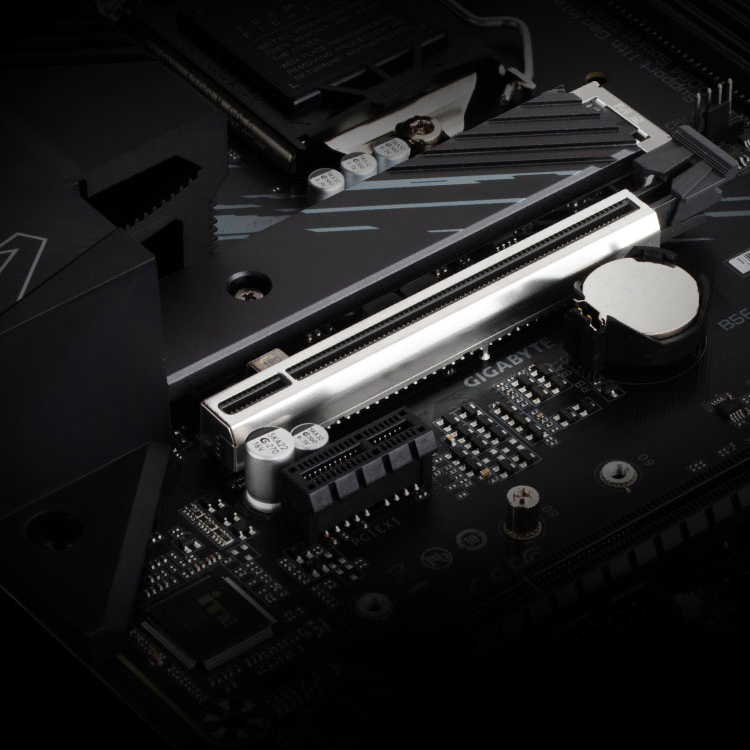

• expansion slot
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For best performance, if installing only one PCI Express graphics card, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot complies with the PCI Express 4.0 standard.)*
*Only supported by 11th generation processors.


• 1. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  2. 1 x PCI Express x1 slot
     (PCIEX4 and PCIEX1 slots comply with the PCI Express 3.0 standard.)
• multi-graphics technology
  1. Supports AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technology
• storage interface

CPU:

• 1. 1 x M.2 connector (Socket 3, M key, Type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
     * Only supported by 11th generation processors.

chipset:

• 1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

6 SATA 6Gb/s connectors
* For installation precautions of M.2 and SATA connectors, refer to "1-7 Internal Connectors".
Intel^®Optane™ Memory Ready

• USB

chipset:

• 1. 1 x USB Type-C^®Ports on the back panel, support USB 3.2 Gen2x2
  2. 1 x USB 3.2 Gen2 Type-A port (red) on rear panel
  3. 2 USB 3.2 Gen1 ports on the back panel
  4. 2 USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:

• 1. 1 x USB Type-C^®USB 3.2 Gen1 capable port available via internal USB header
  2. 2 x USB 3.2 Gen1 ports accessible through internal USB headers

Chipset+ 2 USB 2.0 hubs:

• 1. 8 x USB 2.0/1.1 ports (4 ports on back panel, 4 ports accessible through internal USB headers)
• Internal I/O Connector
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan connector
  4. 1 x Liquid-cooled CPU fan header
  5. 3 system fan headers
  6. 2 addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 6 SATA 6Gb/s connectors
  9. 2 x M.2 receptacle 3 connectors
  10. 1 x Front Panel Header
  11. 1 x Front panel audio interface
  12. 1 x USB Type-C^®Connector, supports USB 3.2 Gen 1
  13. 1 USB 3.2 Gen 1 port
  14. 2 USB 2.0/1.1 ports
  15. 2 x Thunderbolt™ add-in card connectors
  16. 1 x Trusted Platform Module header (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 modules only)
  17. 1 x serial connector
  18. 1 x Clear CMOS Jumper
  19. 1 x Q-Flash Plus button

*All fan headers are required to support AIO_Pump, Pump and High Performance fans capable of delivering up to 2A/12V at 24W.

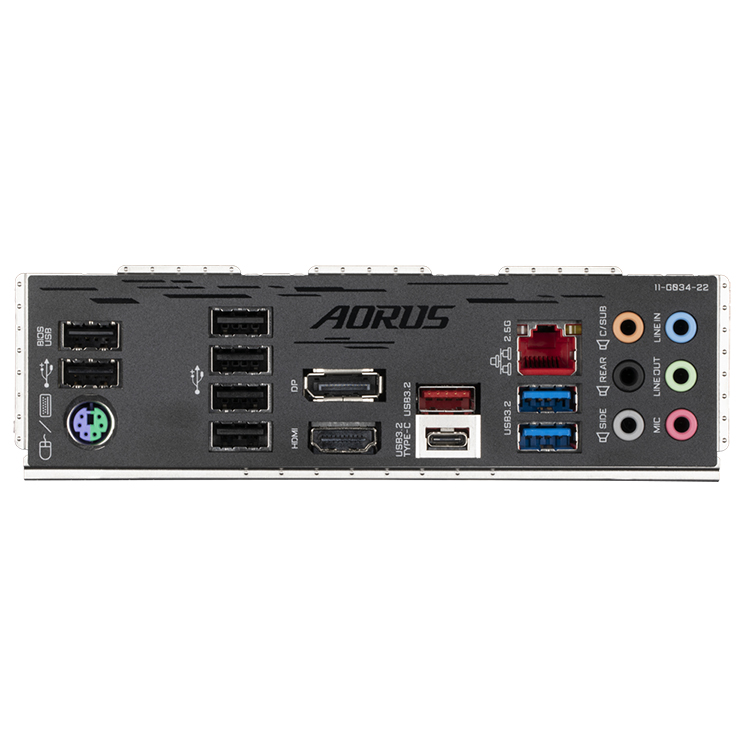

• rear panel connector
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x USB Type-C^®port, supports USB 3.2 Gen2x2
  3. 1 x USB 3.2 Gen2 Type-A port (red)
  4. 2 USB 3.2 Gen1 ports
  5. 6 USB 2.0/1.1 ports
  6. 1 DisplayPort
  7. 1 HDMI port
  8. 1 RJ-45 port
  9. 6 audio jacks
• I/O controller
  1. iTE^®I/O control chip
• hardware monitoring
  1. voltage detection
  2. temperature check
  3. Fan speed detection
  4. Water cooling flow detection
  5. Fan failure warning
  6. Fan Speed ​​Control
     * Whether the fan speed adjustment function is supported depends on the radiator you install.
• BIOS
  1. 1 x 256 Mbit flash memory
  2. Use licensed AMI UEFI BIOS
  3. Plug and Play 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• unique features
  1. Support APP center
     * Apps available in APP Center may vary by motherboard model. The functions supported by each application may also vary depending on the motherboard specification.
     @BIOS
     Easy to adjust
     Quick Start
     game boost
     On/off charging
     RGB Fusion
     smart backup
     System Information Viewer
  2. Support Q-Flash Plus
  3. Support Q-Flash
  4. Support free installation
• bundled software
  1. norton^®Network Security (OEM Version)
  2. cFos velocity
• operating system
  1. Supports Windows 10 64-bit
• Constituents
  1. Micro-ATX form factor; 24.4 cm x 24.4 cm
