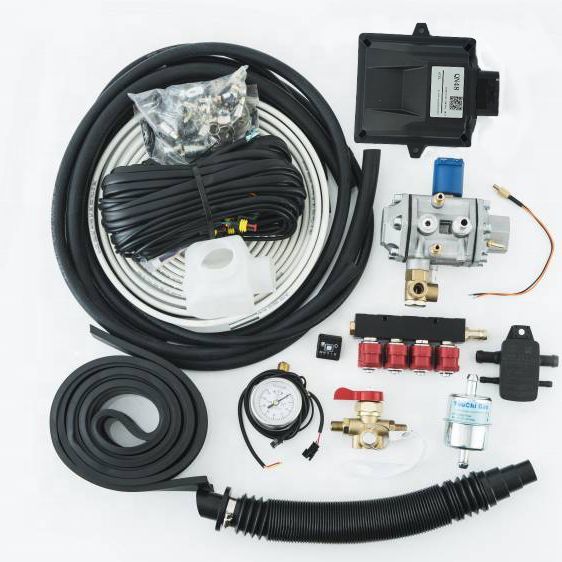

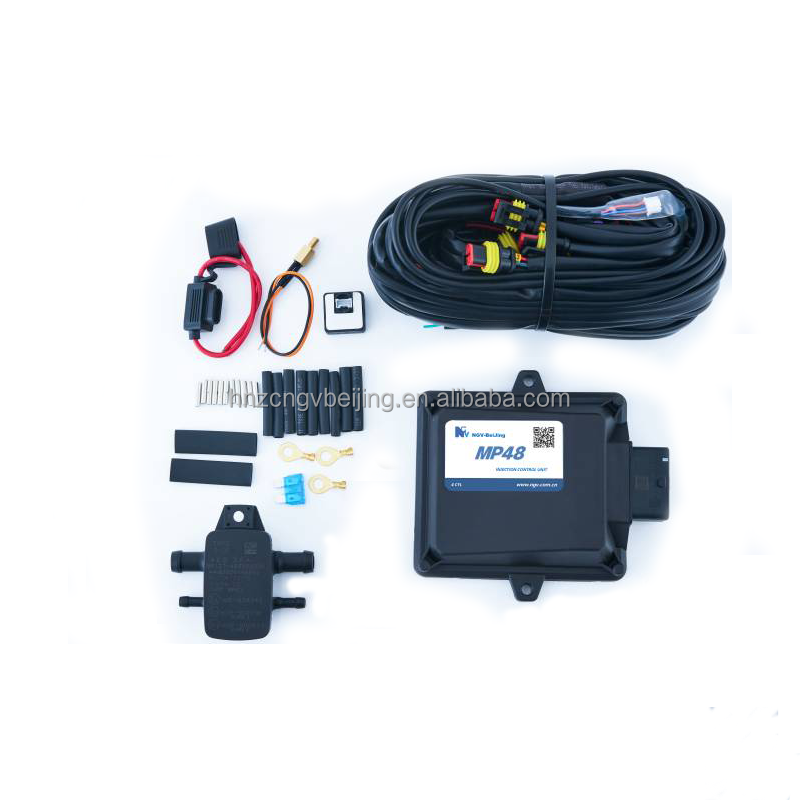

HN48 4-cylinder automatic air control system professional manufacturer mp48 ecu kit electronic ecu repair kit

Supplier: HNZC-Chengdu Co., Ltd.
Region: Sichuan, China
Contact: Mr leo li
Price: $98.50 / 1 - 99 pieces
$96.00 / 100 - 1999 pieces
$95.30 / >=2000 pieces
Min. Order: 1 piece

Click here to contact

Product details

model:	HN48 kit	Warranty:	1 year
Operating temperature:	-40℃~120℃	Model:	golf
Year:	2000-2001,1999-2006	Package preview:
waterproof:	IP54	Packaging Details:	Each product BAG Z is individually sealed with a PP bag, and then packed into a carton together with accessories, and 30 cartons are put into a carton together
Single package size:	38X32X24.5 cm	Connector pins:	48 pins
weight:	200 g	Dark current:	<100uA
Gross weight per piece:	15.000 kg	Operating Voltage:	DC8~16V
Sales unit:	Item	Packaging Information:	24.6X17.8X11.9
Car equipment:	Volkswagen	Origin:	Sichuan, China
Material:	PA6GF15	size:	14X15.5X4CM
Working current:	<9A	brand:	Hannover

Operating Voltage	DC8~16V
Working current	<9A
dark current	＜100uA
Operating temperature	-40℃~120℃
connector pin	48 pins
waterproof	IP54
size	14X15.5X4CM
Material	PA6GF15
weight	200 g
Packaging Information Operations	24.6X17.8X11.9mm

Electric control kit It is a set of automotive multi-point sequential injection control system suitable for gasoline/CNG (LPG) dual-fuel vehicles. Use CNG-LPG fuel. According to the needs of the driver, the ECU collects the electrical signals of the engine speed, water temperature, intake pressure, gas pressure and gas temperature, gasoline nozzle, switch and other components, and uses internal advanced control algorithms, including gas automatic calibration and learning algorithms, etc. , Precisely control the air supply volume to ensure vehicle power, economy and emission performance requirements.

System Advantages (Main Functions)
1. Highly integrated chips are used to improve the reliability and anti-interference performance of the controller;
2. The controller is highly compatible with the pressure reducer and nozzle, and the software can be customized by customers;
3. The controller has self-protection function and gas component protection function;
4. Advanced automatic calibration function and rhythm self-learning algorithm;
5. Perfect fault diagnosis function and protection function;
6. The original system quality and control algorithm of the whole vehicle.
