Warranty: | 1 year | Pull tube: | other |
payment terms: | Western Union, T/T | theory: | other |
Name: | A3 | Origin: | Ningbo City, Zhejiang Province, China |
Customization support: | OEM production | Supply capacity: | 1000 pieces per month |
Certificate: | International Organization for Standardization | brand: | HS |
model: | A3 |
XTD-279Stereo zoom microscopes can provide clear and sharp images over a wide field of view with high resolution and good depth.
Once in focus, images remain crisp and sharp throughout the zoom range. Widely used in the electronics industry,
Educational demonstration and agricultural research of observation, inspection and measurement of microscopic objects.

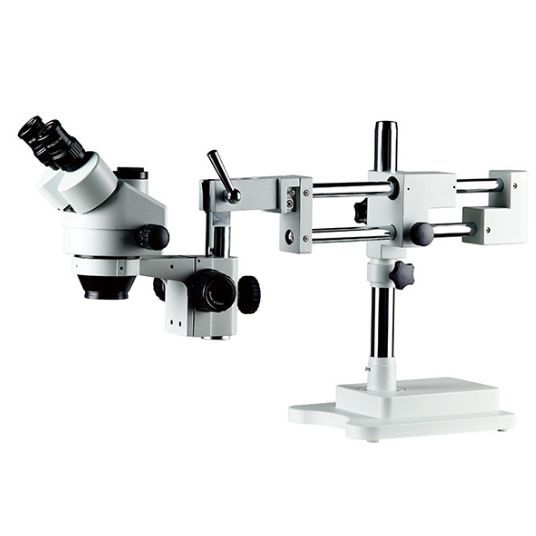

A3 Universal Stand Arm
Expand the operating range, you can observe objects in any direction
Vertical high strength: 380mm
Diameter φ37mm
Horizontal movement: 420mm
Base size: 260x285
With A3 tray
eyepiece | standard | Auxiliary lens 0.5X | Auxiliary lens 1.5X | Auxiliary lens 2X | |||||||||||
Width 100mm | Width 165mm | Width 45mm | Width 30mm | ||||||||||||
mag. | vision | mag. | vision | mag. | vision | mag. | vision | ||||||||
10X/20mm | 7.0 times | 28.6 mm | 3.5 times | 57.1mm | 10.5 times | 19mm | 14.0X | 14.3mm | |||||||
45.0X | 4.4mm | 22.5X | 8.9mm | 67.5X | 3 mm | 90.0X | 2.2mm | ||||||||
15X/15mm | 10.5 times | 21.1mm | 5.25 times | 42.8mm | 15.75X | 14.3 mm | 21.0X | 10.7 mm | |||||||
67.5X | 3.3 mm | 33.75X | 6.7mm | 101.25X | 2.2mm | 135.0X | 1.7mm | ||||||||
20X/10mm | 14.0X | 14.3mm | 7.0 times | 28.6mm | 21.0X | 9.5mm | 28.0X | 7.1mm | |||||||
90.0X | 2.2mm | 45.0X | 4.4mm | 135.0X | 1.5mm | 180.0X | 1.1mm | ||||||||
25X/9mm | 17.5X | 12.9mm | 8.85X | 25.4mm | 26.2X | 8.6mm | 35.0X | 6.4mm | |||||||
112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225.0X | 1.0mm | ||||||||
30X/8mm | 21.0X | 11.4mm | 10.5 times | 22.9 mm | 31.5X | 7.6mm | 42.0X | 5.7mm | |||||||
135.0X | 1.8mm | 67.5X | 3.6 mm | 202.5X | 1.2mm | 270.0X | 0.9mm | ||||||||
enlarge | 7X-45X, 3.5X-270X with optional eyepieces and objectives | ||||||||||||||
eyepiece | WF10X/20mm high eye point, wide angle; convenient for observers wearing glasses | ||||||||||||||
Optional eyepiece | WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm | ||||||||||||||
main body | Trinocular head, 45° inclined, 360° rotatable, can be locked arbitrarily | ||||||||||||||
Interpupillary distance adjustment: 54-76mm; diopter adjustment: ±5 diopters | |||||||||||||||
objective | 0.7X-4.5X stereo zoom; zoom ratio: 6.4:1 | ||||||||||||||
auxiliary lens | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | ||||||||||||||
Focusing seat | A1 focus mount, vertical working distance 50mm | ||||||||||||||
stand up | STL2 boom stand, for more options, please refer to "Accessories-Microscope Stand" | ||||||||||||||
illumination | Fluorescent lamp, LED ring light, for more options, please refer to "ACCESSORIES-ILLUMINATOR" |
