Dot peen marking machine cylinder material dot peen marking machine nameplate dot peen marking machine

Supplier: Jinan Ruicheng Automation Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Liu Jason
Price: $480.00 / 1 - 9 pieces
$450.00 / 10 - 19 pieces
$420.00 / 20 - 49 pieces
$400.00 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

Repeatability:	0.001mm	Mechanical test report:	if
Showroom location:	not any	Origin:	Shandong China
rated power:	200W	Core component warranty:	1 year
Aerodynamics:	0.3~0.8MPa	After-sales service provided:	Free spare parts, video technical support, online support
Warranty:	1 year	Spindle speed:	not applicable
application:	30*150mm	Milling cutter diameter:	not applicable
power supply:	AC100V-240V 50Hz/60Hz	Engraving speed:	10-40 mm/s
Feeding height:	not applicable	Material hardness requirements:	Below HRC60
Applicable industries:	Building materials stores, machinery repair shops, manufacturing plants, energy and mining	Local service location:	not any
Health status:	new	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Marking depth:	0.1~2mm (depending on different materials)	brand:	BMJB
Mark area:	30*150mm	Video shipment inspection:	if
Type of machine:	pneumatic	After warranty service:	Video technical support, online support, spare parts
Marketing Type:	New Products 2020	Core components:	PLC, motor, gear
Main selling points:	easy to operate

Provide signal interface

Our marking machine can provide PLC, RS232, RS485 and other interfaces, which can be connected with your equipment or upload data.

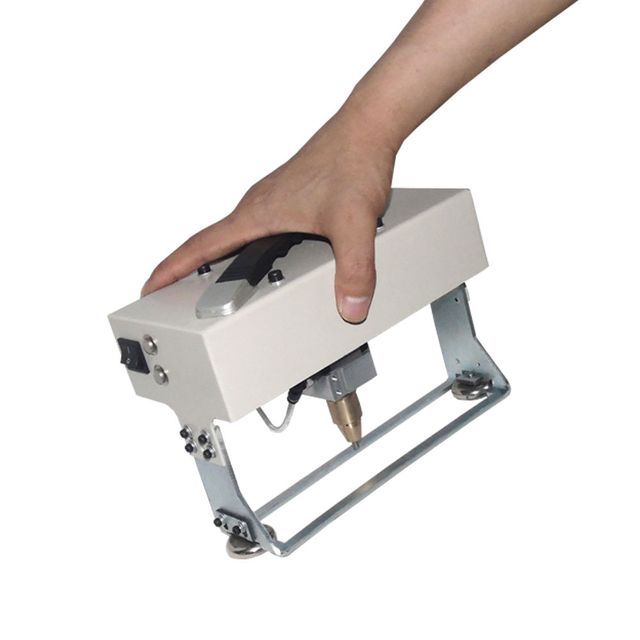

This model is dot matrix pneumatic marking machine

1. This model can be used for VIN code engraving on trailers, trucks and cars.
2. This model can be used for steel plate serial number marking.
3. This model can be used for industrial model engraving.
4. This model can be used for coding and engraving oil pipes and cylinders.
5. If you don't know whether the model is suitable for you, please feel free to contact us.

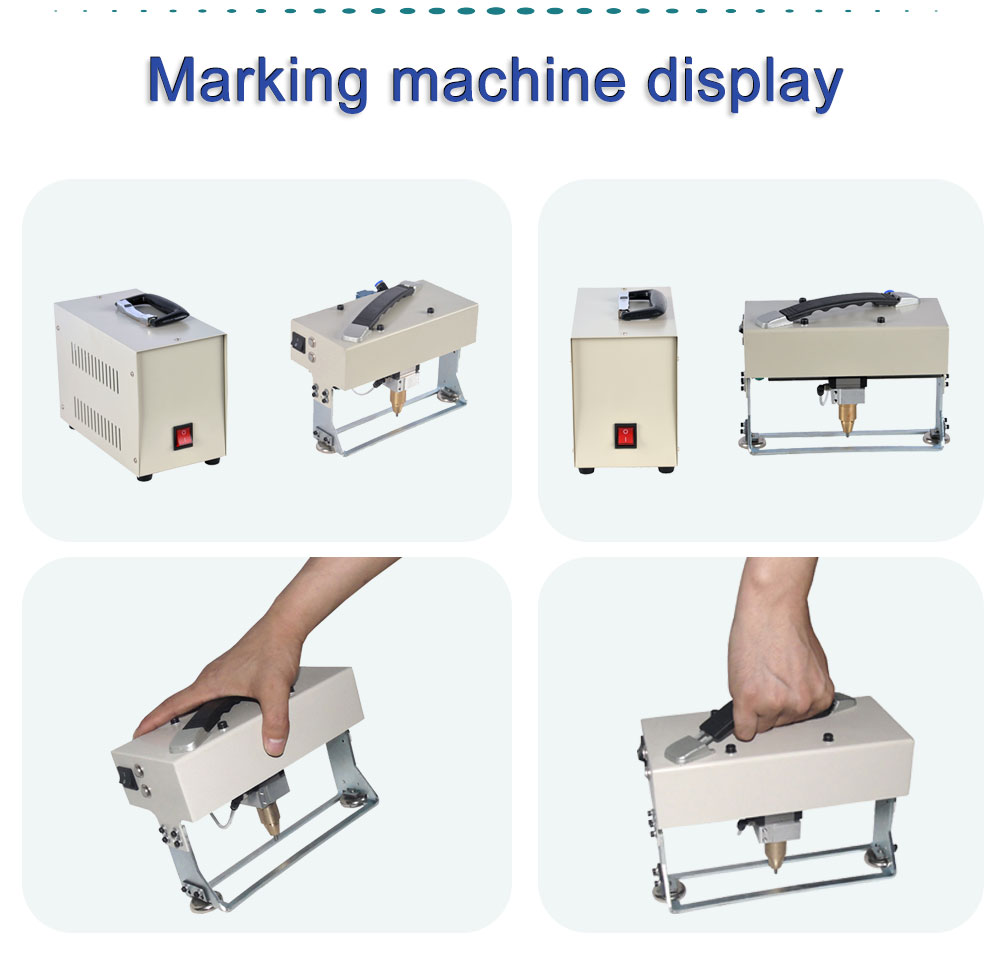

Marking machine display

power supply	AC100~240V 50HZ/60HZ
rated power	200W
air pressure	0.3~0.8mpa
print content	Letters, numbers, characters, logos, Chinese characters, serial numbers
Printing range	30*150mm
Engraving speed	1~30 words/minute
Engraving Depth	0.1~2mm (depending on the hardness of the material)
machine weight	3.8KG (weight does not include control unit and accessories)
Control System	Windows XP, 7, 8, 10 32-bit or 64-bit operating system
Client Provided Resources	computer, air pump, power supply
