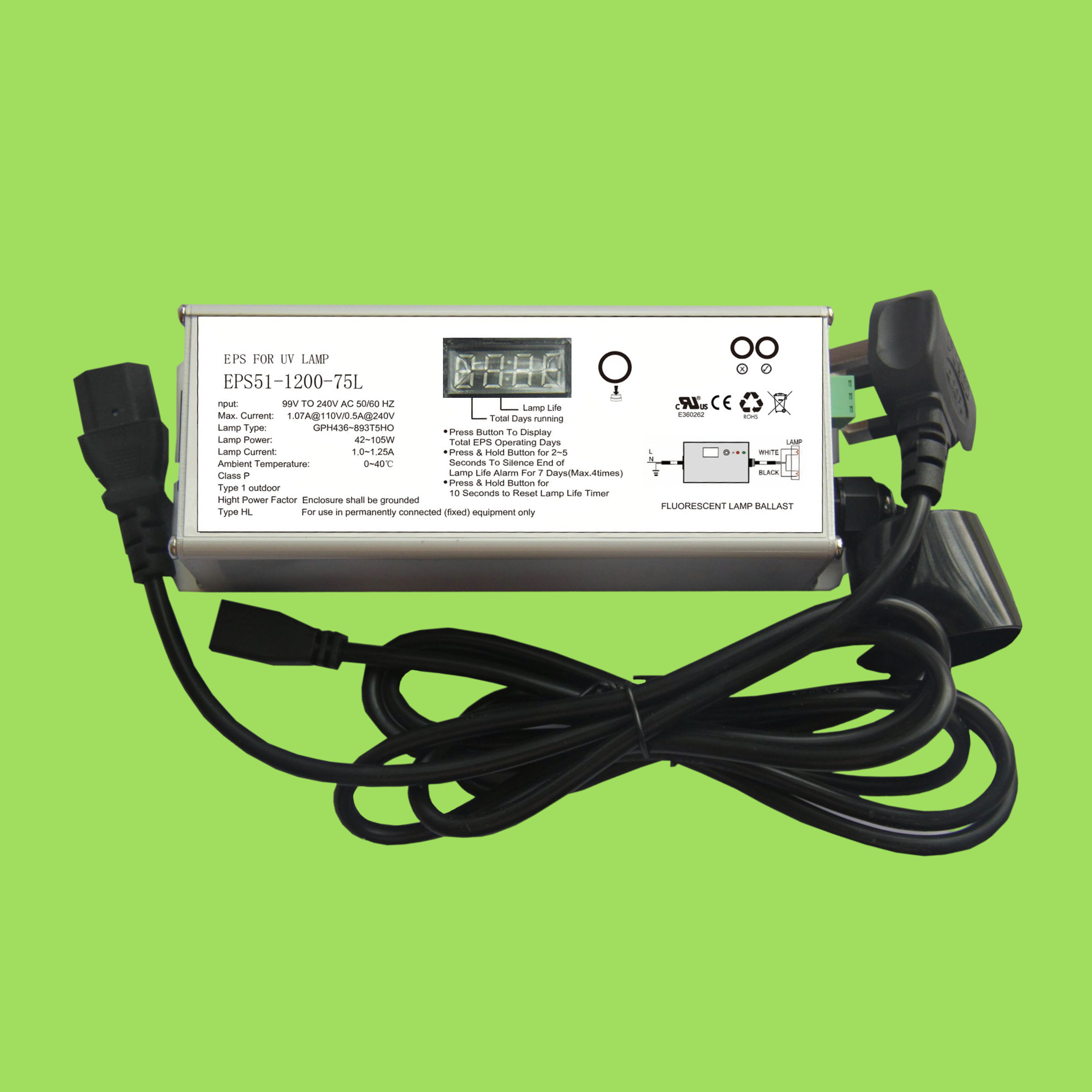

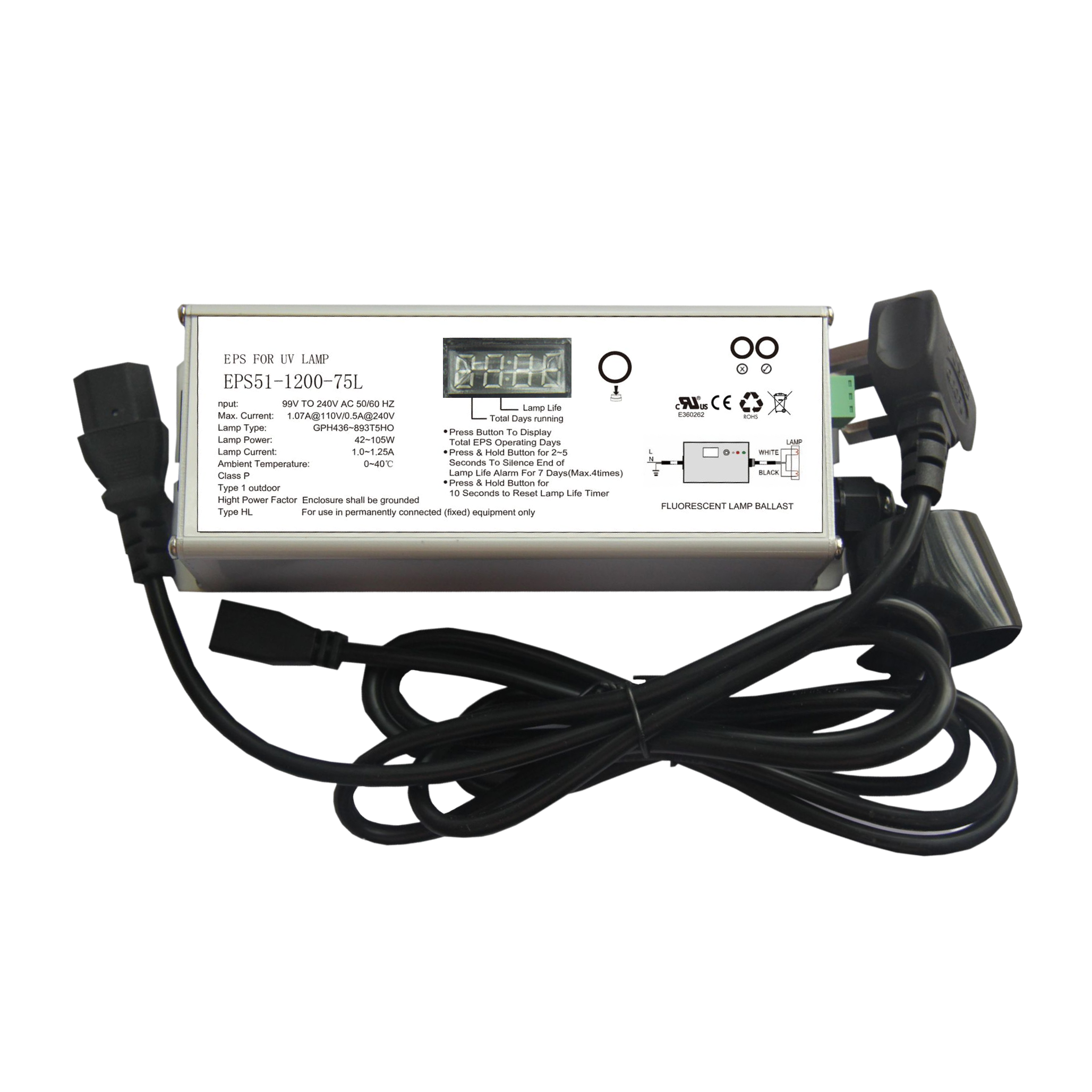

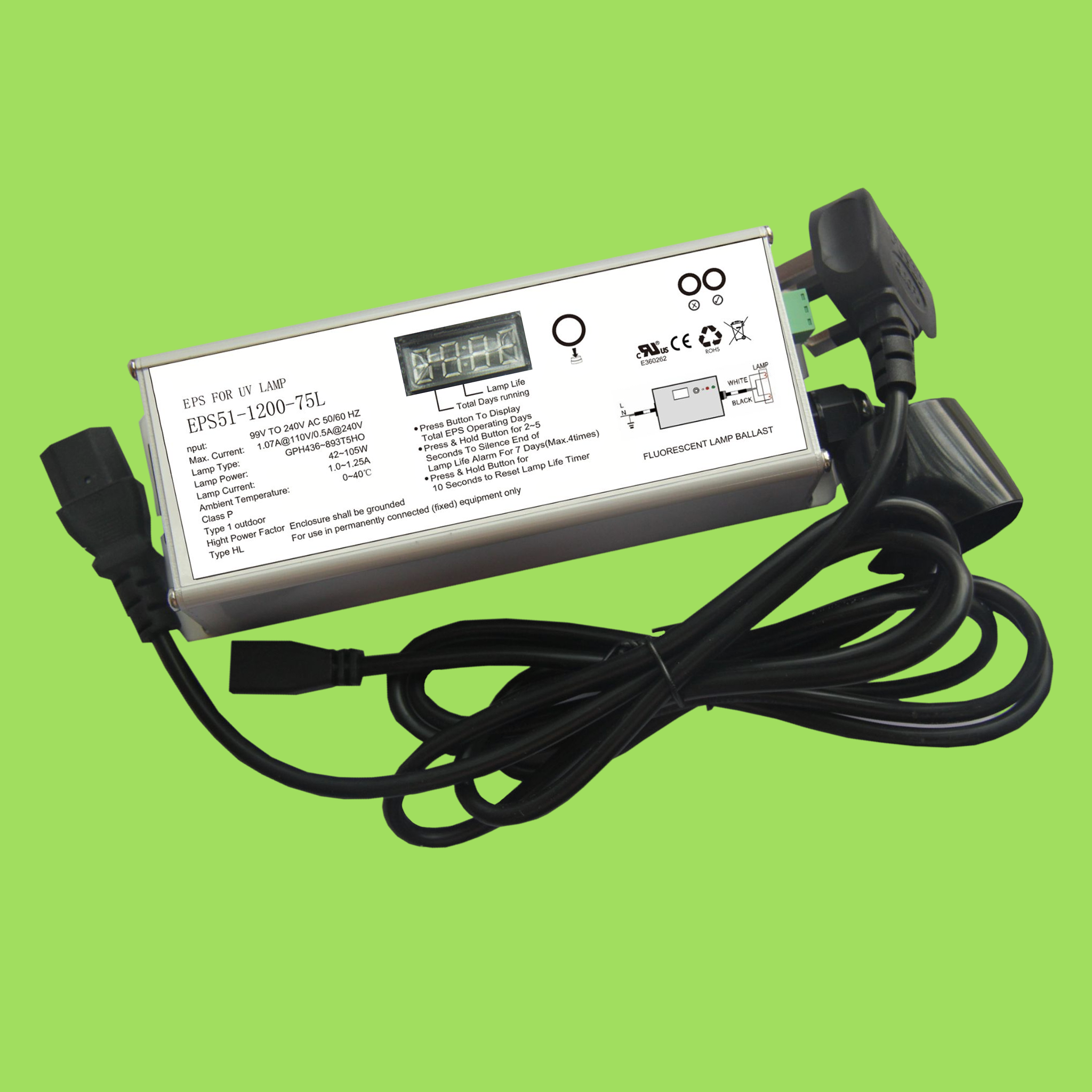

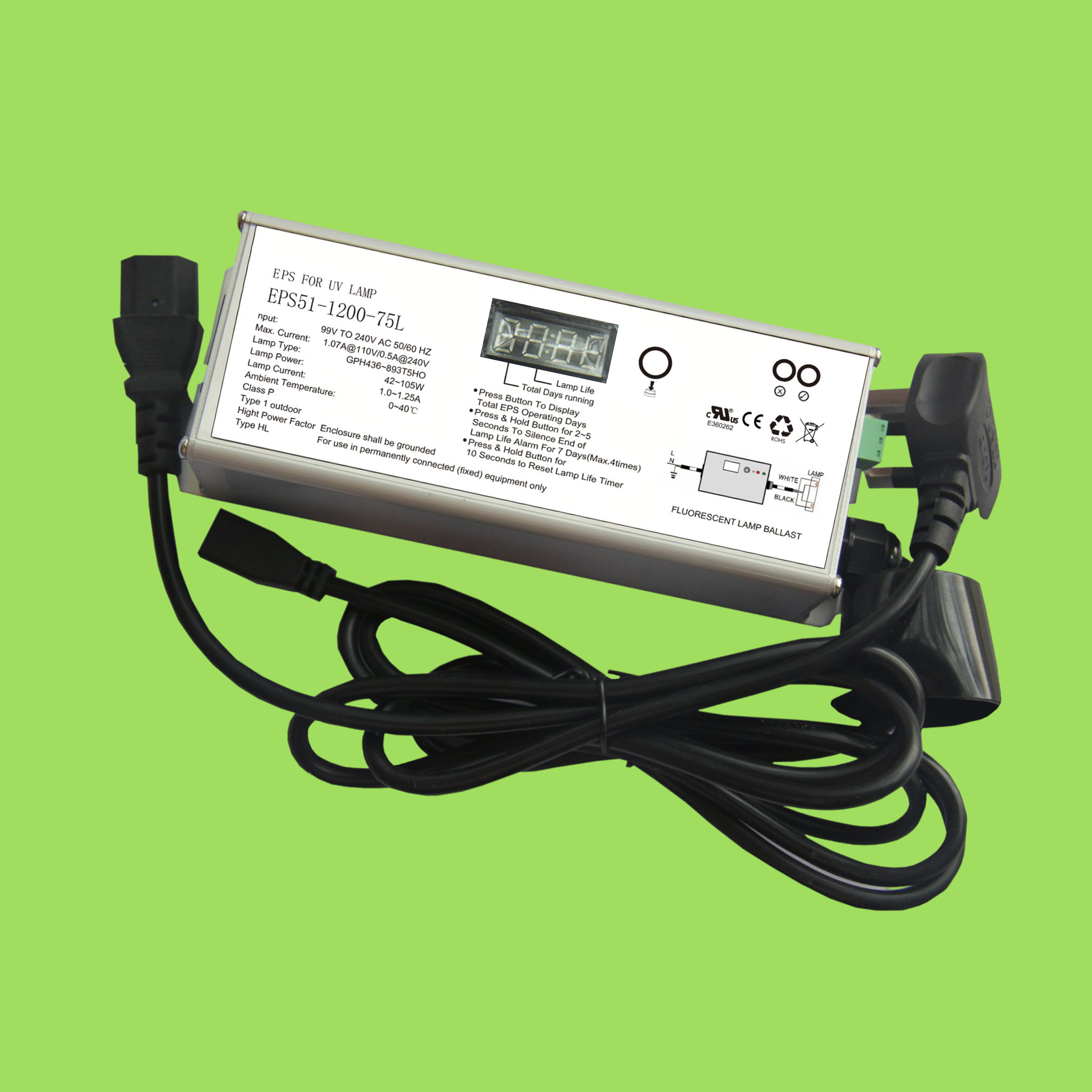

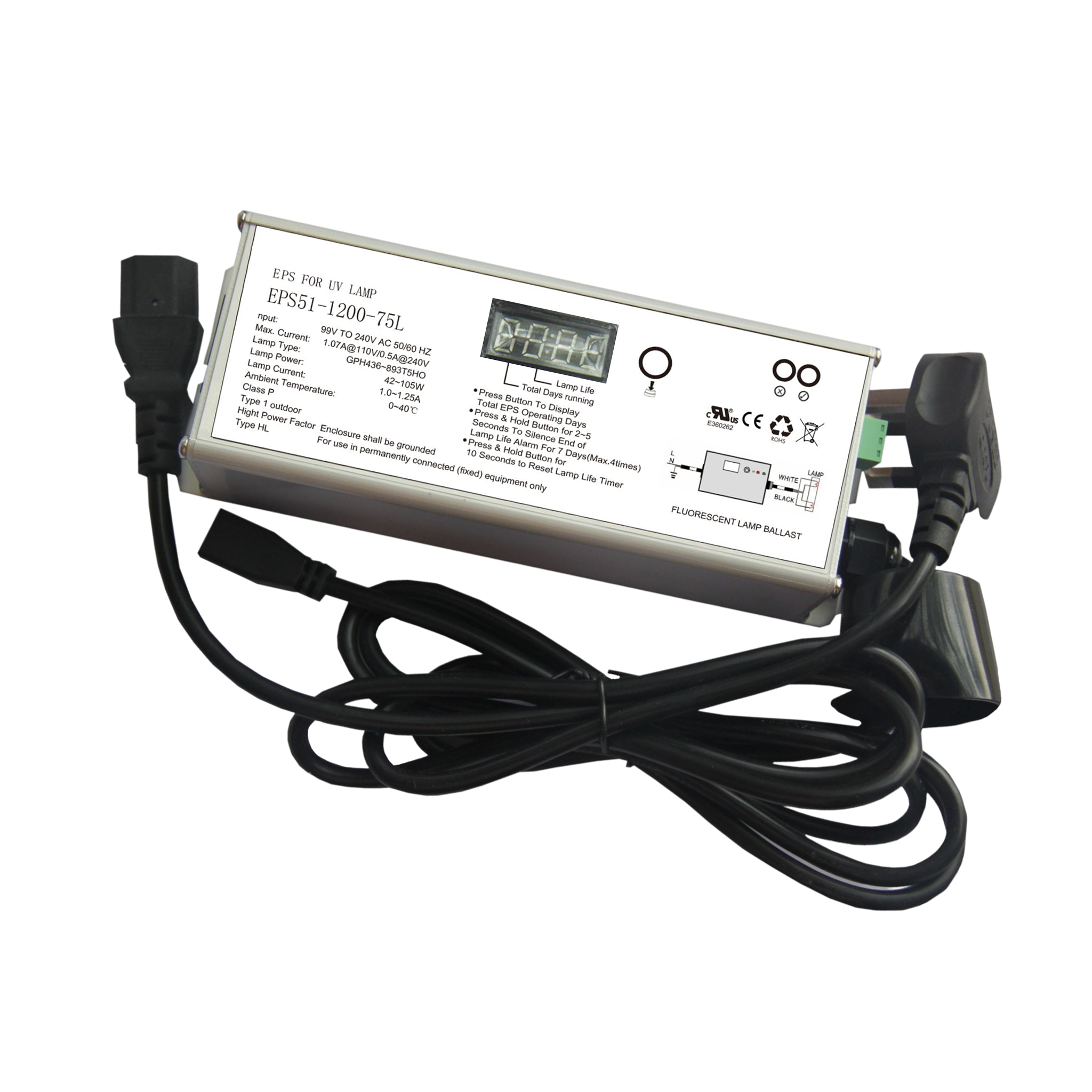

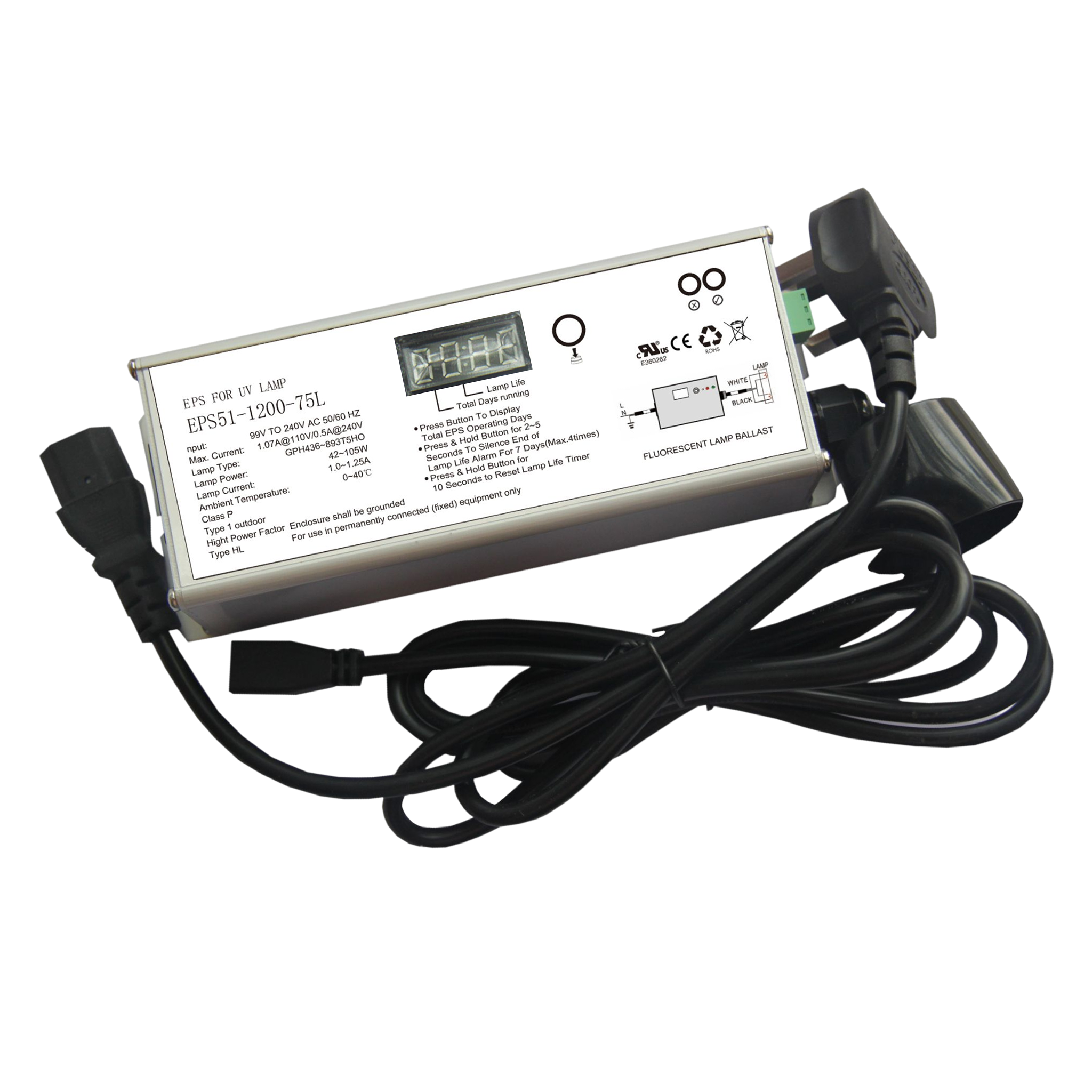

EPS51-1200-75L Max up to 84w with Digital Count Timer Electronic Ballast Display

Supplier: Sichuan Baichuan Technology Co., Ltd.
Region: Sichuan, China
Contact: Ms Jenny wang
Price: $57.50 / 2 - 50 units
$53.50 / 51 - 499 units
$45.50 / >=500 units
Min. Order: 2 units

Click here to contact

Product details

input power:	84W	color:	white
model:	EPS51-1200-75L	efficiency:	>90%
product name:	electronic ballast	brand:	Baichuan
Input voltage:	99~264V	Carton weight:	14KG
payment terms:	wire transfer	Material:	aluminum alloy
weight:	1.36KG	Origin:	Sichuan, China
aspect:	2047453mm	Ambient temperature:	-5~40℃
Warranty:	2 years

Product Description

Specification

thing	electronic ballast
birthplace	China
Province	sichuan
brand	Baichuan
model	EPS51-1200-75L
color	white
efficiency	>90%
style	Electronics

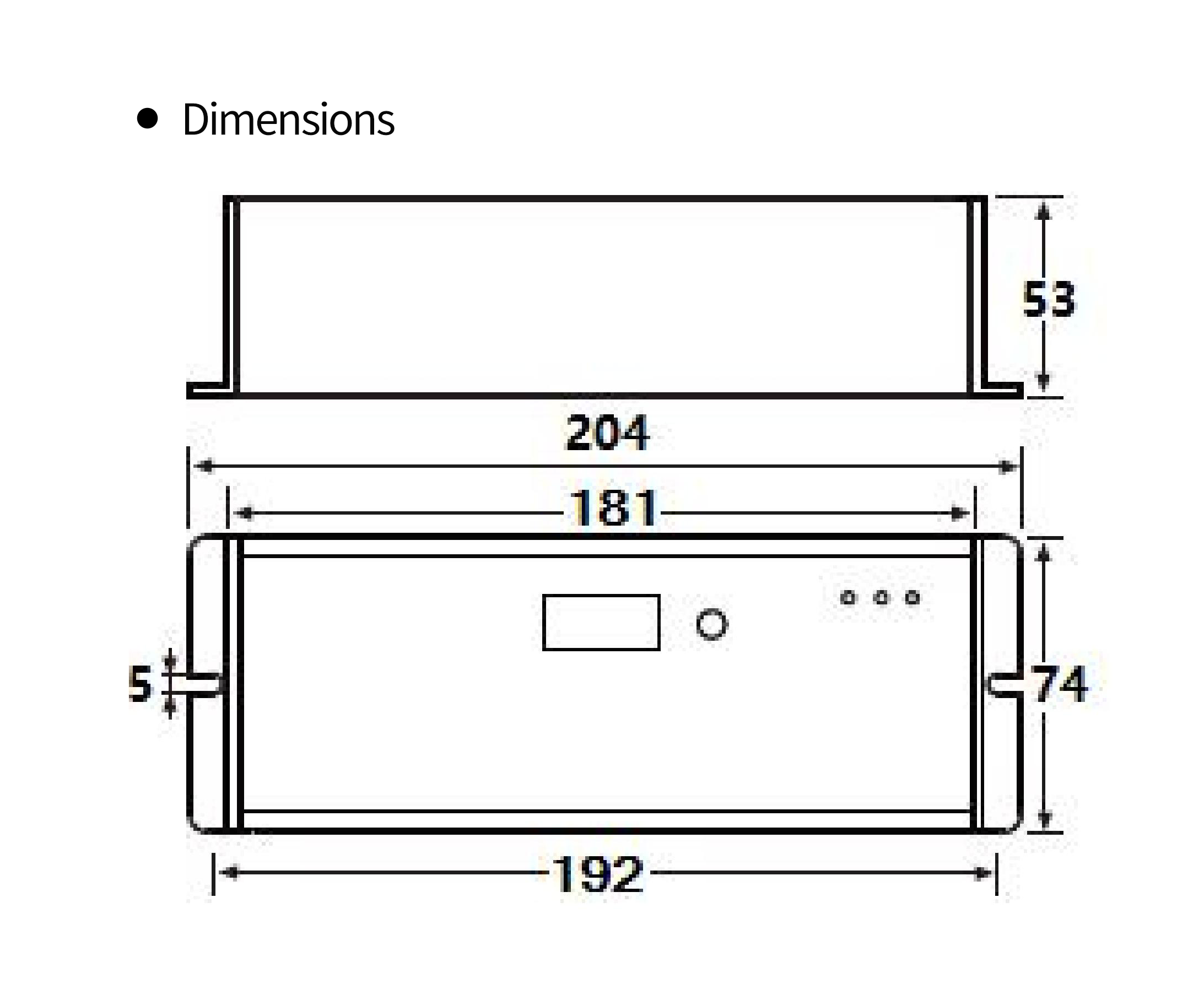

installation size	192mm
size	2047453mm
weight	1.36 kg
product structure	European Terminal Structure
Material	aluminum alloy
application	UV light, water dispenser
input power	84W
Input voltage	110v/240v
Certificate	ce
Input current (A)	0.37A@230V
input power factor	PF>0.98
load light	GPHA357T5L\GPHA436T5L (giant light tube)
Output current	1.0A~1.25A
IP type	IP20
start method	Preheating start, suitable for frequent starting, preheating current: 1.5A~2.0A, preheating time: 7S~9S
Working temperature	-15℃~40℃
humidity	5%~85%
Warranty period (years)	2 years

EPS51-1200-75L Max to 84w with Digital Count Timer Display Electronic Ballast

The compatibility of UV germicidal lamps and ballasts is very important, but it is often ignored in practical applications
application; Electronic Ballast Ballast Electronic Magnetic BallastElectronic Ballast Ballast Electronic Magnetic Ballast 84w84w

However, there are magnetic ballasts and electronic ballasts on the market. Compared with magnetic ballasts, electronic ballasts are more environmentally friendly and energy-efficient. We are an electronics manufacturer and we can supply a wide range of electronic ballasts and inverters that are compatible with lamps. For example, the EPS51 series has various models:

type	Input voltage (V)	Input power (W)	Input current (A)	Output current (A)
EPS51-425-40L	99v-264v	45W	0.41A@110V 0.2A@240V	0.38A~0.43A
EPS51-425-40N	110v~240v	45W	0.41A@110V 0.19A@240V	0.38A~0.43A
EPS51-800-95L	110v-240v	103W	1.03A@110V 0.47A@240V	0.75A~0.85A
EPS51-800-95N	110v~240v	103W	0.46A@230V	0.75A~0.85A
EPS51-1200-75L	99v-264v	84W	0.37A@230V	1.0A~1.25A
EPS51-1200-105L	99v-264v	116W	0.52A@230V	1.0A~1.25A

skills

1. The power supply must be cut off before installing and replacing the ballastElectronic Ballast Electronic Ballast

2. Wire diameter 0.5~1.0mm², stripping length 8~10mmElectronic Ballast Ballast Electronic Magnetic Ballast 84w

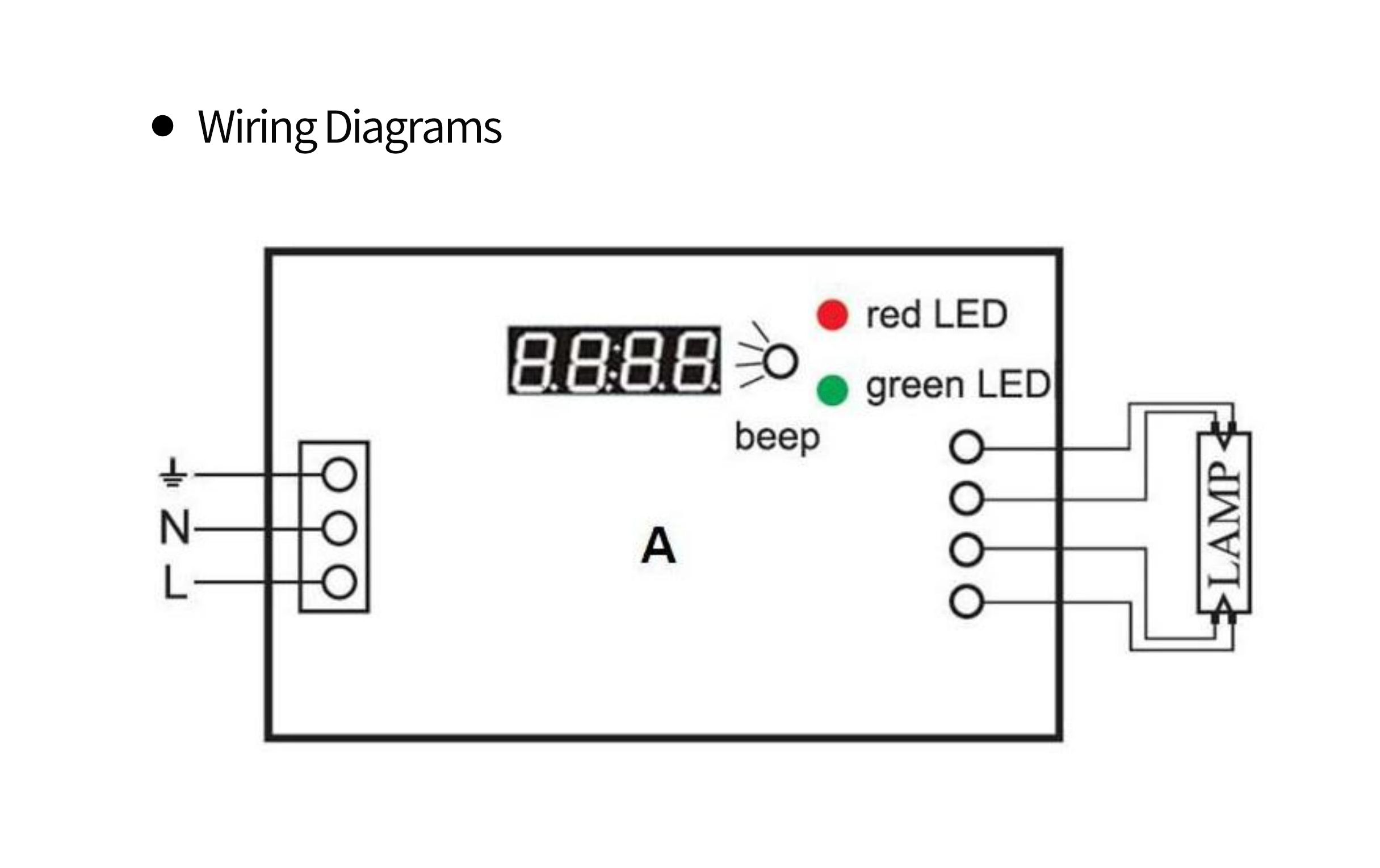

3. Lamp status indication function: LED indicator, the green light is on when the UV light is working normally, the red light is on when the UV light is off, and the buzzer alarms at the same time; the digital tube displays the life of the lamp (365 days) and the accumulative work of the ballast time
4. The connection between the ballast and the lamp tube should not exceed 5m, and the output end can be equipped with G10Q lamp holder, dust cover, waterproof connector, dust cover, aluminum cap; please consult the merchant for details Electronic Ballast Ballast Electronic Magnetic Ballast 84wElectronic Ballast Ballast Electronic Magnetic Ballast 84w
5. The power socket is a spelling socket, and different national standard power cords can be selected according to actual needs. Please consult the merchant for detailsElectronic Ballast Ballast Electronic Magnetic Ballast 84w
