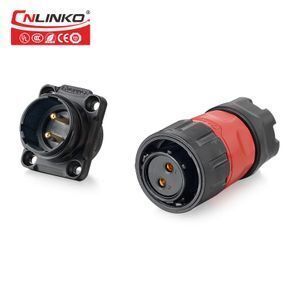

Industrial Jack quick connect electrical waterproof 2 wire connector

Supplier: Shenzhen Linko Electric Co., Ltd.
Region: Guangdong, China
Contact: Mr Eric Lin
Price: $3.30 /set
Min. Order: 1 set

Click here to contact

Product details

Hardware Matel:	Zinc Alloy (pearl hard chromium);	Model Number:	YM-20-C02PE-01-001;
certification:	UL,CE,ROHS,CCC,ISO9001;	Connecting mode:	1/4 bayonet connect;
Brand Name:	CNLINKO;	Current rating(A):	20A;
Type:	solider;	Pin:	2 pin;
Delivery Detail:	1-7days after payment received;	Protection level:	IP65/IP68;
Port:	shenzhen;	Application:	pole connector;
Shell & Insulated Parts:	High Performance Engineer Plastic;	Place of Origin:	Guangdong China (Mainland);
Gender:	male female;	Supply Ability:	10000 Set/Sets per Day welcome to OEM&ODM;
Operating voltage:	500V;	Packaging Detail:	Standard Export Package :5pcs to a box, 40 boxes to a carton;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal, trade assurance;

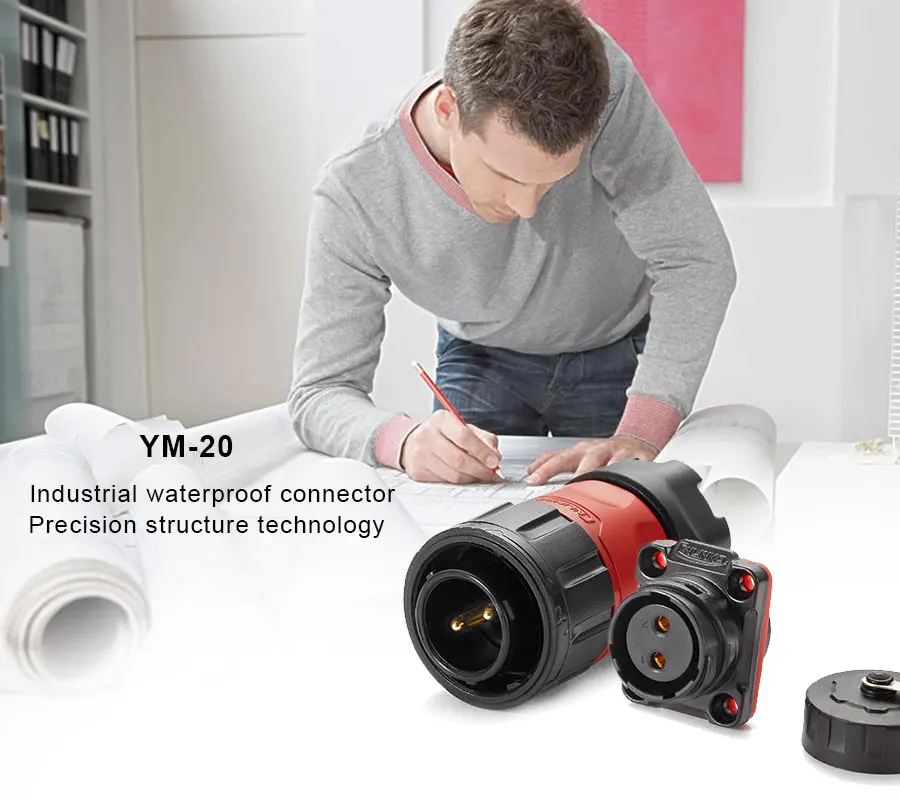

Industrial Jack quick connect electrical waterproof 2 wire connector

Product Description

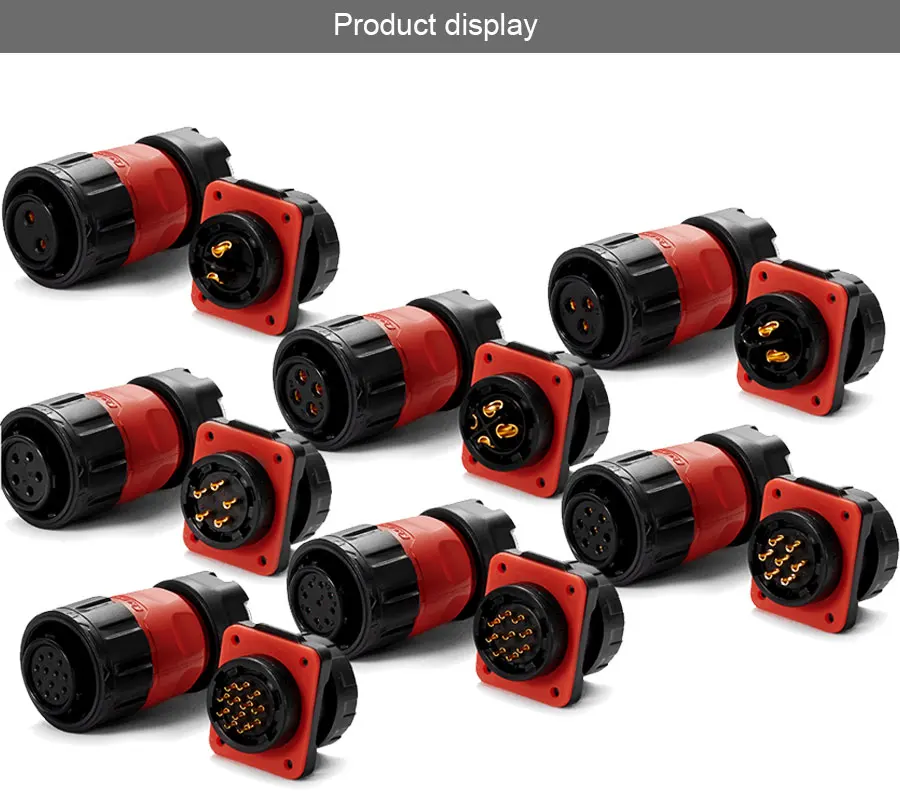

²multi-pins(2-12 PINGS) for varies industrial demands

²PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation

²gold-plated contact, high performance of corrosion resistance and electrical

conductivity effectively deal with temperature rise.

²1/4 mount connector, easy operation and installation

²dustproof cover design under off-working condition

²rated current is 12A rms

²protection level:IP65/67

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	2.5mm2 ~ 4mm2 /14~12AWG
Diameter range	Φ8mm ~Φ12mm
Contact diameter×Qty	Φ2.7×2
Current rating(A)	20A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	2500V
Contact resistance	<1mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel

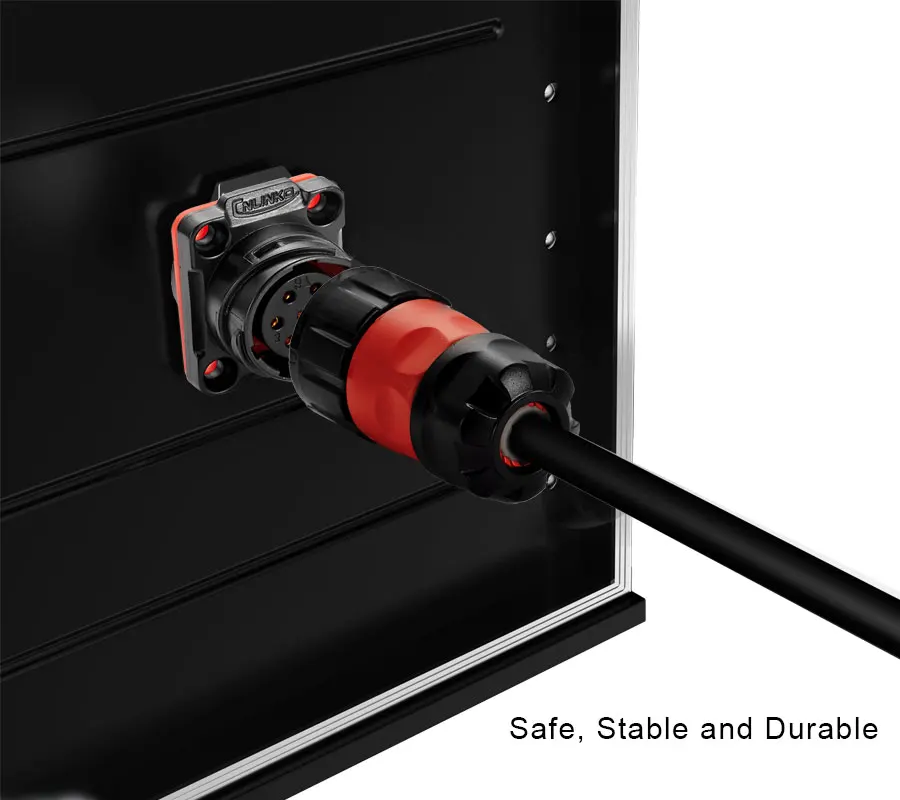

Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

Packaging & Shipping

CNLINKO packing or Customized Packing (MOQ1000pcs each model)
Packing detail: 2pcs/PE bag, 10pcs/small box, 240pcs/CTN
Lead Time: 3-5 working days after received payment
Shipment: by express, by air, by sea
Payment term:100% T/T in advance
Payment method: T/T, Western Union, Paypal

Our Services

our enterprise will strictly follow the connector specificatios and deliver the products in due time as required by the contract
CNLINKO will provide waterproof connector technological maintenance and guarantee within one year if any quality problem happens to our product
Professional personnel will provide product specifications,product choice suggestions and installation methods
professional personnel will provide operation training for free
zero-distance service and phone number for around-the-clock service

Advantages

FAQ

Q1:What are connectors?

A1:Connectors are connected to the electrical and mechanical components of electrical circuits.They are widely used in various electrical circuits, plays the role of connecting or disconnecting the circuit.

Q2:What classification do connectors have?

A2: In accordance with the frequency points, a high-frequency connector and the low frequency connectors; in accordance with the shape divided circular connectors, rectangular connectors; in accordance with the zoning, there are connectors for printed boards, cabinets, socket connector, connectors for audio equipment, power connector, connectors, etc. for special purposes.

Q3:What is rated voltage?

A3:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q4:What is rated Current?

A4: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.

Q5:Why choose cnlinko?

A5: Our product have passed UL,CUL,CCC,CE and ROHS certification. Use PBT material that import from abroad with stable,compression, anti-explosion and anti-deformation; Use Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

Q6:Is there cheap shipping cost to import to our country?

A6: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q7:Can we get support if we have our own market position?

A7: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you
