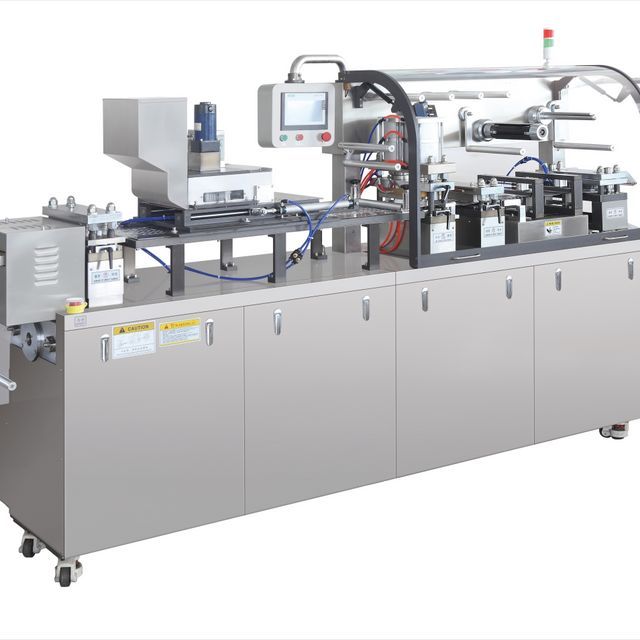

Fully Automatic Blister Board Candy Packaging DPP-260 Alu ALu Blister Packaging Machine For Tablet Packaging

Product details
brand:Tianhe MachinerySupply capacity:30 sets per month
port:ShanghaiPackage preview:
Core components:Engine, motor, gearbox, otherspower supply:380V 50HZ 2.8kw
Standard travel range:40-140mmpayment terms:Western Union, Wire Transfer, MoneyGram, Bitcoin
Video shipment inspection:ifProduction name:DPP 260 Alu ALu Blister Packing Machine Candy Packaging Machine
output:9600 trays/hourMechanical test report:if
Driver type:ElectronicsPlate size:80*57 can be customized
Core component warranty:1 yearStamping frequency:10-40 times/min
main motor power:3.8 kWHealth status:new
Main selling points:automaticWarranty:1 year
Extra features:PLC control systemWeight (kg):1400
Applicable industries:Manufacturing plants, machinery repair shops, food and beverage plants, retail, food stores, print shops, construction, energy and mining, food and drink stores, advertising agencies, otherCustom features:inkjet printing
Dimensions (L*W*H):3300*900*1850mmShowroom location:Peru, Pakistan, Spain, Thailand, Colombia, Sri Lanka, Ukraine
Packaging Details:Normal packing is export wooden case.Automatic level:High
Voltage:220 voltsOrigin:China Shanghai
noise:<75dBAProduction capacity:9600 plates/hour
Marketing Type:New Products 2022
Product Description

Product Application Alu ALu Blister Packaging Machine Candy Packaging Machine


DPP-260Alu ALu Blister Packaging Machine Candy Packaging MachineBlister packaging machines are widely used in industries such as food and cosmetics,

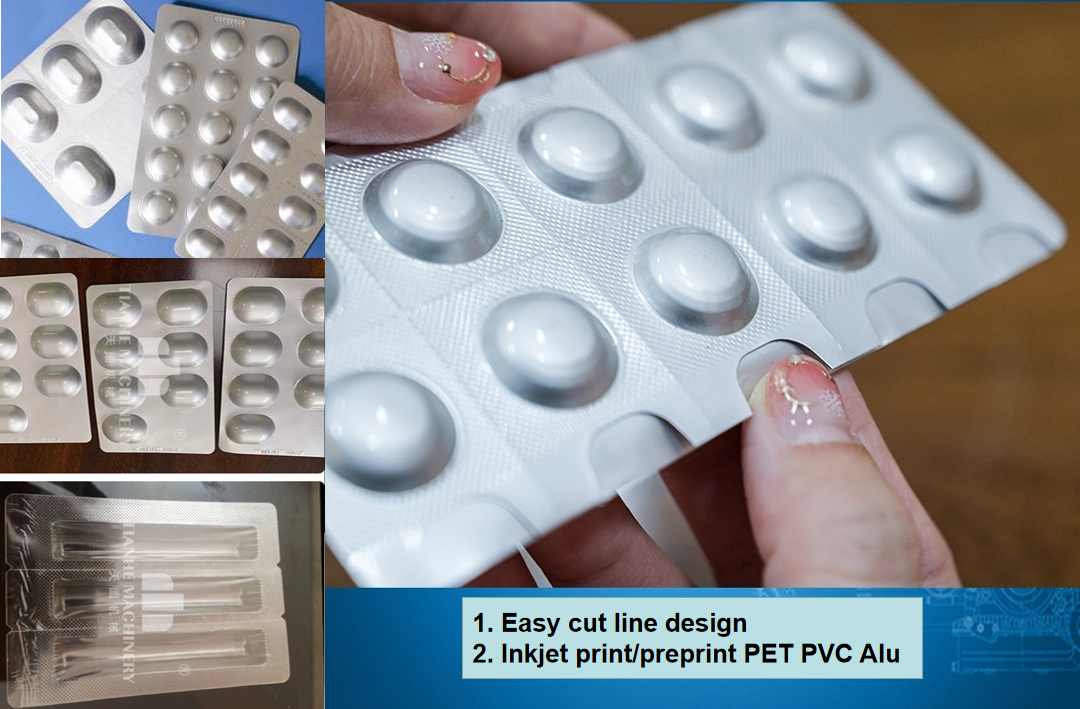

Alu ALu blister packaging machine can do tablet capsule candy packaging


Alu ALu blister packaging machine can do tablet capsule candy packaging and inkjet printing

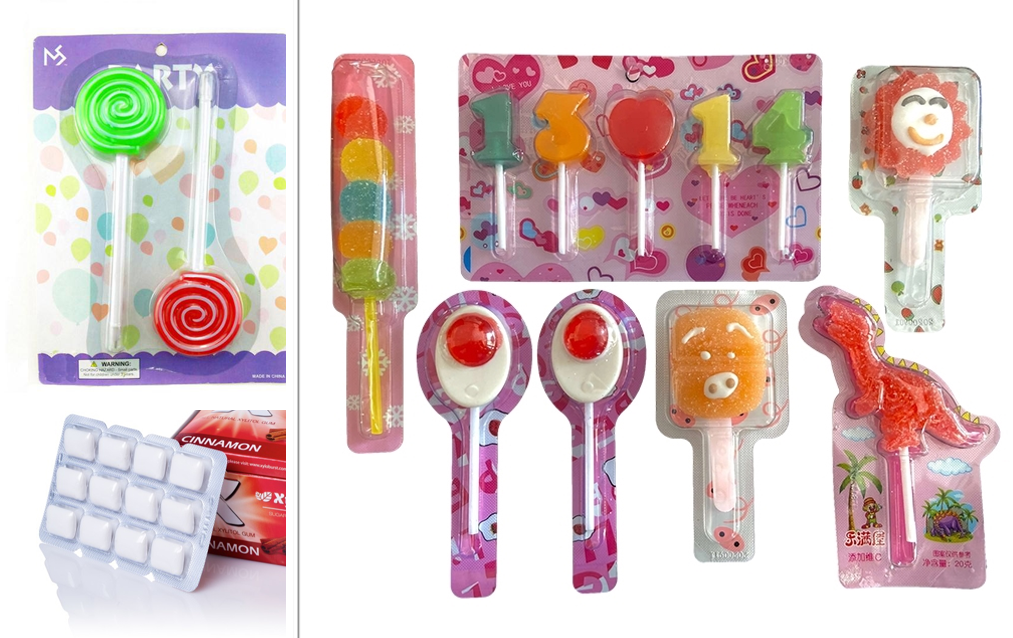

Alu ALu blister packaging machine can do liquid cream oil honey capsule candy packaging

Alu ALu blister packaging machine can do liquid cream oil honey capsule candy packaging and inkjet printing

Technical Parameters:
Punching frequency (times/minute)
10-40
Production capacity (board/hour)
9600
maximum. Forming area and depth (mm)
240x140 (standard depth≦15) & 26mm (customized)
Standard travel range (mm)
40-140 (accept customization)
Standard Forum (mm)
80*57 (accept customization)
air pressure (MPa)
0.4 - 0.6
Air compression
(air compressor) ≥0.3m³/min
Total power (Kw)
380V 50Hz 3.8Kw
Main electrode power (Kw)
2.2
PVC hard film (mm)
(0.15 - 0.5)*150
PTP aluminum foil (mm)
(0.02 - 0.035)*150
Dialysis paper (mm)
(50-100g)*150
mold cooling
Tap water or circulating water
Dimensions (mm)
3300*900*1850mm
net weight/kg)
1400
Noise (decibel)
< 75dBA

work process:

Forming (up and down heating) --- heating sealing (upper heating) --- embossing --- indentation --- cutting knife --- finished product output

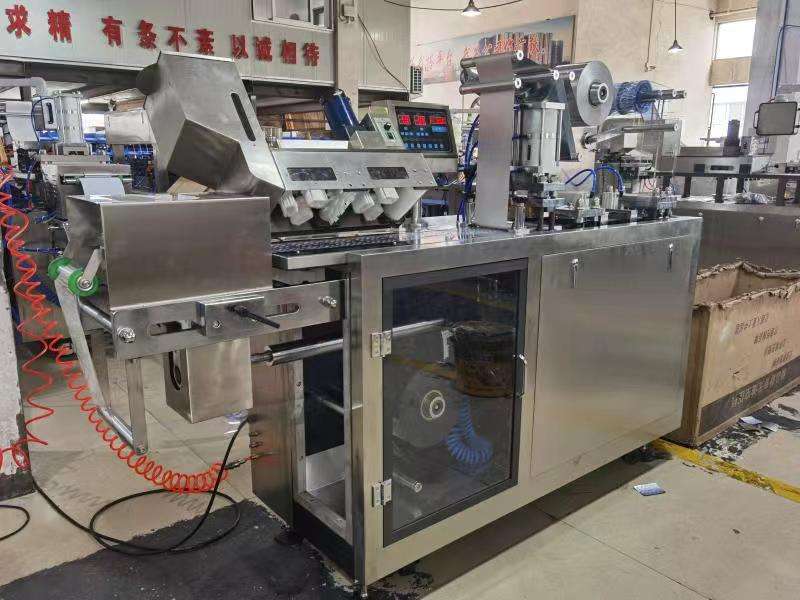

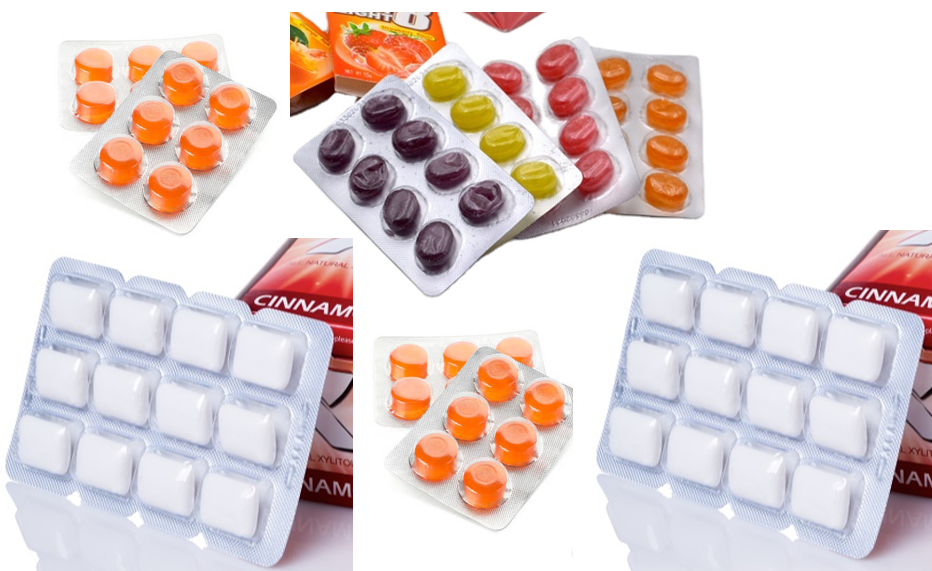

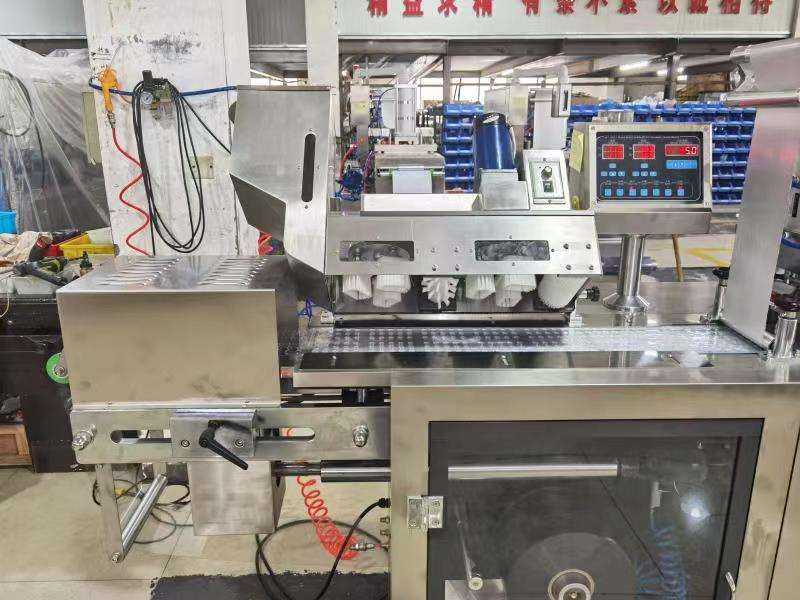

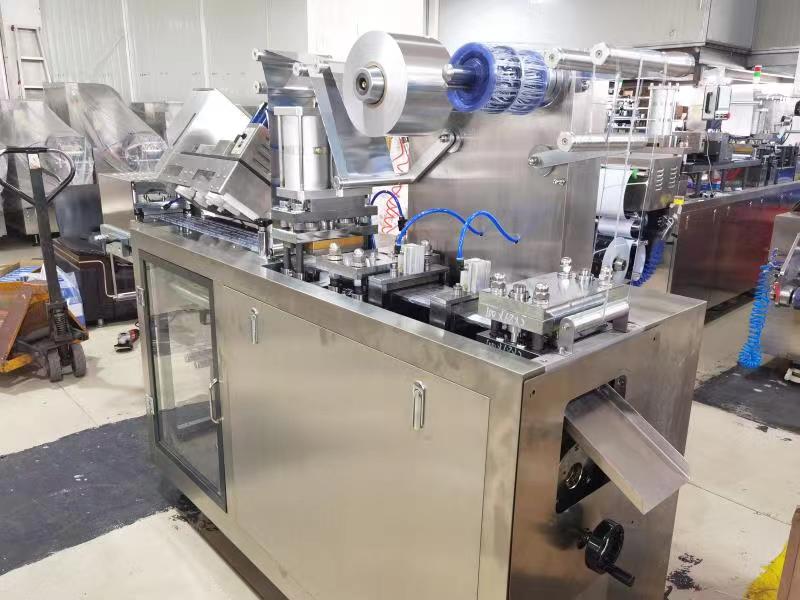

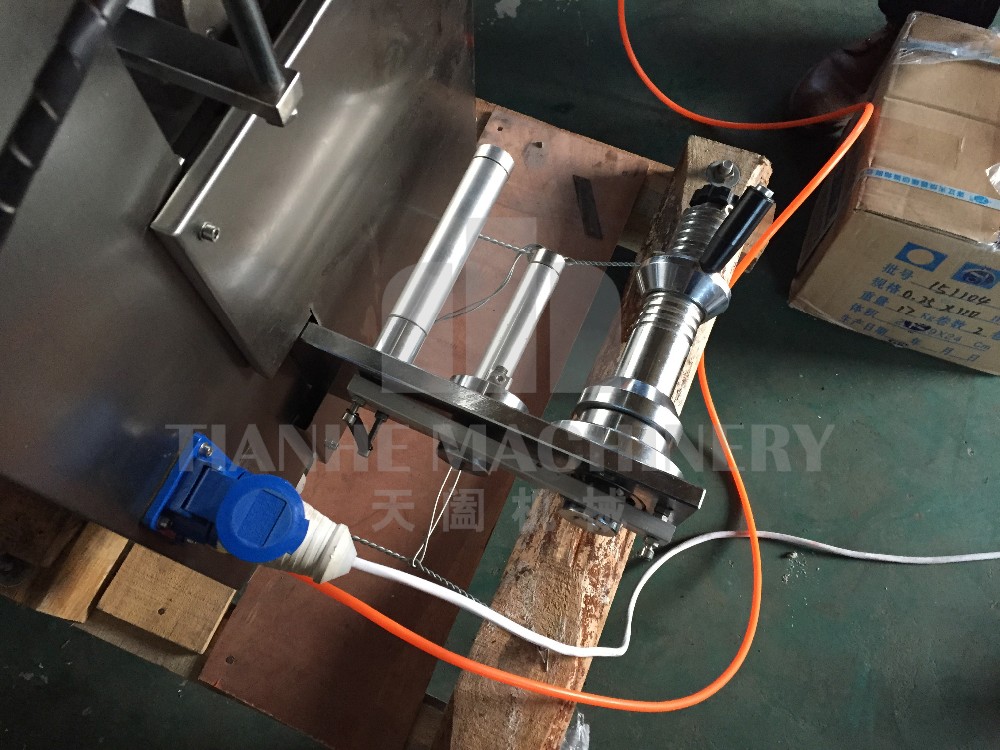

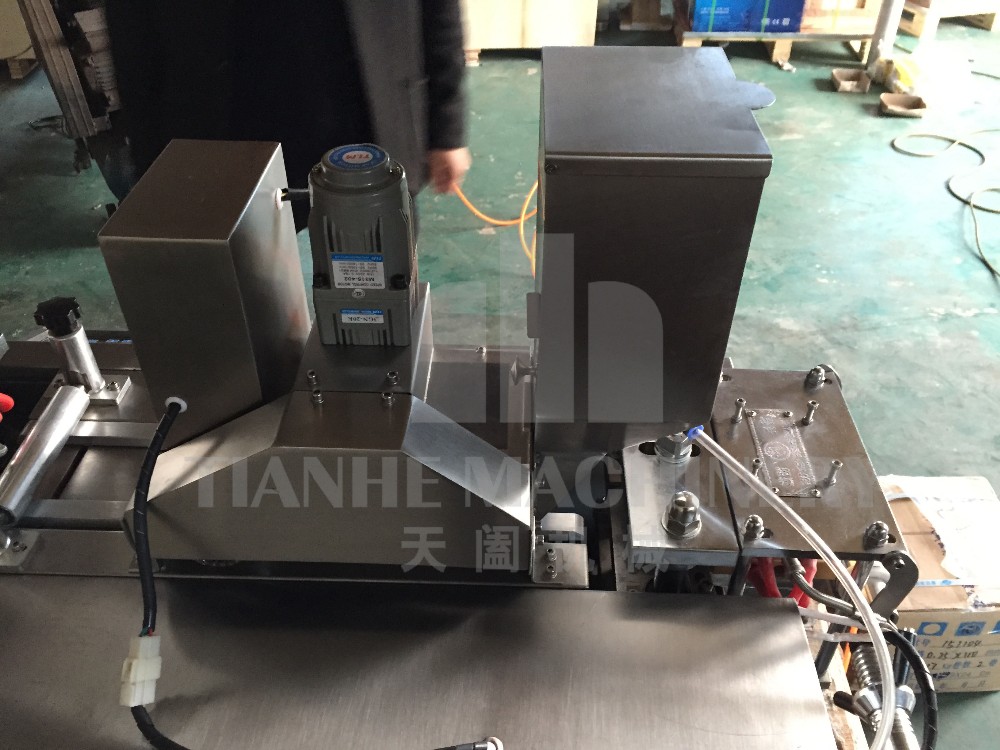

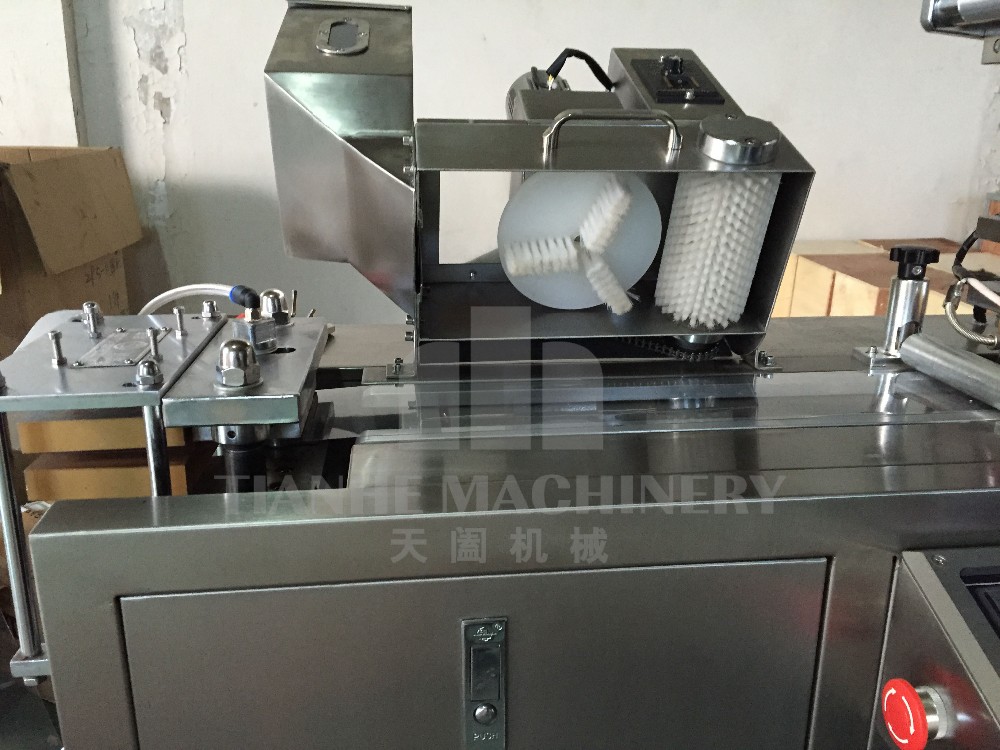

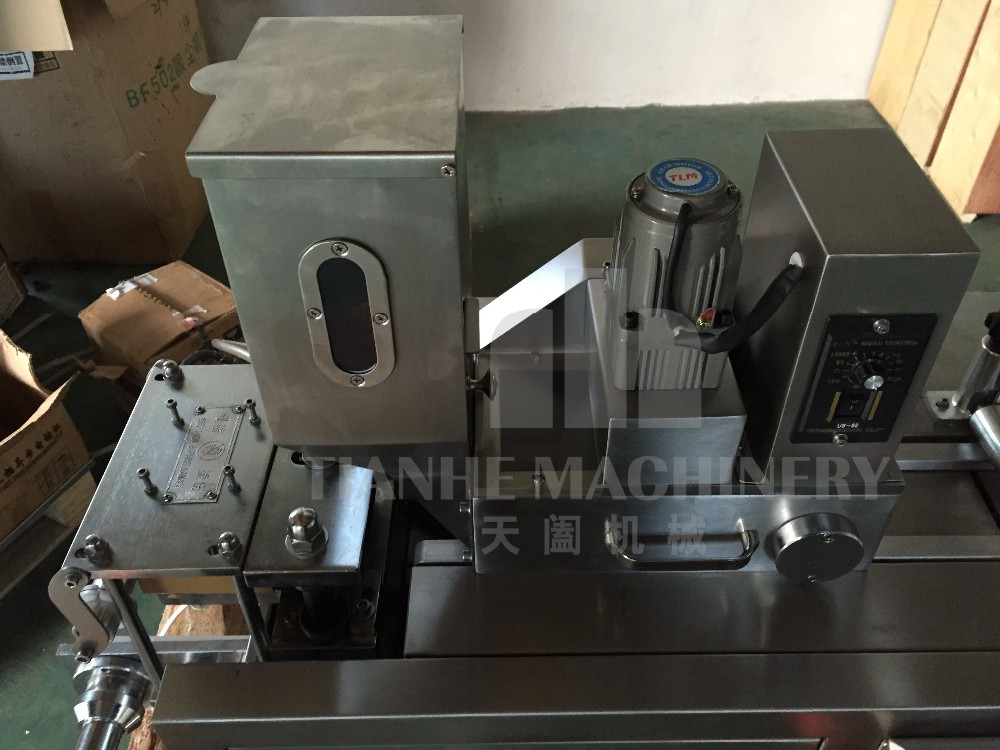

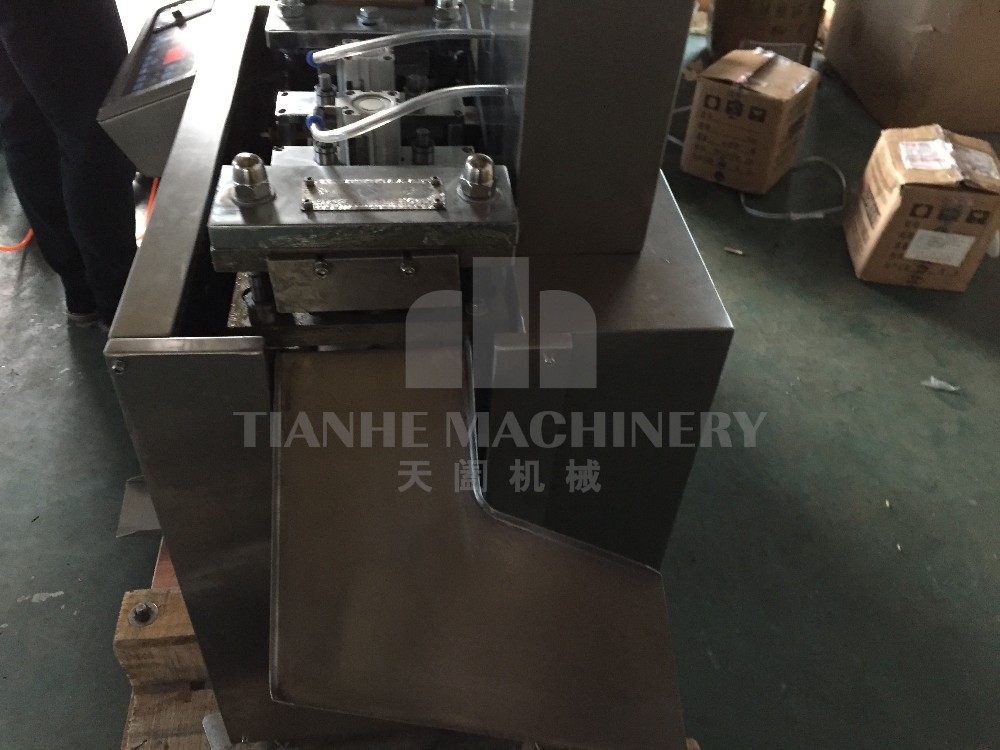

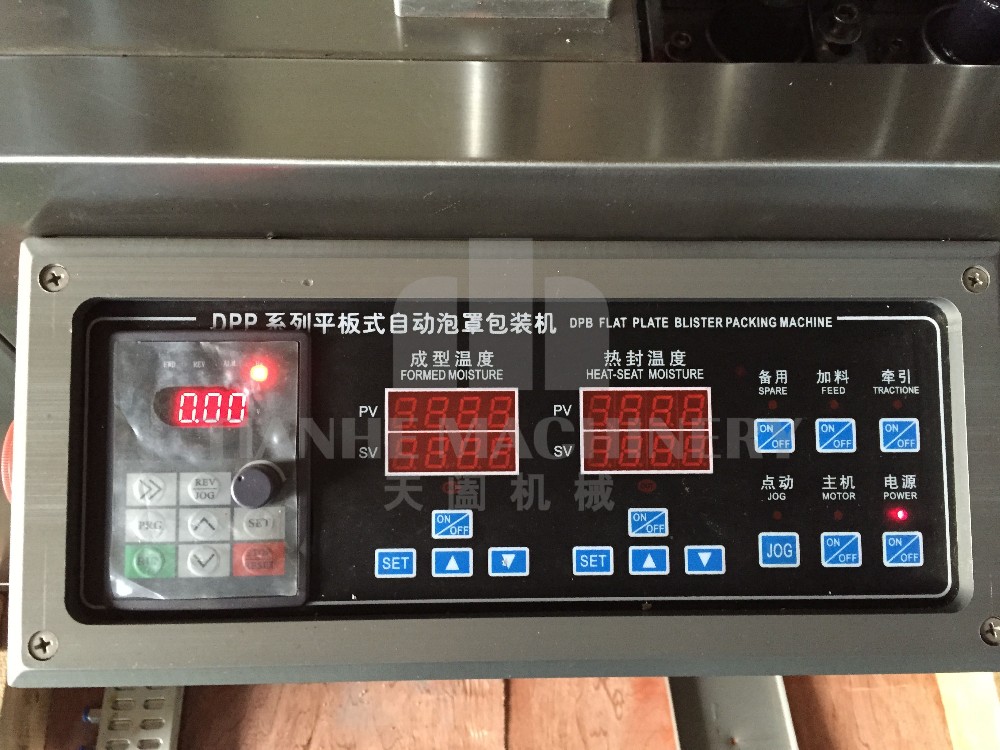

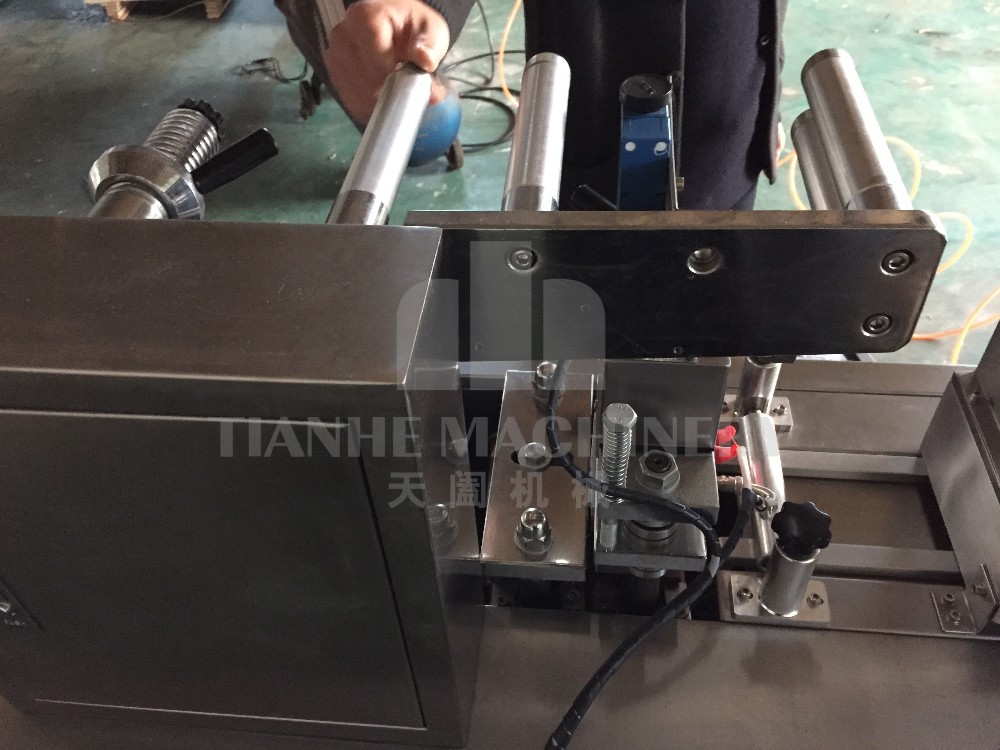

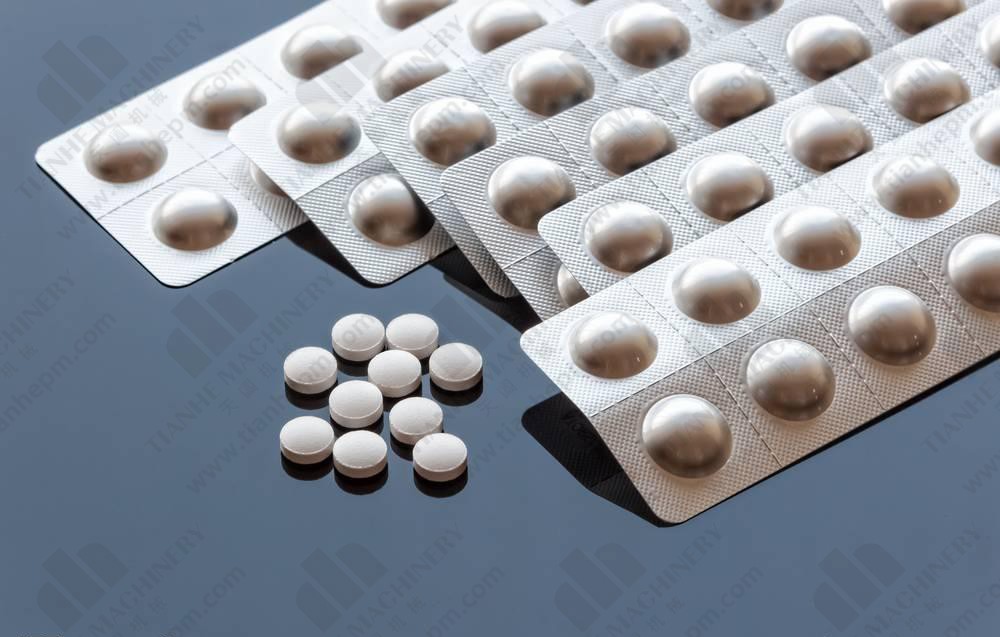

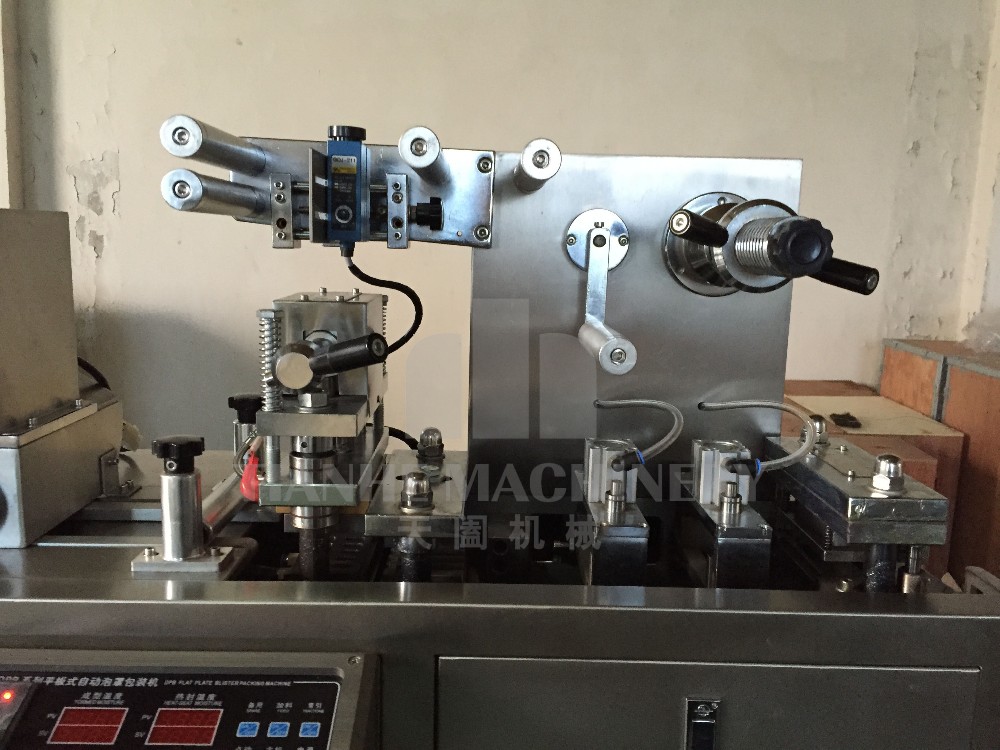

Detailed pictures and samples

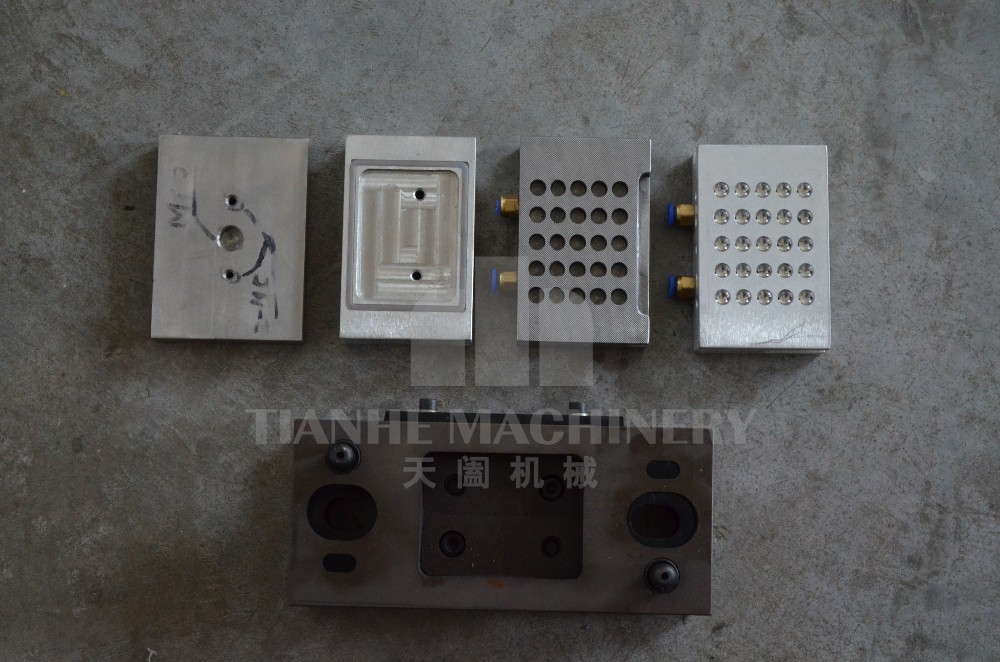

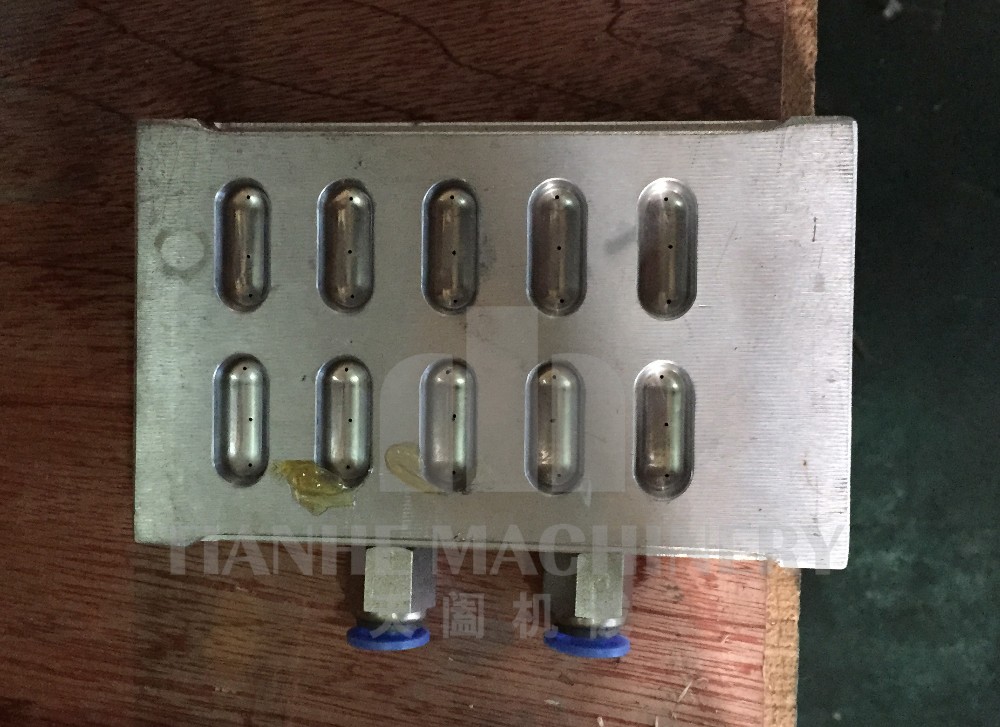

Mold pictures
