truck TPMS with external/internal sensors Tire Pressure Monitoring System for 6-26 wheels truck RS232 port integrated with GPS

Product details
Warranty:12 Months;Pressure Error:1psi ± / ± 0.1 bar;
Place of Origin:Guangdong China (Mainland);Certification:CE;
Payment Terms:T/T,Western Union,paypal;Temperature Reading accuracy:± 2 ℃;
Sensor Weight:<15g;Voltage:24V;
Pressure Range:0Psi~232Psi/0Bar~16Bar;Model Number:TTT02;
Display:support 26 wheels;Satic Current:<0.7μA;
Port:Shenzhen;Supply Ability:10000 Piece/Pieces per Month;
Brand Name:OEM;Operating Current:<12mA;
Type:Digital;Packaging Detail:Regular package;

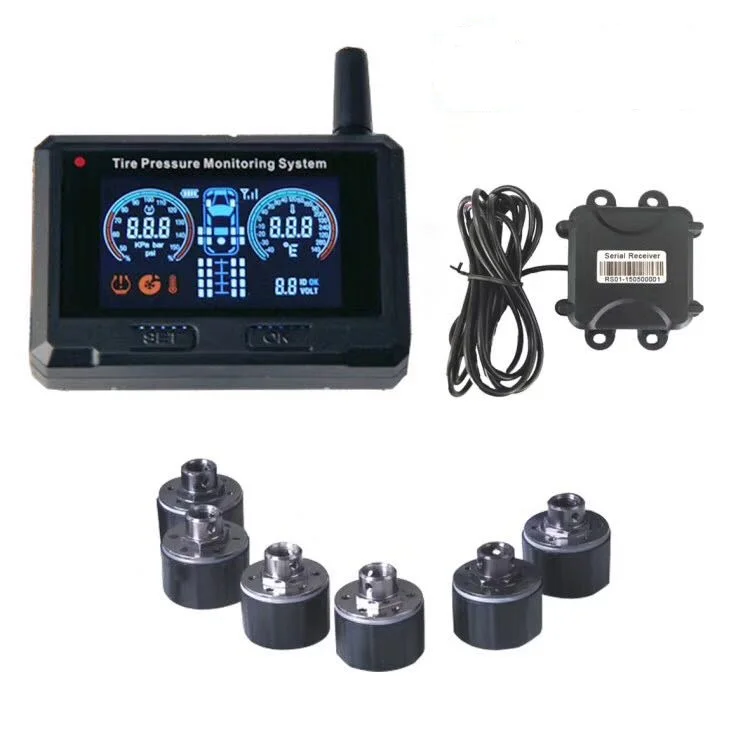

truck TPMS with external/internal sensors Tire Pressure Monitoring System for 6-26 wheels truck RS232 port integrated with GPS

Product Description

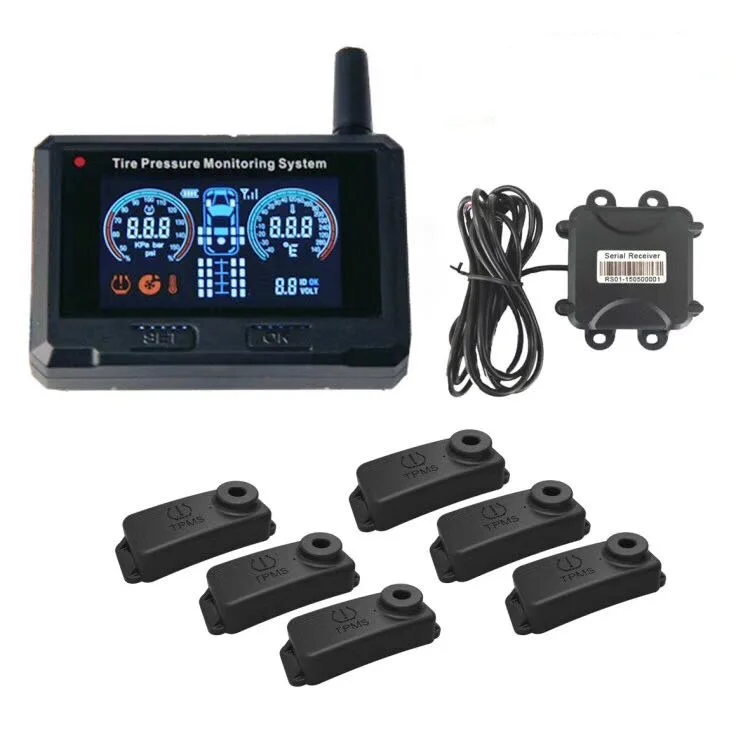

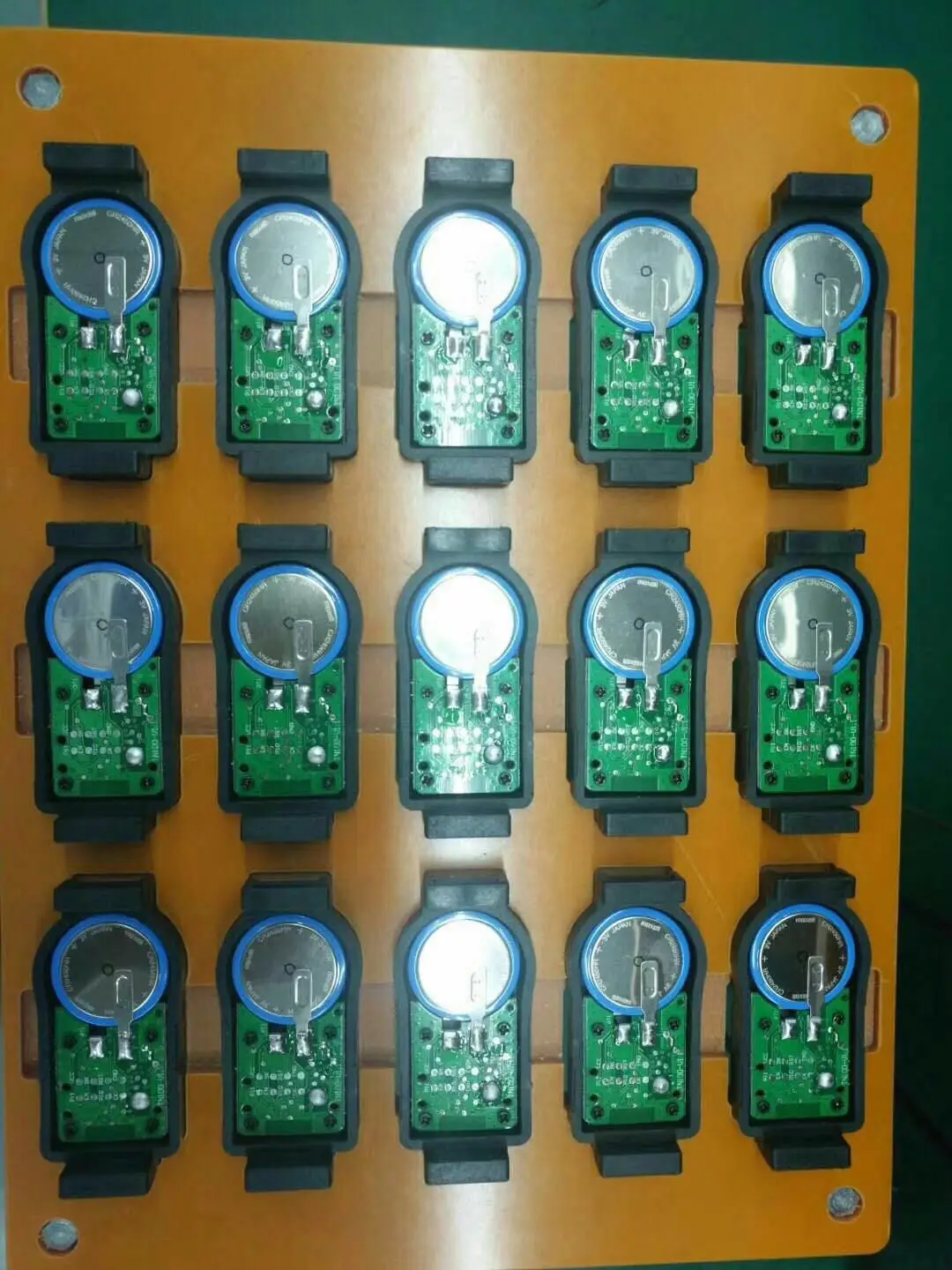

Bandage sensor:

• Operating frequency: 433.92MHz ± 28KHz
• Operating voltage: 2.0~3.3V
• Operating current: ≤10mA
• Static current: ≤1uA
• Operating temperature: -40~+125°C
• Storage temperature: -40°C~+125°C
• Battery model: CR2050
• Battery lifespan: ≥5years
• Weight:32g ± 0.5g(without bandage)
• Pressure range: 0-14Bar/0-203Psi

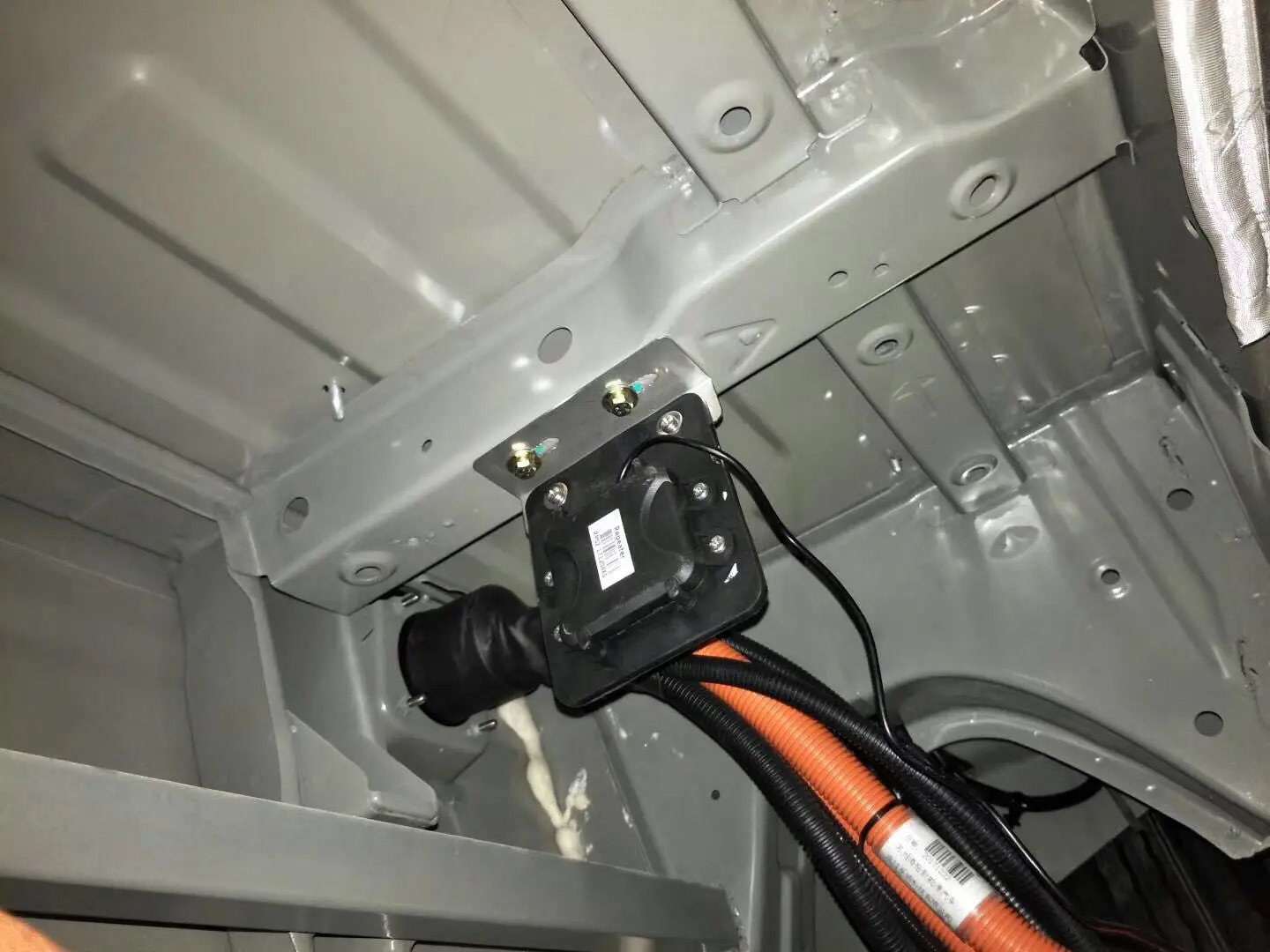

Repeater:

• Operating frequency: 433.92MHz ± 68KHz
• Operating voltage: DC9V-DC30V
• Operating current: ≤50mA
• Static current: ≤10mA
• Operating temperature: -40~+85°C
• Storage temperature: -40°C~+125°C
• Power supply: Trunk power
• RF Transmitter power: <10dbm
• RF receiver sensitivity: >-105dbm



Display:

• Operating frequency: 433.92MHz ±68KHz
• Operating voltage: DC9V—DC30V
• Operating current: ≤60mA
• Static current: ≤10mA
• Operating temperature: -20°C ~ +70°C

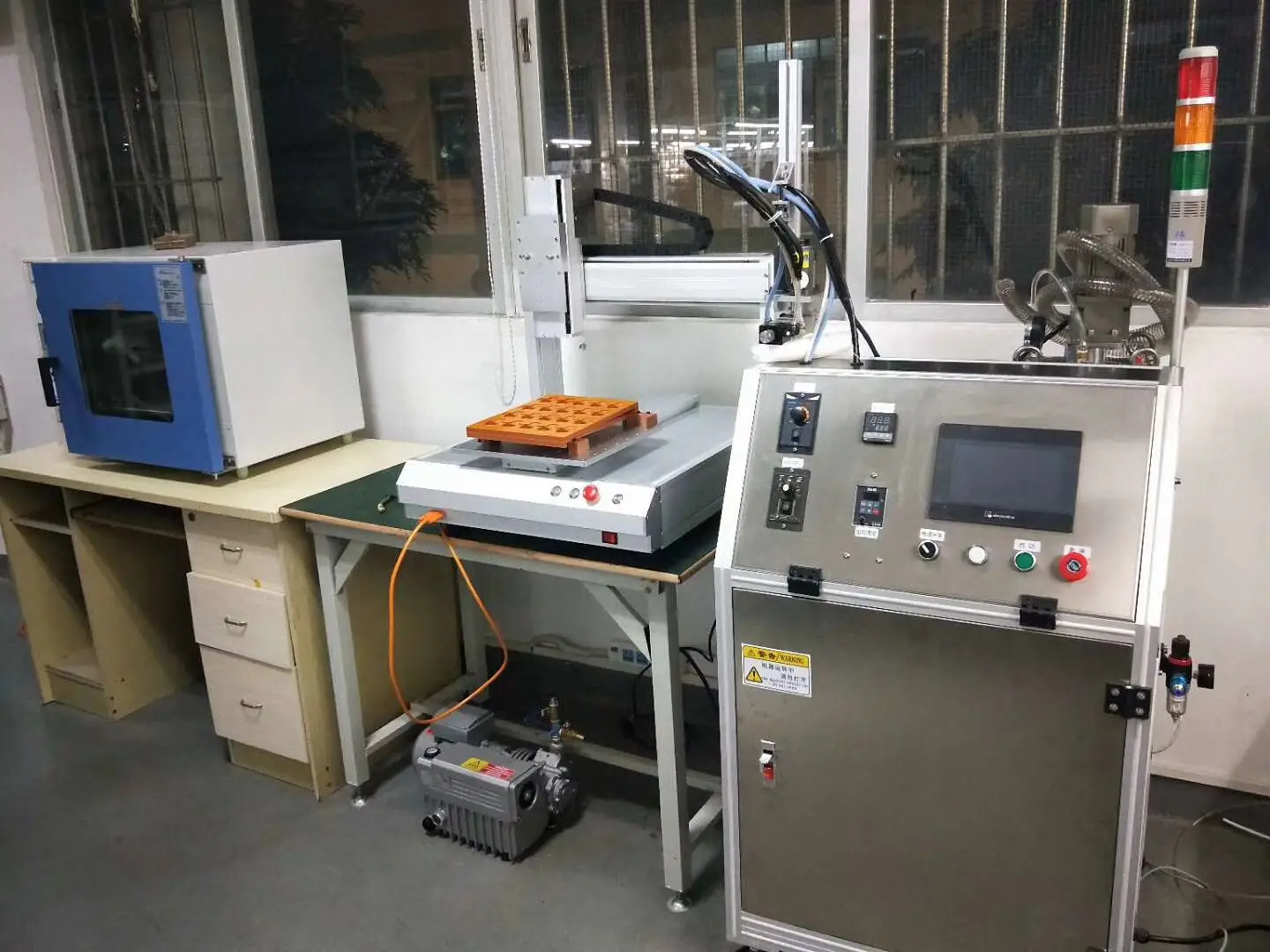

Company Information

Shenzhen E-Standard Technology Co.,Ltd, is located in Shenzhen,China and specialized in providing driving safety products for his customers, to help decrease crashes and save fuels on the road. After years' development,it has already launched several different kinds of product lines, such as TPMS,MDVR and dashcam.And we would like to try something new too, to creat a more convenient and safer driving environment for the drivers.



Exhibition



Packaging & Shipping

FAQ

Q1.What does E-Standrad Tech do?

A:We provide integrated vehicle management system for drivers and fleet managers, and also along with the seperate hardware, like MDVR, TPMS, driver fatigue monitor and GPS etc.

Q2.What's your warranty policy?

A:Most of our products has 12 months warranty, but some special parts can exceed to 24 months.If they have a fault in warranty, you can send it back and we will fix or exchange a new one for you.

Q3.Does you offer OEM/ODM service?

A:Yes,we do. However, firstly we need to know your detailed request and evaluate your plan, after that can we give you a good solution and a reliable quotation.

Q4.What is your shipment method?

A:As most of the products have a built-in battery,so we recommend shipping by HK DHL for small orders, and shipping by sea or airline for bulk orders. Of course, we also respect your advise if your have a better plan.
