metal zipper slider making machine

Product details
Name:jintai hot chamber die casting machine;Payment Terms:L/C,T/T,Western Union,MoneyGram,by cash;
Suitable for:Small Workshop;size:small;
Weight:1.2T;Model Number:15T standard die casting machine;
Power(W):5.5KW;Delivery Detail:Shipped in 10 days after payment;
After-sales Service Provided:Engineers available to service machinery overseas;Place of Origin:Guangdong China (Mainland);
Packaging Detail:wooden case or as required;Warranty:1 Year;
Port:Shenzhen;operation:easy to use;
Applied in:metal casting;Brand Name:JinTai Die Casting Machine;
function:full automatic;key word:die casting machine;
Dimension(L*W*H):2400x850x1800mm;Production Capacity:high;
style:horizontal;Condition:New;
Certification:ISO;Supply Ability:30 Set/Sets per Month;
Voltage:380V;Suitable Material:zinc alloy;
Colour:Green;



Main features:

1 Machine  hinge  automatic  lubrication  system;

2 Automatic  buckle  nozzle,leaving    the  nozzle;

3 Hydraulic  gear  adjustment  mode;

4 High  pressure, fast  speed,high  efficiency, no  burr;

5 Power  or  media  oil  can  be  selected  at  the  time;

6 Oil  cylinder  push-out ,can  adjust  push-out  distance  and  push-out  of  times;

Technical data of the machine:

Item

Unit

Specification

Item

Unit

Specification

Clamping force

KN

150

Volume  of Crucible

Kg

65

Diameter of Di-cylinder

mm

50

Oil  Pump Flow

L/min

26

Tie Bar Diameter

mm

36

Accumulator Volume

L

6.3

Opening  Stroke

mm

120

Oil  Tank Volume

L

150

Space between Tie Bars(H*W)

mm

194~204

Dry Cycle Time

S

3

Die Thickness(Min~Max)

mm

110~170

Heating Power  of  Spray  Nozzle

Kw

1

Stroke of injection Cylinder

mm

50

Heating  Power  for Material  Melt

Kw

9-12

Diameter of Injection Plunger

mm

35

Fuel  Oil  Use  for Material  Melt

Kg/h

1.5

Injection  Force

KN

16

Motor  Power

Kw

5.5

Diameter of  Injection  Plunger

mm

60

Hydraulic Pressure

M pa

5~7

Effective  Shot  Weight

g

100~200

Overall  Dimensions

Mm

2400*850*1800

Traverse  Stroke

mm

200

Machine  Weight

T

1.2

Main advantages:

1 small zinc alloy die casting machine.

2 used computer controlled die casting machine.

3 used pressure die casting machine.

4 used hot chamber die casting machine.

5 time-saving  and easy to opertion.

6 the machine are suitable for making the metal button ,zipper head ,zipper silder ,hardware accessories and garment accessories ,belt buckle and etc.

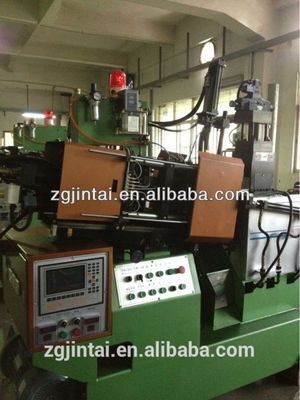

Product display:

The leading products in our factory:

machine parts:

our machine can make products as following:

our factory:
