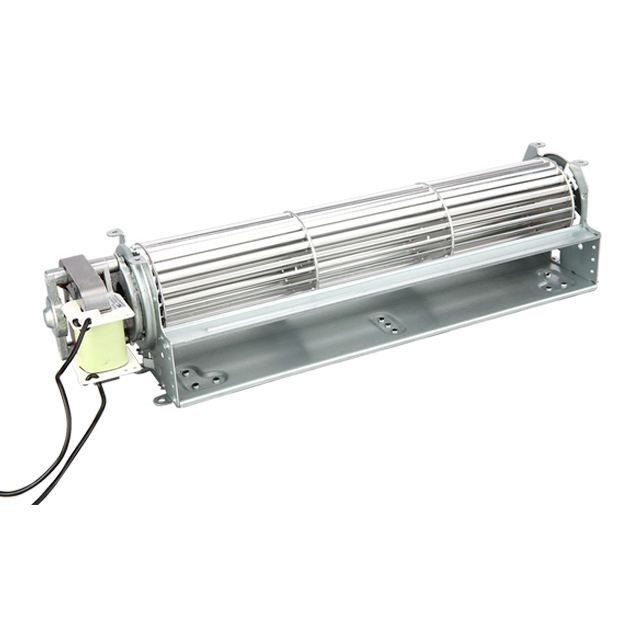

High quality shaded pole motor micro cross flow fan tangential fan blower for electrical appliances

Supplier: Xiamen Boland Refrigeration Equipment Co., Ltd.
Region: Fujian, China
Contact: Ms Emmy Chen
Price: $3.50 / >=300 pieces
Min. Order: 300 pieces

Click here to contact

Product details

Supply capacity:	10000pcs per week cross flow fan tangential fan motor with CE certification	type:	cross flow fan
Bearing:	Sleeve bearing or ball bearing	Package preview:
Install:	Tangential fan	payment terms:	L/C, D/P, T/T
Current type:	air conditioner	Warranty:	1 year

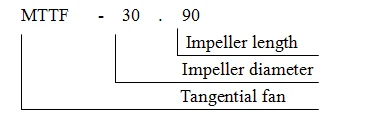

Model:	MTTF-30.90, MTTF-30.120, etc.	Packaging Details:	Each in a small box, 8 in a strong carton
speed:	1300-2800 rpm	Voltage:	230V
After-sales service provided:	online support	port:	Ningbo or Shanghai port
frequency:	50 Hz	application:	Air curtains, air conditioning and heating applications
Applicable industries:	Manufacturing plants, machinery repair shops, retail stores	noise:	35 database administrator
impeller:	aluminum structure	Operating temperature:	0 to +60°C
Origin:	Zhejiang, China	lead wire:	cable or terminal
brand:	Cross flow fan tangential fan motor	Blade material:	Stainless steel
Customization support:	OEM production

Product Description

CE certified cross flow fan tangential fan motor

Tangential fan

Crossflow or tangential fans provide wide, uniform high volume air delivery and are widely used in air curtain, air conditioning and heating applications.

- Impeller: Aluminum structure

- Bearings: sleeve bearings or ball bearings

- Operating temperature: 0 to +60°C

- Insulation class: B class, F class

-Certificate: CE

- Conductor: cable or terminal

specify

contact us

The ICEAGE sales team is waiting to provide more detailed technical information and help you filter out the right product for your application.

Specification

Model	Voltage (V)	Frequency (Hz)	Current (A)	Input power (W)	Speed (rev/min)	Maximum air volume (m³/h)	Noise decibel(A)
MTTF-30.90	230	50	0.06	8.5	2800	40	35
MTTF-30.120	230	50	0.10	15	2800	55	36
MTTF-30.240	230	50	0.11	16	2800	100	37
MTTF-30.300	230	50	0.10	16	2800	120	39
MTTF-40.120	230	50	0.08	13	2750	Post-90s	35
MTTF-40.180	230	50	0.13	twenty one	2700	140	36
MTTF-40.240	230	50	0.11	17.5	2700	190	37
MTTF-40.300	230	50	0.13	twenty one	2700	230	39
MTTF-45.180	230	50	0.10	12.5	1300	64	45
MTTF-45.240	230	50	0.22	twenty three	1600	135	45
MTTF-45.300	230	50	0.19	22.5	1300	107	41
MTTF-45.360	230	50	0.22	26	1400	158	42
MTTF-50.120	230	50	0.08	15	2500	130	40
MTTF-50.180	230	50	0.23	20	2650	210	41
MTTF-50.240	230	50	0.11	20	2200	220	42
MTTF-50.300	230	50	0.13	twenty two	2200	270	45
