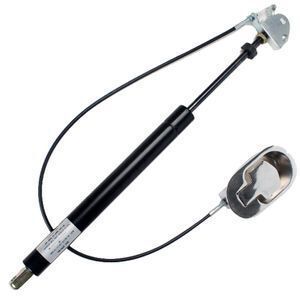

Adjustable Piston 350N Lockable 100kg Gas Spring For Wall Be

Supplier: Changzhou Double Spring Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Anny Zhang
Price: $3.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Package Type:	Gas spring will be put in poly bag in carton and will be packaged into pallet.;	length:	customized;
service:	OEM;	Package Preview:	https://sc02.alicdn.com/kf/HTB1mKYnmljTBKNjSZFNq6ysFXXav.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1_tDGmXooBKNjSZFPq6xa2XXaz.jpg_640x640.jpg;
Product name:	Lockable Gas Spring;	Place of Origin:	Jiangsu China (Mainland);
Style:	Cylinder;	Brand Name:	DS;
cylinder:	Can be customized;	Load Type:	Gas;
Single package size:	35X5X5 cm;	Single gross weight:	0.3 KG;
Mode:	KQL;	stoke:	customized;
Selling Units:	Single item;	Force:	customized;
Model Number:	KQL;	Certificate:	ISO9001/ROHS/SGS;
Packing:	Polybag;	Color:	Black or according to your request;
Usage:	furniture,industry,etc;	Delivery Detail:	0 days after payment;
Material:	Steel;

Gas spring Specifications

MODE	EXTENDED LENGTH/MM	STROKE/MM	CYLINDER DIA/MM	PISTON ROD DIA/MM	MIN FORCE/N
KQL001	250	40	22	10	100
KQL002	300	70	22	10	150
KQL003	350	100	22	10	150
KQL004	400	140	22	10	250
KQL005	600	240	22	10	100
KQL006	800	300	22	10	200
KQL007	200	40	27	10	100
KQL008	200	40	27	10	200
KQL009	280	100	27	10	350
KQL010	330	100	27	10	430
KQL014	600	200	27	10	100-500
KQL015	800	300	27	10	200-900
KQL016	900	350	27	10	200-1000

Extended length/mm	Stroke/mm	Cylinder/mm	Piston rod Dia./mm	Min Froce/N
250-800	40-300	22	10	100-250N
200-3000	40-350	27	10	100-1000N
Can be customized based on your requirements

Note: As above are parts of specifications. We also produce based on your needs so that choose the suitable connector, size and force which suit your own needs please

Gas spring Certifications

Packing

Company

ChangZhou Double Spring Co., Ltd was established in 2010 which is a specialized manufacturer dedicated to gas spring research and development, production and sales.
We successfully developed various types of gas spring which used on more than car, furniture, medical treatment, ships, machinery, dustbin etc.

Welcome to visit our factory!

FAQ

Q: What is your factory product range?

A: Lift Gas Spring, Lockable Gas Spring, Stainless Steel Gas Spring, Cabinet Gas Spring ,Liner actuator,Damper and End Fittings etc.

Q: What’s your MOQ of this gas spring?

A: 100pcs.Small quantity is is also ok.

Q: Can i make my own brand name?

A: Yes, of courser. OEM service is available for you.

Q: What is the lead time?

A: Normally 3-7 days, the lead time is according to the quantity.

Q: How do i know the products' quality and the packing ways are the ones we required?
A: Each product will be tested before sending out. We will send you photos for the goods to confirm again.

Q:How to assure the quality ?
A:Firstly, all of our materials and components pass the serious China Quality Standard and Control.

Secondly, all of our finished products should pass quality Check System before export.

Thirdly, our products can be provided to test and cetify by Authories according to customer's special needs.
