Warranty: | One Year Or1500 Running Hours; | Place of Origin: | Shandong China (Mainland); |
Engine Type: | original MAN gas engine; | Packaging Detail: | Export standard package (Plywood package) forhigh efficiency 30kw-500kw Germany MAN gas cogeneration units.; |
Start method: | DC 24V Electric Strat; | Model Number: | HTG-XXGF; |
Speed: | 1500rpm/1800rpm; | Rated Voltage: | 400V/230V; |
Certificate: | CE/ISO9001; | Genset Type: | Open,silent,container type; |
Alternator: | 100% Copper Wire Brushless; | Brand Name: | HAITAI POWER; |
Fuel type: | Natrual Gas Biogas Fuel; | Name: | high efficiency 30kw-500kw Germany MAN gas cogeneration units; |
Payment Terms: | L/C,T/T; | Options: | CHP System; |
Rated Current: | 54A-902A; | Frequency: | 50Hz/60Hz; |
Supply Ability: | 100 Set/Sets per Month; | Control panel: | Deepsea,ComAp,SmartGen,HT2012 etc.; |
Port: | Qingdao,China; |
high efficiency 30kw-500kw Germany MAN gas cogeneration units
Manufactures and operators of CHP applications have strong requirement. Robust, compact engines have to work reliably 24 hours a day, 7 days per week. Economic operation override the life cycle of the entire plant is therefore essential. This requires a high level of efficiency by maximum utilisation of primary energy and low plant operating costs.We selected Stamford/Marathon and other well-known brands of high efficiency Generators, through Deepsea/ComAp and other leading digital controller to ensure stable power output. Man series of gas generators can be widely in natural gas, biogas, landfill gas, liquid petrol gas and other combustible gaser.
Germany MAN gas cogenerator units specification / Data:
Generator Set | Model | HTG-XXGF |
Rated Power | 30kW-500kW | |
Standby Power | 33kW-550kW | |
Rated Voltage | 400V/230V | |
Rated Frequency | 50Hz/60Hz | |
Type | Open/Silent/Soundproof/Container | |
Diesel Engine | Engine Brand | original MAN gas engine |
Engine Model | E0834,E0836,E2676,E3268,3262 series | |
Net Power | 37kW-550kW | |
Alternator | Type | Brushless |
Brand | Stamford, Faraday, etc. | |
Connection | 3-pahse, 4-wire | |
Controller | Type | Auto PLC Controller |
Brand | Deepsea, SmartGen, ComAp, HT2012 etc. | |
Fuel | Natural Gas, Biogas, Landfill gas, Liquid gas | |
Application | Mines, Building, Oil Fields, Hospitals, Schools, Ports, Hotels, etc. | |
Delivery | By Sea, By Air, By Train, By Express | |
Warranty | 12 months or 1500 running hours (subject to the earlier) |

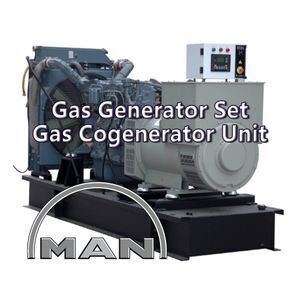

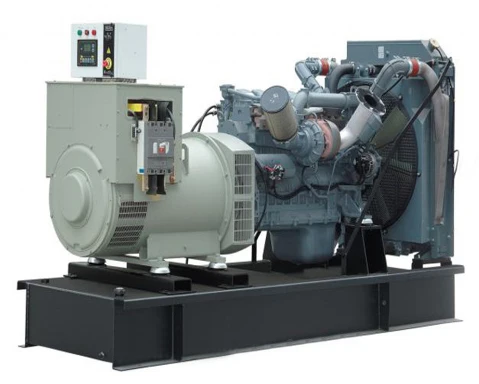

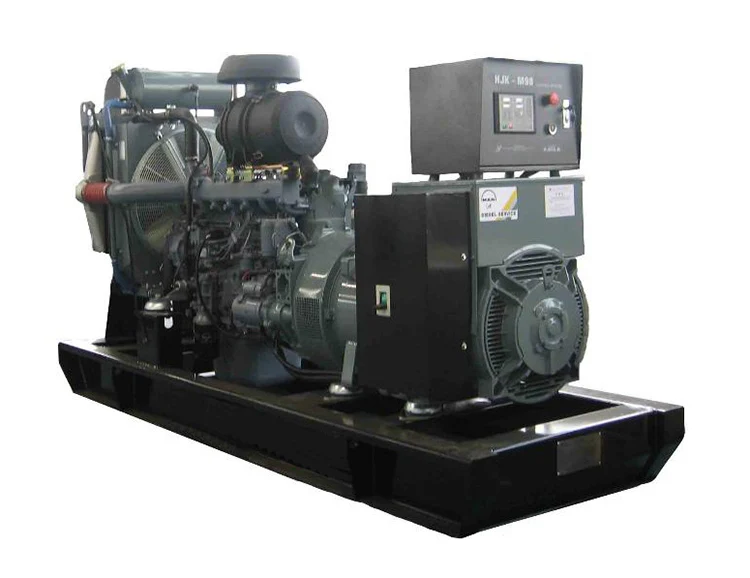

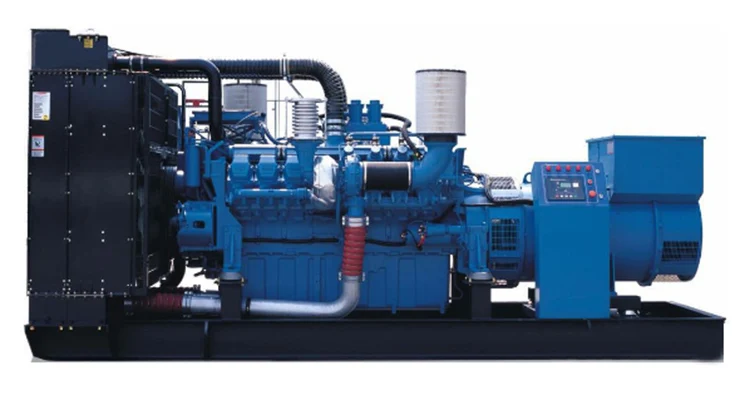

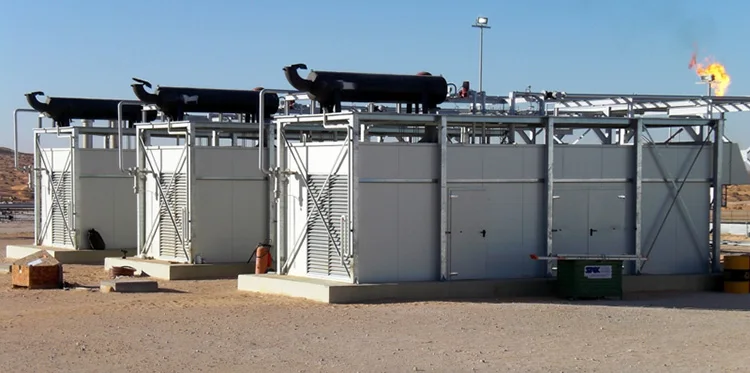

Product Photos:
MAN Gas Generator Set Series Date List:
MAN Technical Gas Cogenerator Unit (50Hz, 3Phases-Wires, cosΦ=0.8, Sea level<1000m) | |||||||||
Genset Model | Prime Power (kW/kVA) | Rated Voltage (V) | Type | Engine Model | Rated Power (kW) | Cylinder number | Air-fuel ratio (λ) | Bore*Storke (mm*mm) | Dspl. (L) |
HTG-48GF | 48/60 | 400/230 | E0834 | E302 | 54KW | 4 .L | 1.00 | 108*125 | 4.6 |
HTG-34GF | 34/43 | 400/230 | E312 | 37KW | 4 .L | 1.50 | 108*125 | 4.6 | |
HTG-58GF | 58/73 | 400/230 | LE302 | 68KW | 4 .L | 1.60 | 108*125 | 4.6 | |
HTG-68GF | 68/85 | 400/230 | E0836 | E302 | 75KW | 6.L | 1.00 | 108*125 | 6.9 |
HTG-50GF | 50/63 | 400/230 | E312 | 56KW | 6.L | 1.50 | 108*125 | 6.9 | |
HTG-100GF | 100/125 | 400/230 | LE202 | 110KW | 6.L | 1.65 | 108*125 | 6.9 | |
HTG-128GF | 128/160 | 400/230 | E2676 | E302 | 140KW | 6.L | 1.00 | 126*166 | 12.4 |
HTG-200GF | 200/250 | 400/230 | LE202 | 220KW | 6.L | 1.73 | 126*166 | 12.4 | |
HTG-350GF | 350/438 | 400/230 | E3268 | LE212 | 370KW | 8.V | 1.69 | 132*157 | 17.2 |
HTG-250GF | 250/313 | 400/230 | E3262 | E302 | 275KW | 12.V | 1.00 | 132*157 | 25.8 |
HTG-400GF | 400/500 | 400/230 | LE232 | 450KW | 12.V | 1.64 | 132*157 | 25.8 | |
HTG-500GF | 500/625 | 400/230 | LE202 | 550KW | 12.V | 1.68 | 132*157 | 25.8 | |
Remarks: 1. The selection table suit for the gas with heat value>34 MJ/m3, for other gas generator selection, please consult our technical department. 2. We provide 60Hz products and other voltage according client's requirement. 3. The above technical information is for reference only, please contact our technical department to obtain accurate technical parameters. |

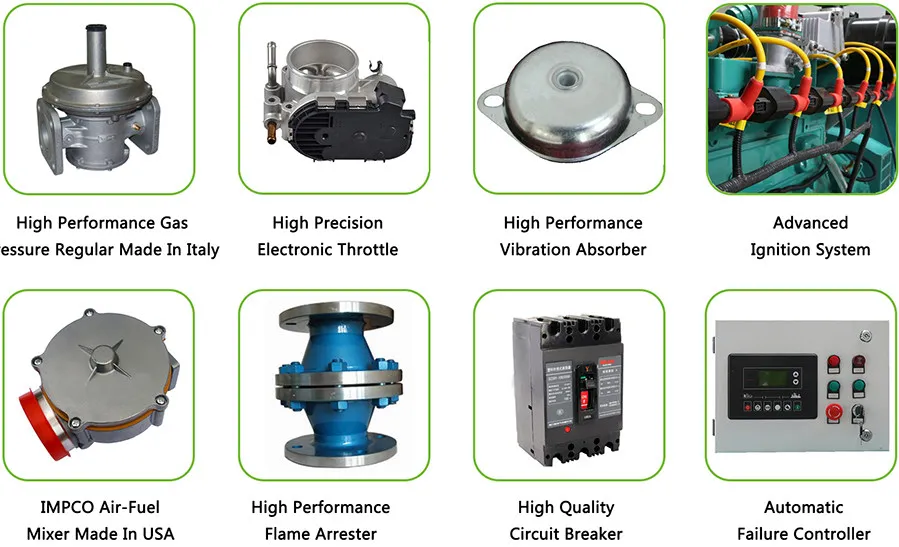

high efficiency 30kw-500kw Germany MAN gas cogeneration units High Quality Parts:
The company was founded in 2012, has two factoriers and a foreign trade corporation. We are major in design, manufacturing, and installing of superb diesel Generator set (including soundproof type, mobile type, containerized type, intelligent type, high voltage generators, portable lighting towers etc.), Gas Generator set (including nature gas, biogas, biomass, LPG, CHP generator etc.),biomass gasification system and biogas purification equipment and so on.
Haitai Power has perfect certificate system, such as CE, ISO, SGS, SON, CSC etc.
Q1.Are you a factory or trading company?
We have two modern factory. We have 50 factory workers and 5 of them are quality control and engineer guys. Welcome to visit our factory.
Q2. Is Your products the lowest price?
HAITAI take the quality into consideration prior. The price is based on the quality level and the order quantity. We have different quality level products for buyers option and discount is available from us when the order is big.
Q3.What's your warranty?
Re: All our products we offer one year warranty or 1500 hours which comes first.
Q4. If the goods in transit damage, how to do?
First of all, we will use stable packing, the possibility of the goods damaged during the shipping is low. If the goods is damaged during shipping and we covered the insurance, we will claim the insurance company and let them cover the loss. If there is no insurance cover, we will claim the shipping company and some times, we cover the loss of the goods for client.
Q5. Can we add our logo on products?
Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.
Q6. can we customize product?
OEM and ODM are welcomed from GT. We have rich experiences in this area.
Q7. What's your delivery time?
Re: 7-20 work days after we get the down payment, if your order is some special engine and alternator, then the delivery time is longer.
Q8. What's your payment?
Re: We accept T/T, L/C, Alibaba trade assurance also acceptable.
