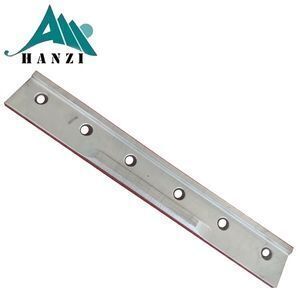

UIC60 Rail Fishplate

Supplier: Hanzi Industrial Shanghai Co., Ltd.
Region: Shanghai, China
Contact: Ms Nancy Zhang
Price: $1.80 /piece
Min. Order: 1 piece

Click here to contact

Product details

Type:	Joint Bar;	Usage:	Fastening Railroad;
Package Preview:	https://sc01.alicdn.com/kf/HTB1zUw_ayjrK1RjSspl760HmVXaV.png_640x640.png;	Brand Name:	HANZI;
Place of Origin:	Shanghai China (Mainland);	Types:	Angle Toe, Combination;
Selling Units:	Single item;	Surface:	Natural;
Single gross weight:	1 KG;	Material:	AREMA Grade,55#,etc;
Package Type:	On Pallets for Rail Joint Steel Bar.;	Product name:	UIC60 Rail Fishplate;
HS Code:	73024;	Single volume:	1 cm;
Dimensions (L x W x H) (mm):	1.1875'',1.3125'' ,etc;	Certificates:	ISO9001:2008,SGS;
Other Name:	Joint Bar;	Quality Control:	Machine Adjustment;
Configuration:	4-hole, 6-hole;	Application:	Rail Maintenance;

UIC60 Rail Fishplate

Detailed Images

In rail terminology, a fish plate, splice bar or Joint Bar is a metal bar that is bolted to the ends of two rails to joint them together in a track. The name is derived from fish, a wooden bar with a curved profile used to strengthen a ship's mast. The top and edges are tapered inwards so the device wedges itself between the top and bottom of the rail when it is bolted into place. In rail transport modelling, a fishplate is often a small copper or nickel silver plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.

The size and shape of rail joint bar depends on the rail types and weight. The fishplates on FR flatbottom rail from whatever source have all been four hole plates. They often have hexagonal nuts whereas the nuts on chaired track (doublehead and bullhead) were usually square. This has a big effect on how easy it is to get a spanner onto the nut to loosen or tighten it - hexagonal nuts being much easier than square ones.

Production Flow

Test&Package

Trade Shows

Hanzi Certifications

ISO Certified Company

Hanzi Industrial established a comprehensive Quality Assurance (Q.A) System. It is regularly tested,approved and audited by independent Q.A auditor. This complies with internationally standards ISO 9001: 2008.
