KPO Rail Clamp Connector HDG Best Sale, Railway Clamp KPO, Rail Clamp With Bolt and Washer

Supplier: Kunshan ALEX Railway Fastening Co., Ltd.
Region: Jiangsu, China
Contact: Ms. Jenny Liu
Price: $0.50 / >=5000 pieces
Min. Order: 5000 pieces

Click here to contact

Product details

Standard or Nonstandard:	standard and non-standard;	Surface:	Bluing, Plain Oiled, Color Painting;
Manufacturer:	Kunshan Alex;	Type:	Rail Clamp;
Name:	KPO Rail Clamp Connector HDG Best Sale;	Payment Terms:	L/C,T/T,Western Union,Rail Clamp;
Standard:	DIN17221, BS970, GB/T1222;	Quality Control:	inspection at every production process and shipment;
Model Number:	KPO3, KPO6 Series etc;	Brand Name:	Alex;
Port:	Shanghai;	Supply Ability:	20000 Piece/Pieces per Day Rail Clamp;
Material:	Metal;	Packaging Detail:	Rail Clamp package:Woven Bag/Kegs and Pallet of fumigation free;
Dimensions (L x W x H) (mm):	As per requirements;	Delivery Detail:	10-15 Days;
Usage:	fastening;	Structure:	E Clip,SKL Clip,PR Clip,Nabla Clip,Vertical Special Rail Clip,Rail Dee;
Model Number:	Rail Clamp;	Place of Origin:	Jiangsu China (Mainland);
Raw Material:	Q235, 35#, 45#;

KPO Rail Clamp Connector HDG Best Sale

Product Description

Our rail clamp is made from low carbon steel or alloy steel by hot forging, rolling and casting, based on the requirements of our customers. We produce rail clamp in accordance with DIN, GB/TB, AREA standards and customer drawings. We also produce rail fastening clamps in accordance with AREA, ranging from 52 lbs rail, 62 lbs rail, 114 lbs rail, 106 lbs rails, 120 lbs rails, 128 lbs rails, 171 lbs rails and 75 lbs rails. The rail clamp we produced, i.e., S18, S20, S30, S33, KP03, KP06 and KP03.

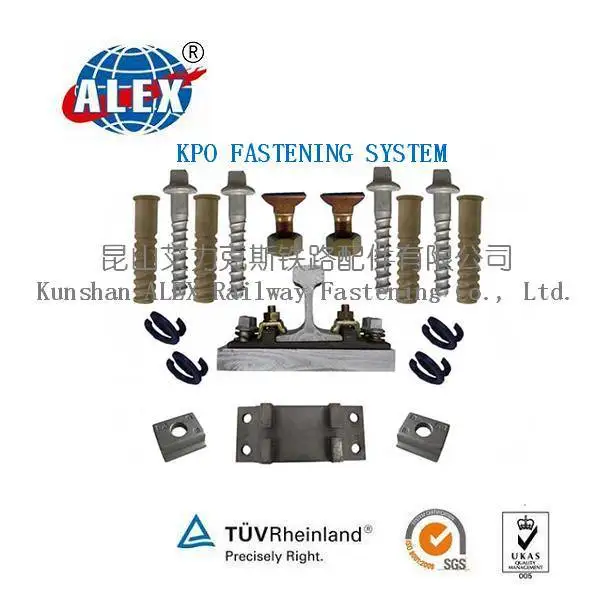

KPO Rail Clamps Railway Fastening System Technical Parameters

Part name	Type	Material	Finish	Remark
KPO clip	KPO3, KPO6, KPO9	Q235	Plain oiled	Standard: DIN5906
HS bolt	HS26, HS32	Grade4.6: Q235 Grade5.6: 35# Grade8.8: 45#	Plain oiled, black oxide, galvanized, hot dip galvanized	Diameter: 22mm or 24mm. Length: 55mm, 65mm, 75mm, 90mm Standard: UIC864-2
Hex nut	As ordered	Grade 5: 35# Grade 8: 45#	Plain oiled, black oxide, galvanized, hot dip galvanized	Standard: DIN985
Double coil spring washer	As ordered	65Mn	Plain oiled, black oxide, galvanized, hot dip galvanized	Standard: UIC864-3
screw spike	M24×150mm M24 ×160mm M24 ×180mm or other length as ordered	Grade 4.6: Q235 Grade 5.6: 35# Grade 8.8: 45#	Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized.	Standard: ISO898-1, UIC864-1 and NF F500-50
Base plate	UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size	Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel	Plain oiled	Standard: UIC864-6

Packaging & Shipping

Our Services

We manufactures Rail E Clip and Rail Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail, Wooden Sleeper, Auto Bolt and Other spare parts.

Company Information

Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc. We can provide products according to customers drawings and samples.Our main products are as following:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.

2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip

3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts

4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad

5. Fish plate / Joint bar / Rail joint/ Splice Bar

6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt

7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip

8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers

9. Plastic dowel / Guide plate/ Nylon insert

We are trying to supply the best products at the best price!

KPO Rail Clamp Connector HDG Best Sale
